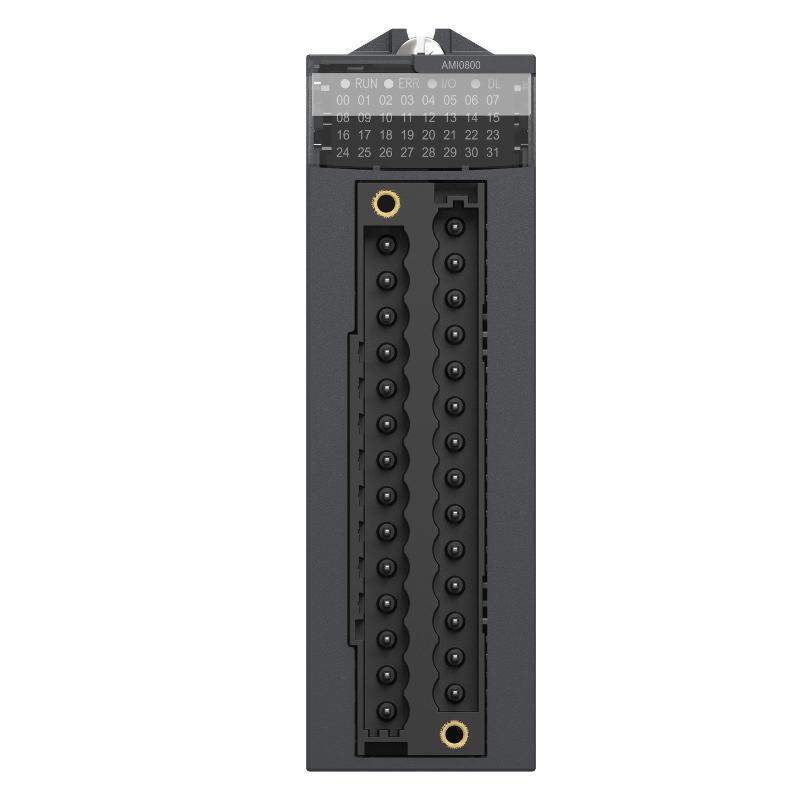

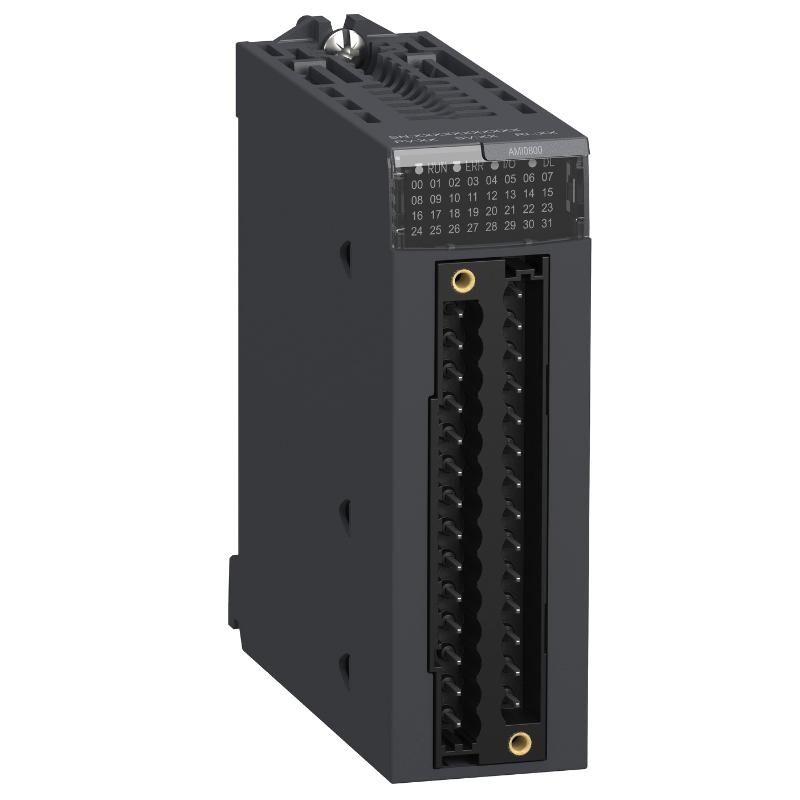

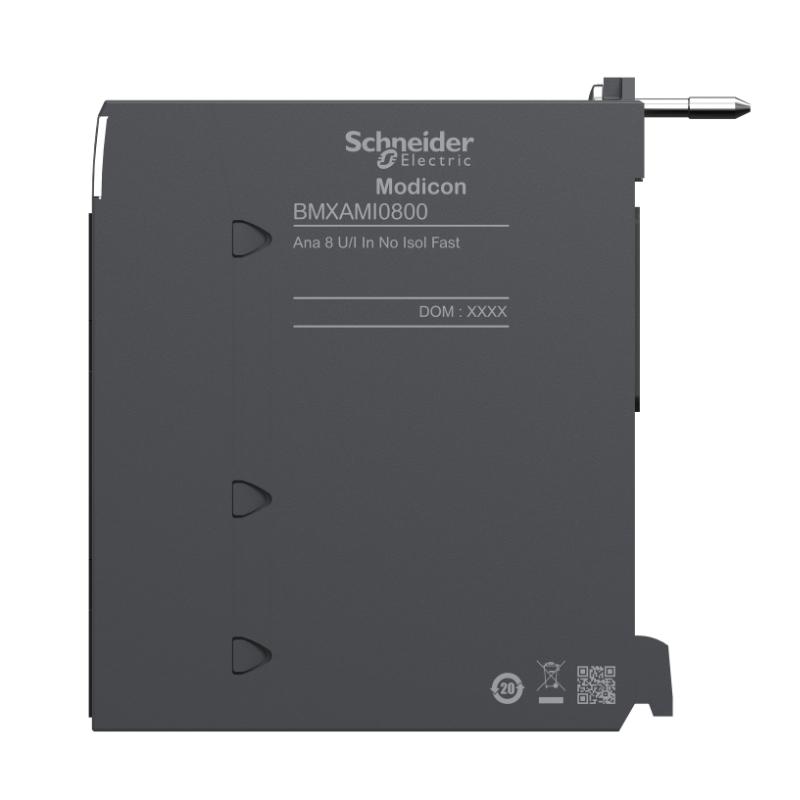

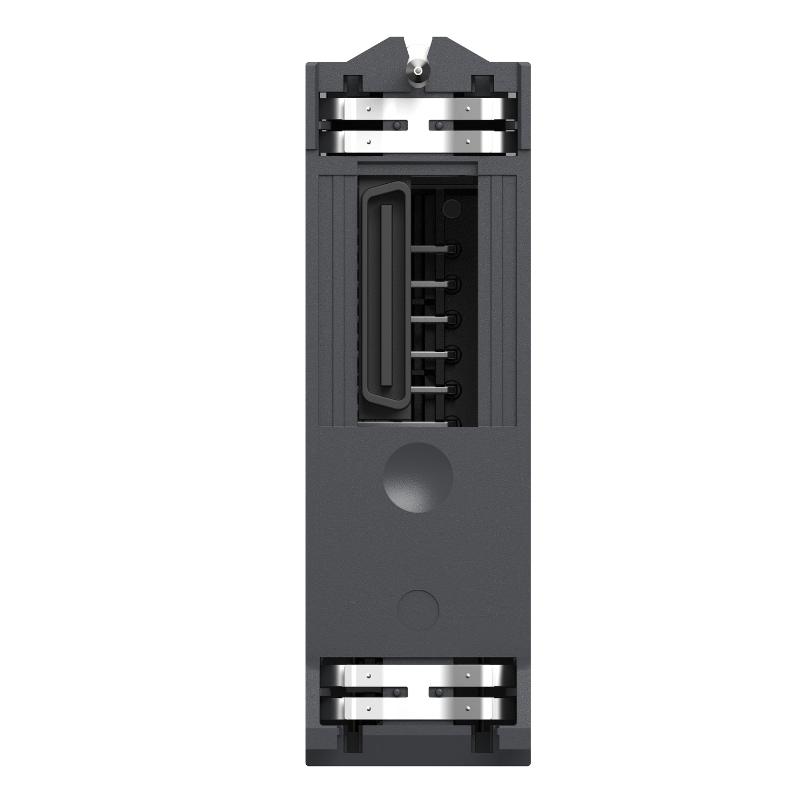

Schneider BMXAMI0800 Non-isolated Analog Input Module
Schneider BMXAMI0800 Non-isolated Analog Input Module
0.0
Points
Brand:Schneider PLC Item No.:BMXAMI0800 Product Origin:France Product Dimensions:100 × 32 × 86 mm Product Weight:0.165 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider BMXAMI0800 Non-Isolated Analog Input Module is a high-speed industrial signal acquisition device designed for Modicon X80 PLC systems. It provides 8 channels of analog input, allowing efficient monitoring of industrial process variables such as temperature, pressure, and flow.
Technical Specifications
Parameter
Specification
Model
BMXAMI0800
Type
Non-Isolated Analog Input Module
Platform
Modicon X80
Input Channels
8
Input Types
Voltage & Current (0–10 V, 4–20 mA, etc.)
Resolution
16-bit
Isolation
Non-isolated
Fast Scan Time
~1 ms + channel dependent
Dimensions
100 × 32 × 86 mm
Weight
0.165 kg
Power Consumption
~1.1 W @ 24 V DC
Application
Industrial automation and process control
Recommended Related Models
Model
Product Name
BMXAMI0410
4-Channel Analog Input Module
BMXART0414
Temperature Input Module
BMXDDI3202
Digital Input Module
BMEAHI0812
High-Precision Analog Input Module
Popular Related Models
Model
Product Name
BMXDDO3202
Digital Output Module
BMXP342020
Modicon M340 Processor Module
BMEH584040S
Redundant CPU Processor Module
BMXCRA31210
Communication Adapter Module
Applications
• Used in Modicon X80 PLC systems for fast acquisition of analog process signals in industrial automation
• Applied in manufacturing and process control systems to monitor variables such as pressure, temperature, level, and flow
• Integrated into PLC-based control cabinets for centralized analog signal processing and data acquisition
• Used in factory automation systems requiring high-speed multi-channel analog input scanning
• Deployed in industrial monitoring applications where cost-effective and compact analog input solutions are required
Key Advantages
• 8-channel analog input design enables efficient multi-signal acquisition in a single module
• High-speed sampling supports real-time industrial process monitoring
• Multi-signal compatibility (voltage and current) increases application flexibility
• Compact Modicon X80 format simplifies installation and system expansion
• High-resolution 16-bit conversion improves measurement accuracy for industrial control
Technical FAQs
Q1: What is the main function of this module?
It collects and converts analog signals into digital data for PLC systems.
Q2: How many input channels does it support?
It supports 8 analog input channels.
Q3: What signal types are supported?
It supports voltage and current signals such as 0–10 V and 4–20 mA.
Q4: Is it isolated?
No, it is a non-isolated analog input module.
Q5: What PLC system is it used with?
It is designed for Schneider Modicon X80 platforms.
Q6: Is it suitable for fast process monitoring?
Yes, it supports high-speed analog data acquisition.
Q7: What is the resolution of the module?
It uses 16-bit analog-to-digital conversion.
Q8: Can it be used in industrial environments?
Yes, it is designed for industrial automation systems.
Q9: Does it support multiple signal types?
Yes, it supports both voltage and current inputs.
Q10: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
