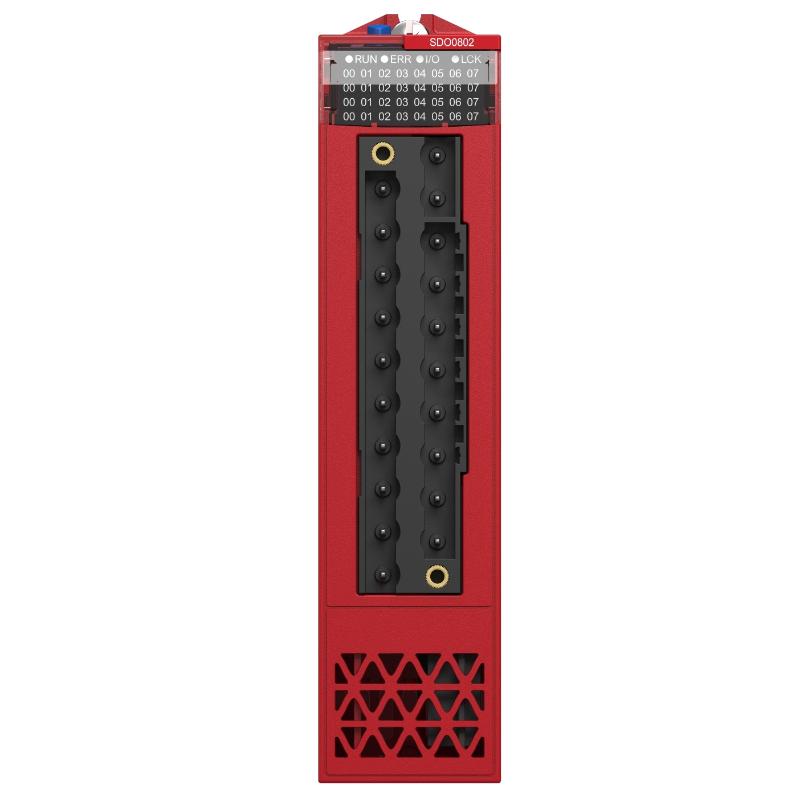

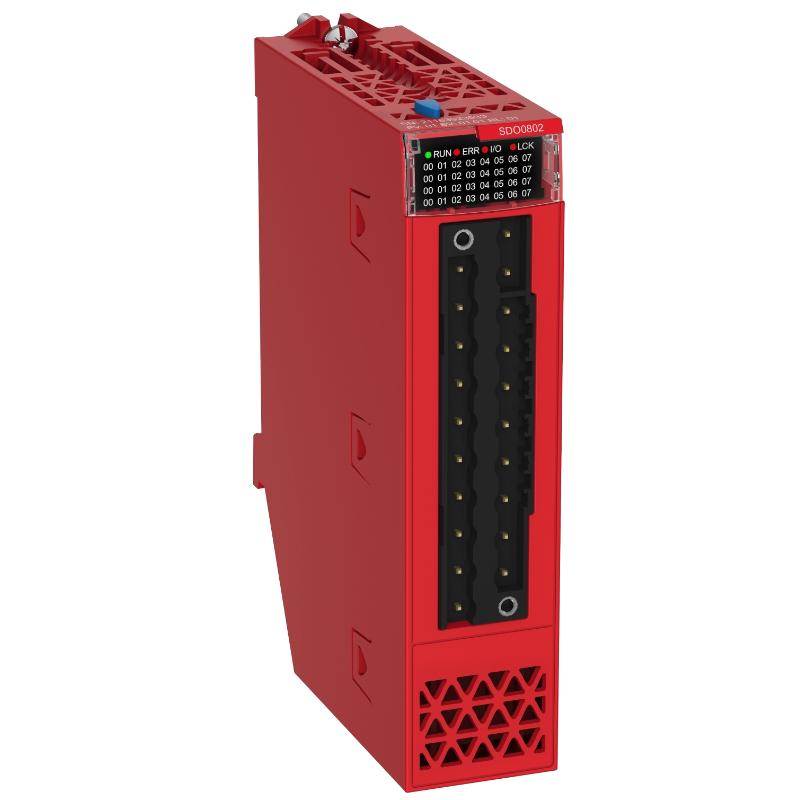

Schneider BMXSDO0802 Safe Discrete Output Module

Applications

• Used in Modicon X80 safety automation systems for controlling safety-related digital outputs in industrial environments

• Applied in emergency shutdown (ESD) systems to safely control actuators, valves, and safety relays

• Integrated into safety PLC architectures for machine guarding, interlock control, and protection logic execution

• Used in process industries such as oil & gas, chemical plants, and power generation where SIL-rated output control is required

• Deployed in automated manufacturing systems requiring certified safe switching of field devices

Key Advantages

• SIL3 safety-rated design ensures high-level functional safety compliance for critical applications

• 8-channel safe output structure provides reliable and controlled switching of industrial loads

• Fast response time (~1.2 ms) supports rapid safety reaction in emergency conditions

• Built-in diagnostics and LED indicators improve fault detection and maintenance efficiency

• Robust protection functions (short-circuit, overload, overvoltage) enhance system reliability

Technical FAQs

Q1: What is the main function of this module?
It provides safety-rated digital output control for industrial automation systems.

Q2: How many output channels does it support?
It supports 8 safety discrete output channels.

Q3: What is the output voltage?
It operates at 24V DC (19–30V range).

Q4: Is it safety certified?
Yes, it is designed for SIL3 safety applications in Modicon systems.

Q5: What type of outputs does it use?
It uses solid-state, positive logic outputs.

Q6: Is it suitable for emergency shutdown systems?
Yes, it is commonly used in ESD and safety interlock systems.

Q7: Does it support fault detection?
Yes, it includes diagnostic LEDs and fault monitoring functions.

Q8: Can it operate in harsh environments?
Yes, it is designed for industrial-grade conditions.

Q9: Does it protect against short circuits?
Yes, it includes electronic and fuse-based protection mechanisms.

Q10: Is it compatible with Modicon X80 systems?
Yes, it is fully designed for Modicon X80 safety architectures.
