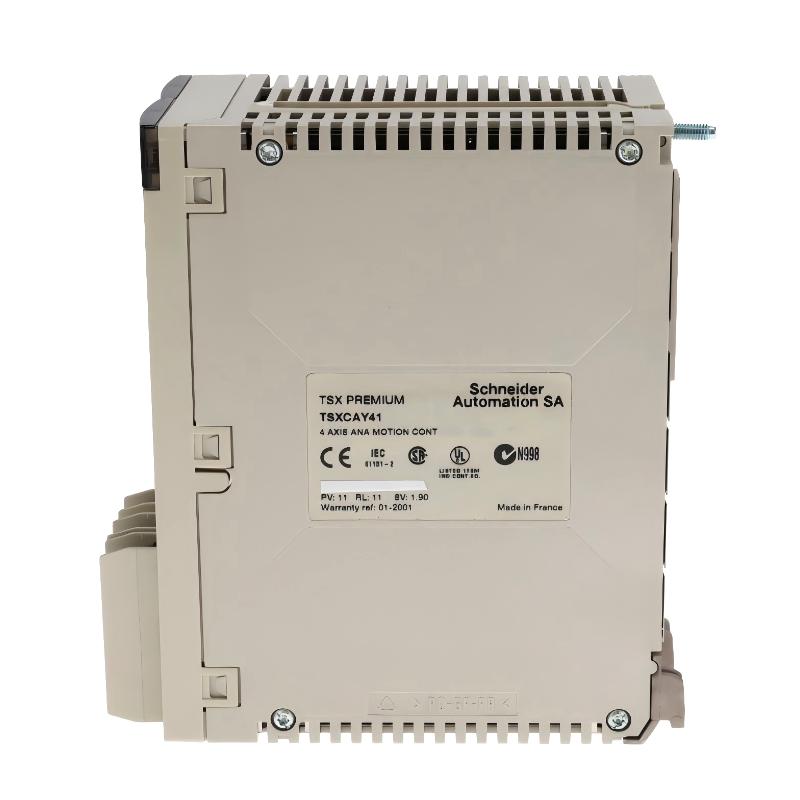

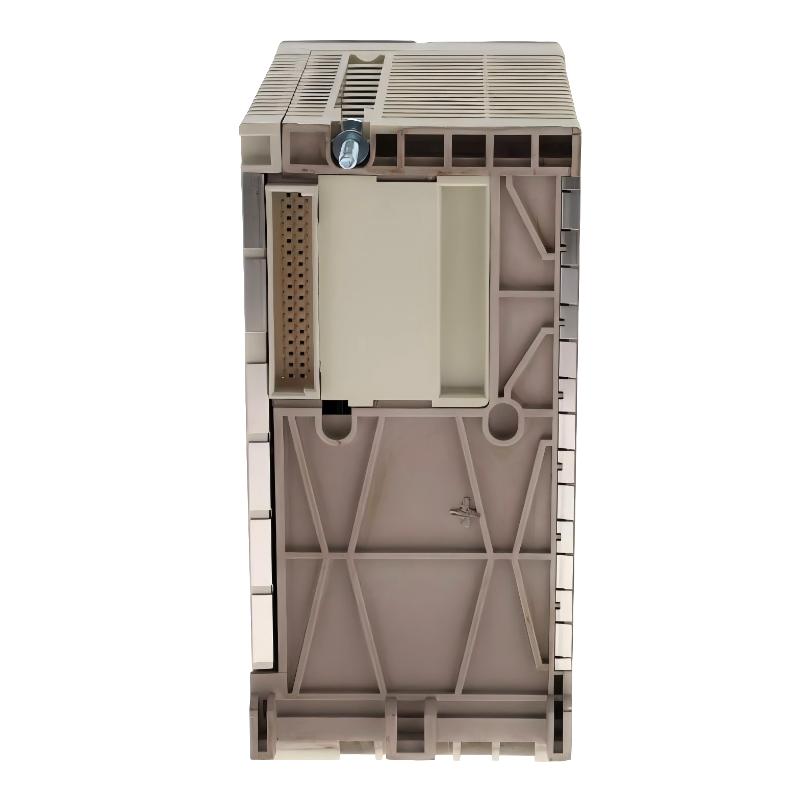

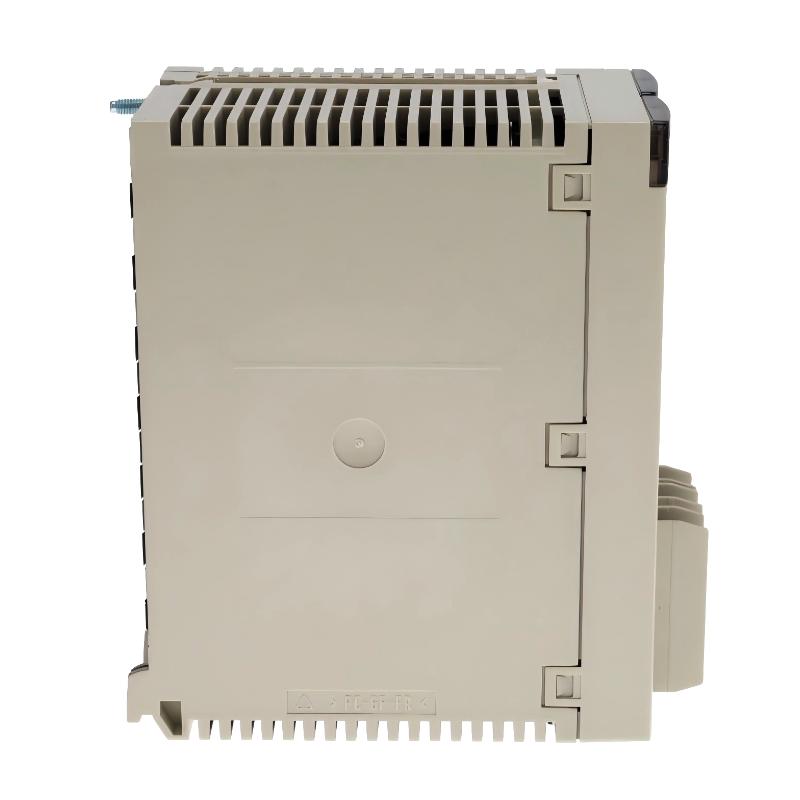

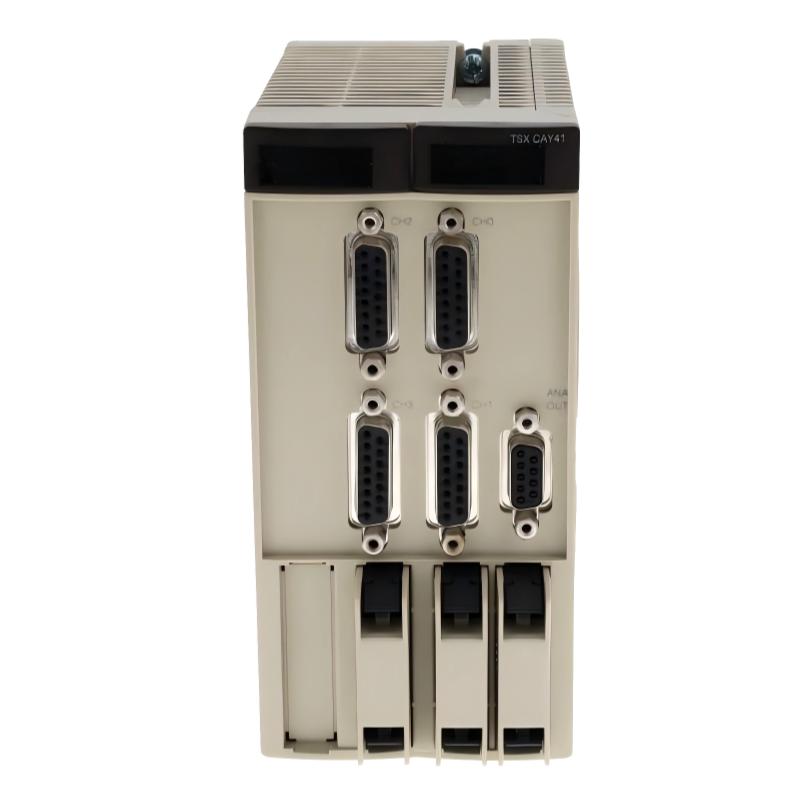

Schneider TSXCAY41 Motion Control Module

Applications

• Used in advanced servo-driven motion control systems for precise positioning of industrial machinery

• Applied in multi-axis automation systems such as packaging machines, CNC-like positioning equipment, and robotic handling units

• Integrated into Modicon Premium PLC architectures to coordinate synchronized servo motor movements

• Used in high-speed production lines requiring accurate motion sequencing and trajectory control

• Deployed in industrial automation systems where real-time axis synchronization and interpolation are required

Key Advantages

• Supports multi-axis control (up to 4 axes) for complex motion coordination tasks

• High-speed servo loop execution enables precise and smooth motor positioning

• Advanced interpolation capability improves trajectory accuracy in automated machinery

• Flexible control modes support manual, automatic, follower, and synchronized operations

• Robust industrial design ensures stable performance in demanding factory environments

Technical FAQs

Q1: What is the main function of this module?
It provides multi-axis motion control for servo-driven industrial automation systems.

Q2: How many axes can it control?
It supports up to 4 servo axes depending on configuration.

Q3: What type of motors does it support?
It is designed for servo motor control applications.

Q4: Does it support interpolation?
Yes, it supports advanced linear interpolation for coordinated motion.

Q5: What PLC platform is it used with?
It is designed for the Modicon Premium automation platform.

Q6: Can it handle high-speed motion control?
Yes, it supports fast servo loop execution for precise control.

Q7: Does it support multiple motion modes?
Yes, including automatic, manual, follower, and direct drive modes.

Q8: Is it suitable for robotics applications?
Yes, it is commonly used in robotic and multi-axis positioning systems.

Q9: Can it synchronize multiple axes?
Yes, it is designed for synchronized multi-axis control.

Q10: Is it suitable for continuous industrial use?
Yes, it is built for 24/7 industrial automation environments.
