Brand:Schneider PLC Item No.:TM258LF42DT4L Product Origin:France Product Dimensions:237.5 x 99 x 85 mm Product Weight:0.77 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

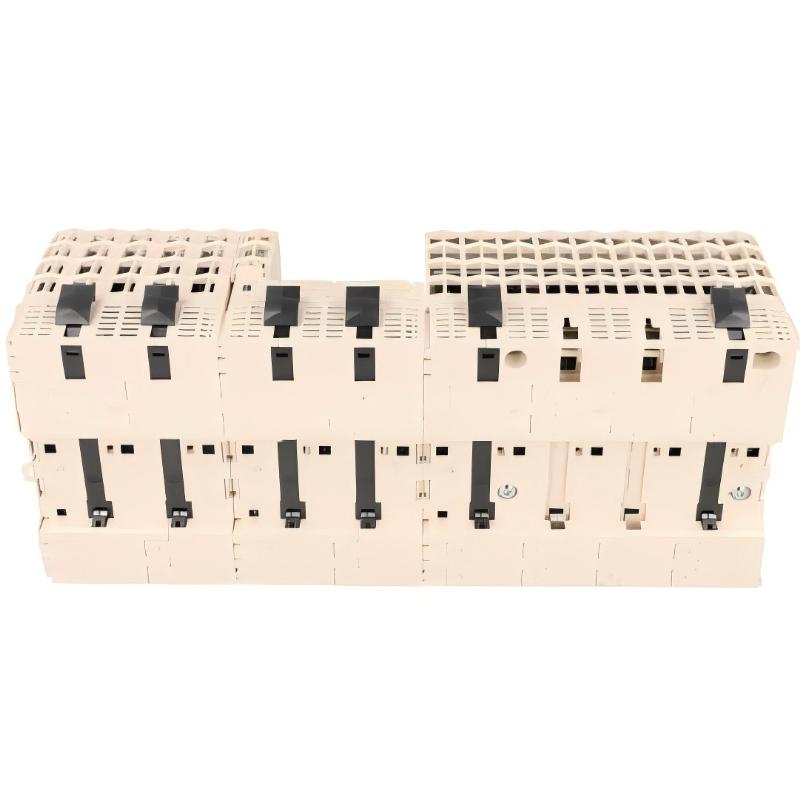

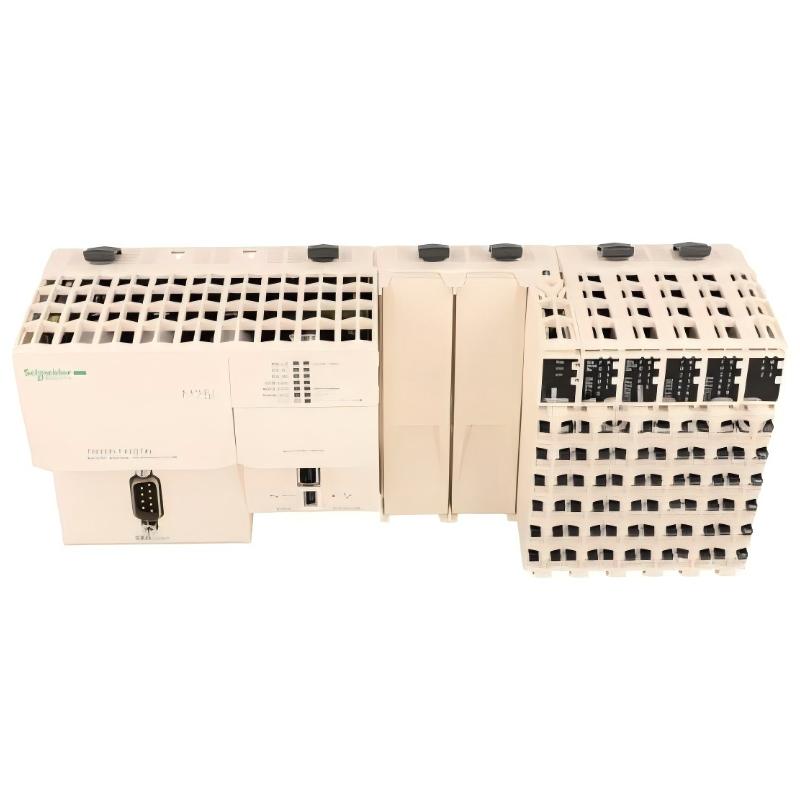

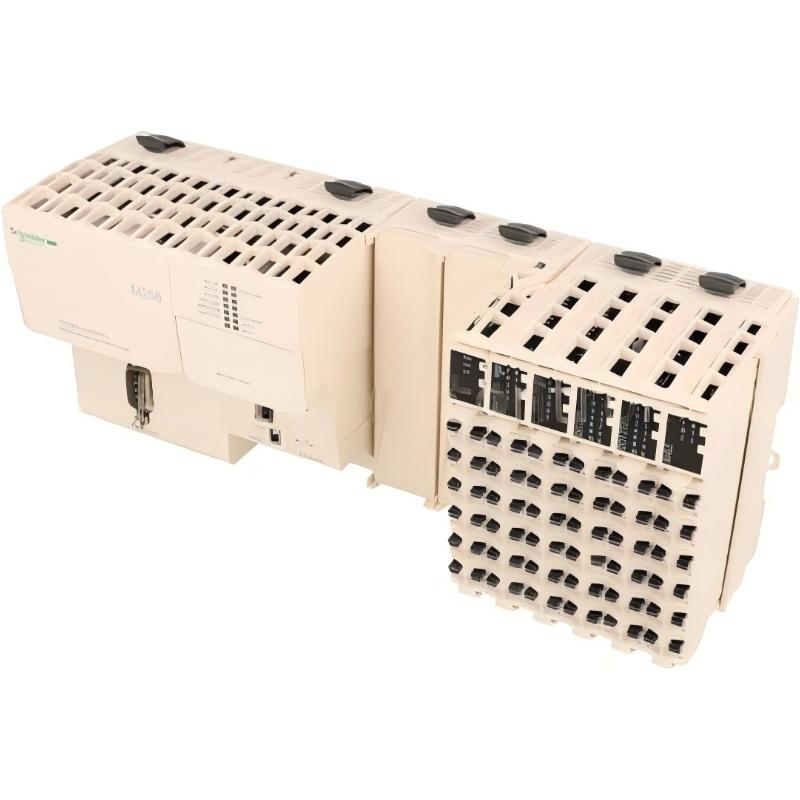

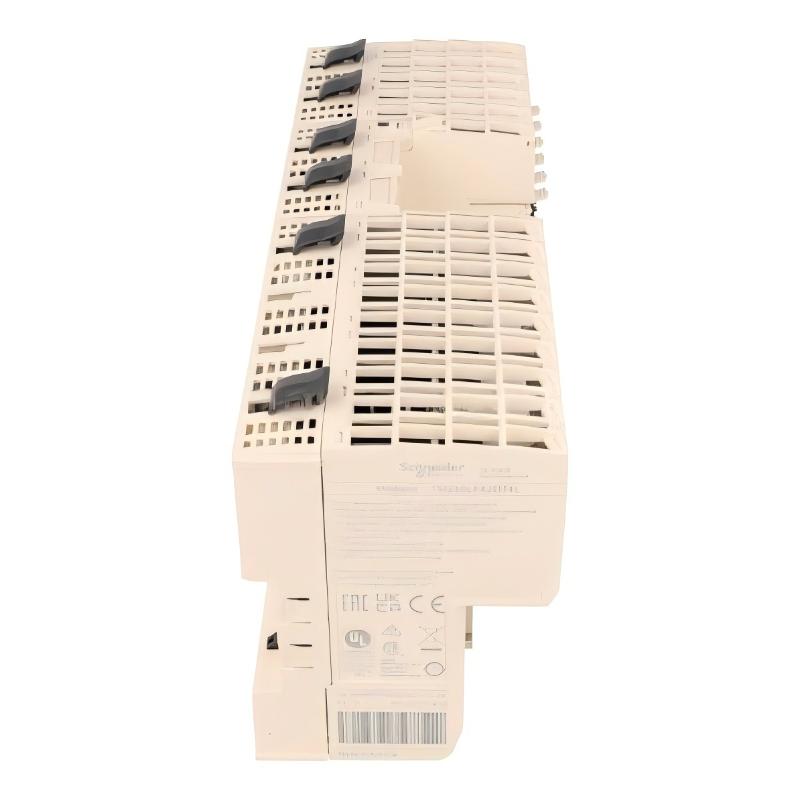

The Schneider TM258LF42DT4L Logic Controller is a high-performance compact PLC designed for industrial machine automation. As part of the Modicon M258 platform, it integrates logic control, communication, and embedded I/O capabilities into a single controller, making it suitable for distributed machine control applications.
Technical Specifications
Parameter
Specification
Model
TM258LF42DT4L
Series
Modicon M258
Type
Logic Controller (PLC)
Supply Voltage
24 V DC
Digital Inputs
26
Digital Outputs
16
Analog Inputs
4
Communication Ports
Ethernet, CANopen, USB, Serial
Memory
64 MB RAM + flash storage
Expansion Support
TM5 I/O modules
Dimensions
237.5 × 99 × 85 mm
Weight
0.77 kg
Protection Rating
IP20
Application
Industrial machine automation systems
Recommended Related Models
Model
Product Name
TM258LF42DT
Standard M258 Logic Controller
TM258LD42DT4L
Ethernet-CAN Expanded PLC Controller
TM241CE40R
Modicon M241 Compact PLC
TM262L10MESE8T
Advanced Motion Logic Controller
Popular Related Models
Model
Product Name
TM221CE16R
Modicon M221 Logic Controller
TM251MESE
Compact Machine Controller
BMXP342020
Modicon M340 Processor Module
BMXDDI3202
Digital Input Module
Applications
• Used in compact machine automation systems for controlling discrete I/O, motion, and communication tasks within a single PLC platform
• Applied in packaging, conveying, and assembly machines requiring integrated logic control with high-speed processing
• Integrated into Modicon M258-based automation architectures for decentralized machine control applications
• Used in industrial production lines where Ethernet, CANopen, and multi-protocol communication are required
• Deployed in OEM machinery design for mid-range automation control with flexible expansion capability
Key Advantages
• High-performance embedded CPU enables fast and deterministic control execution for machine automation
• Integrated communication interfaces (Ethernet, CANopen, serial, USB) support flexible industrial networking
• Built-in I/O capability reduces the need for external modules and simplifies system architecture
• Compact PLC design combines logic control, motion coordination, and communication in one controller
• Strong scalability with expansion modules supports evolving machine requirements
Technical FAQs
Q1: What is the main function of this controller?
It is a compact PLC used for machine automation control and logic processing.
Q2: What PLC family does it belong to?
It belongs to the Schneider Modicon M258 series.
Q3: How many I/O points does it support?
It supports 26 digital inputs, 16 digital outputs, and several analog inputs.
Q4: What communication interfaces are available?
It includes Ethernet, CANopen, USB, and serial communication ports.
Q5: Is it suitable for motion control applications?
Yes, it can support basic coordinated motion tasks depending on configuration.
Q6: What industries commonly use it?
It is used in packaging, material handling, and general machine automation.
Q7: What is its power supply requirement?
It operates on 24V DC industrial power.
Q8: Does it support expansion modules?
Yes, it supports modular expansion through TM5 I/O systems.
Q9: Is it suitable for networked systems?
Yes, it supports industrial Ethernet and CAN-based communication.
Q10: Is it designed for continuous operation?
Yes, it is built for 24/7 industrial automation environments.
