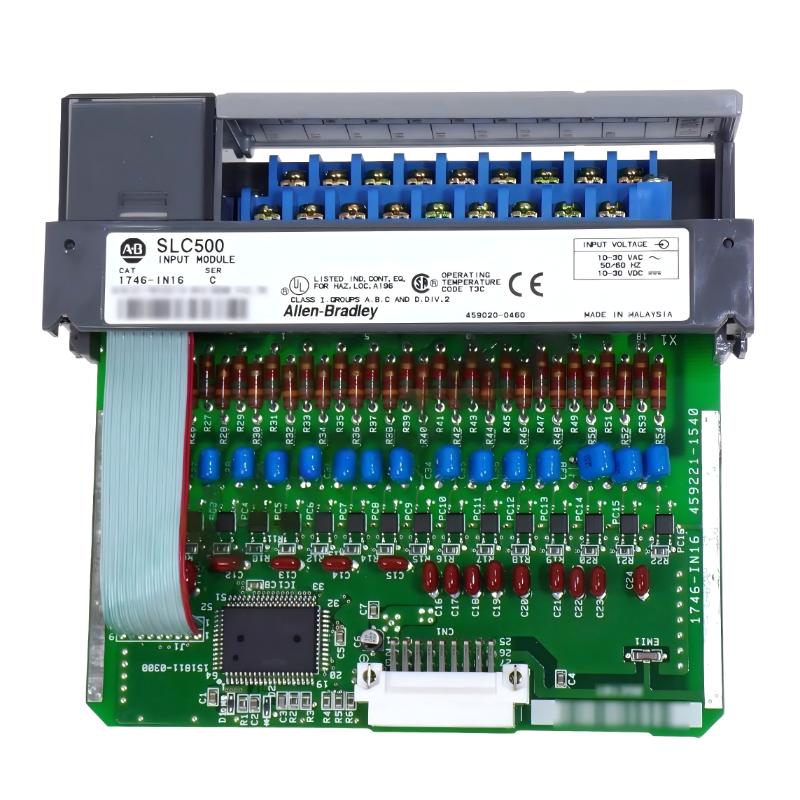

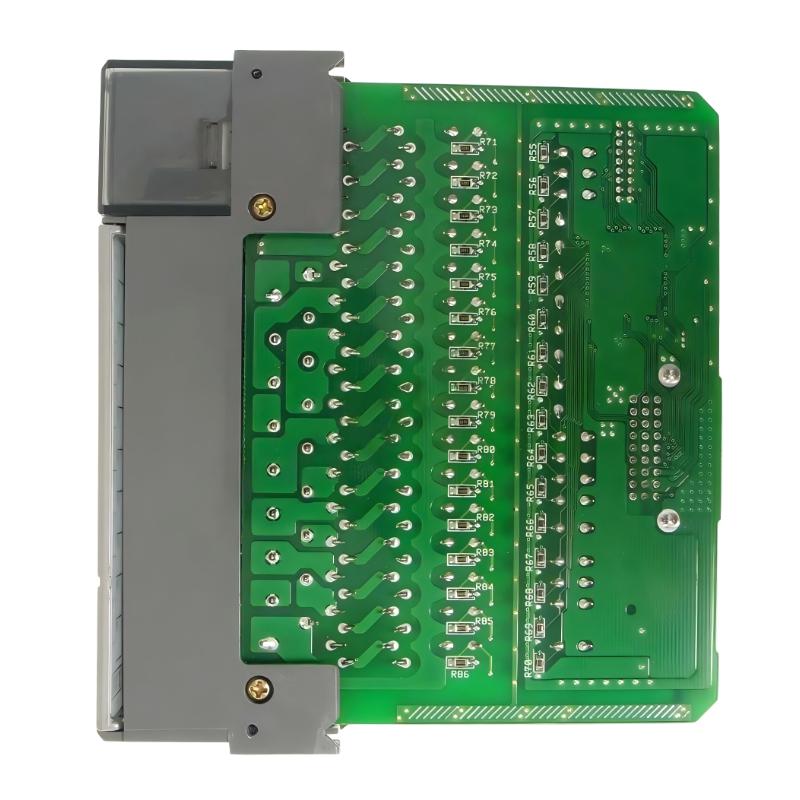

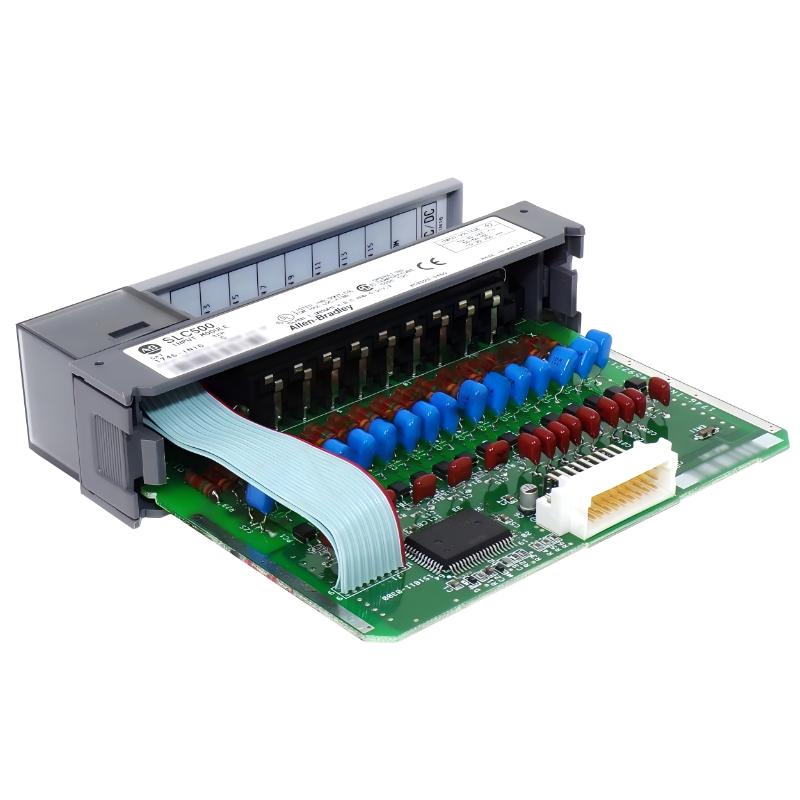

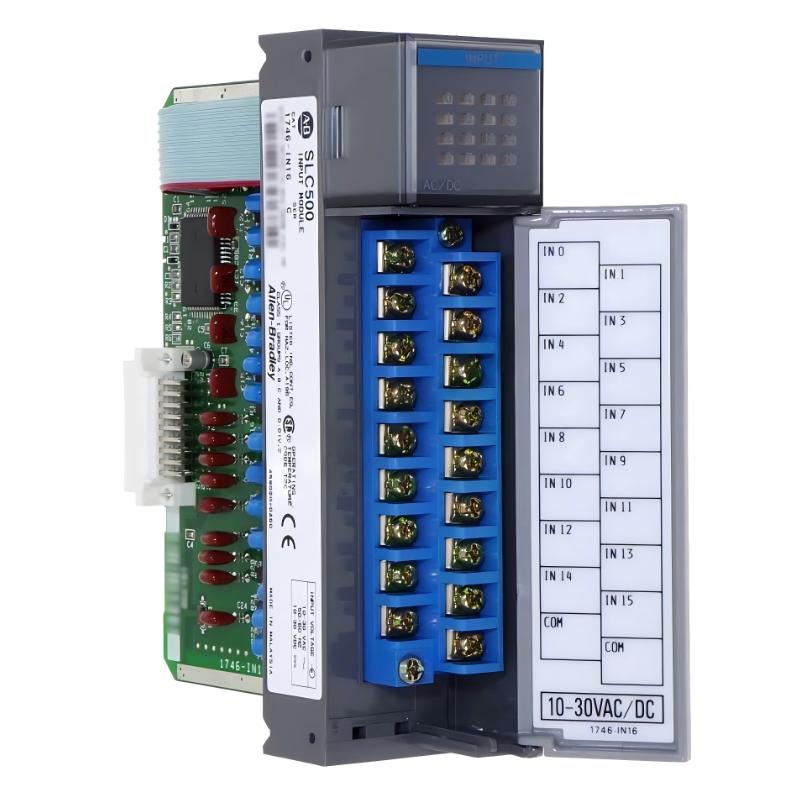

Allen Bradley 1746-IN16/C SLC 500 Digital Input Module

Applications

The Allen Bradley 1746-IN16/C Digital Input Module is engineered for precise and reliable monitoring of digital signals in industrial automation systems. Commonly used in manufacturing, process control, and machinery automation, this module interfaces seamlessly with Allen-Bradley SLC 500 PLCs, enabling accurate detection of digital state changes from switches, sensors, and other field devices.

Advantages

• Reliable Digital Signal Detection: Ensures fast, accurate monitoring of digital inputs.
• Compact & Lightweight: 144.5 × 34.6 × 130.18 mm and 0.27 kg / 0.60 lb for versatile panel or DIN rail installation.
• Industrial-Grade Durability: Performs consistently in demanding environments.
• SLC 500 PLC Integration: Fully compatible with Allen-Bradley SLC 500 systems.
• Easy Installation: Supports panel and DIN rail mounting for quick deployment.

Technical FAQs

1. What type of input signals does the module support?
   Standard SLC 500 digital input signals.
2. How many input channels does it provide?
   16 digital input channels.
3. Can it detect high-speed signal changes?
   Yes, optimized for fast and accurate signal detection.
4. Is it suitable for continuous industrial operation?
   Yes, reliable operation from 0–60 °C.
5. Does it provide diagnostic feedback?
   Yes, module and channel status are available through the SLC 500 PLC.
6. Can all channels operate simultaneously?
   Yes, all 16 channels are independent and can be monitored simultaneously.
7. Is panel or DIN rail mounting supported?
   Yes, the module’s compact design allows flexible installation.
8. Does it require additional software or firmware?
   No, fully managed through the SLC 500 controller.
9. What is the expected lifespan?
   Over 10 years of reliable industrial performance.
10. Is it suitable for time-critical automation tasks?
    Yes, provides fast and reliable digital input detection for responsive process control.
