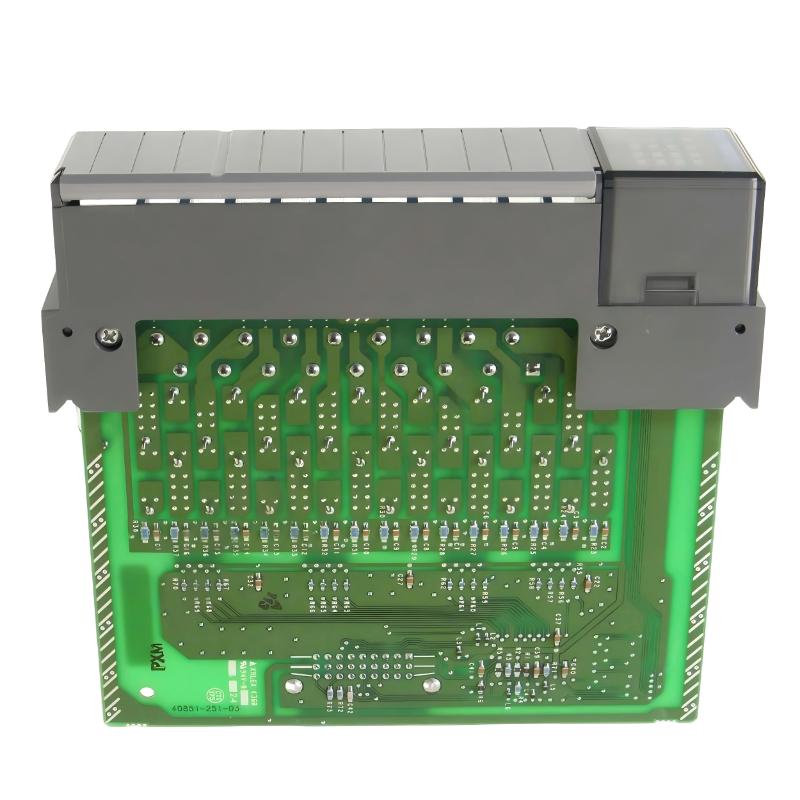

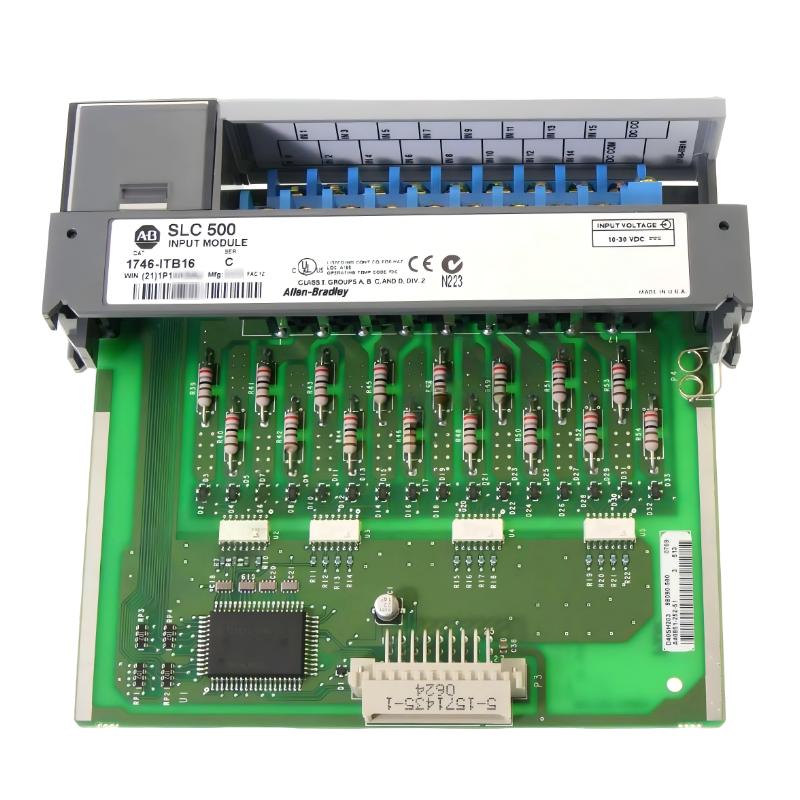

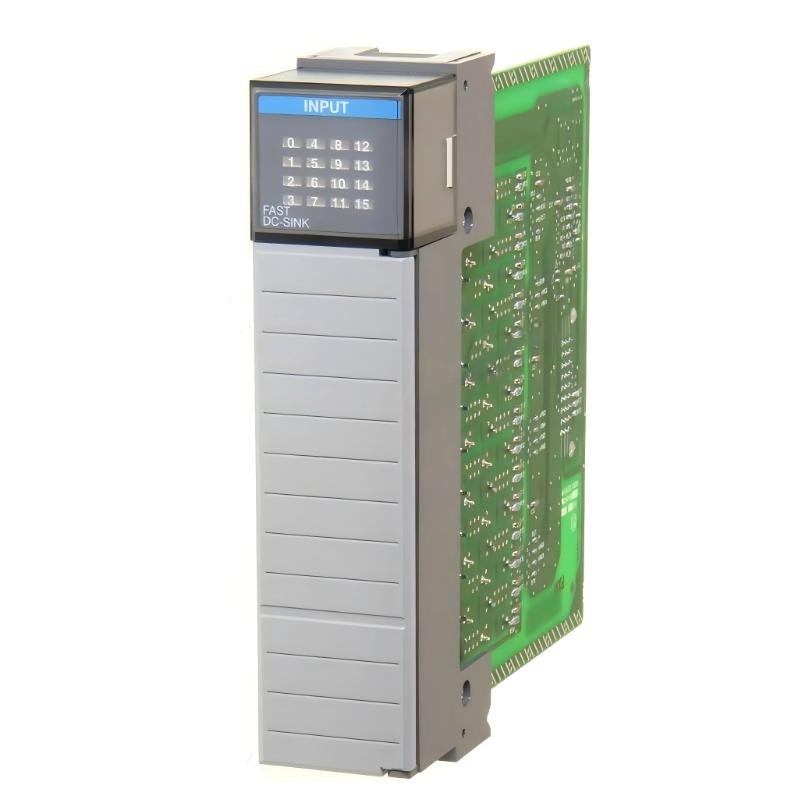

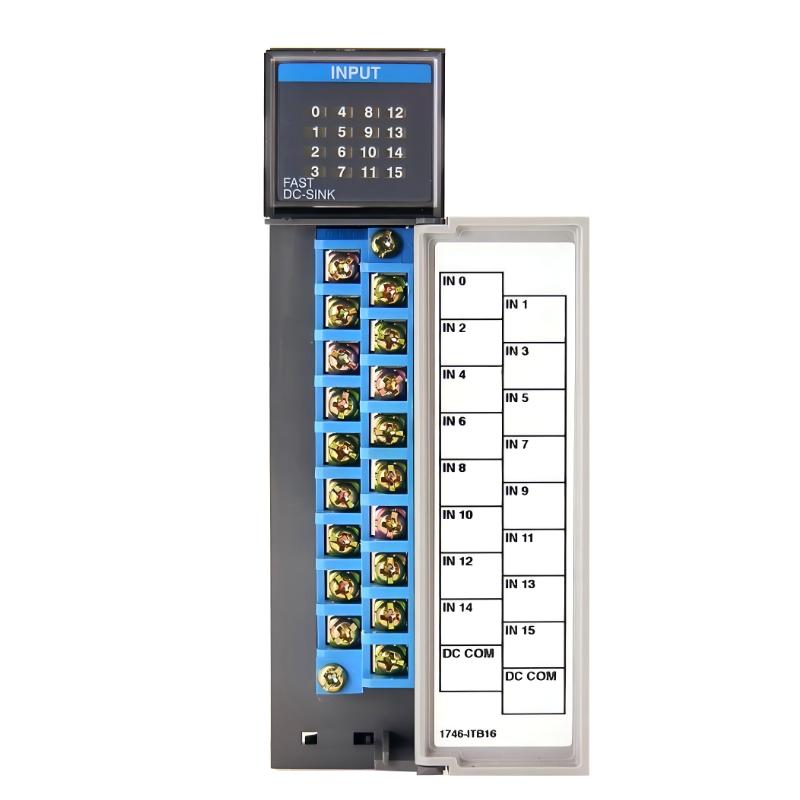

Allen Bradley 1746-ITB16 SLC 500 Digital Input Module

Applications

The Allen Bradley 1746-ITB16 Digital Input Module is engineered for reliable and precise monitoring of digital signals in industrial automation environments. It is commonly used in factory automation, process control, and machinery operations where dependable AC/DC input detection is critical. Fully compatible with SLC 500 PLCs, it enables accurate monitoring of switches, sensors, and other field devices for efficient and safe automation control.

Advantages

• High-Reliability Digital Input: Fast and accurate detection of digital signals.
• Compact & Lightweight: 144.5 × 34.6 × 130.18 mm and 0.295 kg / 0.65 lb for easy panel or DIN rail installation.
• Industrial-Grade Durability: Designed to maintain performance in demanding environments.
• SLC 500 PLC Integration: Seamless compatibility with Allen-Bradley SLC 500 systems.
• Quick Installation: Supports panel and DIN rail mounting for easy deployment.

Technical FAQs

1. What type of signals does the module support?
   Standard SLC 500 digital input signals.
2. How many input channels are available?
   16 digital input channels.
3. Can it detect rapid input signal changes?
   Yes, optimized for fast digital signal detection.
4. Is it suitable for continuous industrial operation?
   Yes, reliable operation from 0–60 °C.
5. Does it provide diagnostic or status feedback?
   Yes, input channel status is accessible through the SLC 500 PLC.
6. Can all channels operate simultaneously?
   Yes, all 16 channels function independently.
7. Is panel or DIN rail mounting supported?
   Yes, flexible installation due to compact design.
8. Does it require additional software or firmware?
   No, fully managed through the SLC 500 PLC controller.
9. What is the expected operational lifespan?
   Over 10 years of industrial-grade performance.
10. Is it suitable for time-critical automation tasks?
    Yes, provides fast, reliable input monitoring for responsive control.
