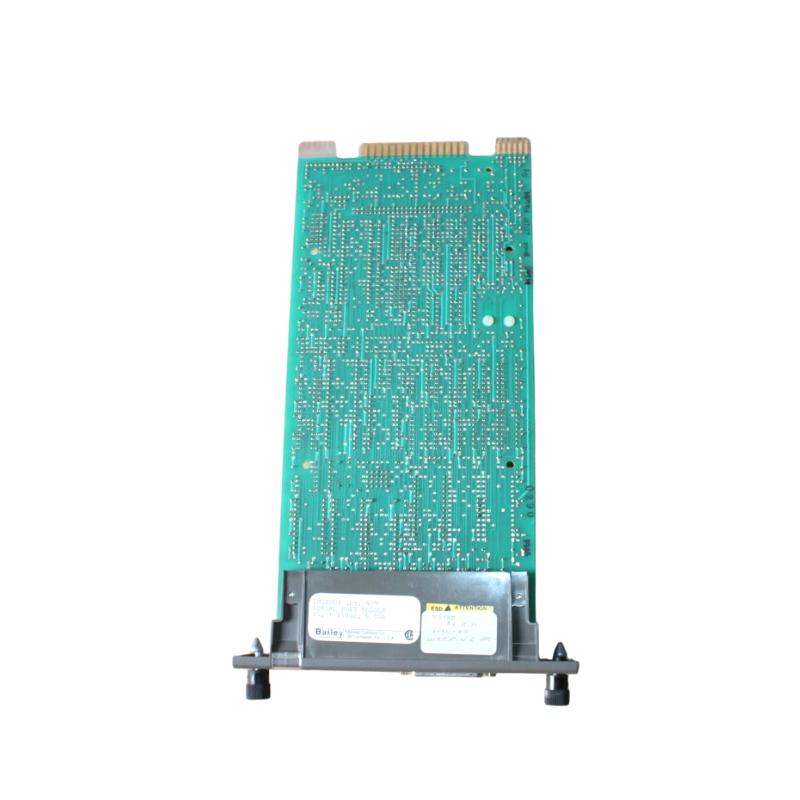

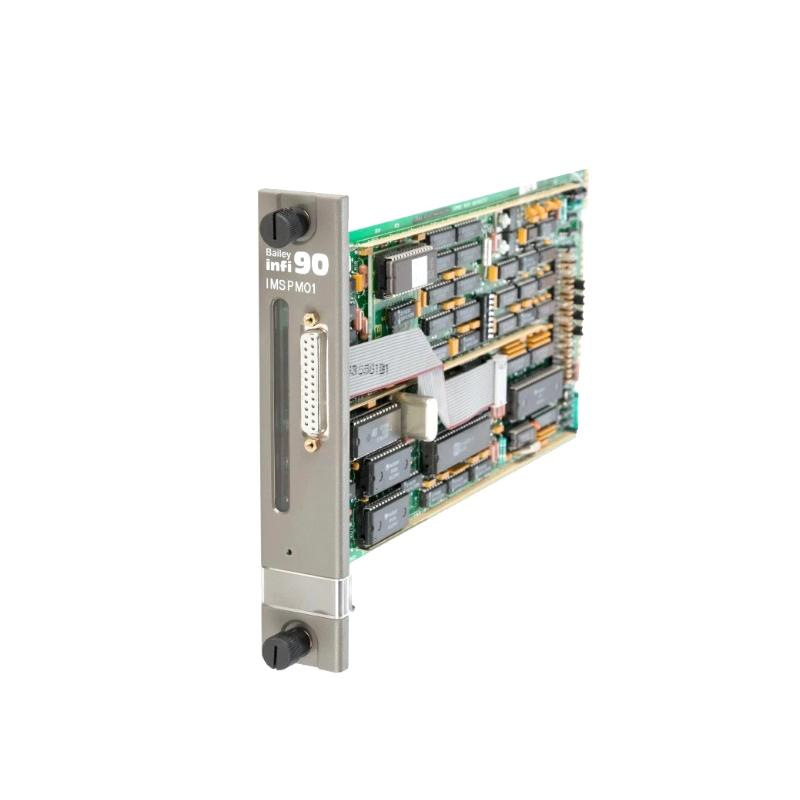

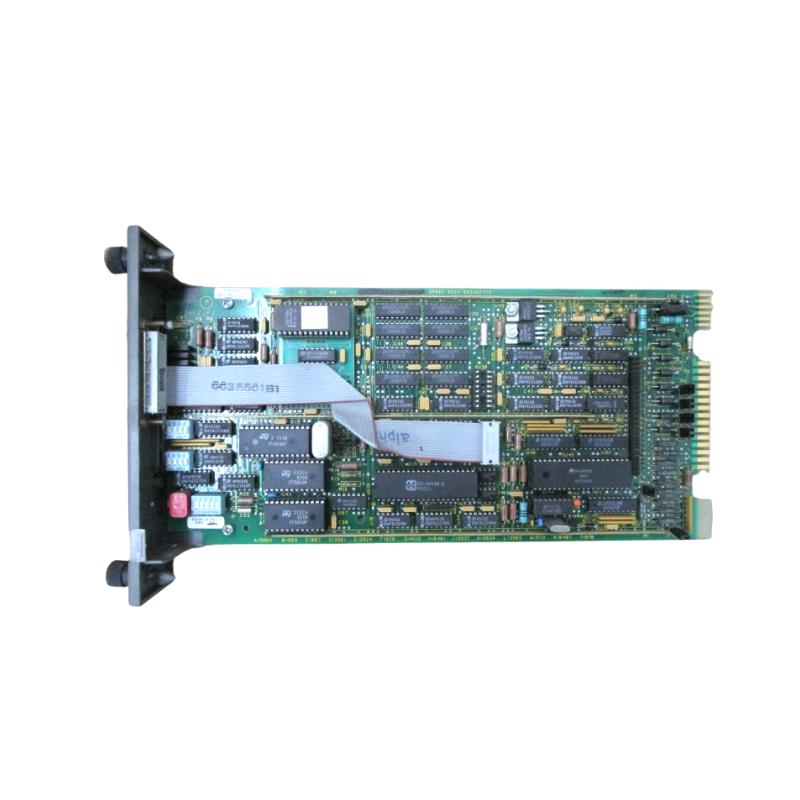

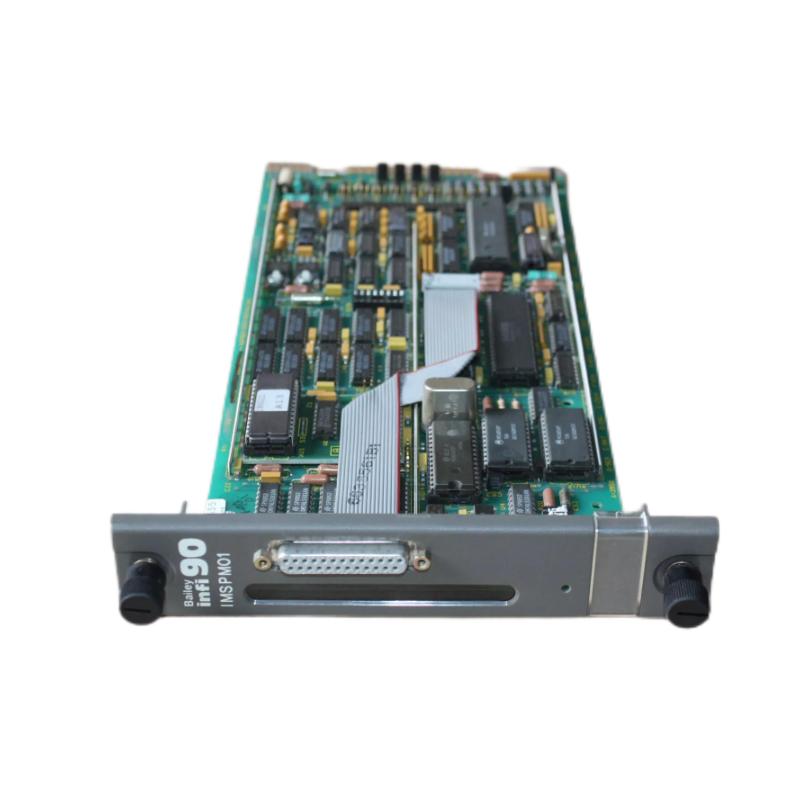

ABB Bailey IMSPM01 Serial Port Module

Applications

The ABB Bailey IMSPM01 Serial Port Module is designed to expand communication capabilities in ABB Modular RTU systems. It provides reliable serial connectivity for data exchange between RTUs, field devices, and external control systems. Ideal for industrial automation, utilities, and process industries, it enables seamless integration of legacy equipment and modern control networks.

Advantages

• Enhanced Communication: Adds serial port connectivity for RTU systems, supporting RS-232/RS-485 protocols.
• Compact & Lightweight: 315 × 175 × 35 mm and 0.59 kg / 1.30 lb for flexible installation in RTU racks.
• Industrial-Grade Reliability: Designed for continuous operation in harsh industrial environments.
• Seamless RTU Integration: Fully compatible with ABB Bailey Modular RTU systems for smooth network expansion.
• Legacy Device Support: Enables communication with older field devices while maintaining centralized control.

Technical FAQs

1. What type of serial protocols does IMSPM01 support?
   RS-232 and RS-485 serial communication protocols.
2. Can it communicate with multiple devices simultaneously?
   Yes, supports multi-drop configurations for networked devices.
3. Is it compatible with all ABB RTU modules?
   Yes, fully integrates with ABB Bailey Modular RTU systems.
4. Does it provide diagnostic feedback?
   Yes, port status and communication errors are reported to the RTU controller.
5. Is it suitable for continuous industrial operation?
   Yes, built to operate reliably in standard industrial temperature ranges.
6. Can it be mounted remotely?
   Yes, it can be installed in RTU racks or dedicated control cabinets.
7. Does it require additional configuration software?
   Minimal configuration; managed through the RTU system.
8. Can it handle high-speed serial communication?
   Yes, designed for reliable real-time data transfer.
9. What is the expected operational lifespan?
   Over 10 years of industrial-grade performance.
10. Is it suitable for critical automation networks?
    Yes, ensures dependable serial communication for monitoring and control tasks.
