Brand:ABB Bailey Item No.:IPCHS02 Product Origin:Sweden (SE) Product Dimensions:200 x 150 x 50 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

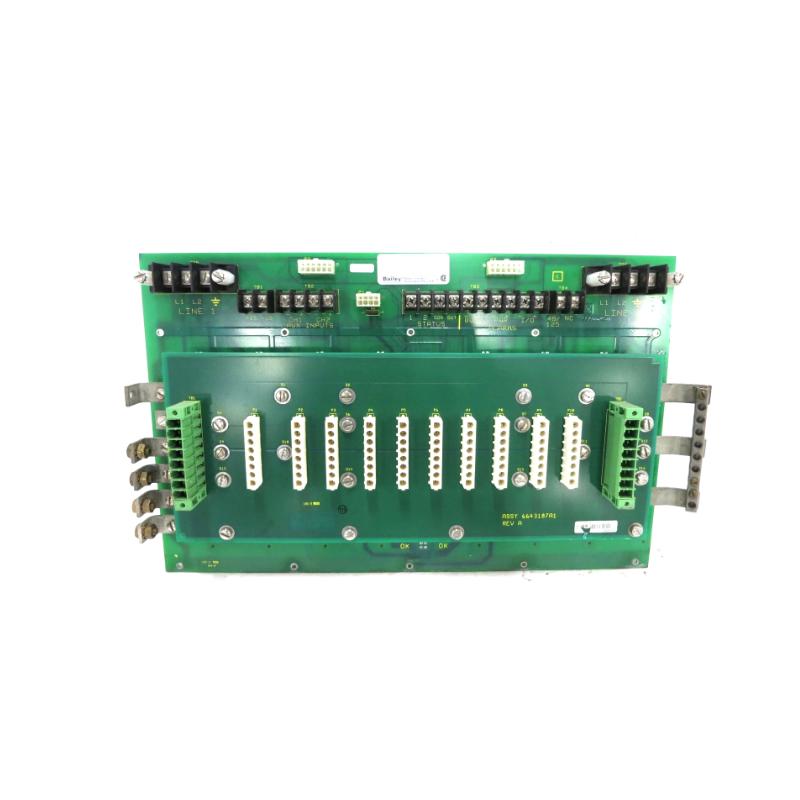

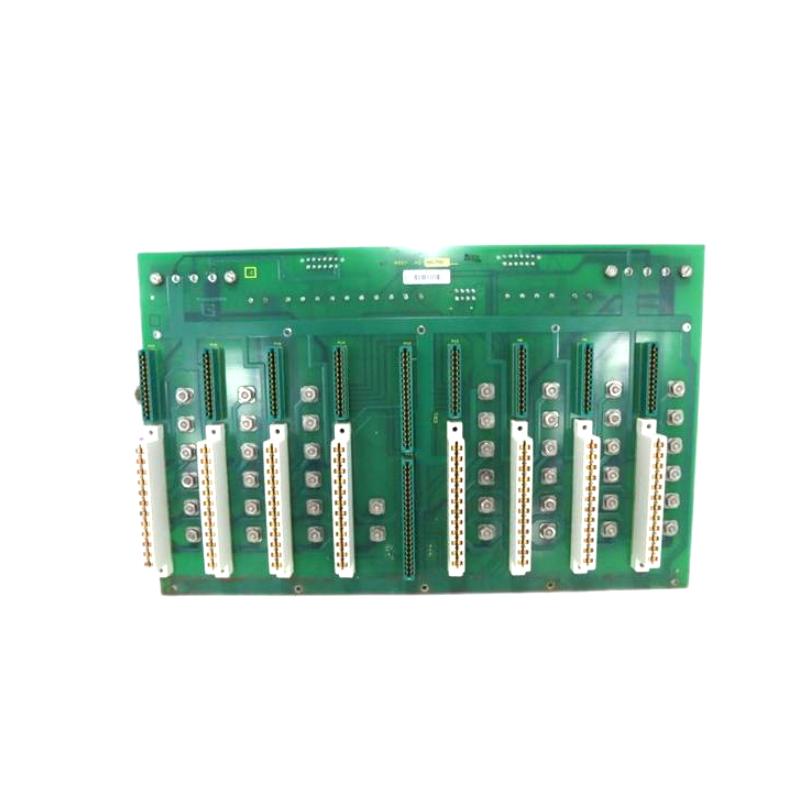

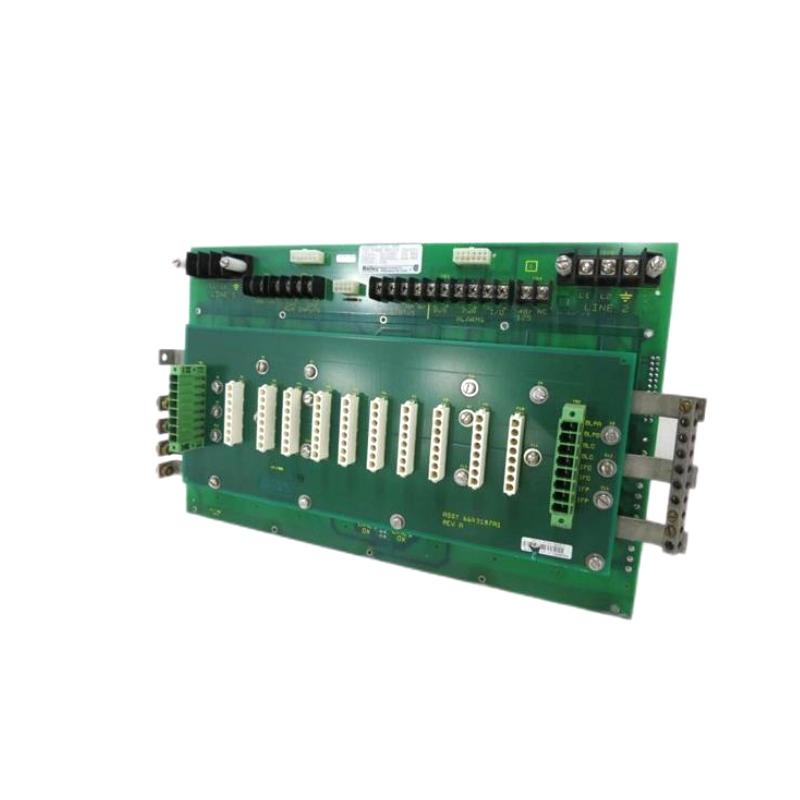

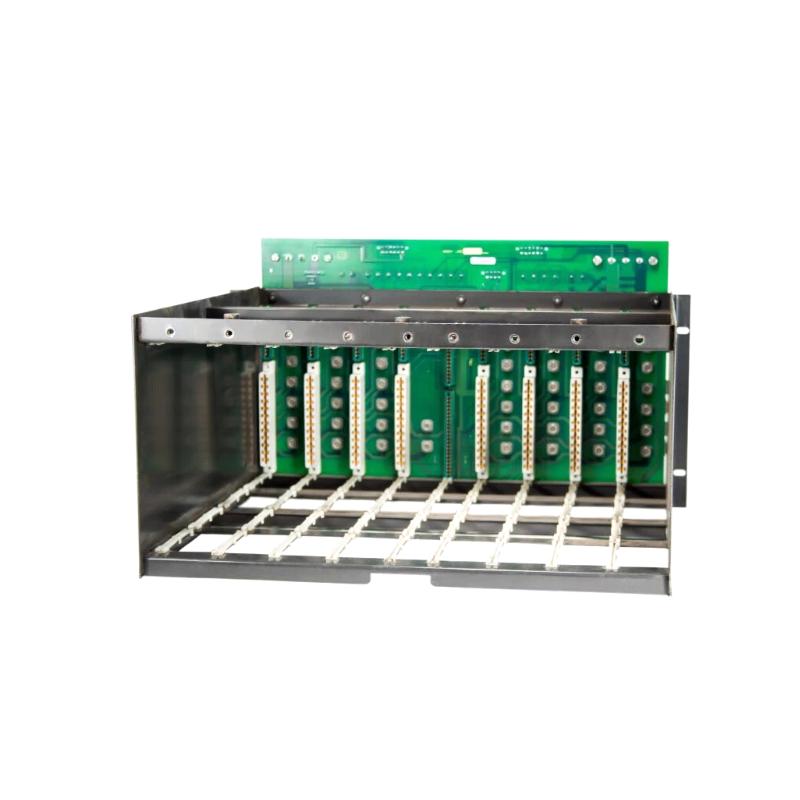

The ABB Bailey IPCHS02 Power Module Chassis is a reliable structural solution for housing and securing power modules within ABB Bailey Modular RTU systems. Its lightweight and compact design allows easy installation in RTU racks or control panels. By providing secure mounting and maintaining thermal performance, the IPCHS02 chassis ensures safe and efficient operation of power modules, supporting modular expansion and long-term reliability in industrial automation and control applications.
Technical Specifications
Parameter
Specification
Module Type
Power Module Chassis
Dimensions (L×W×H)
200 × 150 × 50 mm
Weight
0.5 kg / 1.10 lb
Functionality
Housing and mounting for power modules
Mounting
Modular RTU Rack / Control Panel
Material
Industrial-grade metal
Operating Temperature
0°C to 60 °C
Storage Temperature
-20°C to 70 °C
Compatibility
ABB Bailey Modular RTU Power Modules
Applications
The ABB Bailey IPCHS02 Power Module Chassis is designed to house and protect power modules within ABB Modular RTU systems. It provides secure mounting, structural support, and proper thermal management for power components. Ideal for industrial automation, process control, and utilities, the chassis ensures reliable and safe operation of power modules while facilitating organized RTU rack layouts.
Advantages
Secure Module Housing: Provides stable installation for ABB power modules, preventing movement or damage.
Compact & Lightweight: 200 × 150 × 50 mm and 0.5 kg / 1.10 lb for easy integration in RTU racks or panels.
Maintains Thermal Performance: Designed to support airflow and prevent overheating of housed modules.
Industrial Durability: Constructed to withstand demanding environments in industrial operations.
Supports Modular Expansion: Allows flexible and organized addition of power modules in RTU systems.
Technical FAQs
What is the purpose of the IPCHS02 chassis?
To provide secure housing and mounting for ABB power modules in RTU racks.
Is it compatible with all ABB power modules?
Yes, designed to fit standard ABB Bailey Modular RTU power modules.
Does it affect cooling or airflow of the power modules?
No, it maintains proper ventilation and thermal management.
Can it be installed in existing RTU racks?
Yes, easily retrofitted into modular RTU systems.
Is it suitable for industrial environments?
Yes, built for reliability and durability under standard industrial conditions.
Does it provide electrical functionality?
No, it is purely a structural and protective chassis.
Can multiple chassis be used in one rack?
Yes, multiple units can house several power modules as needed.
Is maintenance required for the chassis?
No regular maintenance is needed; ensure the chassis remains free from dust and debris.
Can it improve system safety?
Yes, protects power modules from accidental damage and ensures secure installation.
Does it support modular system upgrades?
Yes, it facilitates organized and scalable RTU system expansion.
