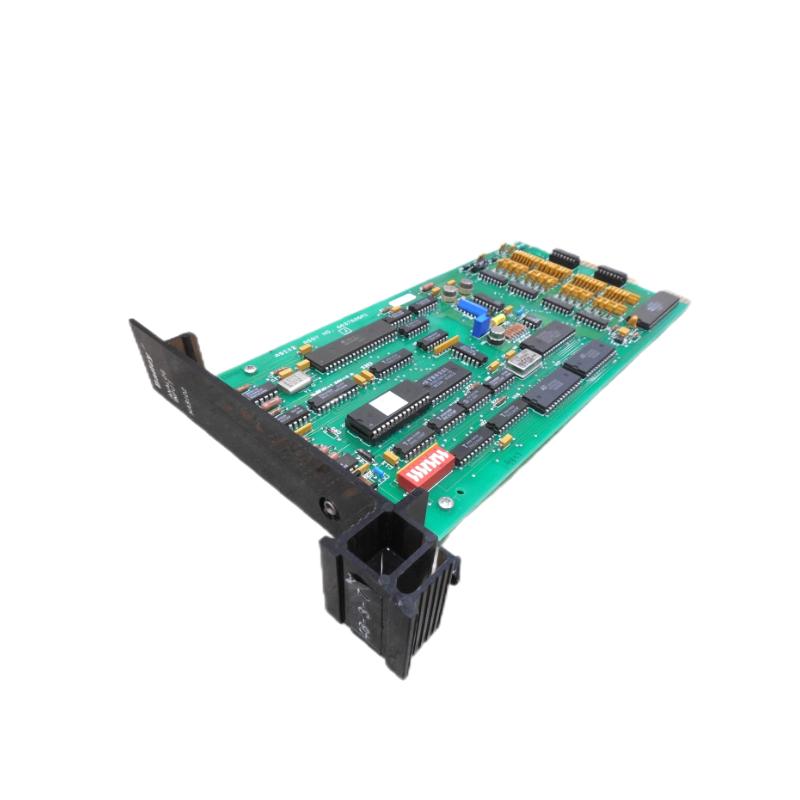

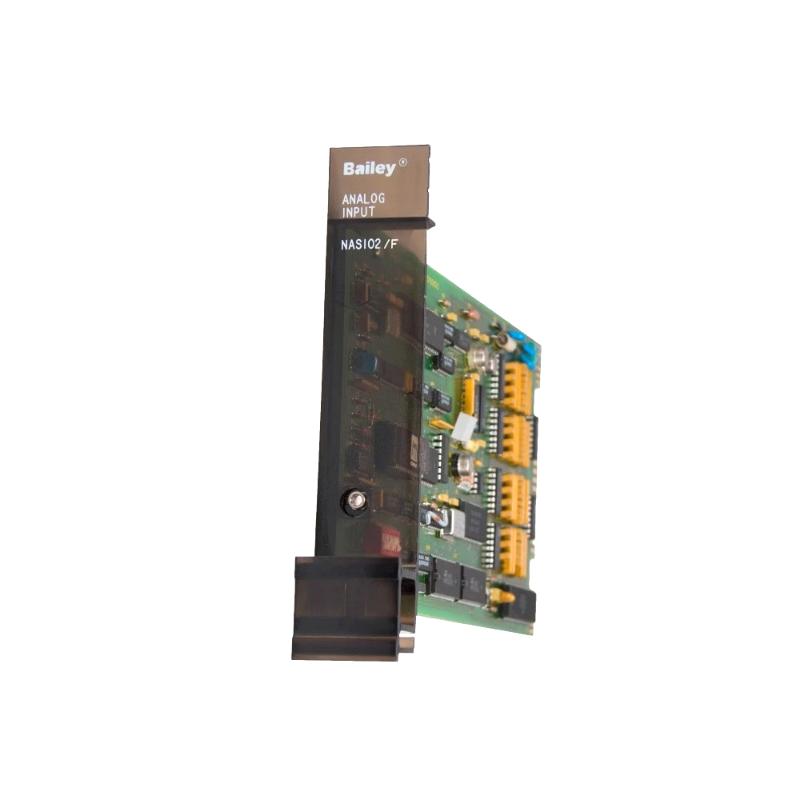

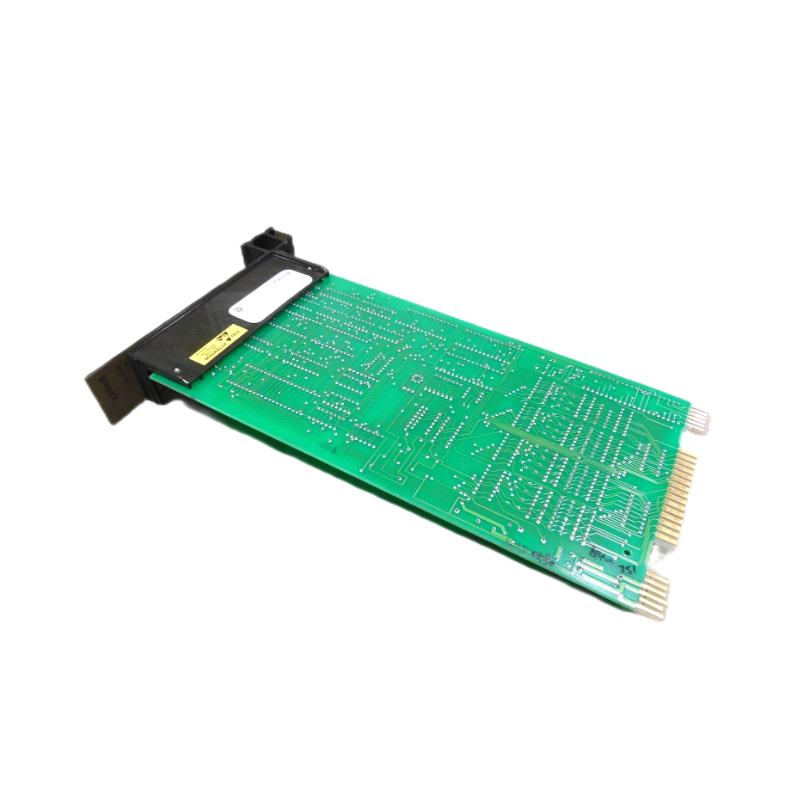

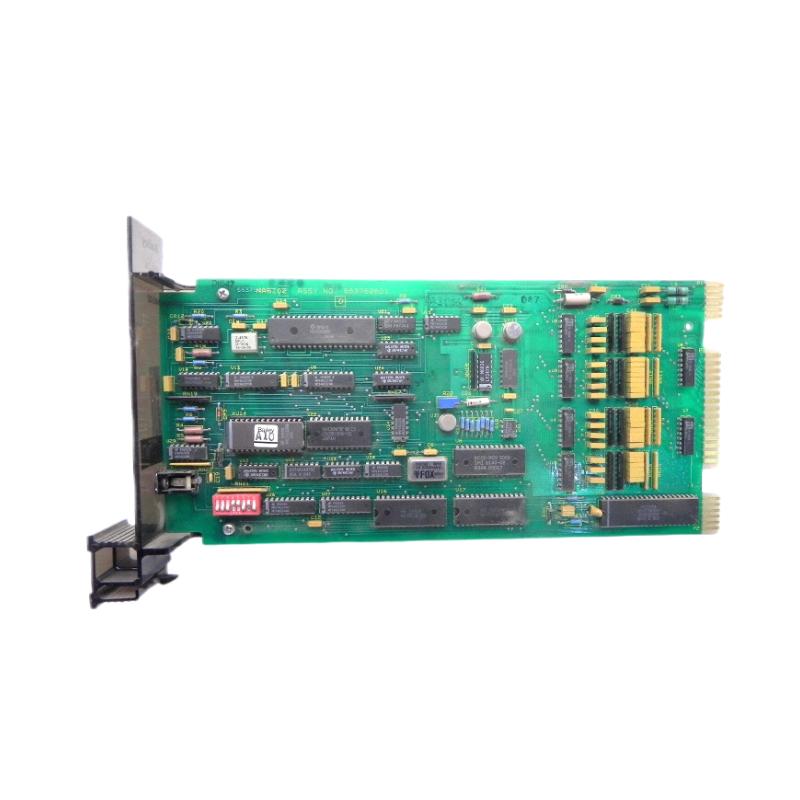

Name: ABB Bailey NASI02/F Analog Input Module
Brand: ABB Bailey
SKU: 9854
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey NASI02/F Analog Input Module is a high-precision solution for capturing analog signals in ABB Modular RTU systems. Compact and lightweight, it integrates seamlessly into RTU racks while providing reliable data acquisition from field sensors. By delivering accurate analog measurements, the NASI02/F module enhances process monitoring, control precision, and overall operational efficiency in industrial automation and process control environments.

Technical Specifications

Parameter	Specification
Module Type	Analog Input Module
Dimensions (L×W×H)	138 × 40 × 120 mm
Weight	0.454 kg / 1.00 lb
Functionality	Acquisition of analog signals from field sensors
Input Types	Voltage, Current (0–10 V, 4–20 mA)
Mounting	ABB Bailey Modular RTU Rack
Operating Temperature	0°C to 60 °C
Storage Temperature	-20°C to 70 °C
Compatibility	ABB Bailey Modular RTU Systems

Applications

The ABB Bailey NASI02/F Analog Input Module is designed for precise acquisition of analog signals from field sensors in ABB Modular RTU systems. It is widely used in industrial automation, process control, and utilities to monitor variables such as temperature, pressure, flow, or voltage. The module ensures accurate and reliable analog data acquisition for RTU processing and control.

Advantages

High-Precision Analog Input: Provides reliable measurement of various process signals.
Compact & Lightweight: 138 × 40 × 120 mm and 0.454 kg / 1.00 lb, ideal for modular RTU racks.
Industrial-Grade Durability: Built to operate under vibration, temperature variations, and harsh industrial conditions.
Seamless RTU Integration: Fully compatible with ABB Bailey Modular RTU systems.
Enhanced Process Monitoring: Enables accurate data acquisition for better system control and optimization.

Technical FAQs

What is the primary function of NASI02/F?
To acquire analog signals from field sensors and transmit them to the RTU system.
What types of analog signals does it support?
Typically supports voltage and current signals (e.g., 0–10 V, 4–20 mA).
Can it handle multiple channels simultaneously?
Yes, it can acquire multiple analog inputs depending on module configuration.
Is it suitable for industrial environments?
Yes, designed for vibration, temperature, and electrical noise resistance.
Does it require calibration?
Minimal calibration is needed; factory settings ensure accurate performance.
Can it interface with digital modules?
Yes, through the ABB RTU system, analog data can be processed alongside digital signals.
What is the typical update rate?
It depends on RTU configuration, but the module supports high-speed analog sampling.
Does it provide diagnostics?
Yes, the RTU system can detect sensor failures or signal errors.
Is it compatible with all ABB RTU chassis?
Yes, designed for ABB Bailey Modular RTU standard slots.
Can it improve overall process efficiency?
Absolutely, by providing accurate and timely analog data for system control.
