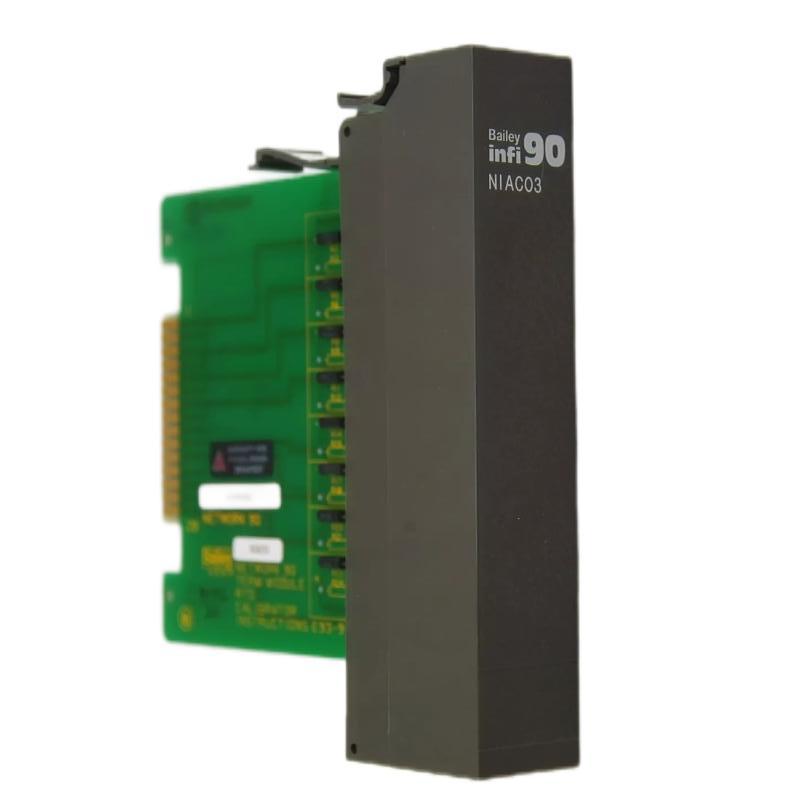

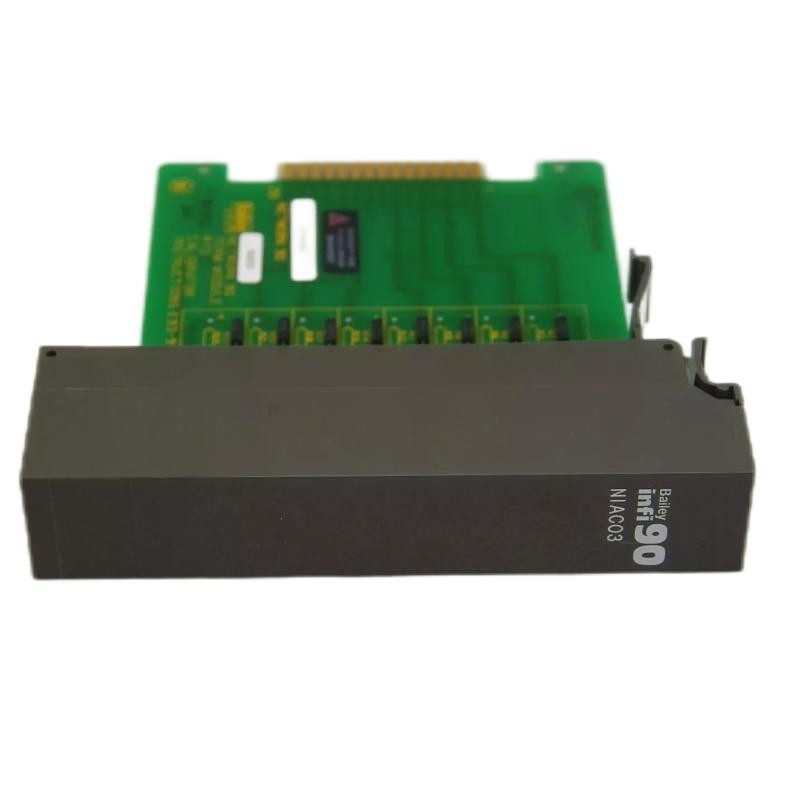

Name: ABB Bailey NIAC03 Analog Input Calibration Module
Brand: ABB Bailey
SKU: 9856
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey NIAC03 Analog Input Calibration Module is an essential tool for ensuring accurate analog signal acquisition in ABB Modular RTU systems. By providing precise calibration for field sensors, it enhances the reliability of process measurements, improves system control accuracy, and reduces potential downtime. Compact and robust, the NIAC03 is easily integrated into RTU racks, making calibration straightforward while supporting continuous industrial operations.

Technical Specifications

Parameter	Specification
Module Type	Analog Input Calibration Module
Dimensions (L×W×H)	120 × 80 × 40 mm
Weight	0.5 kg / 1.10 lb
Functionality	Calibrates analog input signals
Input Types	Voltage, Current (typical 0–10 V, 4–20 mA)
Mounting	ABB Bailey Modular RTU Rack
Operating Temperature	0°C to 60 °C
Storage Temperature	-20°C to 70 °C
Compatibility	ABB Bailey Analog Input Modules

Applications

The ABB Bailey NIAC03 Analog Input Calibration Module is designed to provide precise calibration for analog input channels in ABB Modular RTU systems. It ensures that measurements from field sensors are accurate and reliable, which is critical for process control, industrial automation, and utility monitoring applications. The module simplifies calibration tasks while maintaining the integrity of RTU operations.

Advantages

High-Precision Calibration: Ensures analog input signals reflect true field measurements.
Compact & Lightweight: 120 × 80 × 40 mm and 0.5 kg / 1.10 lb, suitable for RTU panel integration.
Industrial Reliability: Built to withstand temperature fluctuations, vibration, and harsh operating conditions.
Seamless RTU Integration: Compatible with ABB Bailey Modular RTU analog input modules.
Simplifies Maintenance: Facilitates quick calibration without system downtime.

Technical FAQs

What is the main function of the NIAC03?
To calibrate analog input channels for accurate measurement in RTU systems.
Does it support multiple analog input types?
Yes, it supports both voltage and current inputs commonly used in ABB RTU analog channels.
Can it be used while the RTU is operational?
Typically, calibration is done during maintenance windows to ensure accuracy.
Is it compatible with all ABB analog input modules?
Yes, designed specifically for ABB Bailey Modular RTU analog input modules.
Does it require software configuration?
Minimal configuration; mainly hardware-based calibration procedures.
Can it improve system accuracy?
Absolutely, it ensures sensor readings are precise and consistent.
Is it suitable for harsh industrial environments?
Yes, built to handle vibration, electrical noise, and temperature variations.
How often should calibration be performed?
Recommended per maintenance schedule or as specified by process control standards.
Does it require additional power?
No separate power is required; it draws power from the RTU system.
Can it help prevent process control errors?
Yes, accurate calibration ensures correct data interpretation and decision-making.
