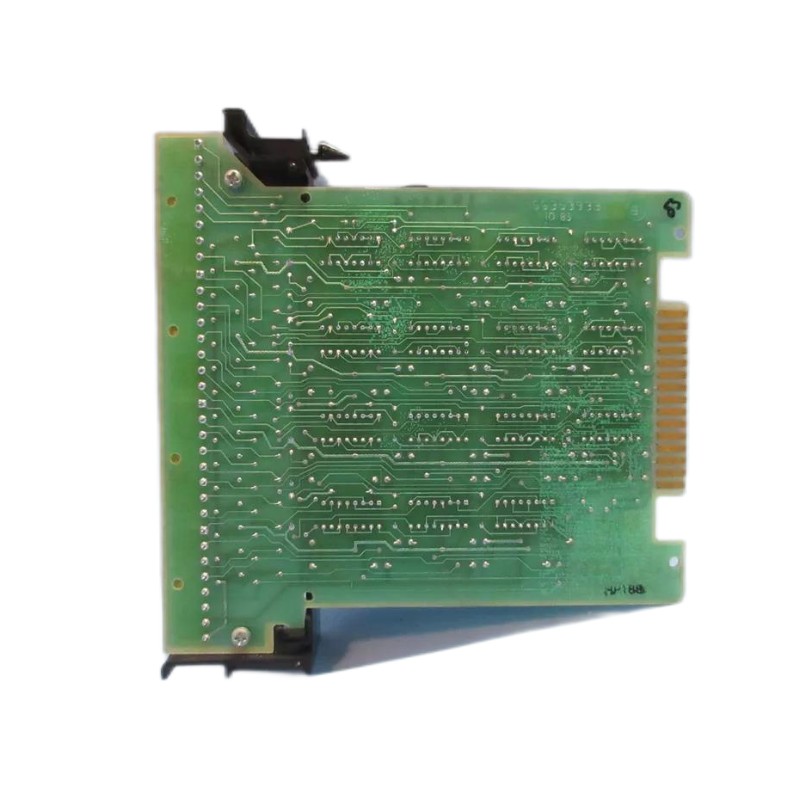

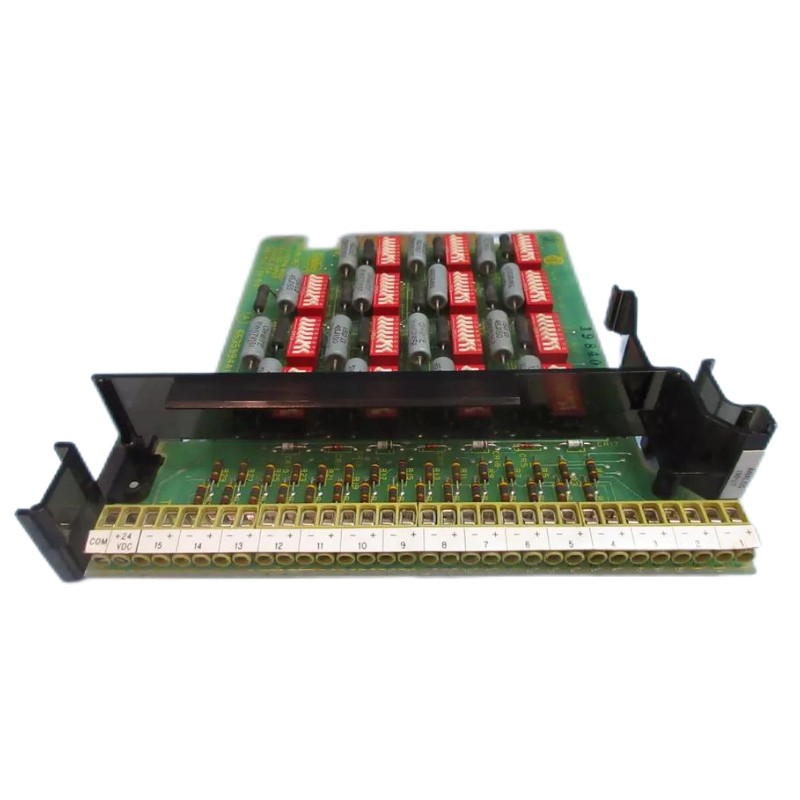

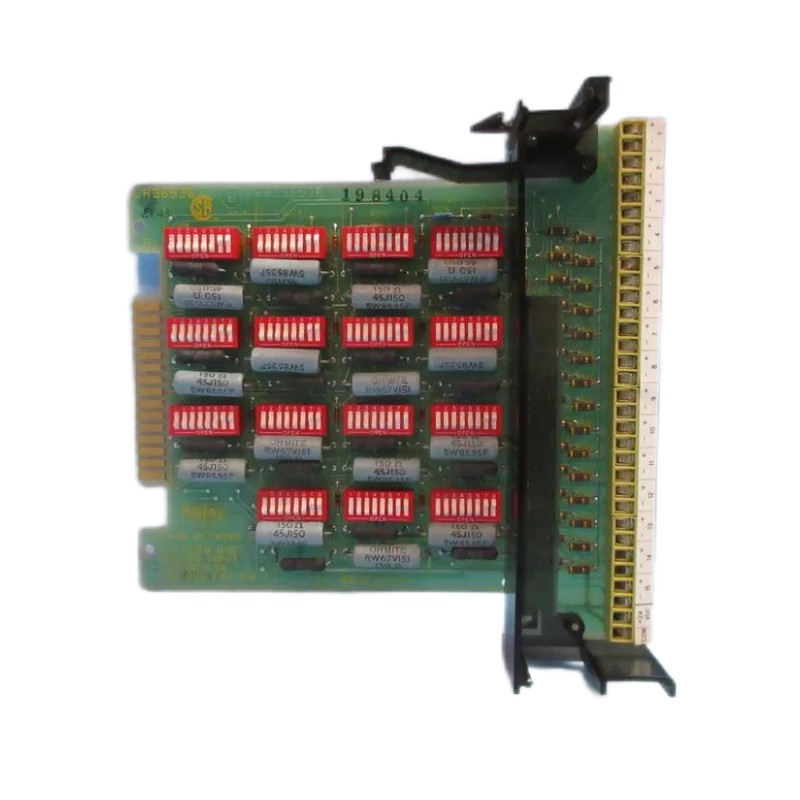

ABB Bailey NIAI01 6635994A1 Analog Input Terminal Module
ABB Bailey NIAI01 6635994A1 Analog Input Terminal Module
0.0
Points
Brand:ABB Bailey Item No.:NIAI01 Product Origin:Sweden (SE) Product Dimensions:120 x 150 x 50 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey NIAI01 6635994A1 Analog Input Terminal Module provides reliable and precise analog signal acquisition for ABB Modular RTU systems. Its compact, durable design ensures stable connections between field sensors and the RTU, enabling accurate process monitoring and control. The NIAI01 module enhances system performance, improves operational efficiency, and supports long-term reliability in demanding industrial environments.
Technical Specifications
Parameter
Specification
Module Type
Analog Input Terminal Module
Model Number
6635994A1
Dimensions (L×W×H)
120 × 150 × 50 mm
Weight
0.5 kg / 1.10 lb
Functionality
Acquisition of analog signals from field sensors
Input Types
Voltage, Current (typical 0–10 V, 4–20 mA)
Mounting
ABB Bailey Modular RTU Rack
Operating Temperature
0°C to 60 °C
Storage Temperature
-20°C to 70 °C
Compatibility
ABB Bailey Modular RTU Systems
Applications
The ABB Bailey NIAI01 6635994A1 Analog Input Terminal Module is designed to facilitate accurate analog signal acquisition from field sensors in ABB Modular RTU systems. It is widely used in industrial automation, utilities, and process control environments to monitor critical variables such as temperature, pressure, flow, or voltage. The module serves as a reliable interface between field instruments and RTU systems, ensuring precise data transmission.
Advantages
Accurate Analog Input: Supports precise measurement of process variables for reliable system monitoring.
Compact & Lightweight: 120 × 150 × 50 mm and 0.5 kg / 1.10 lb, optimized for modular RTU racks.
Industrial-Grade Durability: Resistant to vibration, temperature fluctuations, and electrical noise.
Easy RTU Integration: Fully compatible with ABB Bailey Modular RTU systems for seamless installation.
Enhanced Operational Efficiency: Ensures accurate analog data acquisition for better process control.
Technical FAQs
What is the main function of NIAI01?
To acquire analog signals from field sensors and transmit them to the RTU system.
What types of analog inputs does it support?
Typically supports voltage and current inputs (e.g., 0–10 V, 4–20 mA).
Can it handle multiple channels?
Yes, it supports multiple analog input channels depending on system configuration.
Is it suitable for harsh industrial conditions?
Yes, designed for vibration, electrical noise, and temperature variations.
Does it require calibration?
Minimal calibration may be required; factory settings provide reliable operation.
Can it interface with digital RTU modules?
Yes, analog signals can be processed alongside digital inputs in the RTU system.
What is the typical data acquisition rate?
Supports high-speed analog sampling based on RTU configuration.
Does it provide diagnostic capabilities?
Yes, the RTU system can monitor for sensor failures or signal errors.
Is it compatible with ABB RTU chassis?
Yes, designed to fit ABB Bailey Modular RTU standard slots.
Can it improve process control accuracy?
Absolutely, accurate analog inputs enhance system decision-making and control.
