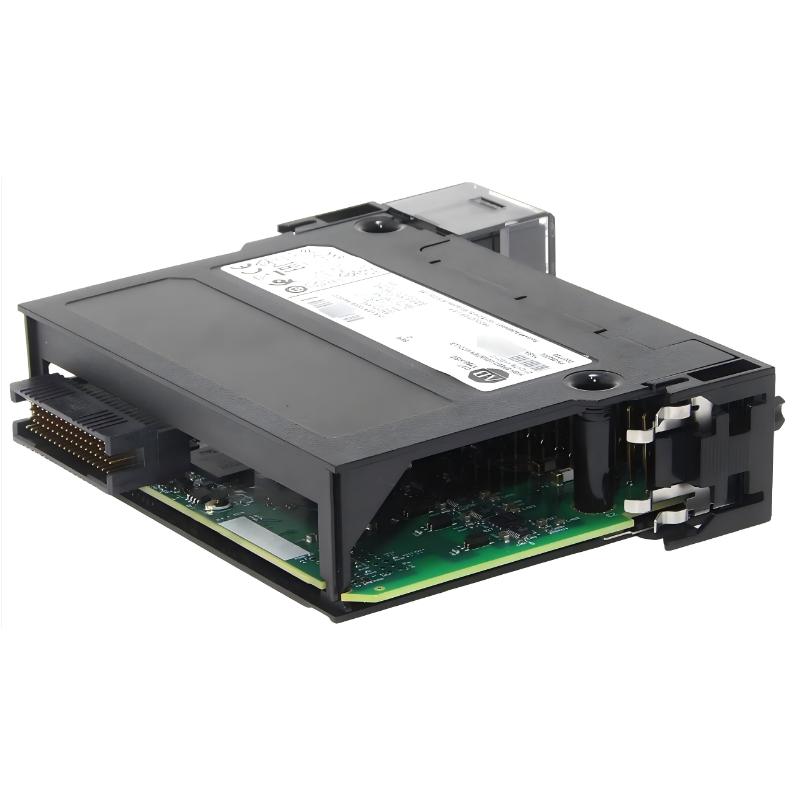

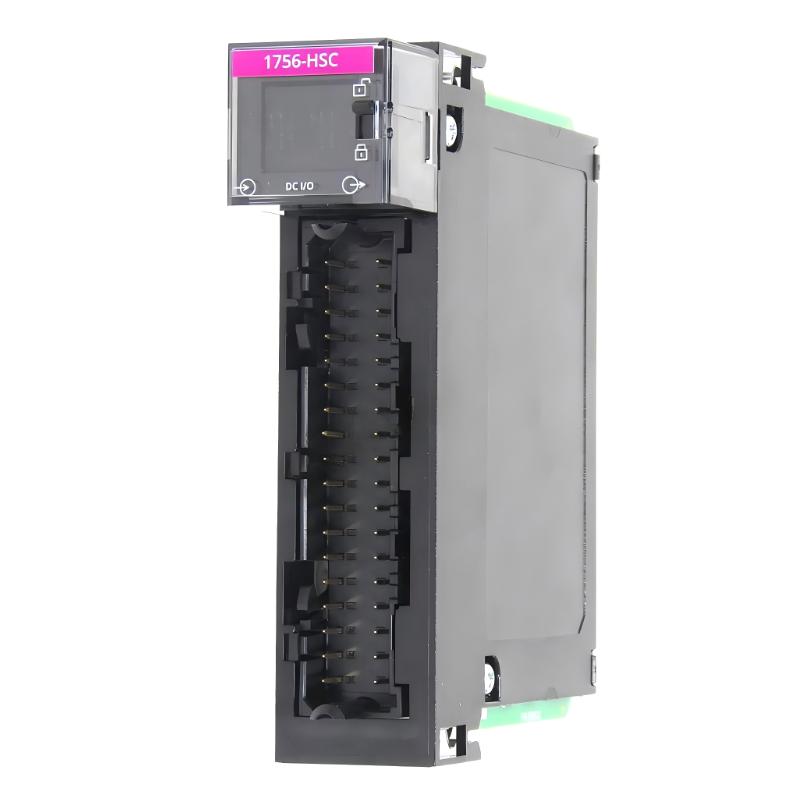

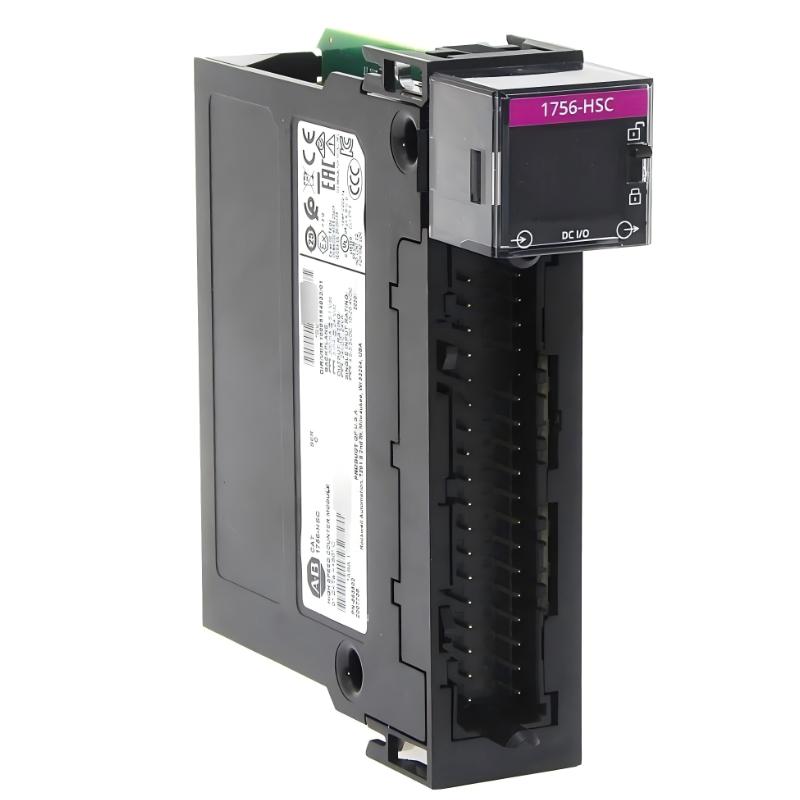

1756-HSC-3 1756-HSC-2 1756-HSC-4 1756-HSC-1

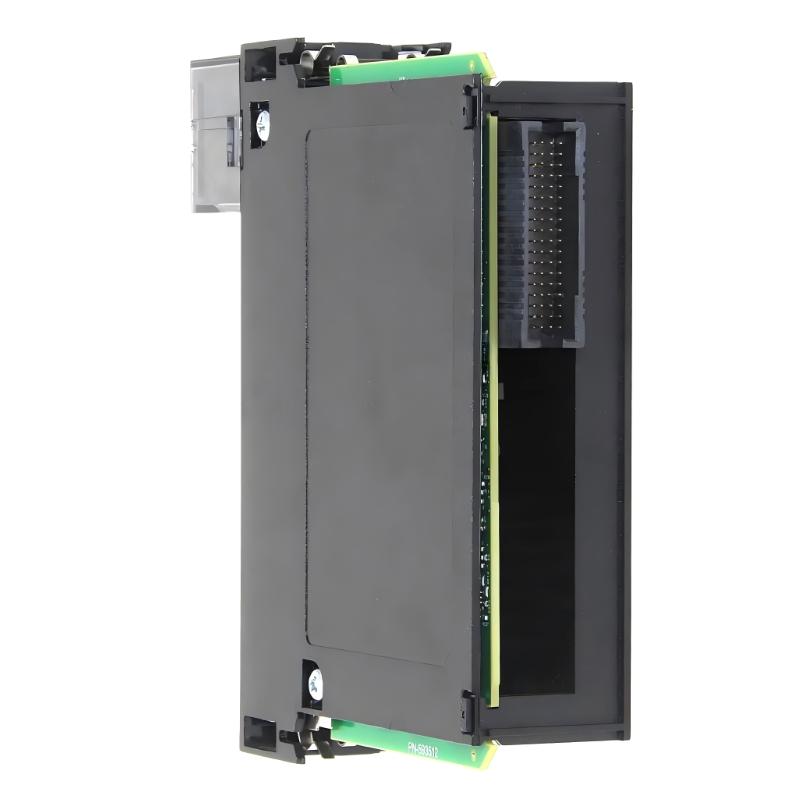

The Allen-Bradley 1756-HSC is a high-speed counter module within the ControlLogix platform, designed for extremely fast pulse counting, frequency measurement, and encoder signal processing.

In modern industrial automation, standard PLC inputs are not fast enough for certain signals like high-speed encoders, turbine flow meters, or precision motion feedback. The 1756-HSC solves this by processing pulses directly at the hardware level, reducing controller load while dramatically improving timing accuracy.

This module is widely used in packaging, motion control, and process industries where real-time pulse interpretation is critical for system stability and precision control.

Technical Specifications

Category	Specification
Product Type	High-Speed Counter Module
Series	ControlLogix 1756
Channels	2 independent counters
Inputs per Counter	3 (A, B, Z / gate-reset)
Output Points	4 (2 per group)
Maximum Count Frequency	up to 1 MHz
Rate Measurement	up to 500 kHz
Encoder Mode	up to 250 kHz
Count Range	0 – 16,777,214
Operating Voltage	5V DC (4.5–5.5V) / 12–24V DC (10–31.2V)
Backplane Current	~300 mA @ 5.1V
Power Dissipation	~5.6 W
Operating Temperature	0°C to 60°C
Dimensions (H × W × D)	13.3 × 14.5 × 5.1 cm
Weight	~0.36 kg

Recommended Related Models

1756-IB16 Digital Input Module (standard signal acquisition)
1756-OB16 Digital Output Module (actuator control)
1756-EN2T Ethernet Communication Module (system networking upgrade)
1756-L83E ControlLogix CPU Module (high-performance controller pairing)
1756-TBCH Terminal Block (wiring termination accessory)

Popular Allen Bradley Models

1756-HSC High-Speed Counter Module
1756-L81E ControlLogix 5580 CPU Module
1756-EN2TR Redundant Ethernet Module
1756-IF8 Analog Input Module
1756-OF8 Analog Output Module

Applications

The 1756-HSC is used in applications requiring fast and accurate pulse interpretation:

High-speed packaging machinery
Conveyor tracking and synchronization systems
Rotary encoder-based motion control
Turbine flow and speed measurement
Cut-to-length and precision positioning systems
Industrial counting and batching systems

Its ability to process signals independently from the main PLC scan makes it ideal for high-frequency industrial tasks.

Advantages

Extremely fast hardware-based pulse processing
Reduces PLC CPU load by handling counting locally
Supports multiple operating modes (counter, rate, encoder)
High-resolution count range for precision applications
Configurable outputs for real-time triggering
Robust industrial design for harsh environments
Seamless integration within ControlLogix architecture

Technical FAQs

1. What is the main purpose of the 1756-HSC?
It performs high-speed pulse counting and frequency measurement for industrial automation systems.

2. How many counters does it support?
It supports 2 independent high-speed counters.

3. What is the maximum input frequency?
Up to 1 MHz in counter mode, depending on configuration.

4. Can it handle encoder signals?
Yes, it supports incremental encoder inputs up to 250 kHz.

5. Does it require a special CPU?
No, it works with standard ControlLogix controllers.

6. How fast are the outputs?
Outputs can respond in microseconds for precise control.

7. What types of sensors can it connect to?
Encoders, proximity sensors, photoelectric sensors, and pulse generators.

8. Is it suitable for motion control?
Yes, especially for high-speed positioning and synchronization tasks.

9. What is the module weight?
Approximately 0.36 kg.

10. What industries use it most?
Packaging, automotive manufacturing, process automation, and material handling.
