Introduction

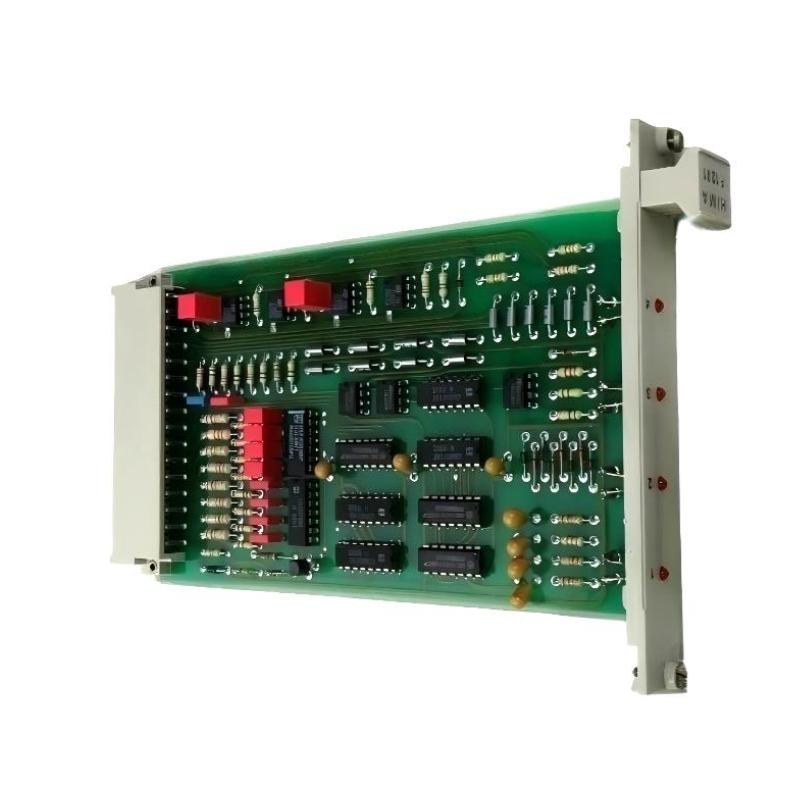

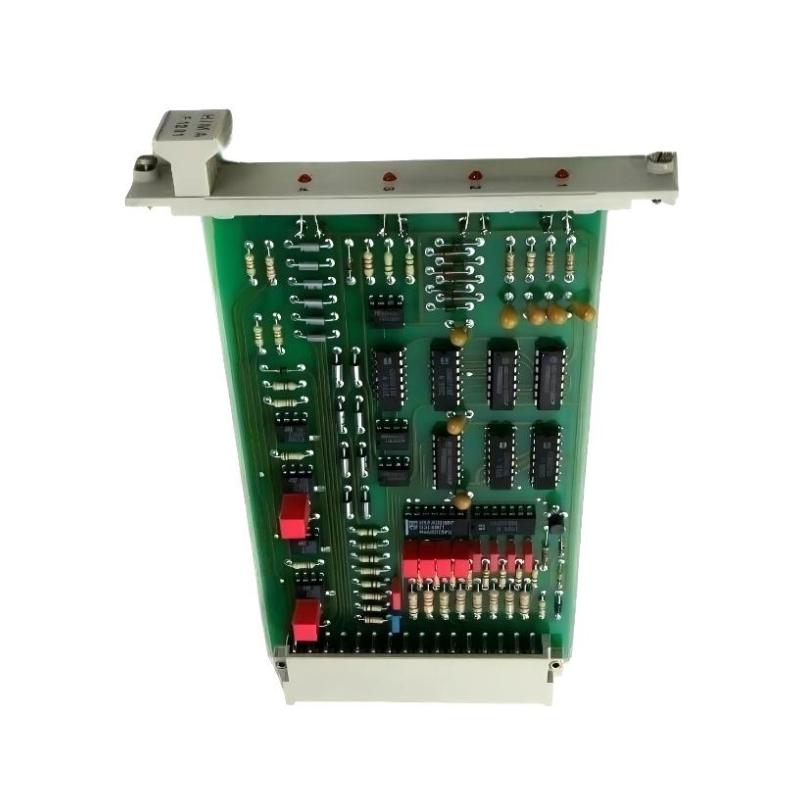

The HIMA F1201 4x Relay Amplifier Module is a robust and reliable component designed to bridge low-power control signals to field-level relay devices in safety-critical applications. Its four-channel configuration ensures flexibility and efficiency, while its rugged design guarantees continuous, fault-free operation.
Ideal for complex emergency shutdown systems and high-integrity control architectures, the F1201 ensures that critical control signals are amplified and delivered with precision, maintaining operational safety and reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Relay Amplifier Module |
| Channels | 4 independent relay amplifier channels |
| Signal Compatibility | Low-power digital or contact input to relay output |
| System Platform | HIMA F-series / HIMax |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Diagnostics | Fault detection and status indication |
| Dimensions (W × H × D) | 152 × 120 × 75 mm |
| Weight | 1.2 kg |
| Mounting | Standard HIMA rack slot |
| Operating Environment | Industrial-grade EMI and temperature tolerance |
Recommended Related Models
| Model | Description |
|---|---|
| F1 DI 16 01 | 16-Channel Digital Input Module |
| F1 DO 08 01 | Digital Output Module |
| F1101 | Switching Amplifier Module |
| F1109 | Analog Input Module |
| F1 CPU 01 | Safety Controller |
| F2 AIO 08 01 | Mixed Analog/Digital I/O Module |
| F3 DIO 16 24 | Combined I/O Module |
| F1 PS 01 | Power Supply Module |
| F3 AI 04 | Analog Input Card |
| F2 DO 16 01 | Digital Output Module |
