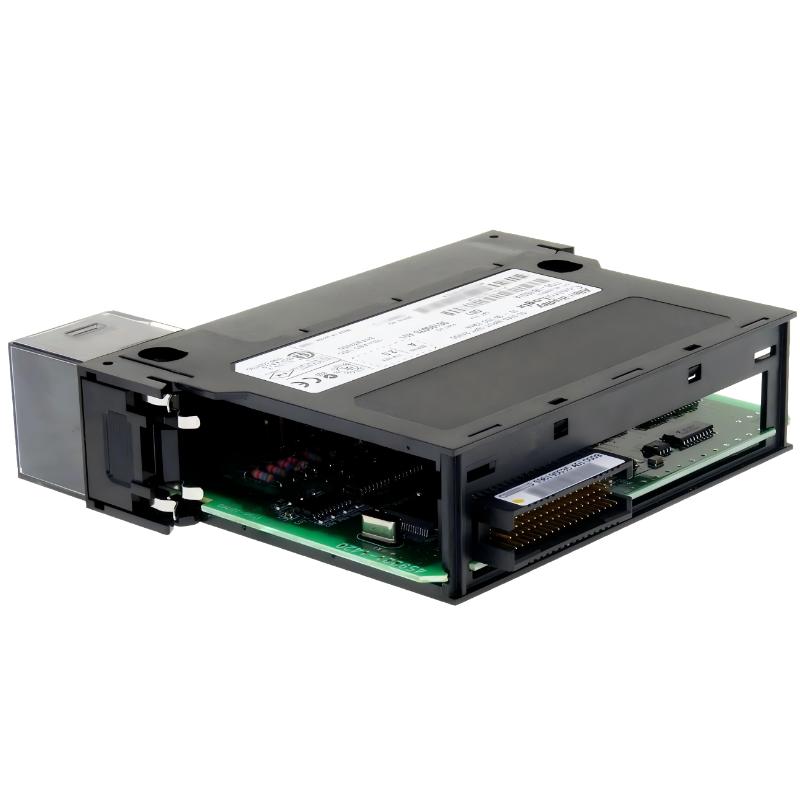

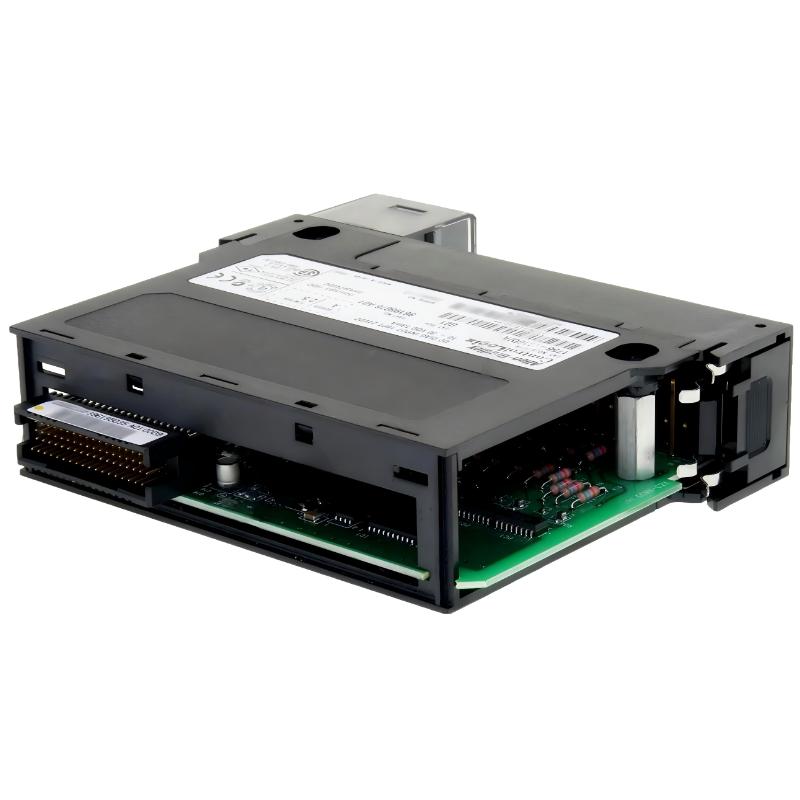

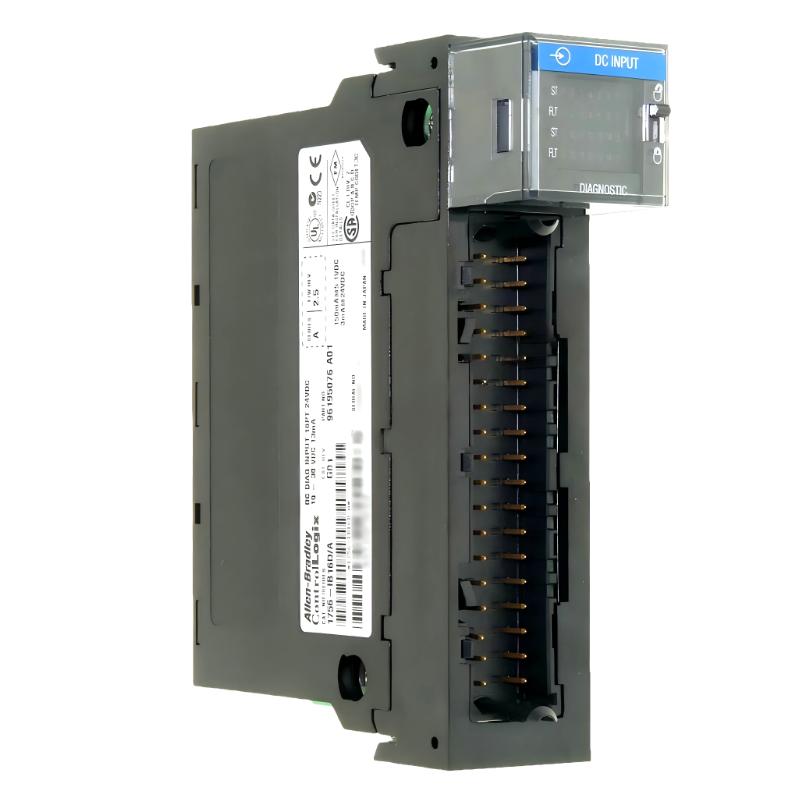

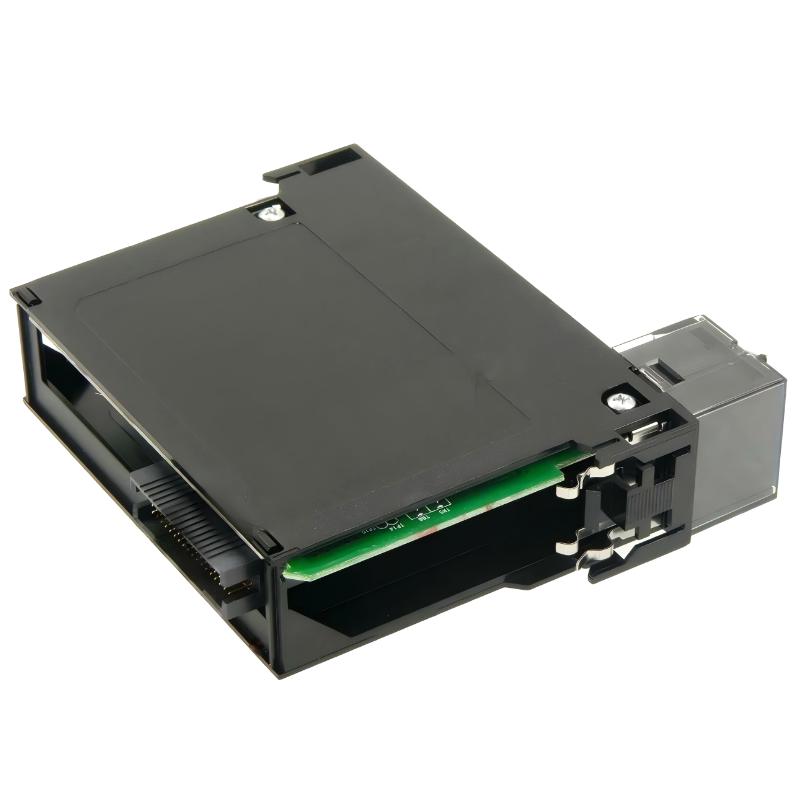

The Allen-Bradley 1756-IB16D is a specialized ControlLogix diagnostic digital input module engineered for advanced monitoring and fault-detection applications in industrial automation systems.

Unlike conventional DC input modules, the 1756-IB16D provides enhanced diagnostic capabilities such as wire-off detection, pulse testing, timestamp recording, and fault monitoring. These advanced functions allow maintenance teams and control engineers to identify wiring issues and signal abnormalities faster, helping reduce unexpected downtime and improve operational reliability.

Designed for high-performance automation environments, this module is particularly valuable in systems where accurate diagnostics and rapid fault isolation are essential for continuous production.

Technical Specifications

Category	Specification
Product Type	Diagnostic DC Digital Input Module
Series	ControlLogix 1756
Input Channels	16 diagnostic inputs
Input Groups	4 groups of 4 points
Input Voltage Range	10–30V DC
Nominal Voltage	24V DC
Input Type	Sink input with diagnostics
On-State Current	2–13 mA depending on voltage
Off-State Current	Max 1.5 mA
Input Delay (Off → On)	340 µs nominal + selectable filter
Input Delay (On → Off)	740 µs nominal + selectable filter
Backplane Current	150 mA @ 5.1V DC
Total Backplane Power	0.84 W
Power Dissipation	Max 5.8 W
Isolation Voltage	250V continuous group isolation
Operating Temperature	0°C to 60°C
Dimensions (H × W × D)	13.3 × 14.5 × 5.1 cm
Weight	Approx. 0.35–0.45 kg

Recommended Related Models

1756-IB16 Standard DC Input Module (general-purpose discrete inputs)
1756-OB16 Digital Output Module (discrete output control)
1756-IF8 Analog Input Module (process signal monitoring)
1756-L85E ControlLogix 5580 CPU Module (advanced controller integration)
1756-EN2TR Redundant Ethernet Module (high-availability networking)

Popular Allen Bradley Models

1756-IB16D Diagnostic Input Module
1756-IB16 DC Input Module
1756-OB16E Diagnostic Output Module
1756-L83E ControlLogix CPU Module
1756-EN2T EtherNet/IP Communication Module

Applications

The 1756-IB16D is commonly deployed in industrial systems where diagnostic visibility and fast fault identification are critical:

Automotive manufacturing systems
High-speed packaging and assembly machinery
Process automation environments
Safety-critical monitoring applications
Utility and energy management systems
Distributed I/O architectures requiring advanced diagnostics

Its timestamping and diagnostic functions are especially beneficial in systems requiring detailed event tracking and troubleshooting analysis.

Advantages

Advanced input diagnostics improve system reliability
Wire-off and fault detection minimize troubleshooting time
Fast response times for high-speed industrial applications
Timestamp functionality enhances event analysis accuracy
Flexible configurable filters for signal conditioning
Seamless integration with ControlLogix architecture
Reduces maintenance costs through predictive diagnostics

Technical FAQs

1. What is the primary function of the 1756-IB16D?
It monitors 24V DC input signals while providing advanced diagnostic and fault-detection capabilities.

2. How many inputs does it support?
It supports 16 diagnostic digital input channels.

3. What makes it different from the standard 1756-IB16?
The IB16D includes enhanced diagnostics such as wire-off detection, timestamps, and pulse testing.

4. What voltage range does it support?
10–30V DC, nominally 24V DC.

5. Does it provide channel isolation?
It provides group-to-group isolation but not isolation between individual channels.

6. What industries commonly use this module?
Automotive, manufacturing, utilities, and process industries.

7. Can it detect disconnected field devices?
Yes, it supports wire-off and fault detection diagnostics.

8. What software is used for configuration?
Studio 5000 Logix Designer.

9. What is the operating temperature range?
0°C to 60°C.

10. What is the approximate module weight?
Approximately 0.35–0.45 kg depending on revision and packaging.
