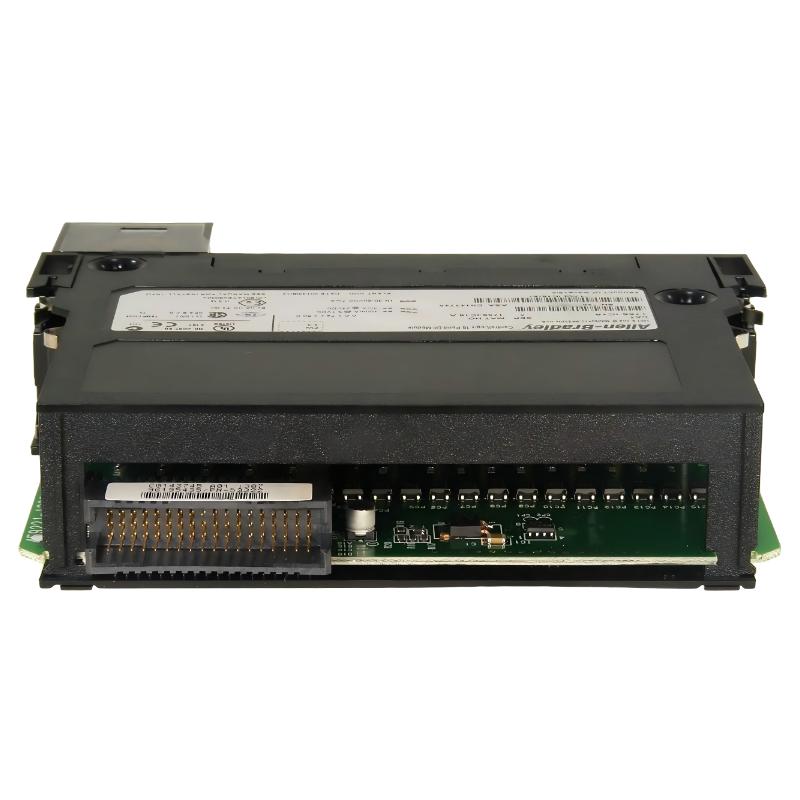

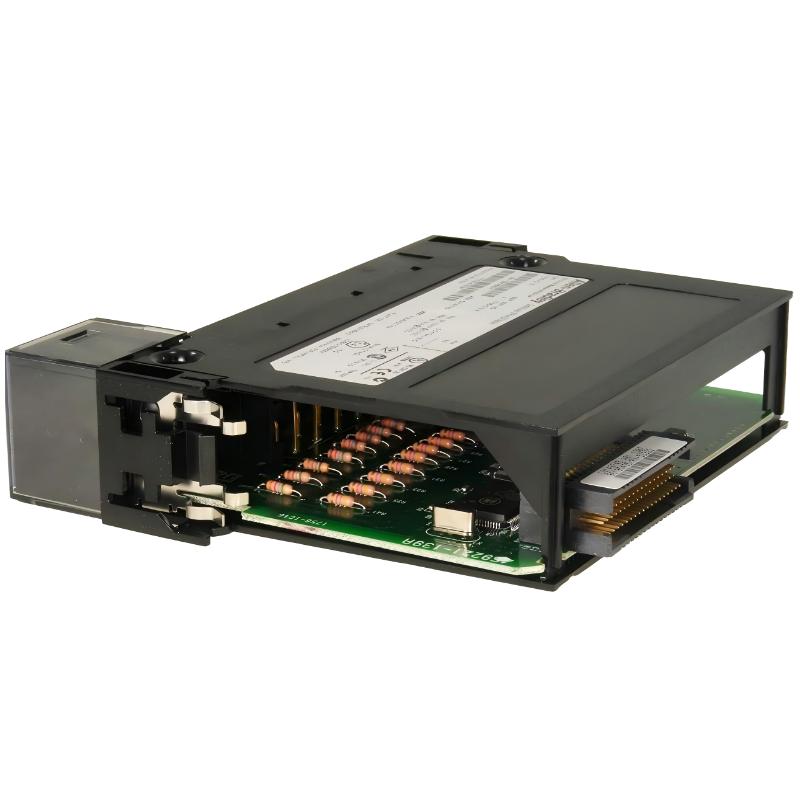

Allen Bradley 1756-IC16 ControlLogix Isolated Contact Input Module
Allen Bradley 1756-IC16 ControlLogix Isolated Contact Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 1756-IC16 Product Origin:USA Product Dimensions:13.3 × 14.5 × 5.1 cm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1756-IC16 is a ControlLogix isolated contact input module specifically engineered for monitoring dry contact and relay-based input signals in industrial automation systems. Designed for high-reliability applications, this module delivers stable signal acquisition while providing electrical isolation that helps protect automation systems from noise, voltage spikes, and grounding irregularities.
Built to operate within demanding industrial environments, the 1756-IC16 is commonly used in systems requiring dependable contact monitoring, such as motor control centers, utility infrastructure, and process automation facilities. Its robust design and seamless integration into the ControlLogix platform make it a preferred solution for engineers seeking long-term operational stability and simplified diagnostics.
Technical Specifications
Category
Specification
Product Type
Isolated Contact Input Module
Series
ControlLogix 1756
Input Channels
16 isolated contact inputs
Signal Type
Dry contact / relay contact input
Isolation
Group isolated
Input Voltage Range
10–30V DC equivalent sensing
Nominal Input Voltage
24V DC
Input Delay
Configurable filter settings
Backplane Current
~120 mA @ 5.1V DC
Power Dissipation
Approx. 5 W
Wiring Category
Industrial discrete contact sensing
Operating Temperature
0°C to 60°C
Dimensions (H × W × D)
13.3 × 14.5 × 5.1 cm
Weight
Approx. 0.30–0.45 kg
Recommended Related Models
1756-IB16 DC Digital Input Module (standard 24V DC inputs)
1756-OB16 Digital Output Module (output control applications)
1756-IF8 Analog Input Module (analog process monitoring)
1756-EN2T EtherNet/IP Communication Module (industrial networking integration)
1756-L83E ControlLogix 5580 CPU Module (high-performance controller platform)
Popular Allen Bradley Models
1756-IC16 Isolated Contact Input Module
1756-IB32 High-Density DC Input Module
1756-OB32 Digital Output Module
1756-L81E ControlLogix Controller
1756-EN2TR Redundant Ethernet Module
Applications
The 1756-IC16 is widely used in industrial automation systems requiring reliable contact-state monitoring:
Motor starter and relay feedback systems
Industrial alarm and interlock monitoring
Utility and power distribution control panels
Process automation signal acquisition
Conveyor and material handling systems
Manufacturing equipment status monitoring
Its isolated architecture makes it especially effective in environments with high electrical interference or mixed grounding conditions.
Advantages
Reliable dry-contact signal detection for industrial systems
