Introduction

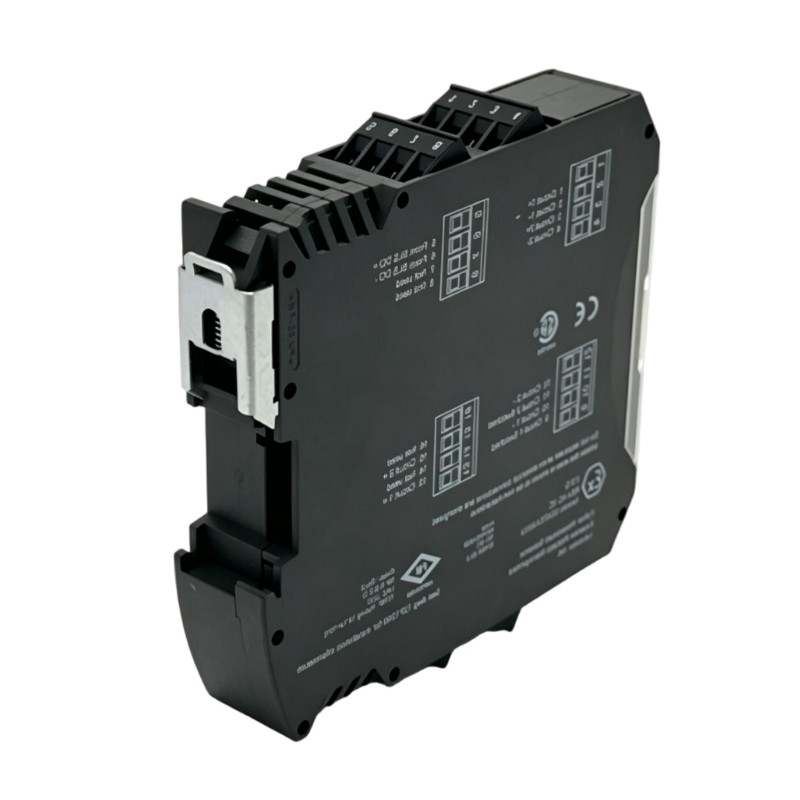

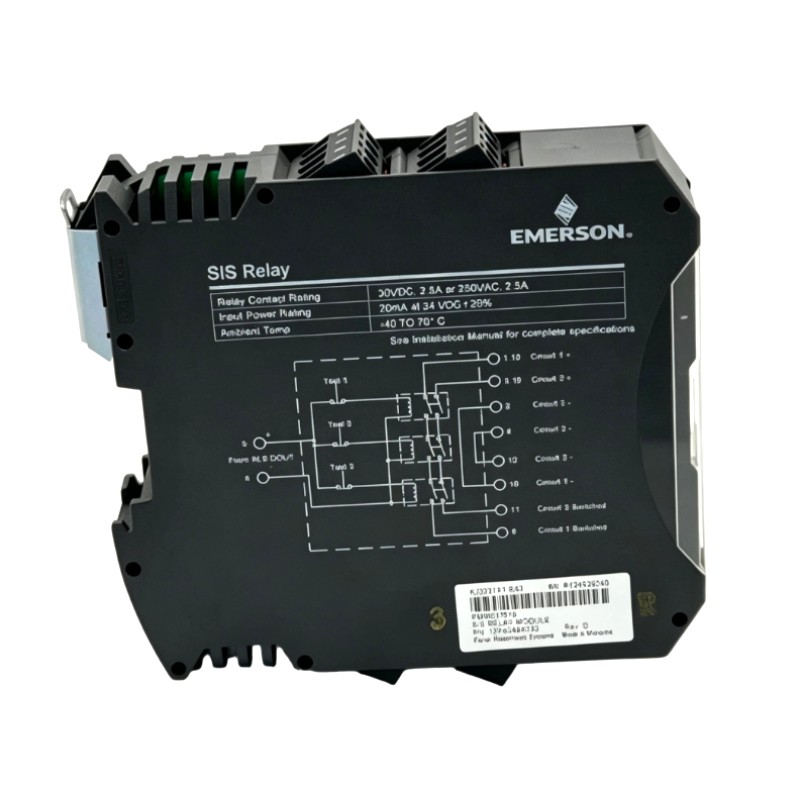

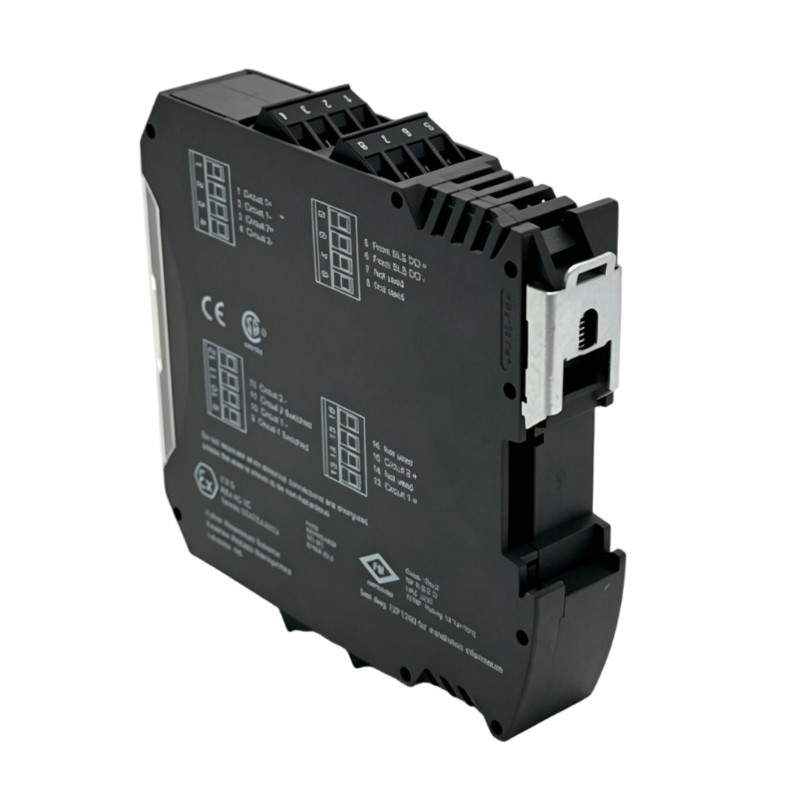

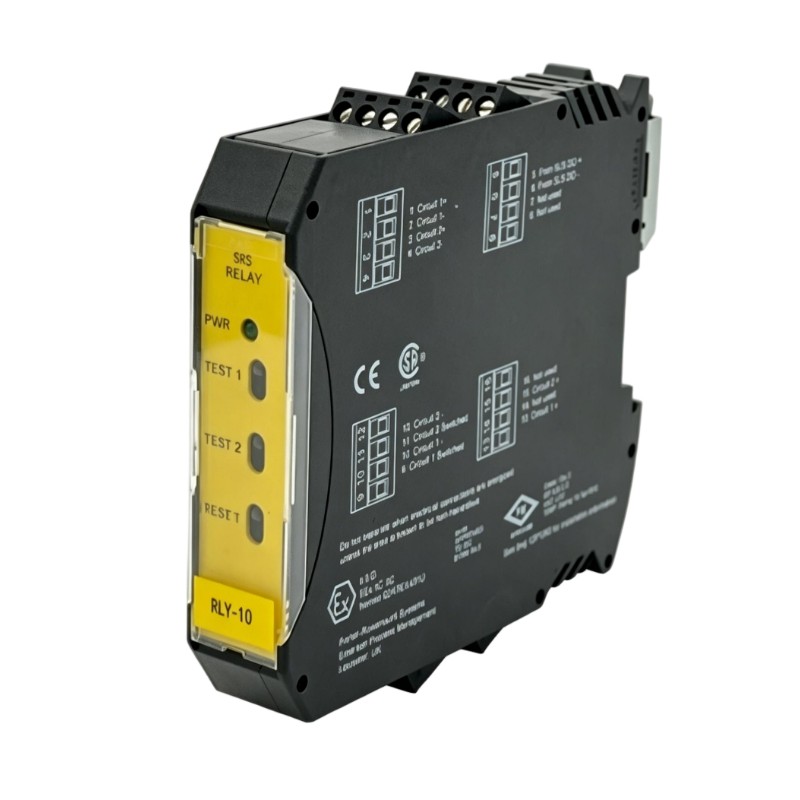

The Emerson KJ2231X1-BA1 Auxiliary Relay ETA-Direct Module provides reliable relay functionality for DeltaV automation systems. Compact and robust, it allows signal amplification, isolation, and switching for critical field devices. Designed for continuous industrial operation, it seamlessly integrates with Emerson DeltaV controllers, ensuring precise and safe control of industrial processes.

Technical Specifications

Parameter	Specification
Model	KJ2231X1-BA1
Type	Auxiliary Relay Module
Application	DeltaV ETA-Direct Automation Systems
Dimensions	88 x 26 x 79 mm
Weight	0.23 kg

Recommended Related Models

Model	Product Name
KJ2231X1-BA2	Emerson Auxiliary Relay ETA-Direct Module (variant)
KJ2231X1-BC1	Emerson Relay Expansion Module
KJ2231X1-BB1	Emerson ETA-Direct Relay Output Module
KJ2231X1-AD1	Emerson DeltaV Auxiliary Module

Popular Related Models

Model	Product Name
KJ2231X1-BA1	Emerson Auxiliary Relay ETA-Direct Module
KJ2231X1-BA2	Emerson Auxiliary Relay ETA-Direct Module (variant)
KJ2231X1-BC1	Emerson Relay Expansion Module
KJ2231X1-BB1	Emerson ETA-Direct Relay Output Module

Applications

• Provides auxiliary relay functionality for Emerson DeltaV ETA-Direct automation systems.

• Ideal for industrial control systems requiring signal amplification or isolation.

• Supports manufacturing, process control, and energy applications where reliable relay switching is critical.

• Suitable for integration into new installations or retrofitting existing DeltaV systems.

• Ensures seamless control and monitoring of field devices via auxiliary relay outputs.

Key Advantages

• Reliable Switching: Ensures consistent relay operation under continuous industrial use.

• Compact Design: Saves panel space while maintaining full functionality.

• Seamless Integration: Fully compatible with Emerson DeltaV ETA-Direct modules and controllers.

• Enhanced System Safety: Provides signal isolation to protect critical automation equipment.

• Flexible Application: Can be used for amplification, isolation, or additional output functions.

Technical FAQs

Q: What is the primary function of the KJ2231X1-BA1 module?
A: It provides auxiliary relay functionality for DeltaV ETA-Direct systems.

Q: Can it operate continuously in industrial environments?
A: Yes. Designed for reliable 24/7 operation.

Q: Is it compatible with Emerson DeltaV controllers?
A: Yes. Fully compatible with ETA-Direct modules and DeltaV automation systems.

Q: What types of signals can it handle?
A: It can manage relay input/output signals for field devices or control circuits.

Q: Can it be integrated into both new and existing systems?
A: Yes. Suitable for system upgrades, retrofits, and new installations.

Q: Does it provide signal isolation?
A: Yes. Built-in isolation enhances system safety and protects controllers.

Q: What industrial applications is it suitable for?
A: Amplifying, isolating, or switching control signals in process, manufacturing, and energy systems.

Q: Can it be mounted in compact panels?
A: Yes. Its small footprint allows integration in limited space panels.

Q: What is the weight of the module?
A: The module weighs 0.23 kg.

Q: Does it require any special maintenance?
A: No. It is designed for reliable operation with minimal maintenance.
