Introduction

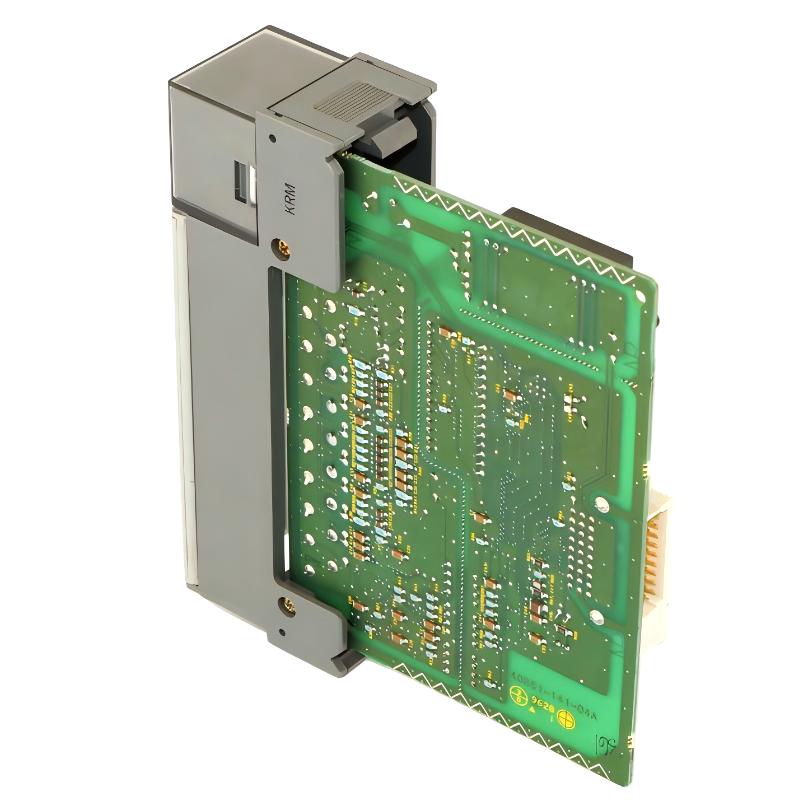

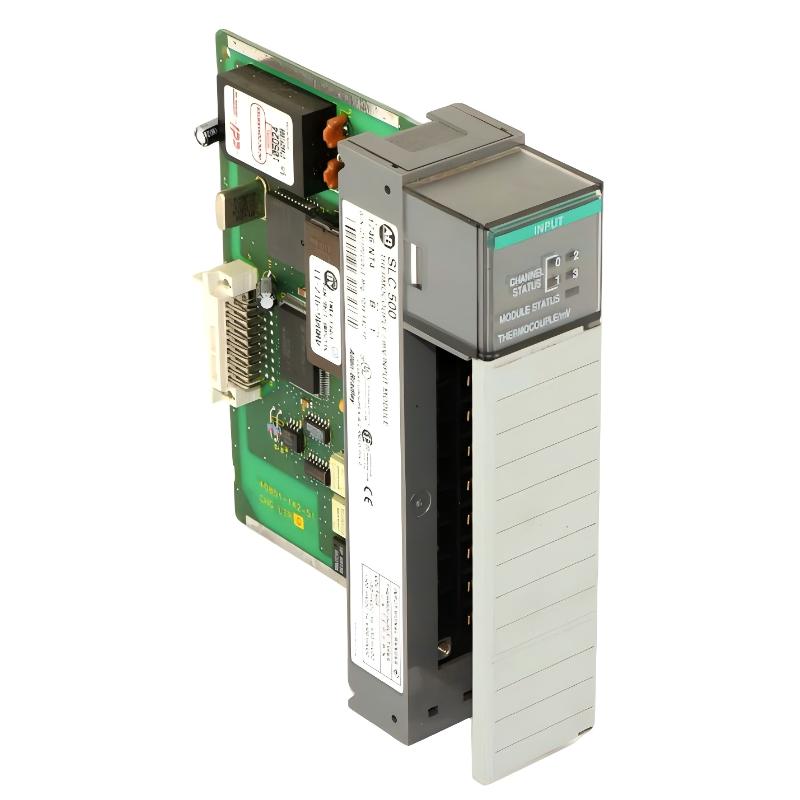

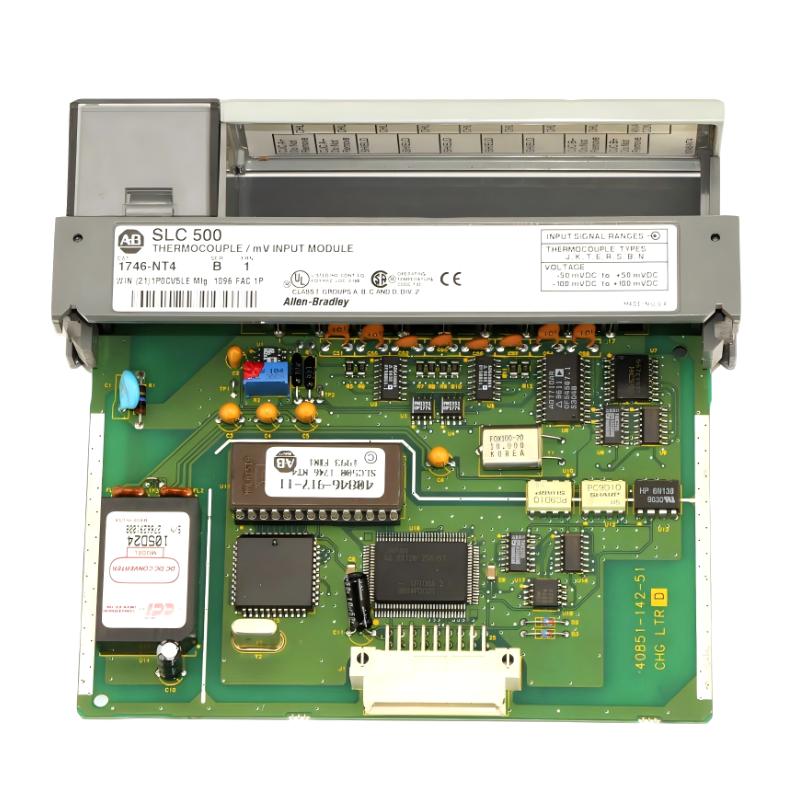

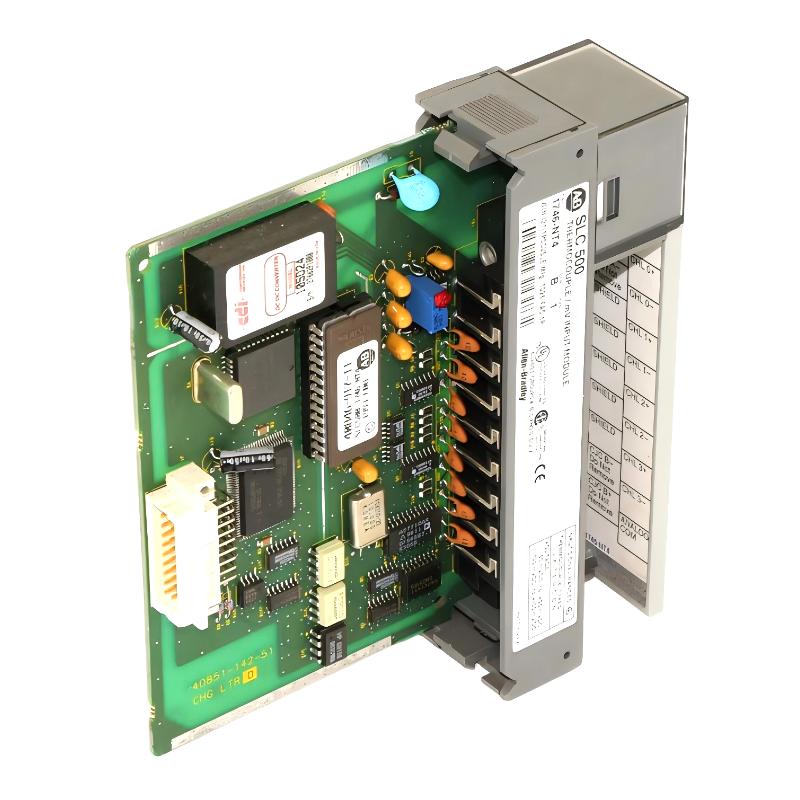

The Allen Bradley 1746-NT4 Thermocouple/mV Analog Input Module is a high-precision solution for measuring temperature and low-voltage signals in SLC 500 systems. It captures thermal data from thermocouples and millivolt sensors, transmitting accurate information to the CPU for process monitoring and control. Its durable industrial construction ensures consistent performance, while its compact design simplifies integration, calibration, and maintenance. The NT4 module provides reliable, precise signal acquisition essential for industrial temperature and process control applications.

Technical Specifications

Parameter	Specification
Module Type	Thermocouple/mV Analog Input Module
Model Number	1746-NT4
Dimensions (L×W×H)	144.5 × 34.6 × 130.18 mm
Weight	0.45 kg / 0.99 lb
Functionality	Acquires thermocouple and mV signals for SLC 500 systems
Channels	Multiple thermocouple/mV inputs
Signal Types	Thermocouple, millivolt
Mounting	Allen Bradley SLC 500 Rack
Operating Temperature	0°C to 55 °C
Storage Temperature	-20°C to 70 °C
Compatibility	Allen Bradley SLC 500 Controllers & I/O modules

Applications

The Allen Bradley 1746-NT4 Analog Input Module is specifically designed to acquire thermocouple and millivolt signals for the SLC 500 system. It is widely used in industrial temperature monitoring, thermal process control, and utility systems where precise measurement of thermal parameters is critical. This module ensures reliable and accurate analog data acquisition for effective process management.

Advantages

Thermocouple and mV Signal Support: Designed to handle low-level thermocouple and millivolt inputs with high precision.
Compact Industrial Design: 144.5 × 34.6 × 130.18 mm and 0.45 kg / 0.99 lb, perfect for SLC 500 rack integration.
Reliable Measurement: Industrial-grade components minimize noise and signal interference.
Seamless SLC 500 Integration: Works with other SLC 500 I/O and CPU modules for smooth data flow.
Easy Maintenance: Terminal-based connections simplify wiring, calibration, and replacement.

Technical FAQs

What types of signals can the 1746-NT4 handle?
Thermocouple signals and low-level millivolt inputs.
How many channels are supported?
Typically supports multiple analog input channels for thermocouple and mV signals.
Is it suitable for harsh industrial conditions?
Yes, designed to tolerate vibration, temperature fluctuations, and electrical noise.
Does it require configuration?
Minimal setup is needed using SLC 500 programming software.
Can it be used with standard SLC 500 racks?
Yes, the compact design fits standard SLC 500 mounting.
Does it offer diagnostic feedback?
Yes, channel status and error detection for signal integrity.
Can it improve process measurement accuracy?
Yes, by reducing noise and preserving signal fidelity for thermocouple/mV readings.
Is calibration supported?
Yes, the module can be calibrated for precise temperature and millivolt measurement.
Can it integrate with other analog modules?
Yes, compatible with analog input, output, and combined I/O modules in the SLC 500 system.
What industries benefit most from this module?
Industries requiring precise thermal monitoring, including chemical, power, and manufacturing plants.
