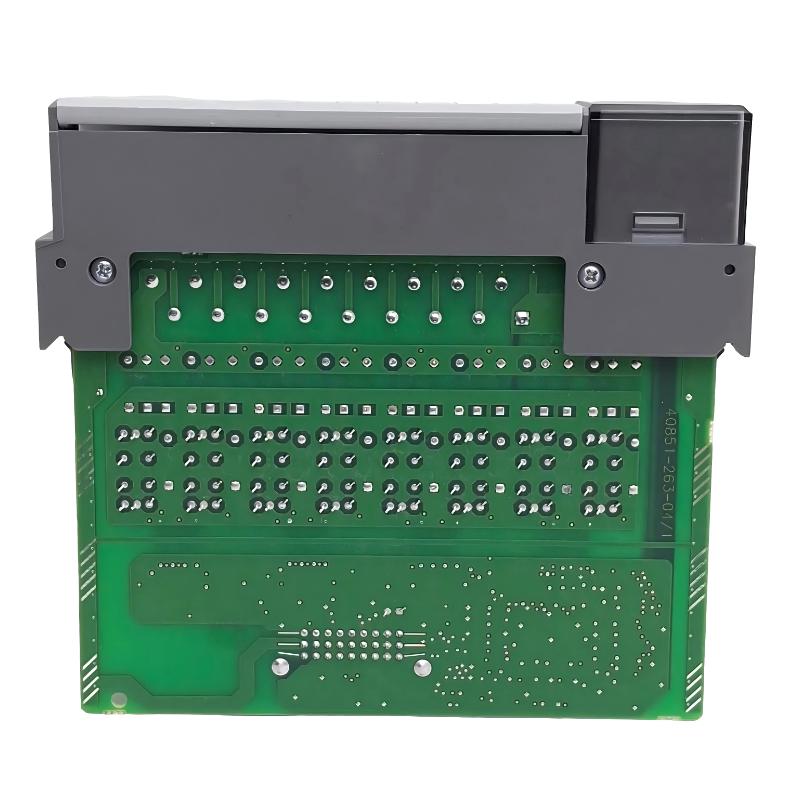

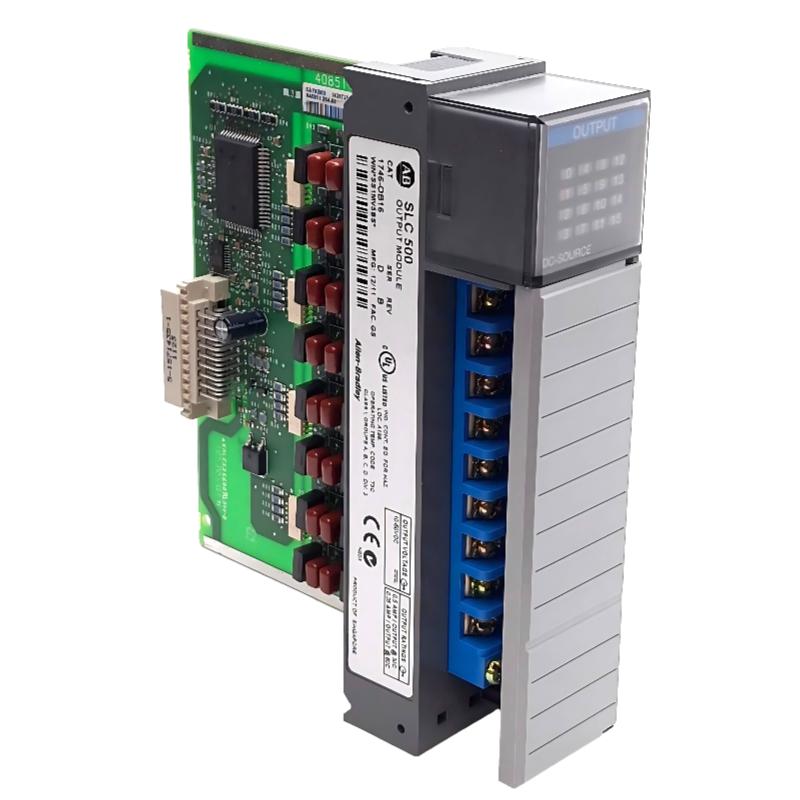

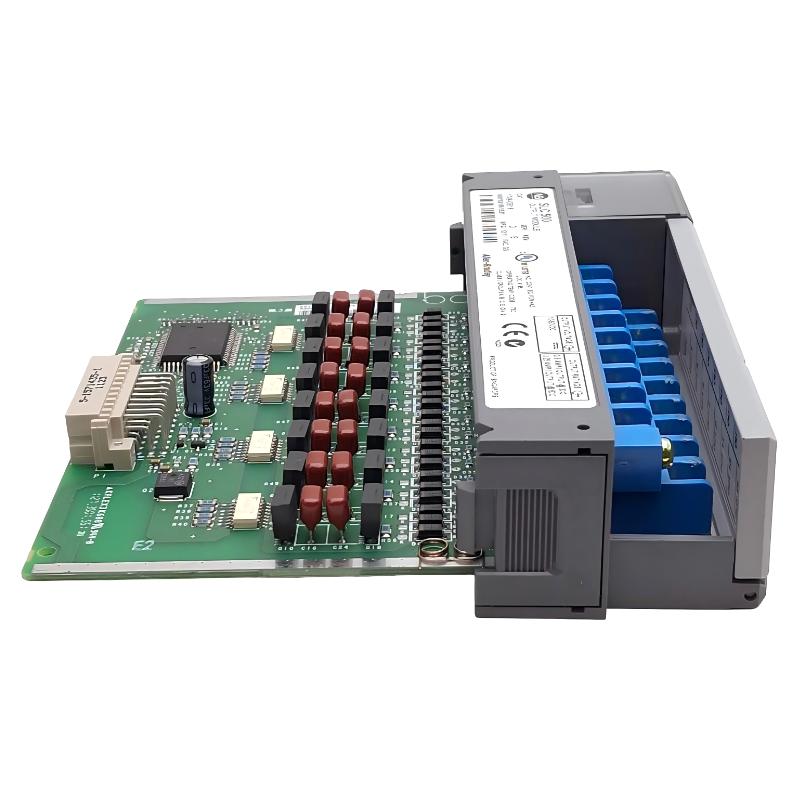

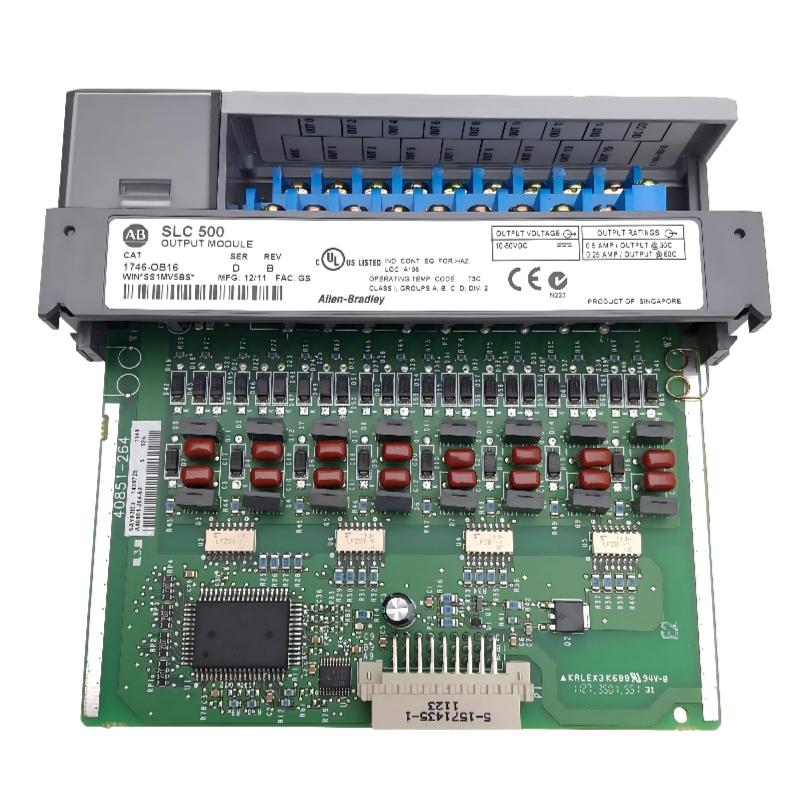

Allen Bradley 1746-OB16/D SLC 500 Digital DC Output Module
Allen Bradley 1746-OB16/D SLC 500 Digital DC Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OB16/D Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.272 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1746-OB16/D Digital DC Output Module is a high-performance solution for controlling DC devices in SLC 500 systems. With 16 output channels, it delivers fast, reliable digital switching to relays, solenoids, and indicators. The OB16/D module’s compact design, robust construction, and seamless integration with SLC 500 controllers make it a dependable choice for industrial automation and process control applications. Its diagnostic capabilities and modularity simplify maintenance and enhance system reliability.
Technical Specifications
Parameter
Specification
Module Type
Digital DC Output Module
Model Number
1746-OB16/D
Dimensions (L×W×H)
144.5 × 34.6 × 130.18 mm
Weight
0.272 kg / 0.60 lb
Functionality
Provides 16 channels of DC output for SLC 500 systems
Channels
16 digital output channels
Output Type
DC
Mounting
Allen Bradley SLC 500 Rack
Operating Temperature
0°C to 55 °C
Storage Temperature
-20°C to 70 °C
Compatibility
Allen Bradley SLC 500 Controllers & I/O modules
Applications
The Allen Bradley 1746-OB16/D Digital DC Output Module is engineered to provide robust and reliable digital output for SLC 500 systems. It is widely used in industrial automation, manufacturing, and process control to drive relays, solenoids, indicator lights, and other DC-powered devices. This module is ideal for systems requiring fast, accurate, and dependable digital switching.
Advantages
High Reliability: Industrial-grade components ensure consistent DC output under demanding conditions.
Compact and Space-Saving: 144.5 × 34.6 × 130.18 mm and 0.272 kg / 0.60 lb, optimized for SLC 500 rack installations.
Fast Switching: Capable of precise on/off control for multiple channels simultaneously.
Seamless SLC 500 Integration: Fully compatible with SLC 500 CPUs and other I/O modules.
Easy Installation and Maintenance: Terminal-based wiring allows quick setup, inspection, and replacement.
Technical FAQs
What is the main function of the 1746-OB16/D?
Provides 16 channels of digital DC output for SLC 500 control systems.
Is it suitable for industrial environments?
Yes, designed to withstand electrical noise, vibration, and temperature variations.
What voltage does it output?
DC output, typically compatible with standard 24V DC control circuits.
Can it handle multiple devices simultaneously?
Yes, it can switch multiple relays, solenoids, and indicator devices.
Does it support diagnostics?
Yes, it provides channel status and fault detection.
Is programming required?
Minimal setup is required within the SLC 500 CPU configuration software.
Can it replace multiple single-channel modules?
Yes, consolidates multiple DC output channels into a single module.
What is the switching speed?
Designed for fast on/off operation suitable for most industrial applications.
Is maintenance complicated?
No, its modular design allows for easy replacement and inspection.
Can it be mounted in standard SLC 500 racks?
Yes, it is fully compatible with standard SLC 500 mounting.
