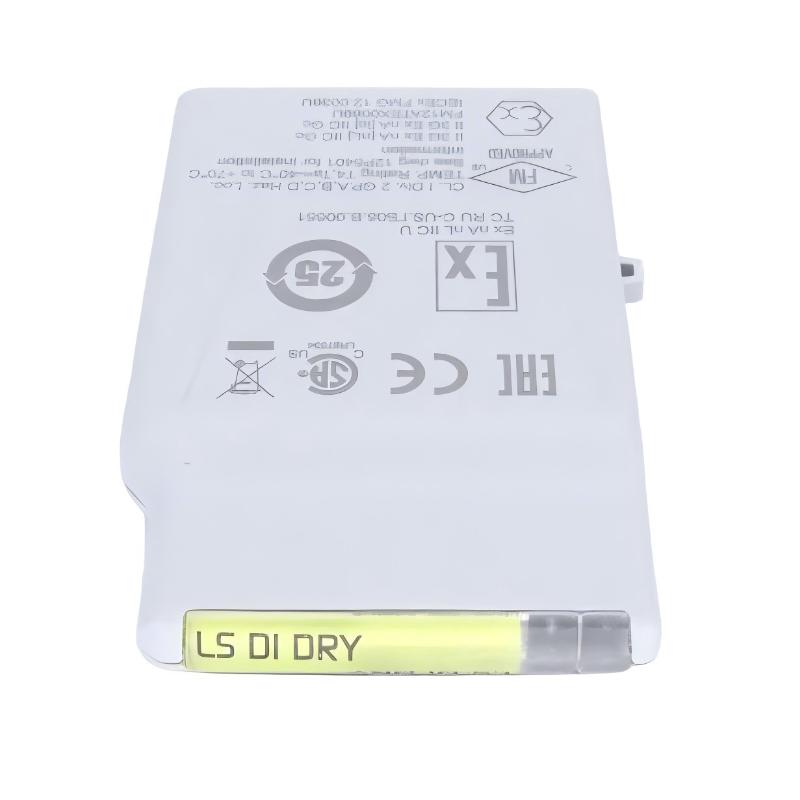

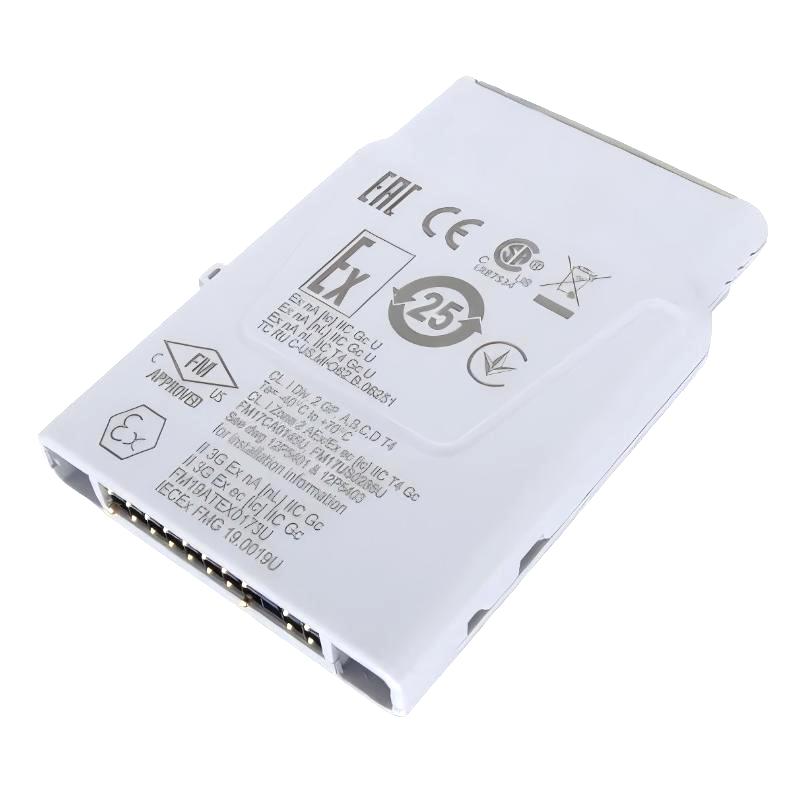

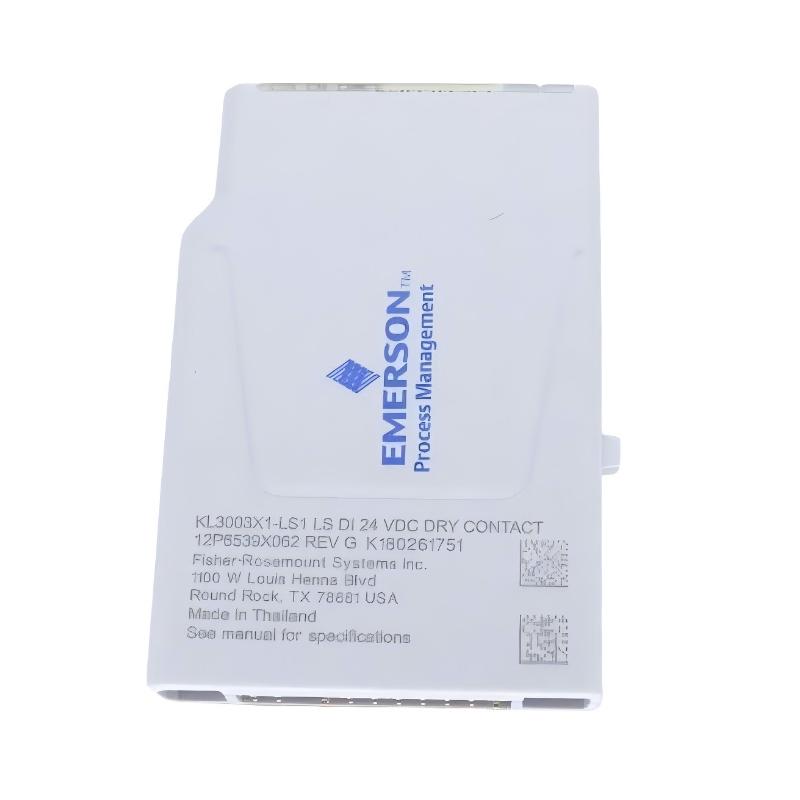

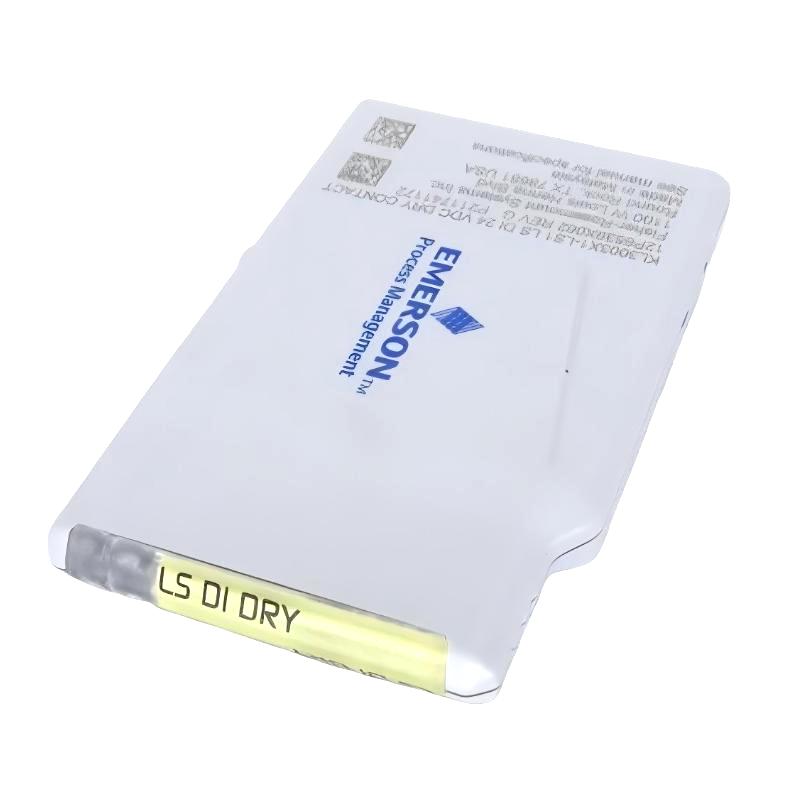

Emerson KL3003X1-LS1 LS DI 24VDC Dry Contact CHARM
Emerson KL3003X1-LS1 LS DI 24VDC Dry Contact CHARM
0.0
Points
Brand:Emerson Module Item No.:KL3003X1-LS1 Product Origin:USA Product Dimensions:150 × 100 × 35 mm Product Weight:0.113 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson KL3003X1-LS1 LS DI 24VDC Dry Contact CHARM module provides reliable discrete input functionality for DeltaV systems. Compact and modular, it easily integrates into CHARM I/O architecture to acquire signals from switches, sensors, and other field devices. Designed for industrial use, it ensures consistent 24VDC input detection, enabling precise and timely process monitoring for manufacturing, energy, and processing applications.
Technical Specifications
Parameter
Specification
Model
KL3003X1-LS1
Type
LS DI 24VDC Dry Contact CHARM
Application
DeltaV CHARM I/O Discrete Input
Dimensions
150 × 100 × 35 mm
Weight
0.113 kg
Recommended Related Models
Model
Product Name
KL3003X1-LS2
Emerson LS DI 24VDC Dry Contact CHARM (variant)
KL2001X1-BA1
Emerson Intelligent Logic Solver
KJ2231X1-BA1
Emerson Auxiliary Relay ETA-Direct Module
KJ3001X1-CB1
Emerson Discrete Output Module
Popular Related Models
Model
Product Name
KL3003X1-LS1
Emerson LS DI 24VDC Dry Contact CHARM
KL3003X1-LS2
Emerson LS DI 24VDC Dry Contact CHARM (variant)
KL2001X1-BA1
Emerson Intelligent Logic Solver
KJ2231X1-ED1
Emerson RC Compensator DeltaV ETA-Direct
Applications
• Provides discrete input (DI) functionality for Emerson DeltaV systems via dry contact CHARM interface.
• Ideal for industrial automation environments requiring reliable 24VDC signal acquisition.
• Supports manufacturing, process control, and energy applications for monitoring field devices.
• Suitable for both new installations and retrofits in DeltaV automation systems.
• Ensures seamless integration with DeltaV controllers and safety or process modules.
Key Advantages
• Reliable Signal Acquisition: Ensures consistent detection of 24VDC dry contact inputs.
• Compact and Modular: Fits easily into DeltaV CHARM I/O architecture without occupying excessive panel space.
• Seamless Integration: Fully compatible with DeltaV controllers and CHARM system modules.
• Flexible Application: Can monitor switches, sensors, or other dry contact devices in industrial systems.
• Enhanced Process Control: Supports timely and accurate data acquisition for better system management.
Technical FAQs
Q: What is the primary function of the KL3003X1-LS1?
A: It provides 24VDC discrete input (DI) functionality through the DeltaV CHARM interface.
Q: Can it be used in new installations and retrofits?
A: Yes. Suitable for both system upgrades and new DeltaV installations.
Q: Is it compatible with DeltaV controllers?
A: Yes. Fully compatible with CHARM I/O modules and DeltaV controllers.
Q: What type of signals does it handle?
A: It handles 24VDC dry contact input signals from field devices.
Q: Can it be used in industrial environments?
A: Yes. Built for reliable operation under standard industrial conditions.
Q: Can it be installed in compact panels?
A: Yes. Its modular CHARM design allows efficient panel integration.
Q: Does it require maintenance?
A: No. Designed for long-term, low-maintenance operation.
Q: How many channels does it support?
A: Typically configured to handle one or multiple discrete input channels depending on system setup.
Q: What is the weight of the module?
A: The module weighs 0.113 kg.
Q: Can it monitor multiple types of dry contact devices?
A: Yes. Compatible with switches, sensors, and other dry contact field devices.
