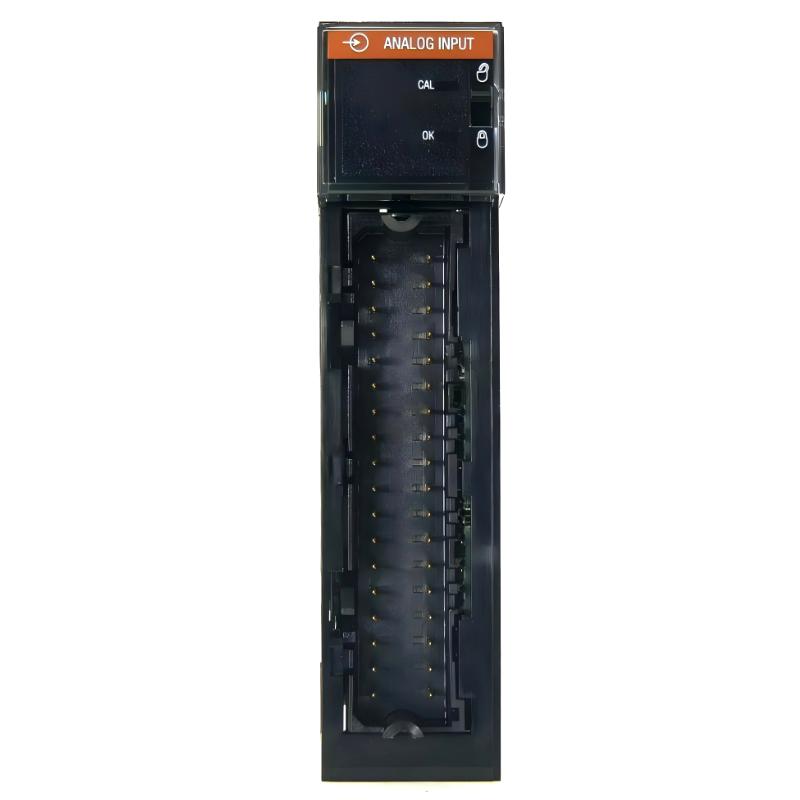

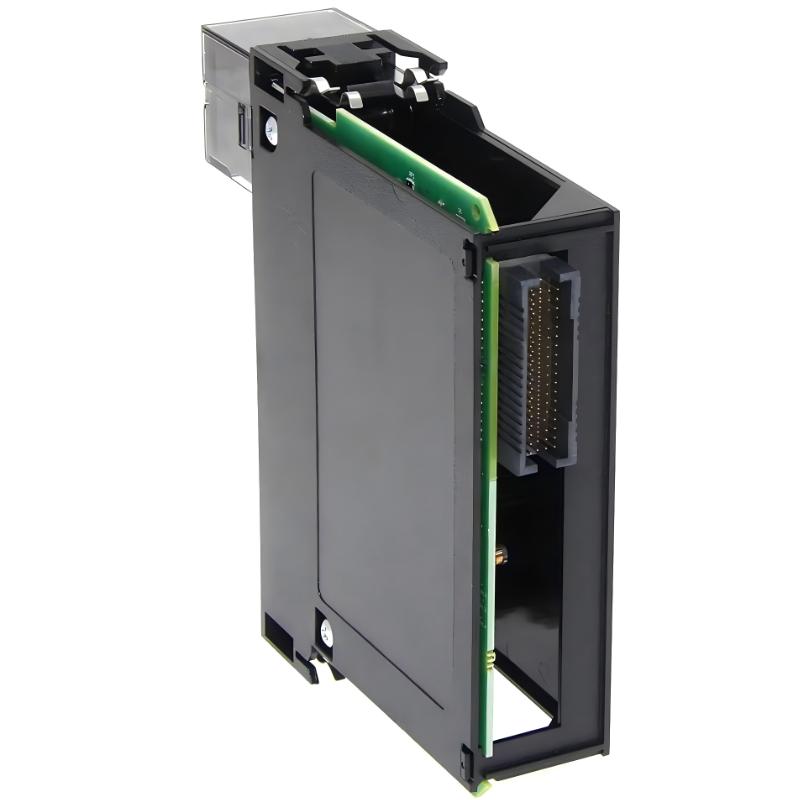

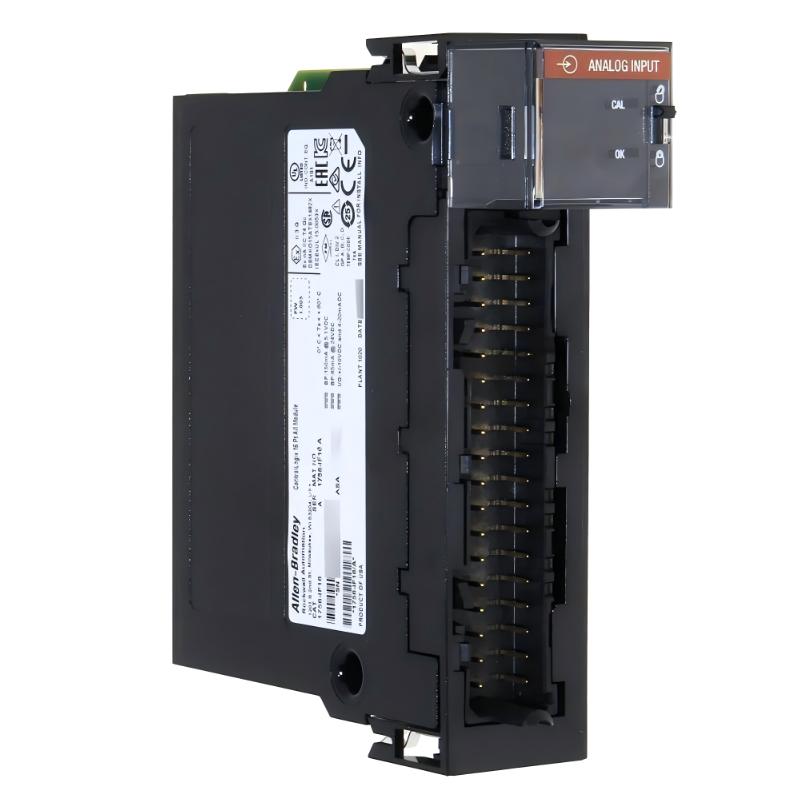

The Allen-Bradley 1756-IF16 is a high-density analog input module designed for the ControlLogix automation platform, delivering precise multi-channel analog signal acquisition for demanding industrial applications.
Built to process critical process-control signals such as voltage and current inputs, this module provides stable and accurate data conversion for monitoring sensors, transmitters, and instrumentation devices across manufacturing and process industries. With 16 individually configurable input channels, the 1756-IF16 offers exceptional flexibility while reducing cabinet space requirements in large automation systems.
Its combination of accuracy, scalability, and industrial reliability makes it a preferred solution for engineers designing advanced control architectures requiring dependable analog data acquisition.
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | Analog Input Module |
| Series | ControlLogix 1756 |
| Input Channels | 16 single-ended / 8 differential |
| Signal Types | Voltage and Current |
| Voltage Input Range | ±10V DC, 0–10V |
| Current Input Range | 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Backplane Current | ~300 mA @ 5.1V DC |
| Power Dissipation | Approx. 6.2 W |
| Isolation | Group isolated |
| Conversion Speed | High-speed multiplexed conversion |
| Wiring Category | Analog low-voltage |
| Operating Temperature | 0°C to 60°C |
| Dimensions (H × W × D) | 13.3 × 14.5 × 5.1 cm |
| Weight | Approx. 0.32–0.45 kg |
