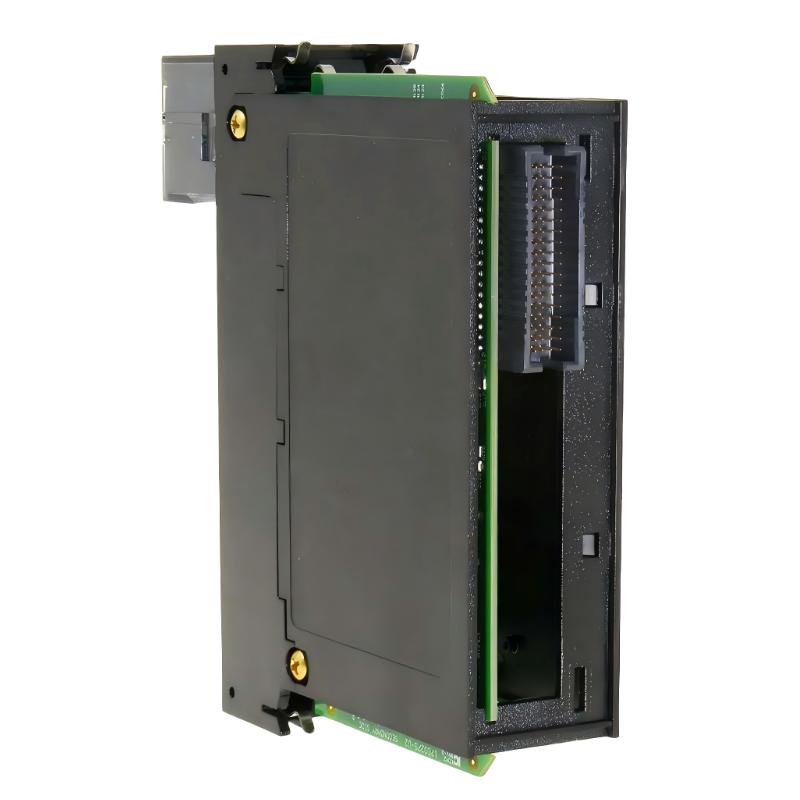

Allen Bradley 1756-IF8 ControlLogix 8-Channel Analog Input Module

Applications

The 1756-IF8 is commonly used in industrial environments requiring accurate analog process monitoring:

• Chemical and pharmaceutical processing systems
• Water and wastewater treatment facilities
• Oil & gas process automation
• Food and beverage production lines
• Power generation and utility monitoring
• Factory automation and machine control systems

Its flexibility and high signal accuracy make it ideal for systems handling multiple analog sensor types simultaneously.

Advantages

• Supports both voltage and current analog inputs
• Flexible channel configuration for diverse applications
• High-resolution 16-bit signal conversion
• Stable analog performance in industrial environments
• Simplifies process monitoring with scalable architecture
• Strong compatibility with ControlLogix control systems
• Rugged industrial-grade design for long operational life

Technical FAQs

1. What is the primary function of the 1756-IF8?
It acquires and converts analog voltage or current signals for ControlLogix controllers.

2. How many channels does the module support?
It supports 8 differential or 16 single-ended analog input channels.

3. What signal types can it process?
Voltage inputs such as ±10V and current inputs including 4–20 mA.

4. What is the module resolution?
The module provides 16-bit analog resolution.

5. Is the module isolated?
Yes, it includes group isolation for improved signal integrity.

6. Which industries commonly use the 1756-IF8?
Manufacturing, utilities, oil & gas, water treatment, and process automation industries.

7. Can channels be individually configured?
Yes, each channel can be configured independently for different signal types and ranges.

8. What software is used for configuration?
Studio 5000 Logix Designer.

9. What is the operating temperature range?
0°C to 60°C.

10. What is the approximate module weight?
Approximately 0.30–0.45 kg depending on revision and installation configuration.
