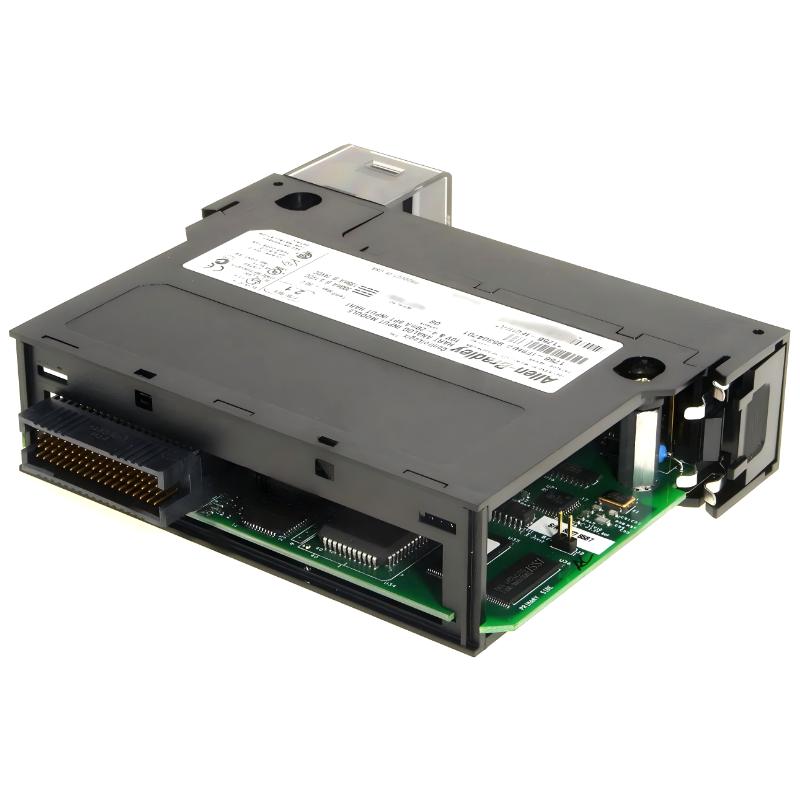

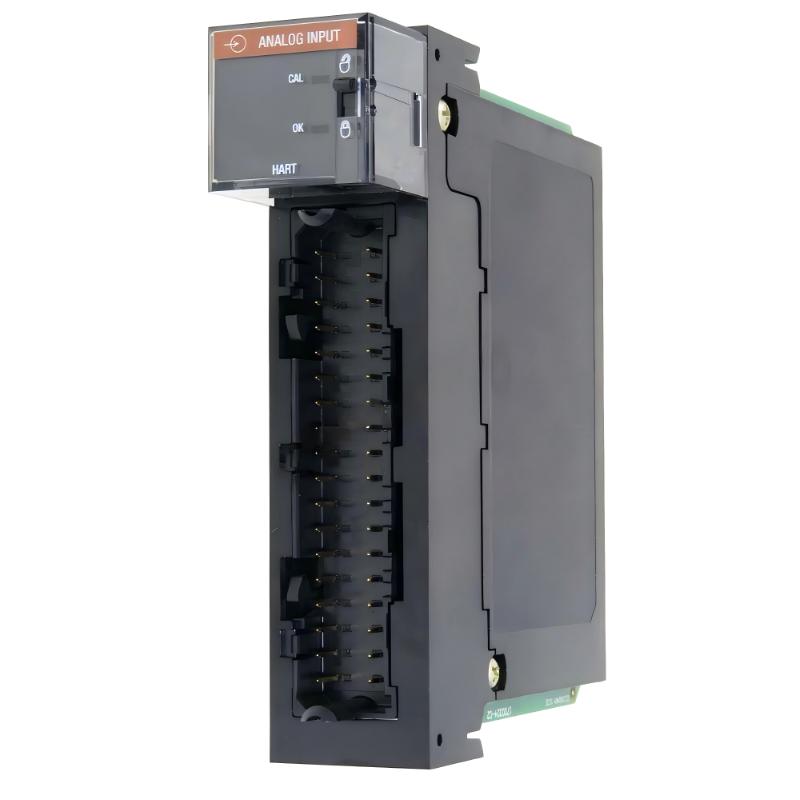

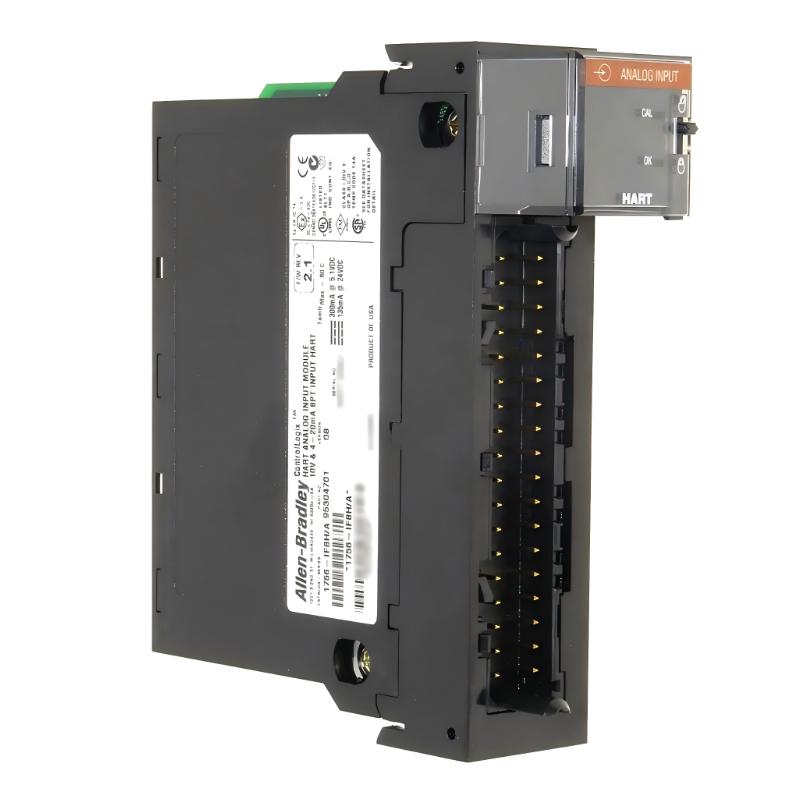

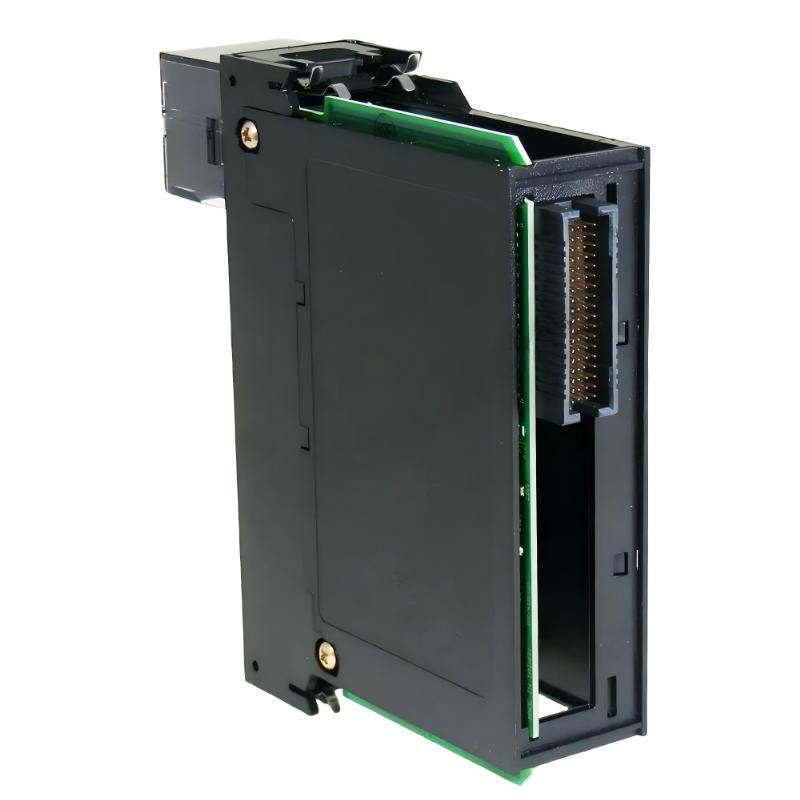

The Allen-Bradley 1756-IF8H is a premium HART-enabled analog input module designed for advanced process automation applications within the ControlLogix platform. Engineered for high-accuracy industrial environments, this module combines traditional analog signal acquisition with integrated HART communication, allowing users to access both process variables and intelligent device diagnostics from field instruments.

Supporting a wide range of voltage and current signals, the 1756-IF8H is ideal for modern process industries where real-time monitoring, predictive maintenance, and smart instrumentation integration are critical. Its ability to communicate directly with HART-compatible transmitters significantly improves operational visibility while reducing maintenance complexity.

With rugged industrial construction and high-resolution analog conversion, the 1756-IF8H delivers dependable performance in demanding automation systems.

Technical Specifications

Category	Specification
Product Type	HART Analog Input Module
Series	ControlLogix 1756
Input Channels	8 differential analog inputs
Supported Signals	Voltage and Current
Voltage Input Ranges	±10V, 0–5V, 1–5V, 0–10V
Current Input Ranges	0–20 mA, 4–20 mA
HART Compatibility	HART 5, 6, and 7
Resolution	16–21 bits
Isolation	50V continuous between inputs
Backplane Current	300 mA @ 5.1V DC
Backplane Current	135 mA @ 24V DC
Total Backplane Power	Approx. 4.77 W
Scan Time	18–488 ms depending on filter settings
Communication Feature	Integrated HART modem
Operating Temperature	0°C to 60°C
Dimensions (H × W × D)	13.3 × 14.5 × 5.6 cm
Weight	Approx. 0.45–2.0 kg (shipping configuration dependent)

Recommended Related Models

1756-OF8H HART Analog Output Module
1756-IF8 Standard Analog Input Module
1756-IF8IH Isolated HART Analog Input Module
1756-L85E ControlLogix 5580 CPU Module
1756-EN2T EtherNet/IP Communication Module

Popular Allen Bradley Models

1756-IF8H HART Analog Input Module
1756-IF16 High-Density Analog Input Module
1756-IB16 DC Digital Input Module
1756-L83E ControlLogix CPU Module
1756-EN2TR Redundant Ethernet Module

Applications

The 1756-IF8H is widely used in industries requiring advanced process instrumentation and intelligent device communication:

Oil & gas production systems
Chemical and petrochemical processing plants
Power generation and utility automation
Pharmaceutical manufacturing systems
Water and wastewater treatment facilities
Industrial process monitoring and diagnostics

Its HART integration allows operators to access field device diagnostics, calibration data, and process information directly from the control system.

Advantages

Integrated HART communication reduces external hardware requirements
Supports both analog process values and smart device diagnostics
High-resolution conversion improves process accuracy
Compatible with modern intelligent transmitters and instrumentation
Flexible support for voltage and current signals
Simplifies predictive maintenance and troubleshooting
Seamless integration into ControlLogix process architectures

Technical FAQs

1. What is the primary function of the 1756-IF8H?
It acquires analog signals while enabling HART communication with smart field devices.

2. How many channels does the module support?
The module provides 8 differential analog input channels.

3. What signal types are supported?
Voltage signals up to ±10V and current signals including 4–20 mA.

4. Does the module support HART communication?
Yes, it includes integrated support for HART protocols 5, 6, and 7.

5. What is the module resolution?
Resolution ranges from 16 to 21 bits depending on configuration.

6. Can it communicate with smart transmitters?
Yes, it is designed specifically for HART-enabled field devices.

7. What industries commonly use the 1756-IF8H?
Oil & gas, utilities, pharmaceuticals, water treatment, and process automation industries.

8. What software is used for configuration?
Studio 5000 Logix Designer with HART integration support.

9. What is the operating temperature range?
0°C to 60°C.

10. What is the key advantage of HART integration?
It enables access to both process data and advanced field device diagnostics through a single module.
