Introduction

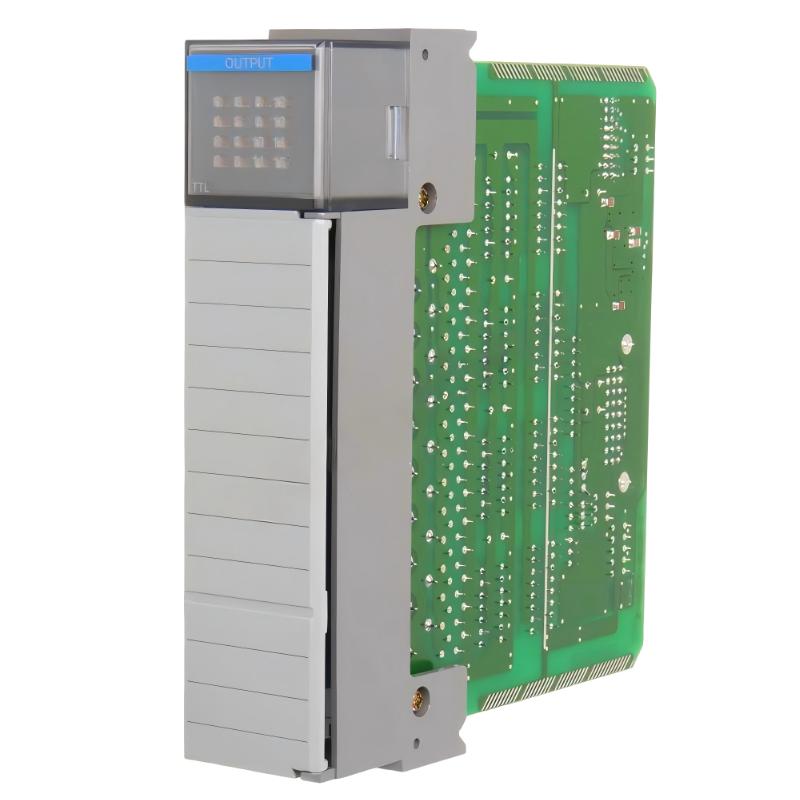

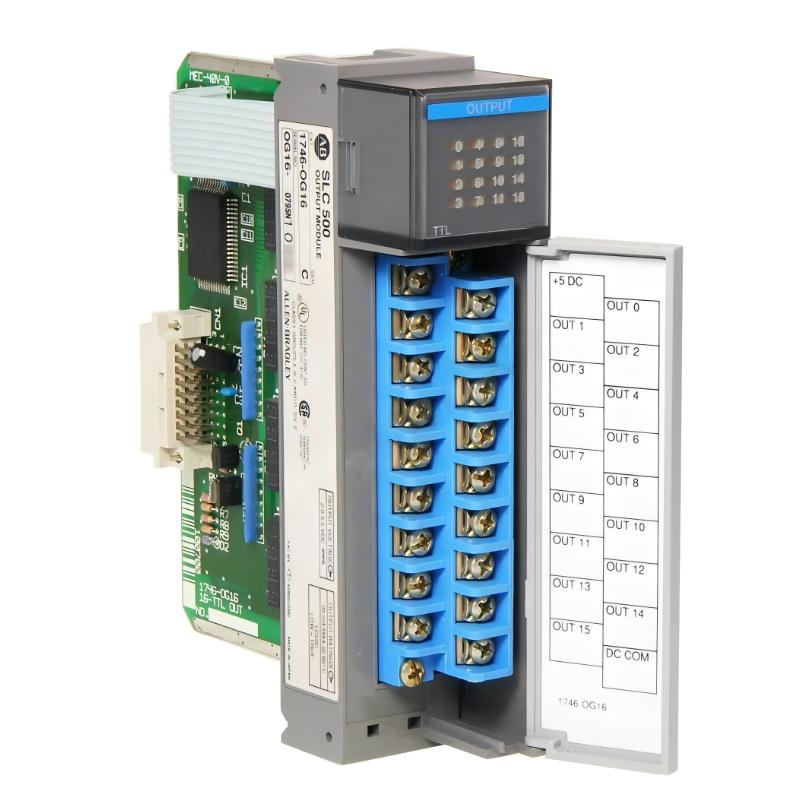

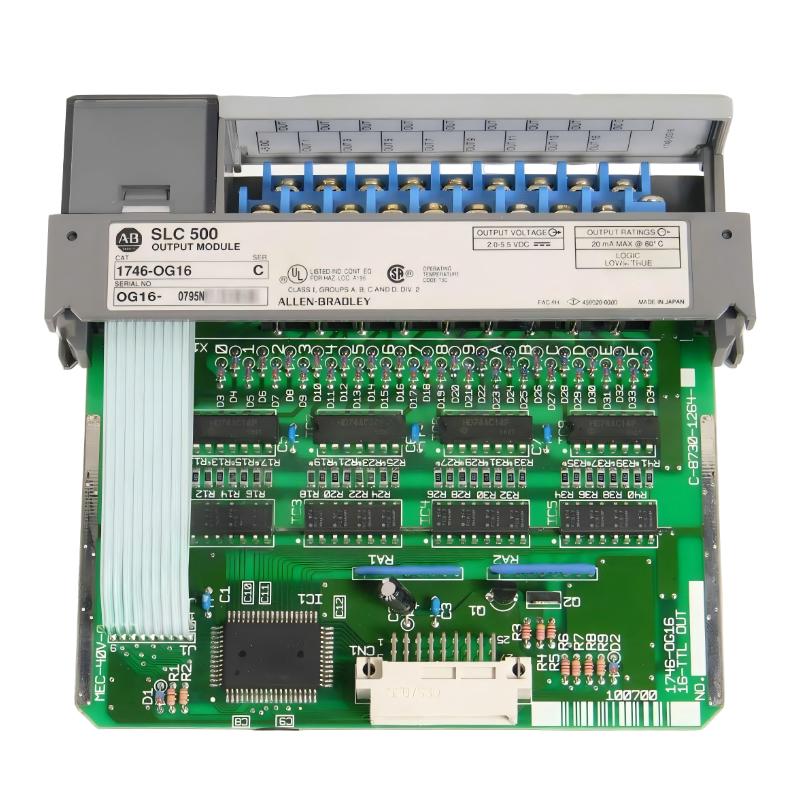

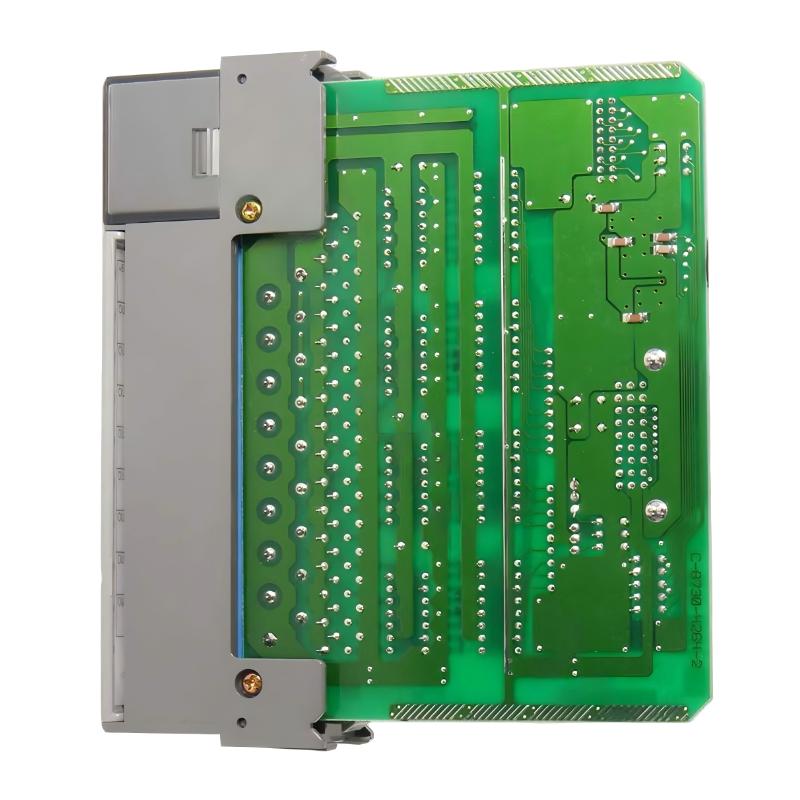

The Allen Bradley 1746-OG16 Digital Output Module provides 16-channel digital output for SLC 500 systems, delivering reliable control for relays, solenoids, and other devices requiring digital output. Its compact, industrial-grade design ensures consistent operation in demanding environments. Fully compatible with SLC 500 CPUs and I/O modules, the OG16 module simplifies wiring, reduces complexity, and provides diagnostics for quick maintenance and monitoring.

Technical Specifications

Parameter	Specification
Module Type	Digital Output Module
Model Number	1746-OG16
Dimensions (L×W×H)	144.5 × 34.6 × 130.18 mm
Weight	0.231 kg / 0.51 lb
Functionality	16-channel digital output for SLC 500 systems
Channels	16 digital output channels
Output Type	DC
Mounting	Allen Bradley SLC 500 Rack
Operating Temperature	0°C to 55 °C
Storage Temperature	-20°C to 70 °C
Compatibility	Allen Bradley SLC 500 Controllers & I/O modules

Applications

The Allen Bradley 1746-OG16 Digital Output Module is designed for precise and dependable digital output in SLC 500 automation systems. It is commonly used in industrial manufacturing, process control, and automation applications to drive relays, solenoids, indicator lights, and other devices requiring digital output. Its 16-channel design supports medium- to large-scale control systems needing efficient channel management.

Advantages

16 Independent Output Channels: Provides reliable and centralized control for multiple devices.
Compact Form Factor: 144.5 × 34.6 × 130.18 mm, weighing 0.231 kg / 0.51 lb, fits standard SLC 500 racks.
Industrial Reliability: Designed for consistent performance under vibration, electrical noise, and temperature variations.
Seamless Integration: Fully compatible with SLC 500 CPUs and other I/O modules.
Maintenance Friendly: Terminal-based design allows for fast installation, inspection, and replacement.

Technical FAQs

How many output channels does the 1746-OG16 support?
16 independent digital output channels.
What type of devices can it drive?
Relays, solenoids, indicator lights, and other digital-controlled devices.
Is it suitable for industrial environments?
Yes, it is engineered to withstand vibration, electrical noise, and temperature fluctuations.
What is the standard output voltage?
Typically compatible with standard 24V DC industrial control circuits.
Does it provide diagnostic feedback?
Yes, channel status monitoring and fault detection are supported.
Is programming required?
Minimal configuration is needed via the SLC 500 CPU programming software.
Can it replace multiple smaller output modules?
Yes, the 16 channels consolidate multiple outputs efficiently.
What is the switching speed?
Optimized for rapid on/off operation in automation applications.
Is maintenance straightforward?
Yes, the modular design allows for easy inspection and replacement.
Is it compatible with standard SLC 500 racks?
Yes, fully compatible with standard SLC 500 rack configurations.
