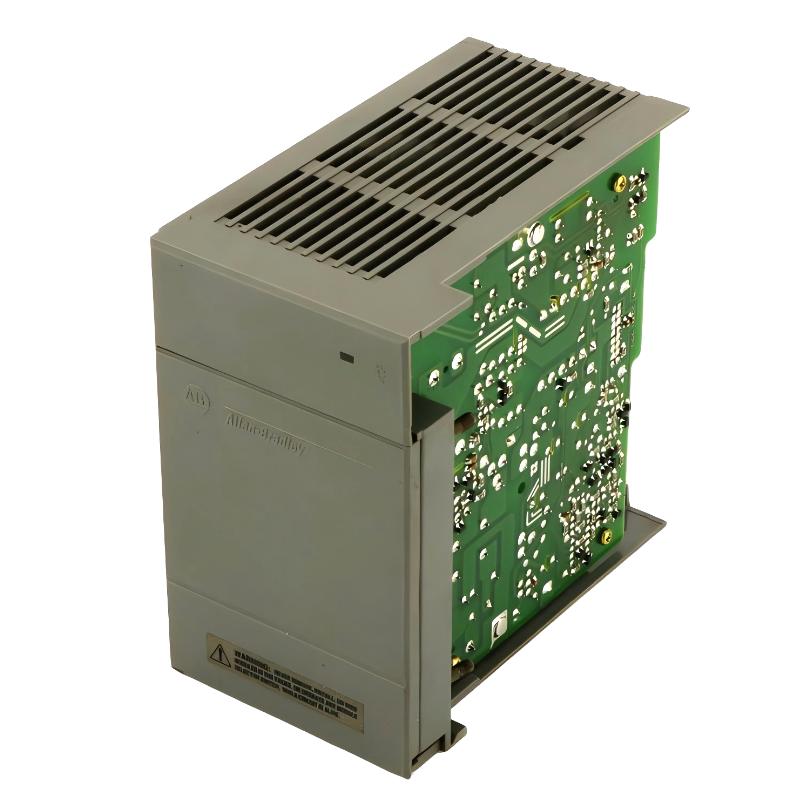

Allen Bradley 1746-P3 SLC 500 Power Module

Applications

• SLC 500 PLC power distribution systems
    Supplies regulated DC power to the backplane and all connected I/O modules within the chassis.

• Industrial automation control panels
    Provides stable system power for controllers, communication modules, and I/O assemblies.

• Manufacturing process control systems
    Ensures continuous operation of production line PLC systems with reliable power delivery.

• Water and wastewater treatment plants
    Supports uninterrupted power for monitoring and control of pumps, valves, and instrumentation.

• Energy and utility automation infrastructure
    Delivers consistent power supply for distributed control and field monitoring systems.

• OEM machine control panels
    Acts as the primary power backbone for compact SLC-based automation solutions.

Key Advantages

• Stable regulated DC power output
    Ensures reliable backplane power for all SLC 500 system modules.

• Industrial-grade power reliability
    Designed for continuous operation in demanding industrial environments.

• Integrated backplane power distribution
    Eliminates the need for external power routing within the chassis.

• Compact rack-mounted design
    Optimized for direct installation in SLC 500 chassis systems.

• Strong electrical isolation
    Improves system safety and protects connected control modules.

• Proven legacy system compatibility
    Fully compatible with established SLC 500 automation architectures.

Technical FAQs

Q1: What is the main function of this module?
It supplies regulated DC power to the SLC 500 backplane and connected modules.

Q2: What voltage does it use?
It operates with a 24V DC input supply.

Q3: What does it power inside the chassis?
It powers the processor, communication modules, and all I/O modules.

Q4: Is it required for every SLC 500 rack?
Yes, every SLC chassis must have a compatible power supply module.

Q5: Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.

Q6: Can it support multiple I/O modules?
Yes, it distributes power across the entire backplane system.

Q7: Does it provide protection features?
Yes, it includes internal protection and isolation for stable operation.

Q8: Is it still widely used today?
Yes, but mainly in legacy SLC 500 installed systems.

Q9: Can it operate in harsh environments?
Yes, it is built for industrial-grade temperature and noise conditions.

Q10: Is there a modern replacement?
There is no direct replacement within the SLC 500 family; newer platforms use CompactLogix systems.
