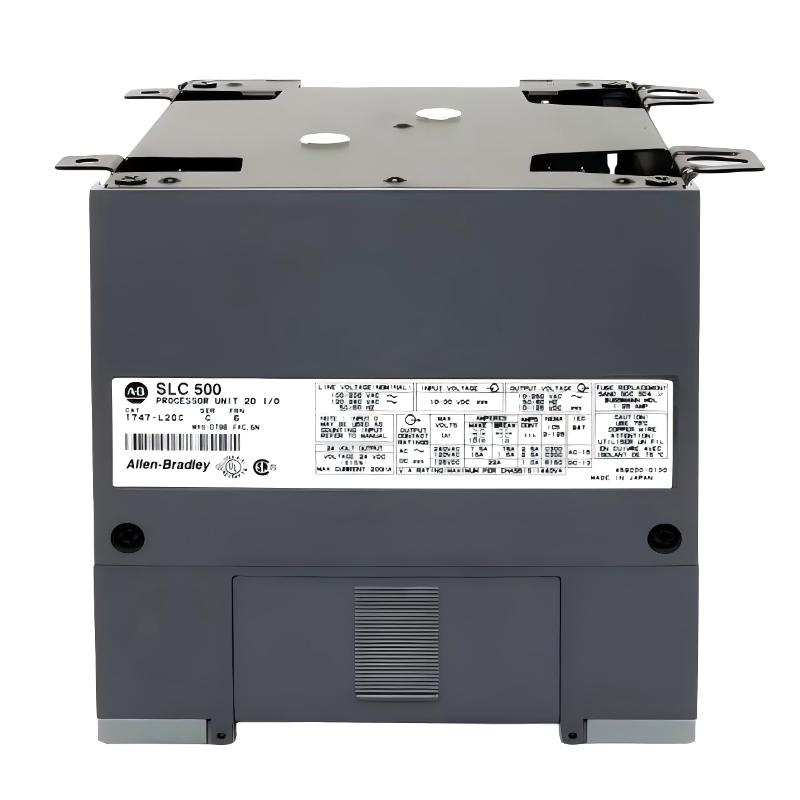

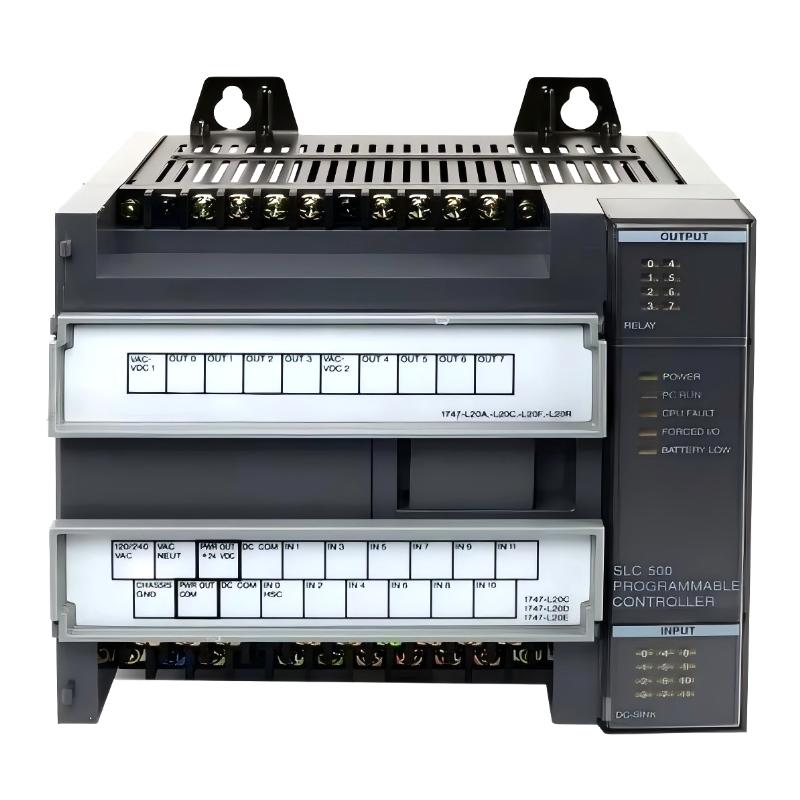

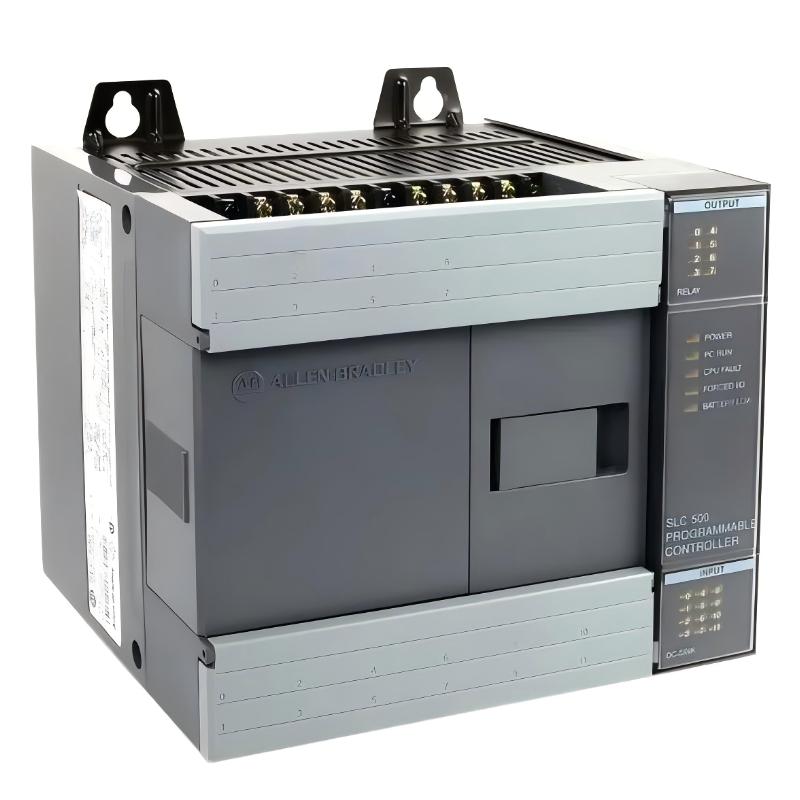

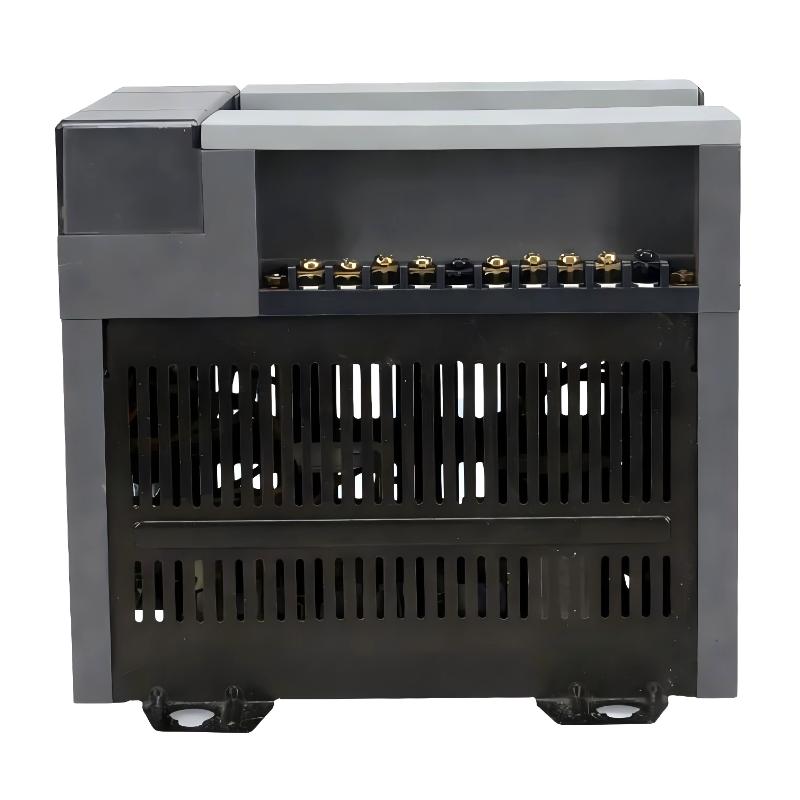

Allen Bradley 1747-L20C SLC 500 I/O Processor Unit

Applications

• Compact SLC 500 fixed automation systems
    Integrates processor, power, and I/O in a single unit for small industrial control applications.

• Manufacturing machine control
    Manages basic sequencing, interlocking, and discrete machine operations in production equipment.

• Material handling systems
    Controls conveyors, simple sorting systems, and automated handling processes.

• Water and utility control panels
    Used for basic pump control, tank level switching, and utility monitoring tasks.

• OEM embedded automation solutions
    Provides a cost-efficient control platform for compact machine designs.

• Legacy industrial control upgrades
    Common in existing SLC-based systems requiring maintenance or spare part replacement.

Key Advantages

• All-in-one fixed controller design
    Combines CPU, power supply, and built-in I/O in a single compact module.

• Simplified system architecture
    Reduces wiring complexity and eliminates the need for separate rack components.

• Reliable industrial-grade operation
    Designed for stable performance in continuous industrial environments.

• Built-in digital I/O channels
    Provides integrated inputs and outputs for basic control tasks without expansion modules.

• DH-485 communication support
    Enables connectivity with SLC 500 programming and monitoring systems.

• Cost-effective control solution
    Ideal for small-scale automation where modular expansion is not required.

Technical FAQs

Q1: What is the main function of this unit?
It is a fixed SLC 500 controller that integrates CPU and built-in I/O for compact automation tasks.

Q2: Does it require a separate rack or chassis?
No, it is a self-contained fixed controller unit.

Q3: What type of I/O does it include?
It includes built-in discrete digital inputs and relay outputs.

Q4: Is it expandable with additional modules?
No, it is a fixed configuration system with limited or no expansion capability.

Q5: What communication protocol does it support?
It supports DH-485 communication for programming and system access.

Q6: Is it suitable for large-scale automation?
No, it is intended for small to medium standalone control applications.

Q7: Can it operate continuously in industrial environments?
Yes, it is designed for 24/7 industrial operation.

Q8: What industries commonly use it?
Manufacturing, utilities, OEM machinery, and material handling systems.

Q9: Is it still widely used today?
It is primarily used in legacy SLC 500 installations.

Q10: Is it easy to replace or upgrade?
Replacement is straightforward, but upgrading usually requires migration to newer PLC platforms.
