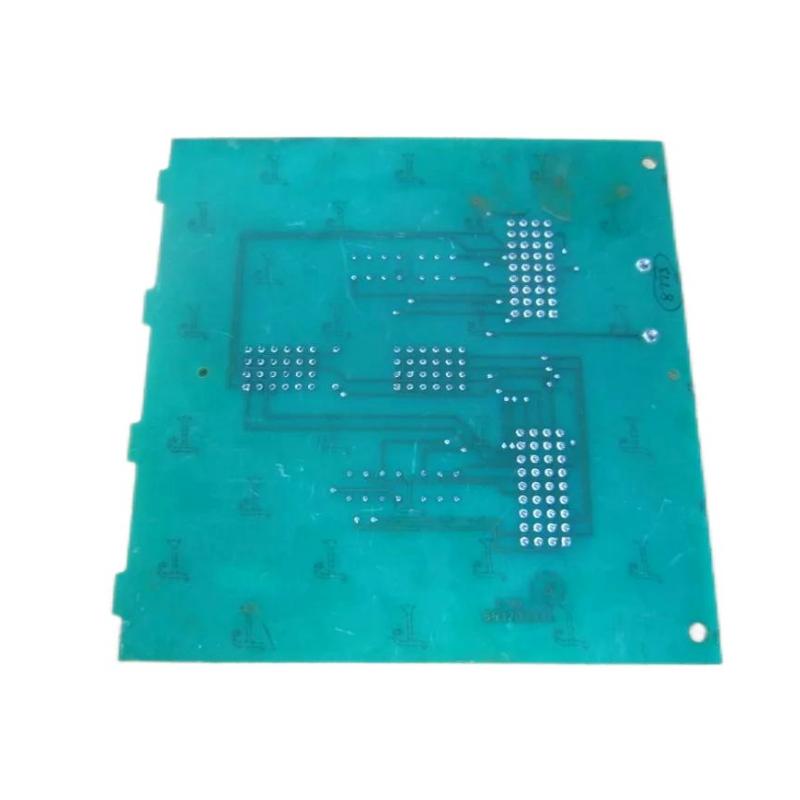

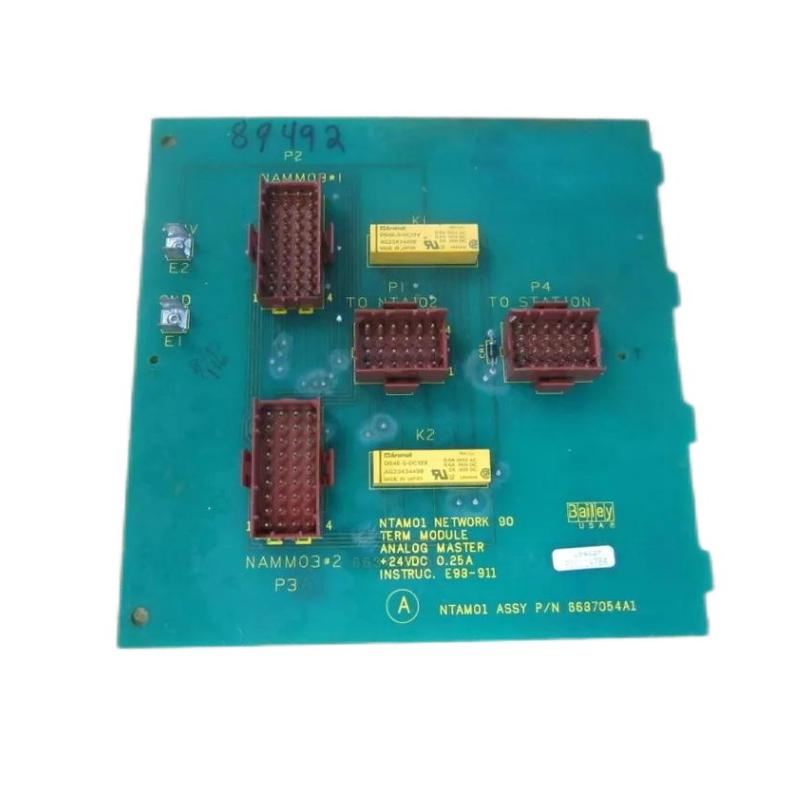

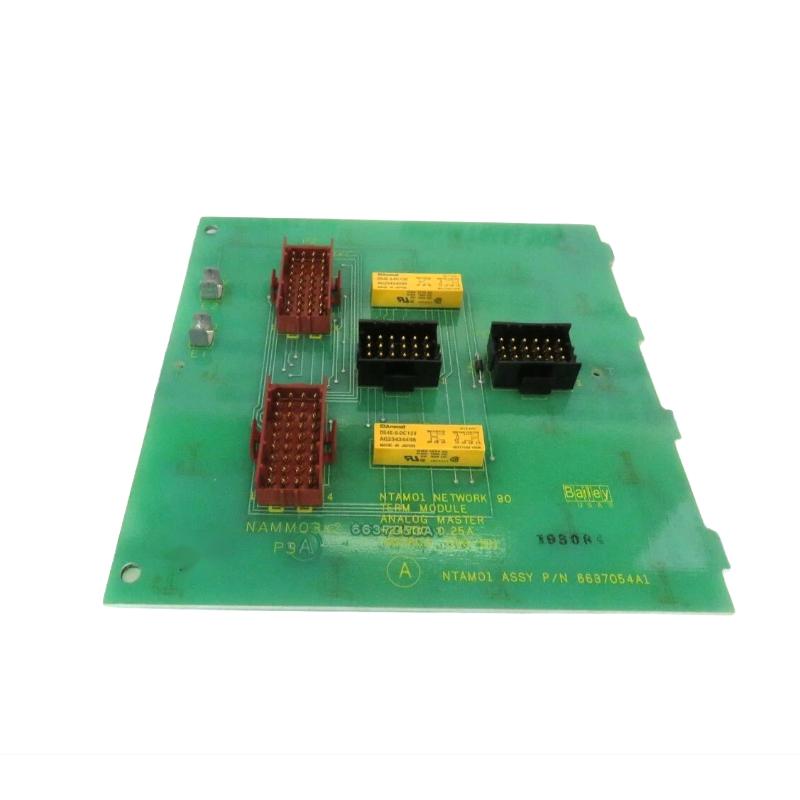

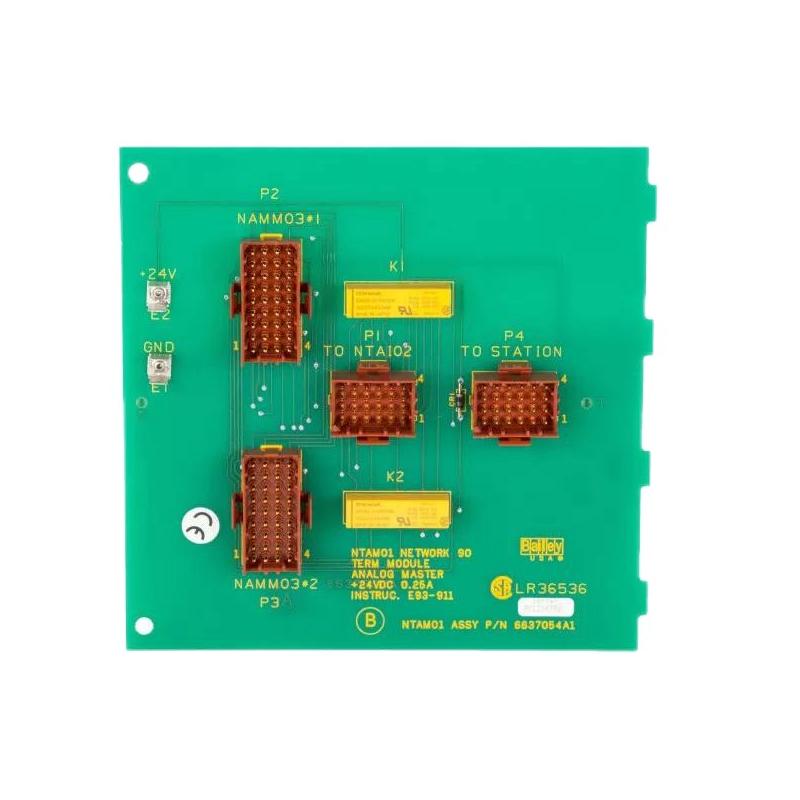

ABB Bailey NTAM01 6637054A1 Simulated Main Terminal Unit

Applications

The ABB Bailey NTAM01 Simulated Main Terminal Unit is specifically designed for testing, simulation, and calibration tasks in distributed control systems. It enables engineers to replicate real-world signal conditions without interfering with live processes. Ideal for training, commissioning, and troubleshooting of process control loops, this module ensures system accuracy and reduces operational risk during testing scenarios.

Advantages

• Simulation Capability: Accurately replicates field signals for safe system testing.
• Compact Design: 127 × 51 × 127 mm fits easily into standard control racks.
• Lightweight: At 0.2 kg, it is easy to handle and install without additional support.
• Versatile Use: Compatible with a wide range of ABB Bailey control systems and modules.
• Operational Safety: Allows engineers to test system responses without engaging live processes.
• Precision: Maintains signal fidelity to replicate real-world conditions accurately.
• Time-Saving: Reduces the need for repeated live-system testing.
• Durable Construction: Withstands typical control room environments and minor handling stresses.
• Integration Ready: Works seamlessly with existing terminal units and input/output modules.
• Enhanced Training Utility: Ideal for educational labs or operator training programs.

Technical FAQs

1. What is the primary function of the NTAM01?
   It simulates main terminal unit signals for testing and calibration purposes.
2. Can it replicate multiple signal types?
   Yes, it is compatible with both analog and digital control signals commonly used in ABB Bailey systems.
3. Is it safe to use on active control loops?
   Yes, it allows testing without affecting live process signals.
4. Can it be used for operator training?
   Absolutely, it provides realistic system simulation for training sessions.
5. Does it require special software to operate?
   No additional software is needed; it works directly with ABB Bailey control hardware.
6. Is it compatible with other ABB Bailey modules?
   Yes, designed to integrate seamlessly with input/output and terminal units.
7. Can it simulate faults for diagnostic purposes?
   Yes, it can replicate abnormal signal conditions for troubleshooting.
8. Does it maintain signal accuracy over time?
   Yes, the module is engineered for stable and precise output.
9. Can it be used in automated testing setups?
   Yes, it is suitable for automated calibration and testing routines.
10. Is it suitable for compact control panels?
    Yes, its compact footprint allows flexible installation in tight panel spaces.
