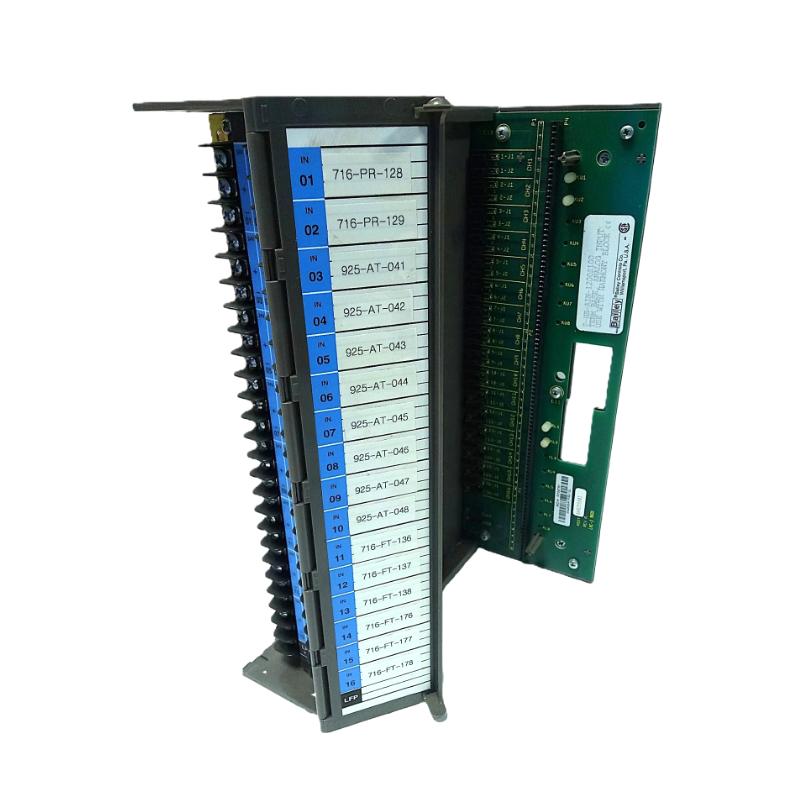

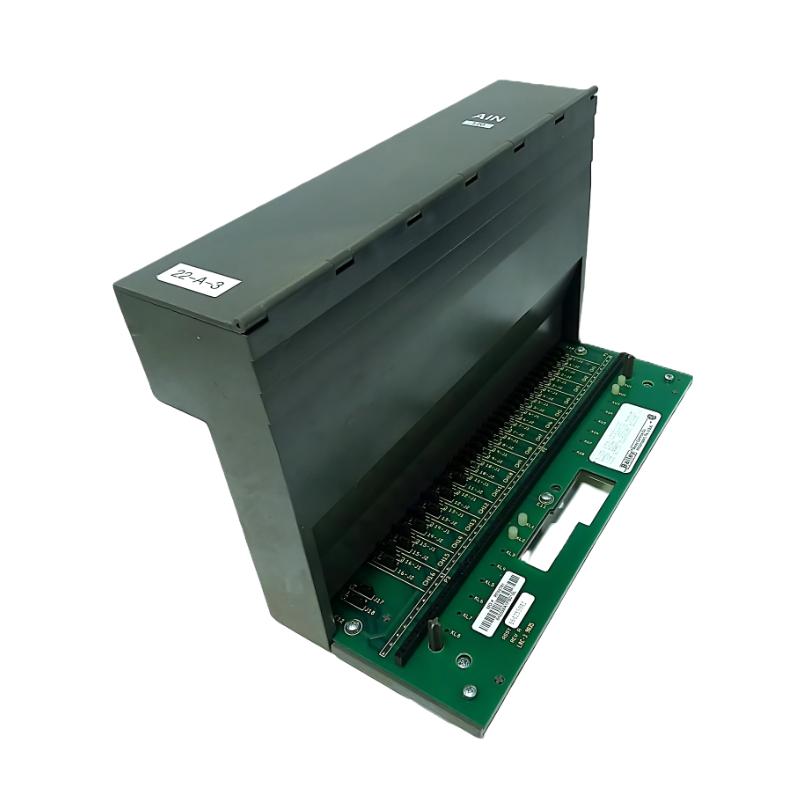

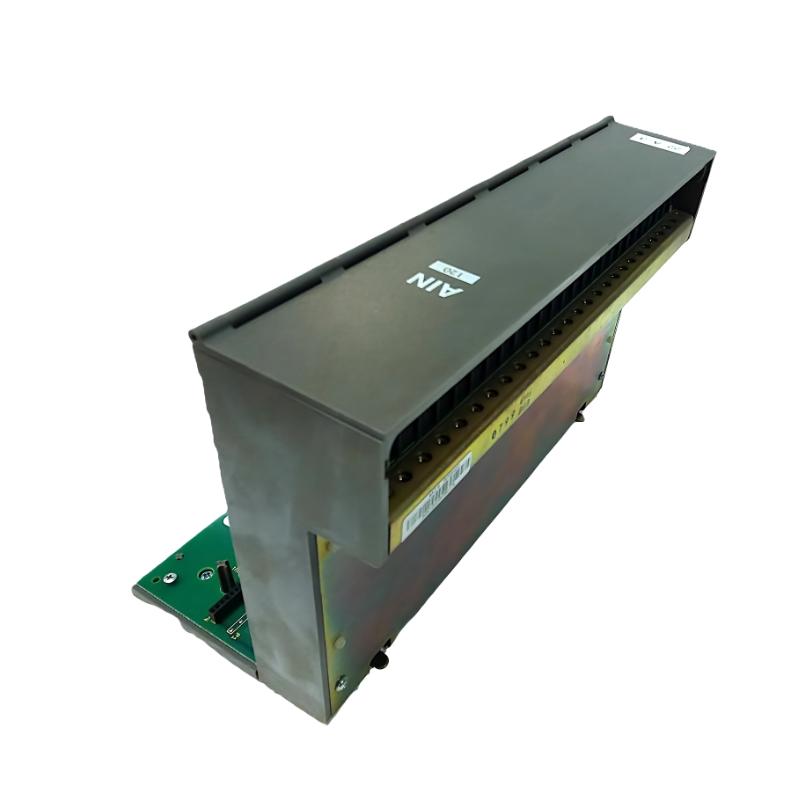

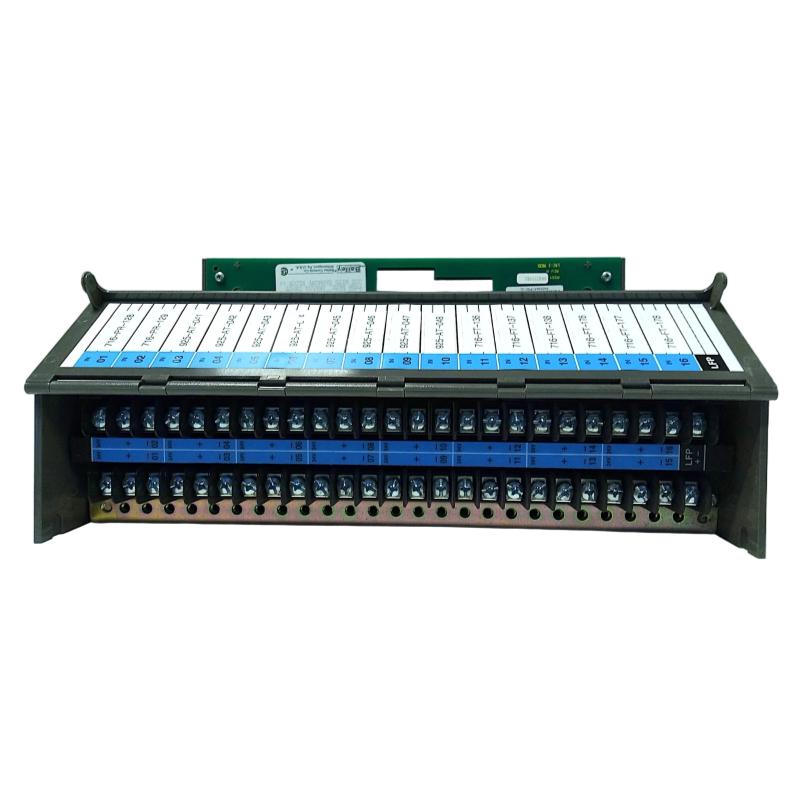

Name: ABB Bailey PHBAIN1200S200 Analog Input Base
Brand: ABB Bailey
SKU: 10251
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey PHBAIN1200S200 Analog Input Base is engineered for reliable and precise signal acquisition in industrial automation environments. Its compact and durable design allows for efficient installation in control cabinets, while ensuring accurate analog data collection from field devices. Fully compatible with ABB Bailey systems, it enables seamless integration and long-term performance in process monitoring applications.

Technical Specifications

Feature	Specification
Module Type	Analog Input Base
Supported Signals	4–20 mA, 0–10 VDC
Channels	Up to 12 channels
Protection	Electrical noise filtering
Operating Temperature	-20°C to 60°C
Dimensions (L × W × H)	280 × 100 × 75 mm
Weight	1.8 kg (3.968 lb)

Applications

The ABB Bailey PHBAIN1200S200 Analog Input Base is designed for industrial automation systems requiring accurate signal acquisition. Typical applications include:

Integration of analog sensors into distributed control systems (DCS)
Process monitoring in chemical, petrochemical, and water treatment plants
Industrial automation requiring precise measurement of temperature, pressure, or flow
Remote monitoring and control via ABB SCADA systems
Edge computing systems for real-time industrial data acquisition

Its compact design ensures easy installation in control cabinets while supporting reliable signal processing.

Advantages

High-Precision Input: Ensures accurate acquisition of analog signals from field devices.
Compact Footprint: Space-saving design suitable for standard control cabinets.
Robust Industrial Construction: Resistant to vibration, electrical noise, and temperature fluctuations.
Seamless System Integration: Compatible with ABB Bailey analog modules and legacy systems.
Easy Maintenance: Designed for long-term operation with simple access for service.

Technical FAQs

Q: What types of analog signals are supported?
A: The base supports standard 4–20 mA and 0–10 VDC input signals.
Q: Can it be mounted in vibration-prone environments?
A: Yes, it is engineered to withstand industrial vibrations.
Q: What is the maximum number of channels supported?
A: It supports up to 12 analog input channels per base.
Q: Is it compatible with ABB Bailey legacy systems?
A: Yes, full backward compatibility is provided.
Q: What is the operating temperature range?
A: -20°C to 60°C for standard indoor industrial conditions.
Q: Does it require active cooling?
A: No, passive cooling is sufficient under normal operating conditions.
Q: How does it handle electrical interference?
A: Built-in filtering minimizes noise and ensures accurate readings.
Q: Can it be replaced without system shutdown?
A: Hot-swapping is supported when used in compatible ABB Bailey configurations.
Q: What is the expected operational lifespan?
A: Over 10 years under normal industrial operating conditions.
Q: Can it integrate with SCADA or DCS platforms for real-time monitoring?
A: Yes, it communicates seamlessly with ABB SCADA and DCS protocols.
