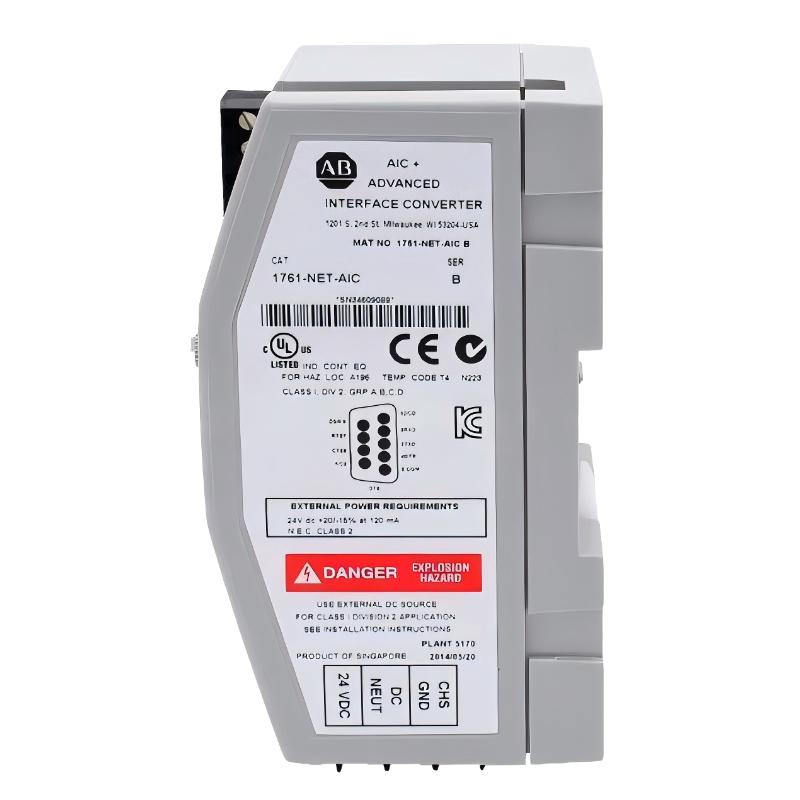

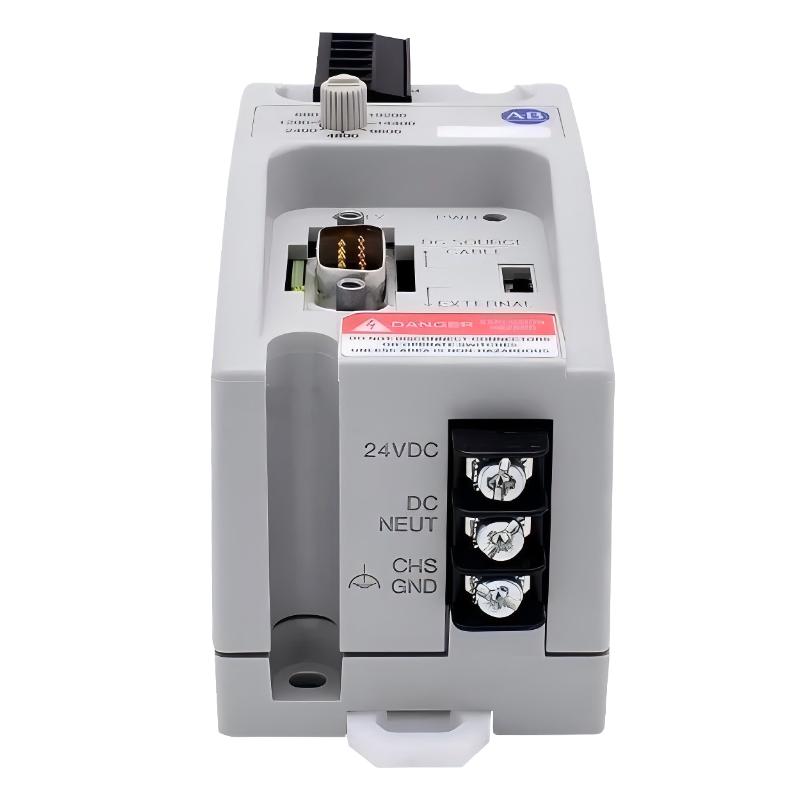

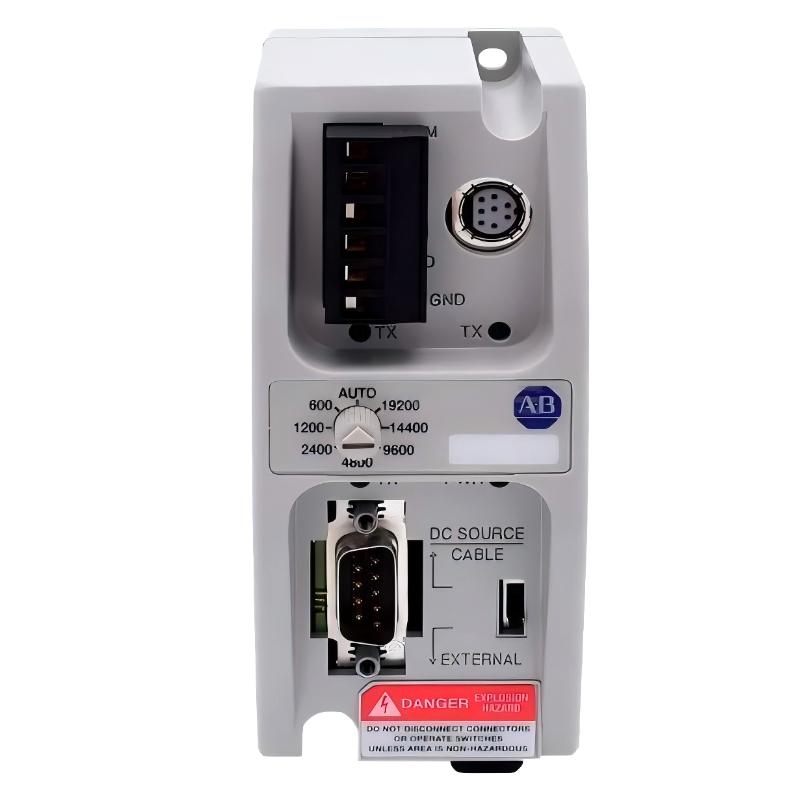

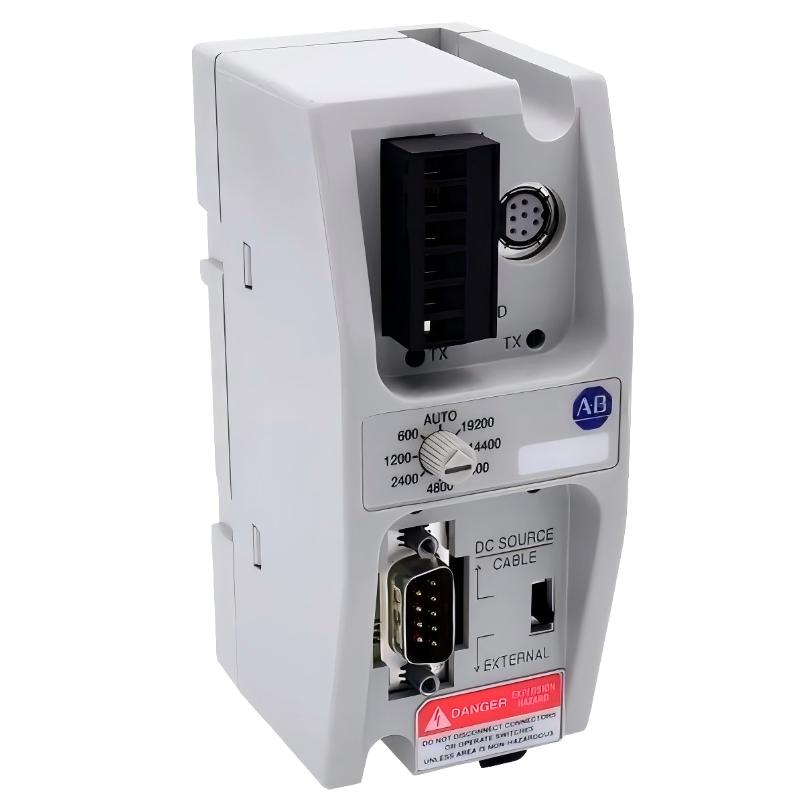

The 1761-NET-AIC (AIC+) Advanced Interface Converter from Rockwell Automation is a serial communication and protocol conversion module used in MicroLogix and SLC systems.
Its main role is to enable communication between devices that use different serial standards, especially:
- RS-232
- RS-485
- DH-485 network
It is commonly used when a MicroLogix PLC needs to communicate with multiple devices over a DH-485 multidrop network, or when isolating and converting serial signals in legacy systems.
Main Functions
The 1761-NET-AIC is used to:
- Convert RS-232 ↔ RS-485 electrical signals
- Enable DH-485 network communication
- Provide electrical isolation between devices
- Support multidrop serial networks (multiple PLCs/devices on one bus)
- Allow communication between MicroLogix, SLC 500, HMIs, and PCs
It is not a PLC module—only a communication interface device.
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1761-NET-AIC |
| Series | MicroLogix / SLC Communication Accessories |
| Device Type | Advanced Interface Converter (AIC+) |
| Power Supply | 20.4–28.8 V DC |
| Current Draw | ~120 mA |
| Inrush Current | ~200 mA max |
| Communication Ports | 2 × RS-232, 1 × DH-485 |
| Supported Protocols | DF1, DH-485, ASCII half-duplex |
| Network Type | Multidrop serial network |
| Max Nodes | Up to 32 devices per DH-485 network |
| Isolation Voltage | 500 V DC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | DIN rail or panel mount |
| Power Dissipation | ~4.7 W |
| Weight | ~0.15–0.20 kg |
Physical Dimensions (L × W × H)
- 180 × 150 × 40 mm
- Some listings vary slightly depending on enclosure version and mounting orientation.
Key Features
- Converts RS-232 to RS-485 communication
- Supports DH-485 multi-device networking
- Electrical isolation for noise protection
- Enables multidrop communication up to 32 nodes
- Compatible with MicroLogix and SLC 500 systems
- DIN rail / panel mounting flexibility
- Supports DF1 and DH-485 protocols
