Brand:Schneider PLC Item No.:BMEP584020 Product Origin:France Product Dimensions:134.6 x 64.6 x 130.3 mm Product Weight:0.849 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

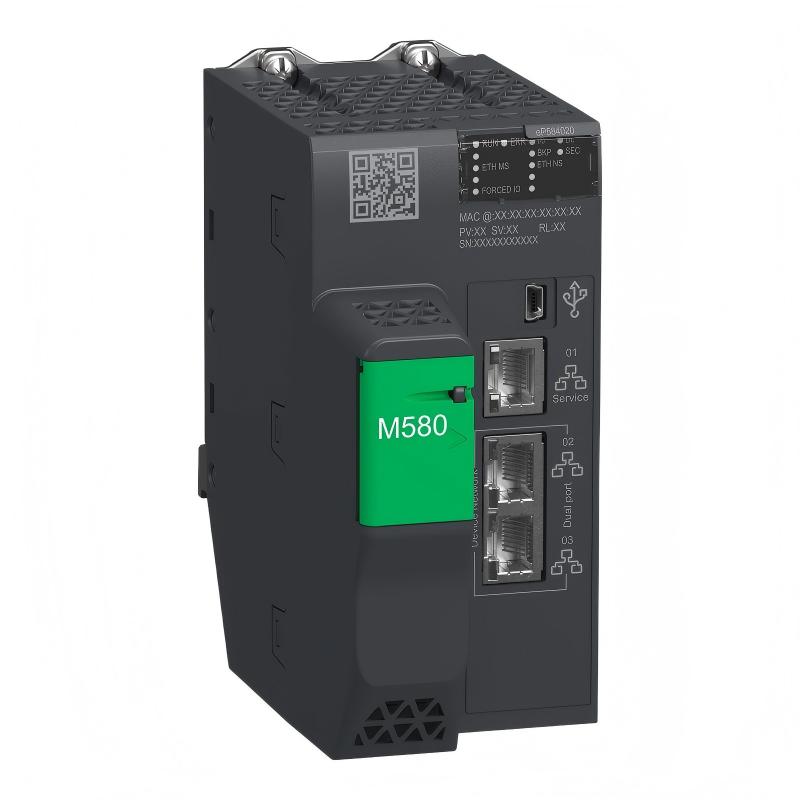

The Schneider BMEP584020 Independent Processor Module is a premium controller component developed for advanced Modicon M580 PAC systems. It provides high-performance processing, large-scale I/O handling, and flexible communication capability for demanding industrial automation projects.
Designed as a Level 4 processor, the BMEP584020 provides enhanced computing resources compared with standard M580 processors. It supports up to eight local I/O racks, 4096 discrete I/O channels, and 1024 analog I/O channels, making it suitable for complex production facilities and process control environments.
The module integrates Ethernet TCP/IP service communication, device network connections, and USB programming capability, allowing engineers to build reliable and scalable automation architectures. It also supports multiple application-specific functions, helping organizations implement advanced control strategies.
For automation engineers and system integrators, the BMEP584020 provides a powerful balance between performance, flexibility, and reliability. It helps simplify system design while improving production efficiency and operational visibility.
The compact Modicon X80 format allows convenient installation inside industrial control cabinets, making the processor suitable for both new automation projects and existing system upgrades.
By combining Schneider Electric processing technology with the Modicon M580 platform, the BMEP584020 delivers a reliable control solution for modern industrial automation environments.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
BMEP584020
Product Type
Independent Processor Module
Automation Platform
Modicon M580
Processor Level
Level 4 Distributed Processor
Program Memory
16 MB
Data Memory
2048 kB
System Memory
10 kB
Flash Storage
4 GB Expandable Data Storage
Local Digital I/O Capacity
4096 I/O
Local Analog I/O Capacity
1024 I/O
Number of Local Racks
8
Distributed Equipment Support
128 Devices
Ethernet Interface
1 Ethernet TCP/IP Service Port + 2 Device Network Ports
USB Interface
Mini USB Type-B
Communication Service
DIO Scanner
Ethernet Communication Module Capacity
4 Modules
AS-Interface Module Capacity
8 Modules
Application Functions
Motion Control, HART, SSI Encoder, Counter, Serial Link, Process Control
Current Consumption
295 mA at 24 VDC
Mounting Type
Modicon X80 Rack Mount
Operating Temperature
0–60°C
Application
High Performance PAC Control Systems
Dimensions
134.6 x 64.6 x 130.3 mm
Weight
0.85 kg (1.87 lb)
Recommended Related Models for System Expansion
Model
Product Type
Application
BMEP583020
Modicon M580 Level 3 Processor Module
Advanced industrial control systems
BMEP583040
Modicon M580 Level 3 Remote Processor Module
Distributed automation architectures
BMEP584040
Modicon M580 Level 4 Remote Processor Module
Large remote I/O control applications
BMEP585040
Modicon M580 High Capacity Processor Module
Complex process automation projects
Popular Related Models in Industrial Automation
Model
Product Type
BMEP584020
Modicon M580 Level 4 Independent Processor Module
BMEP584040
Modicon M580 Level 4 Remote Processor Module
BMEP583020
Modicon M580 Level 3 Processor Module
BMEP583040
Modicon M580 Level 3 Remote Processor Module
BMENOC0321
Modicon M580 Ethernet Communication Module
Industrial Applications and High Performance Automation Control Integration
The Schneider BMEP584020 Independent Processor Module is a high-performance processor designed for the Modicon M580 PAC automation platform, providing advanced processing capability, extensive I/O management, and powerful Ethernet communication functions for large and complex industrial control systems.
As a Level 4 processor module in the Modicon M580 family, the BMEP584020 is developed for applications requiring high computing capacity, large-scale I/O handling, and reliable distributed automation control. It is suitable for industrial environments where system scalability, fast execution, and long-term operational stability are essential.
Typical application areas include:
Large process automation systems
Oil and gas control installations
Power generation and energy management systems
Water treatment and infrastructure projects
Automotive production facilities
Chemical and pharmaceutical manufacturing
Distributed control architectures
Smart factory automation platforms
The BMEP584020 works as the core processing unit of a Modicon M580 architecture, managing application programs, communication tasks, and connected automation equipment. With support for large local I/O configurations and multiple Ethernet devices, it provides engineers with a scalable solution for advanced industrial projects.
Designed for demanding automation environments, this processor module helps improve system performance, simplify control architecture, and support future expansion requirements.
Engineering Advantages and Product Performance Benefits
The Schneider BMEP584020 Independent Processor Module combines powerful processing resources, extensive communication capability, and reliable industrial design to meet the needs of advanced automation applications.
High-Level Processing Capability
The BMEP584020 provides Level 4 processing performance for Modicon M580 systems, offering increased memory capacity and computing resources for complex automation programs, advanced control algorithms, and large-scale production systems.
Large I/O Management Capacity
The processor supports up to 4096 discrete I/O points and 1024 analog I/O points, allowing engineers to design extensive control systems with a reduced need for additional controller platforms.
Advanced Ethernet Communication Architecture
Equipped with Ethernet TCP/IP service and device network interfaces, the BMEP584020 enables efficient communication with remote I/O systems, industrial devices, and automation networks. It supports up to 125 Ethernet devices, making it suitable for large connected automation environments.
Flexible Distributed Control Design
The processor supports up to eight local racks and distributed equipment connections, providing system integrators with flexibility when designing complex industrial architectures.
Rich Application-Specific Functions
The BMEP584020 supports multiple industrial functions, including motion control, HART communication, SSI encoder integration, serial communication, counters, accurate time stamping, and process control applications.
Reliable Industrial Operation
With integrated diagnostic functions, Ethernet status monitoring, and robust hardware design, the processor helps reduce unexpected downtime and improves maintenance efficiency in continuous production environments.
Technical FAQs and Professional Troubleshooting Guide
Q1: What is the primary function of the Schneider BMEP584020 processor module?
A: The BMEP584020 acts as the main processing unit of Modicon M580 PAC systems, executing control applications and managing connected I/O and communication operations.
Q2: Which automation platform is compatible with the BMEP584020?
A: The module is designed for Schneider Electric Modicon M580 PAC automation systems.
Q3: What type of industrial applications are suitable for the BMEP584020?
A: It is suitable for large automation projects requiring advanced processing, extensive I/O management, and distributed Ethernet communication.
Q4: Why does the processor fail to enter RUN mode after startup?
A: Possible causes include incorrect application configuration, firmware compatibility issues, memory errors, hardware initialization problems, or communication faults.
Q5: How should the BMEP584020 be configured before commissioning?
A: Engineers should configure processor parameters, Ethernet settings, I/O mapping, communication services, and application logic before system operation.
Q6: What causes Ethernet communication failure on the processor?
A: Common causes include incorrect IP configuration, damaged Ethernet cables, switch failures, network conflicts, or incorrect communication settings.
Q7: How can processor operating status be diagnosed?
A: Diagnostic LEDs, PLC programming software, system logs, and communication monitoring tools can be used to analyze processor status.
Q8: Why does the PLC system experience longer scan cycles?
A: Possible reasons include complex application programs, excessive communication tasks, insufficient resource allocation, or inefficient control logic.
Q9: Can the BMEP584020 support distributed I/O systems?
A: Yes. The processor is designed to manage distributed equipment and remote I/O architectures in industrial automation applications.
Q10: What maintenance methods improve processor reliability?
A: Regular application backups, firmware management, network inspections, diagnostic monitoring, and environmental checks help maintain stable operation.
