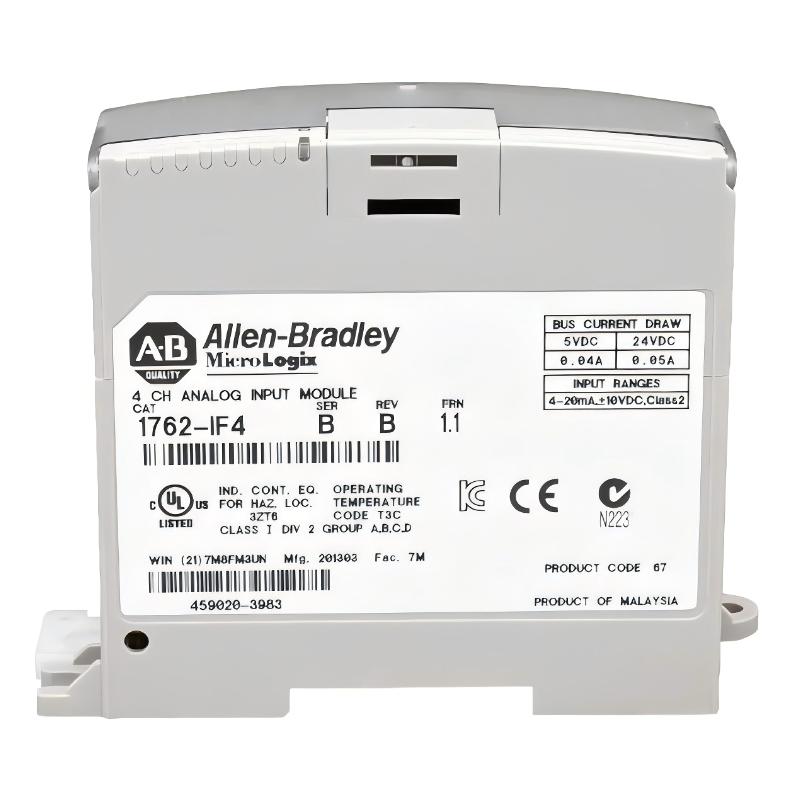

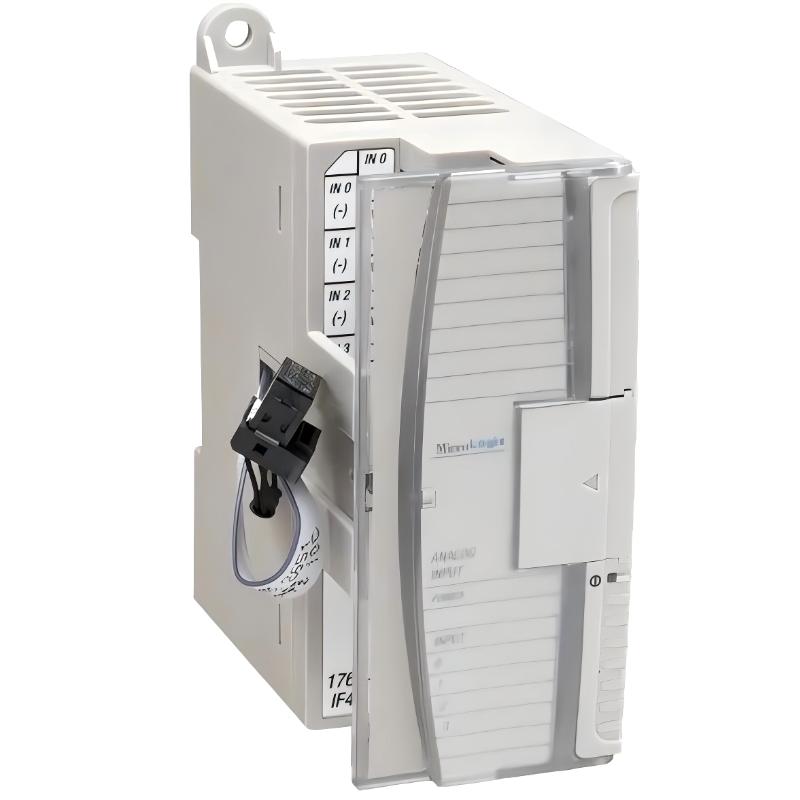

The 1762-IF4 from Rockwell Automation is a 4-channel analog input module designed for the MicroLogix 1200 / 1100 / 1400 PLC families.
It is used to acquire and condition analog signals from industrial sensors such as:
- Pressure transmitters
- Temperature transmitters
- Flow sensors
- Analog voltage/current devices
This module is part of the 1762 MicroLogix expansion I/O series.
Main Functions
The 1762-IF4 provides:

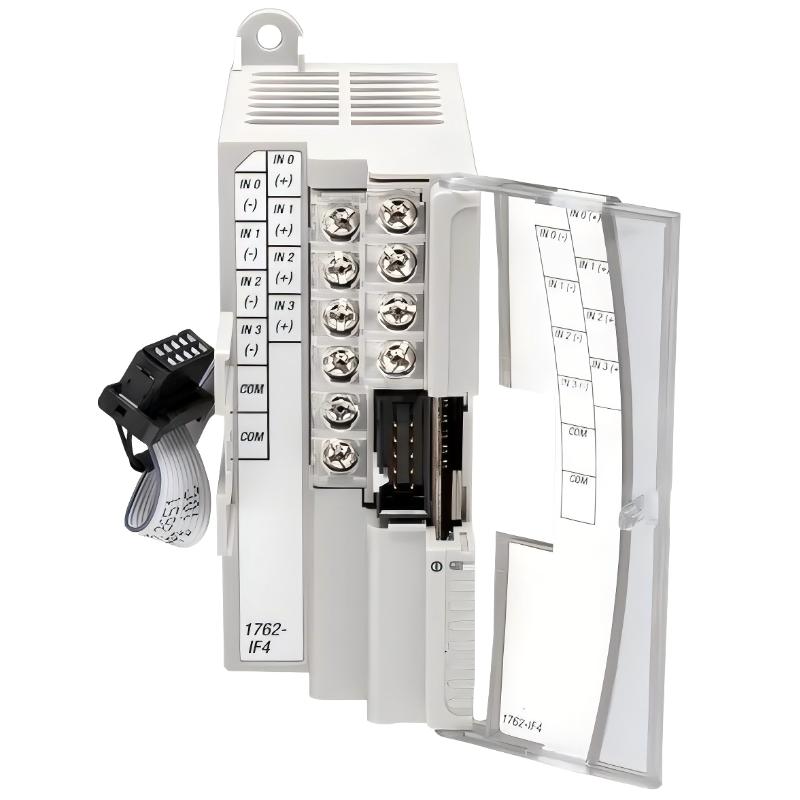

- 4 differential analog input channels
- Supports voltage and current signals
- Signal conversion (A/D conversion)
- Isolation between field and system signals
- Real-time analog data acquisition for PLC control
Supported input types:
- Voltage: -10 to +10 V DC
- Current: 4–20 mA
Technical Specifications (Including Size & Weight)
| Parameter | Specification |
|---|---|
| Model | 1762-IF4 |
| Series | MicroLogix 1200 I/O |
| Type | Analog Input Module |
| Input Channels | 4 differential inputs |
| Signal Types | Voltage / Current |
| Voltage Range | -10.5 to +10.5 V DC |
| Current Range | -21 to +21 mA |
| Resolution | Up to 15-bit (bipolar) |
| Update Time | ~130–540 ms (config dependent) |
| Input Impedance | >10 MΩ (voltage mode) |
| Isolation | 500 V AC / 707 V DC (1 min test) |
| Operating Temperature | -20°C to 65°C |
| Mounting | DIN rail or panel mount |
| Power Consumption | ~40 mA @ 5 V DC |
Weight: ~0.23–0.24 kg ([turn0search10][turn0search11])

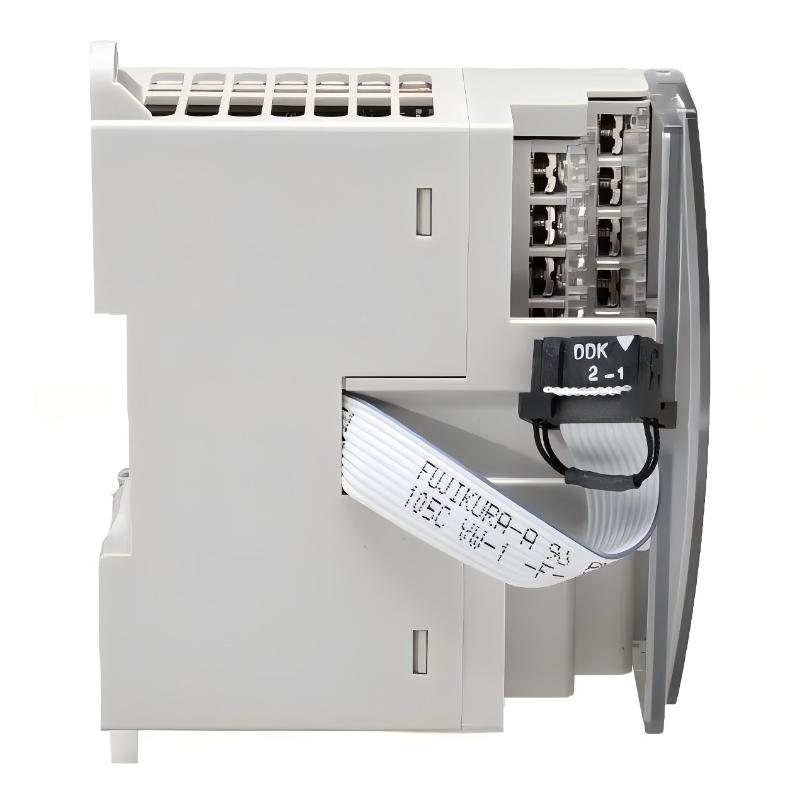

Physical Dimensions (L × W × H)
- 90 × 40 × 87 mm
- Height including mounting tabs: ~110 mm ([turn0search12])
Key Features
- 4-channel differential analog input
- Supports voltage and current signals
- High-resolution analog conversion (up to 15-bit)
- Built-in overrange/underrange diagnostics
- Electrical isolation for noise protection
- Compact DIN rail design
- Easy integration with MicroLogix PLC systems
