Introduction

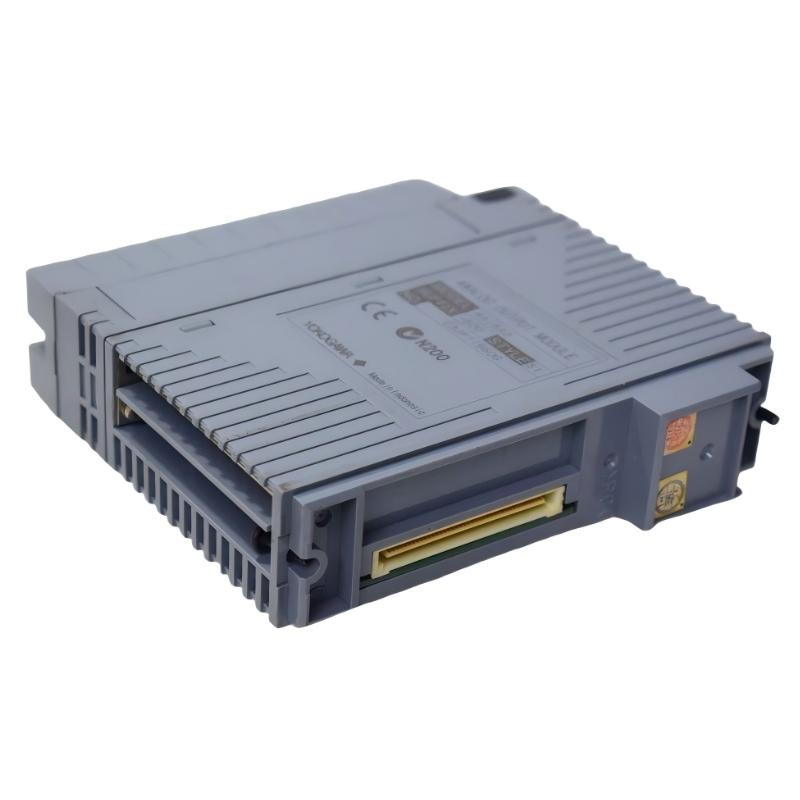

The Yokogawa AAI543-S00/K4A00 Analog Output Module is a high-precision component for industrial process control systems. Compact and robust, it provides accurate analog outputs to control valves, actuators, and other field devices. Designed for integration with Yokogawa DCS platforms, this module ensures reliable signal transmission, supports predictive maintenance, and enhances overall process stability.

Technical Specifications

Specification	Details
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Module Type	Analog Output Module
Compatible System	Yokogawa DCS (AAI series)
Output Type	Analog (4–20 mA or 0–10 V)
Mounting Type	DIN-rail or system rack
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Yokogawa AAI541-S00 Analog Input Module
Yokogawa AAI543-S00/K3A00 Analog Output Module
Yokogawa DCS System Rack

Popular Related Models

Yokogawa AAI542-S00 Analog Input/Output Hybrid Module
Yokogawa AAI545-S00 High-Speed Analog Output Module
Yokogawa DCS Expansion Modules

Applications

The Yokogawa AAI543-S00/K4A00 Analog Output Module is designed for precise control and signal output in industrial automation systems. Typical applications include:

Process control in chemical, petrochemical, and power plants
Interface with distributed control systems (DCS) for analog signal output
Controlling actuators, valves, and other field devices
Industrial automation requiring high-precision analog outputs
Real-time monitoring and control of critical process parameters

Advantages

High-Precision Output: Provides reliable analog signal outputs for precise control of field devices.
Compact and Lightweight: Small form factor allows easy integration into Yokogawa control systems.
Industrial-Grade Reliability: Designed to withstand temperature variations, vibration, and electrical interference.
Seamless Integration: Compatible with Yokogawa DCS platforms for straightforward installation.
Enhanced Process Control: Supports stable and accurate signal delivery for optimized operational performance.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 107.5 × 32.8 × 130 mm; weight: 0.4 kg.
Q: What type of output signals does the module provide?
A: Standard analog outputs for industrial control, typically 4–20 mA or 0–10 V depending on configuration.
Q: Is it compatible with all Yokogawa DCS systems?
A: Yes, designed to integrate seamlessly with Yokogawa AAI-series controllers.
Q: Can it operate in harsh industrial environments?
A: Yes, built to tolerate vibration, temperature fluctuations, and electrical noise.
Q: How is the module installed?
A: Standard DIN-rail or rack-mount installation, compatible with Yokogawa system racks.
Q: Does it support redundant configurations?
A: Yes, can be configured for redundancy in critical control applications.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it handle multiple analog outputs?
A: Yes, supports multiple channels as defined by the module specifications.
Q: Are diagnostic features included?
A: Yes, built-in diagnostics allow monitoring of output status and module health.
Q: What industries is this module best suited for?
A: Chemical, petrochemical, power generation, water treatment, and other industrial automation sectors requiring precise analog control.
