Brand:Woodward Item No.:9905-068 2301A Product Origin:USA Product Dimensions:182 x 152 x 100 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

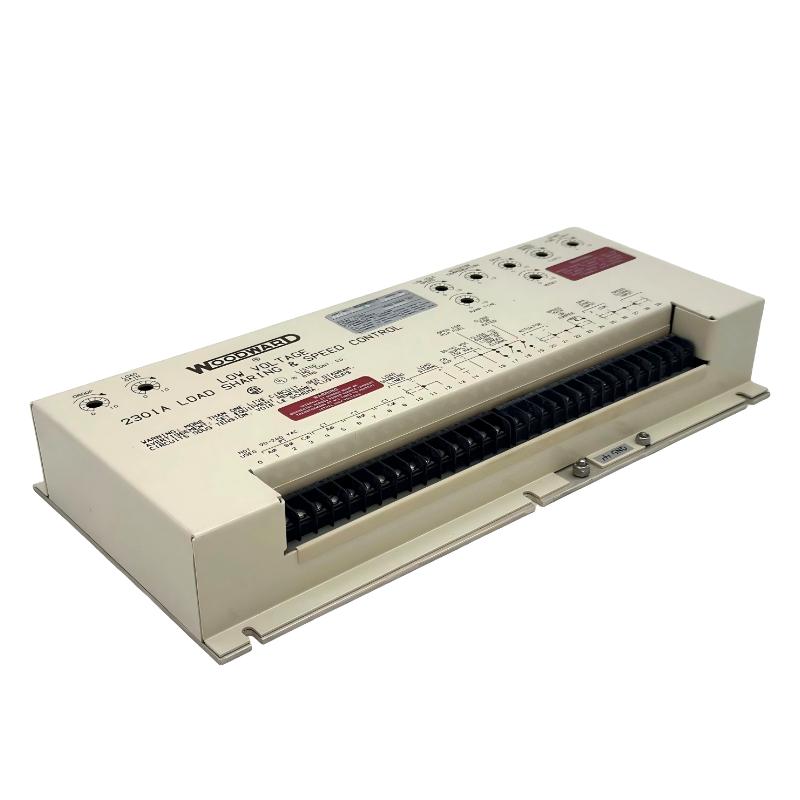

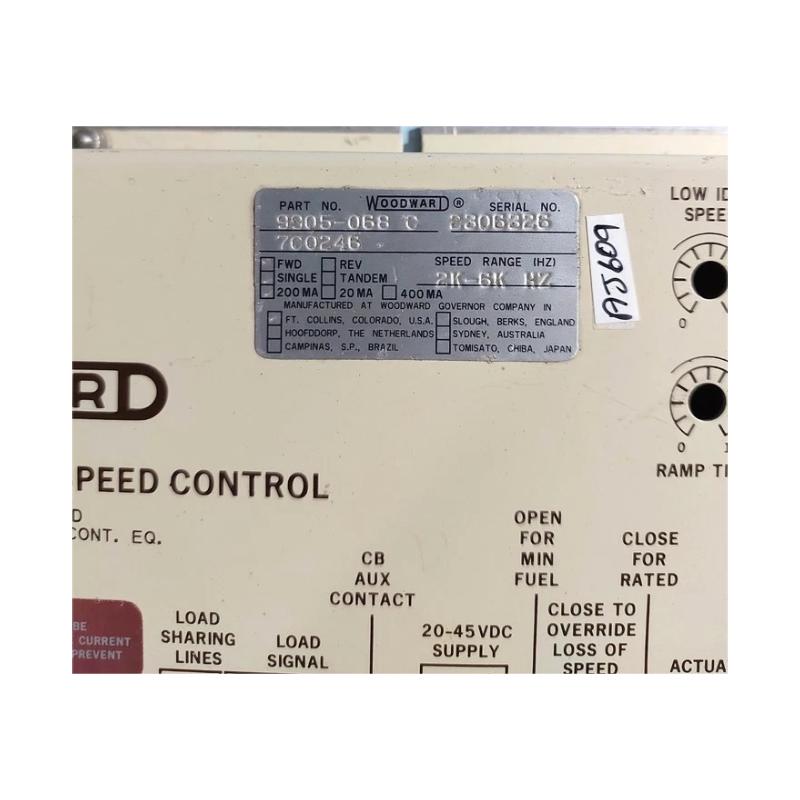

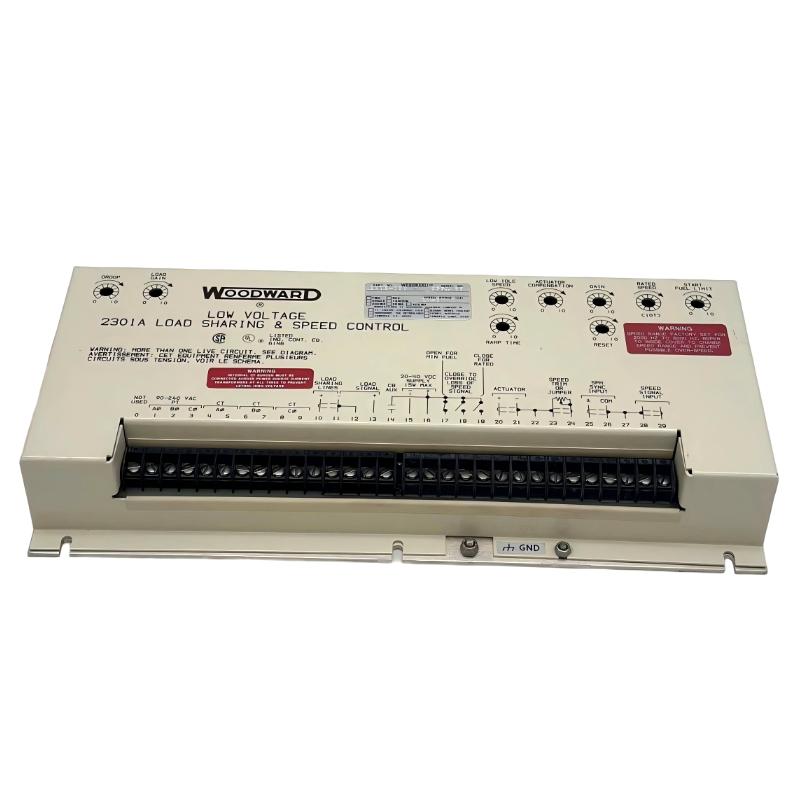

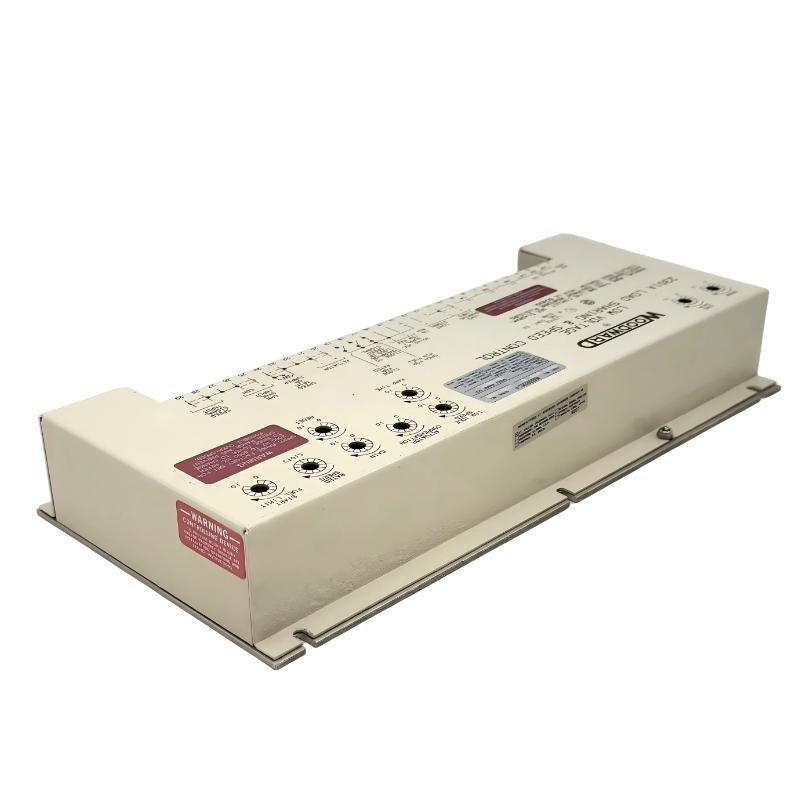

The Woodward 9905-068 2301A Load Sharing Speed Controller provides highly accurate speed and load management for turbines and generators. Its industrial-grade design ensures durability and consistent performance, while advanced load-sharing algorithms optimize efficiency and reliability. Ideal for engineers seeking precision control in multi-generator or turbine systems, this module simplifies operations, reduces wear, and enhances system stability.
Technical Specifications
Specification
Details
Module Type
Control Module
Functionality
Load sharing and speed control for generators and turbines
Input Signals
Analog and digital generator and control signals
Integration
Compatible with Woodward governors, actuators, and supervisory systems
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Mounting
Panel or enclosure mountable
Dimensions (H × W × D)
182 × 152 × 100 mm (7.2 × 6 × 3.9 in)
Weight
1.2 kg (2.65 lbs)
Applications
The Woodward 9905-068 2301A Load Sharing Speed Controller is engineered for precise speed and load management in multi-generator and turbine systems. Its key applications include:
Coordinated load sharing among multiple generators or turbine-driven units.
Maintaining stable engine or turbine speed under fluctuating load conditions.
Industrial power plants, cogeneration facilities, and backup power systems requiring synchronized operation.
Integration with Woodward governor and generator controllers for automatic speed and load regulation.
Retrofitting older generator systems to achieve modern, precise load-sharing control.
This controller is ideal for engineers and operators who require reliable, accurate, and repeatable speed and load control in industrial environments.
Advantages
Precise Load and Speed Control: Balances load among multiple units while maintaining target speed.
Compact Industrial Design: 182 × 152 × 100 mm, 1.2 kg – easy to install in control panels.
Robust Reliability: Engineered for vibration, shock, and industrial temperature resilience.
Seamless Integration: Works with Woodward actuators, governors, and supervisory systems.
Operational Efficiency: Reduces fuel consumption and mechanical stress by optimizing load distribution.
Technical FAQs
Which systems can it control?
Compatible with multi-generator setups, turbines, and engine-driven units using Woodward controllers.
Does it support automatic load sharing?
Yes, dynamically distributes load while maintaining precise speed control.
Can it manage multiple generators simultaneously?
Yes, designed for coordinated operation across several units.
Does it provide fault protection?
Yes, includes alarms for overspeed, load imbalance, and other abnormal operating conditions.
What type of input signals does it accept?
Analog and digital signals from generators, actuators, or supervisory control systems.
Is it suitable for continuous industrial operation?
Yes, designed for 24/7 use in demanding environments.
Does it allow manual adjustment of load or speed?
Yes, operators can override automatic settings when necessary.
Is it compatible with SCADA or HMI monitoring systems?
Yes, provides real-time feedback for supervisory systems.
How precise is the speed and load control?
Maintains tight speed regulation and balanced load distribution to prevent system instability.
Does it require configuration software?
Yes, initial setup is done through Woodward configuration tools for optimal performance.
