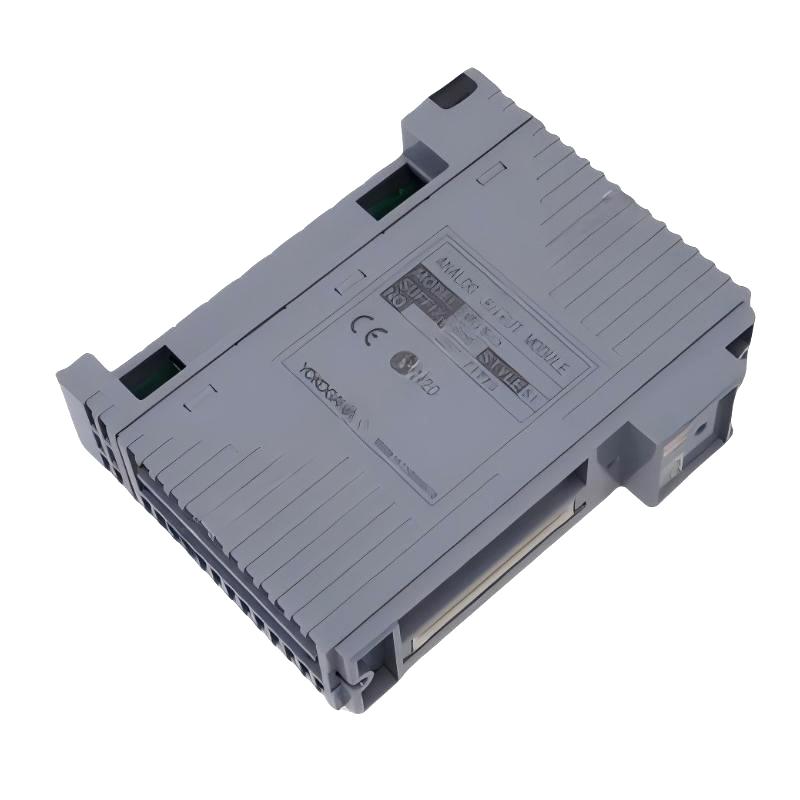

The Yokogawa AAI543-S03/A4S00 Analog Output Module is a high-precision component for industrial automation systems, providing accurate analog outputs to control valves, actuators, and other field devices. Compact and robust, it integrates seamlessly with Yokogawa DCS platforms, supporting predictive maintenance, operational efficiency, and reliable process control. Ideal for critical industrial processes, this module ensures optimal system performance and reduces unplanned downtime.

Technical Specifications

Specification	Details
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Module Type	Analog Output Module
Compatible System	Yokogawa AAI-series DCS
Output Type	Analog (4–20 mA or 0–10 V)
Mounting Type	DIN-rail or system rack
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Yokogawa AAI541-S00 Analog Input Module
Yokogawa AAI543-S03 Analog Output Module
Yokogawa DCS System Rack

Popular Related Models

Yokogawa AAI542-S00 Analog Input/Output Hybrid Module
Yokogawa AAI545-S00 High-Speed Analog Output Module
Yokogawa DCS Expansion Modules

Applications

The Yokogawa AAI543-S03/A4S00 Analog Output Module is designed for precise analog signal control in industrial process automation systems. Typical applications include:

High-accuracy process control in power generation, chemical, and petrochemical plants
Driving valves, actuators, and other field devices with stable analog signals
Integration with Yokogawa DCS platforms for real-time output control
Supporting predictive maintenance through accurate signal monitoring
Industrial automation systems requiring reliable analog outputs for critical processes

Advantages

High-Precision Signal Output: Delivers accurate and stable analog signals for optimized process control.
Compact and Lightweight: Slim 32.8 mm profile allows easy installation in Yokogawa system racks.
Industrial-Grade Reliability: Designed to withstand vibration, temperature fluctuations, and electrical noise.
Seamless System Integration: Fully compatible with Yokogawa AAI-series DCS controllers.
Enhanced Process Efficiency: Reliable analog outputs improve operational performance and minimize downtime.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 107.5 × 32.8 × 130 mm; weight: 0.4 kg.
Q: What type of outputs does the module provide?
A: Standard analog outputs, typically 4–20 mA or 0–10 V depending on system configuration.
Q: Is it compatible with all Yokogawa AAI-series DCS systems?
A: Yes, designed for seamless integration with AAI-series controllers.
Q: Can it operate in harsh industrial environments?
A: Yes, built to tolerate vibration, temperature variations, and electrical interference.
Q: How is the module installed?
A: DIN-rail or system rack installation ensures fast and secure setup.
Q: Does it support redundant configurations?
A: Yes, can be configured for redundancy in critical control applications.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it handle multiple analog output channels?
A: Yes, supports multiple channels depending on module specification.
Q: Are diagnostic features included?
A: Yes, onboard diagnostics allow monitoring of output status and module health.
Q: Which industries benefit most from this module?
A: Power generation, chemical, petrochemical, water treatment, and other industrial automation sectors.
