Introduction

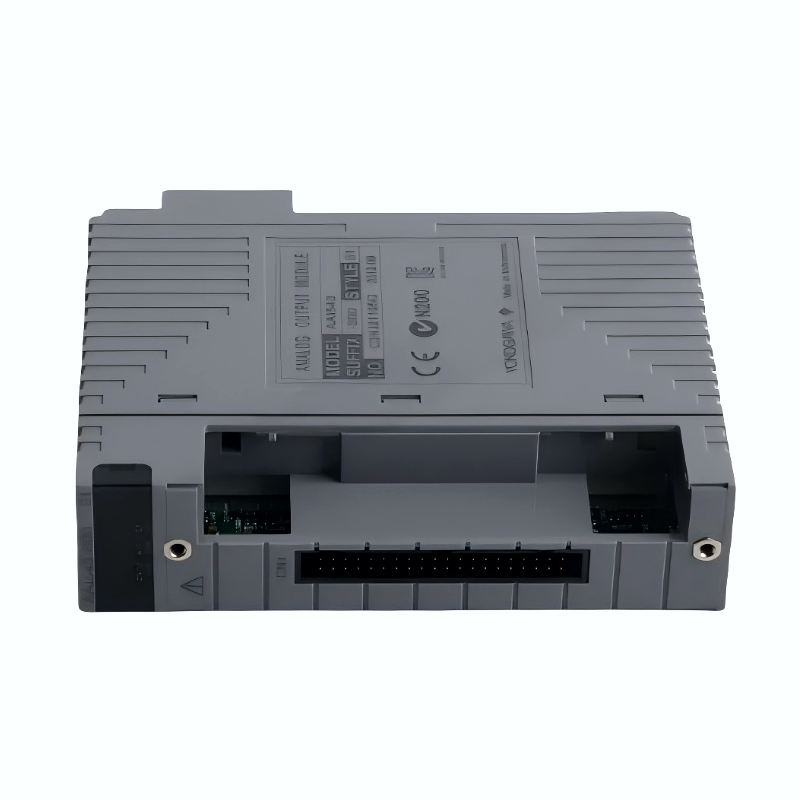

The Yokogawa AAI543-S50/A4S00 Analog Output Module is a high-performance, industrial-grade component for precise analog control in process automation systems. Compact and robust, it provides accurate analog signals to control valves, actuators, and other field devices. Fully compatible with Yokogawa AAI-series DCS platforms, this module ensures reliable signal transmission, supports predictive maintenance, and enhances overall operational efficiency in critical industrial processes.

Technical Specifications

Specification	Details
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Module Type	Analog Output Module
Compatible System	Yokogawa AAI-series DCS
Output Type	Analog (4–20 mA or 0–10 V)
Mounting Type	DIN-rail or system rack
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Yokogawa AAI541-S00 Analog Input Module
Yokogawa AAI543-S03 Analog Output Module
Yokogawa DCS System Rack

Popular Related Models

Yokogawa AAI542-S00 Analog Input/Output Hybrid Module
Yokogawa AAI545-S00 High-Speed Analog Output Module
Yokogawa DCS Expansion Modules

Applications

The Yokogawa AAI543-S50/A4S00 Analog Output Module is designed for high-precision analog signal control in industrial automation systems. Typical applications include:

Driving actuators, valves, and other field devices in process industries
Integration with Yokogawa DCS platforms for accurate real-time control
Industrial automation requiring stable analog output for critical process parameters
Supporting predictive maintenance by providing reliable and precise signals
Centralized process control in power generation, chemical, and petrochemical facilities

Advantages

High-Accuracy Output: Provides precise analog signals for stable control of field devices.
Compact Form Factor: Slim 32.8 mm design enables easy integration into Yokogawa system racks.
Industrial-Grade Durability: Built to withstand vibration, temperature fluctuations, and electrical interference.
Seamless DCS Integration: Fully compatible with Yokogawa AAI-series DCS controllers.
Enhanced Operational Efficiency: Reliable outputs help optimize process control and reduce downtime.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 107.5 × 32.8 × 130 mm; weight: 0.4 kg.
Q: What type of output signals does this module provide?
A: Analog outputs, typically 4–20 mA or 0–10 V depending on system configuration.
Q: Is it compatible with Yokogawa AAI-series DCS systems?
A: Yes, fully compatible with AAI-series controllers.
Q: Can it operate in harsh industrial conditions?
A: Yes, it is designed for vibration, temperature extremes, and electrical noise.
Q: How is installation performed?
A: DIN-rail or system rack installation allows fast and secure setup.
Q: Does it support redundant configurations?
A: Yes, suitable for use in redundant setups for critical applications.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it support multiple analog output channels?
A: Yes, supports multiple channels depending on module configuration.
Q: Are diagnostic features included?
A: Yes, onboard diagnostics allow monitoring of output status and module health.
Q: Which industries benefit most from this module?
A: Power generation, chemical, petrochemical, water treatment, and other industrial automation sectors.
