Product Introduction

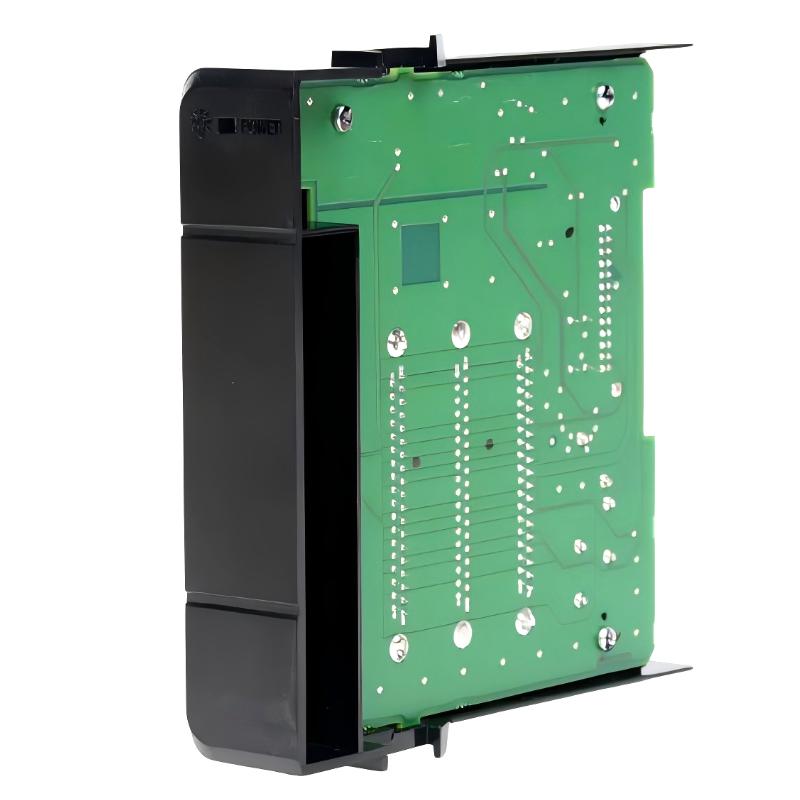

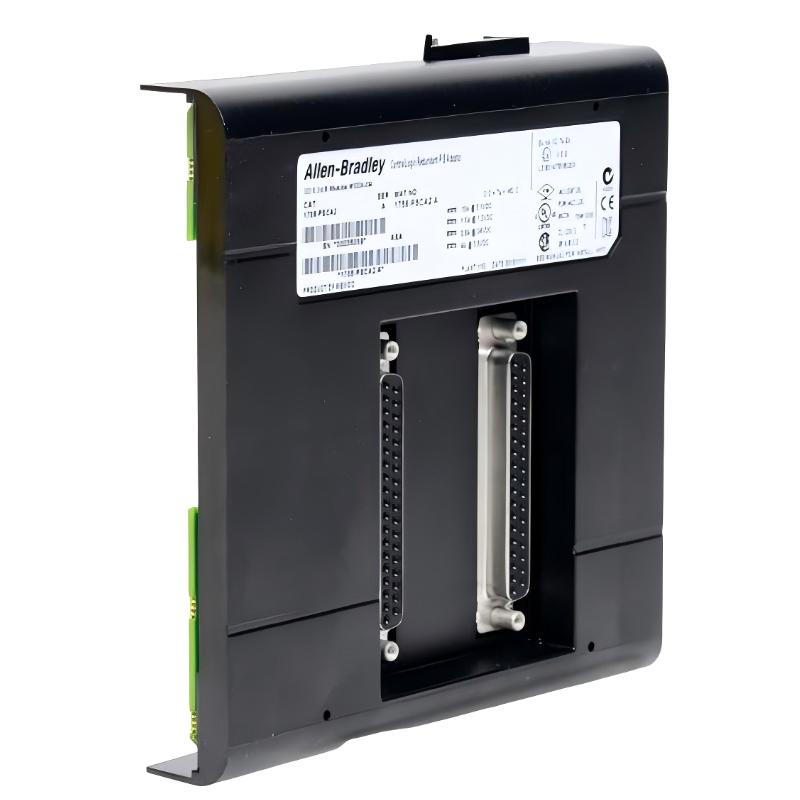

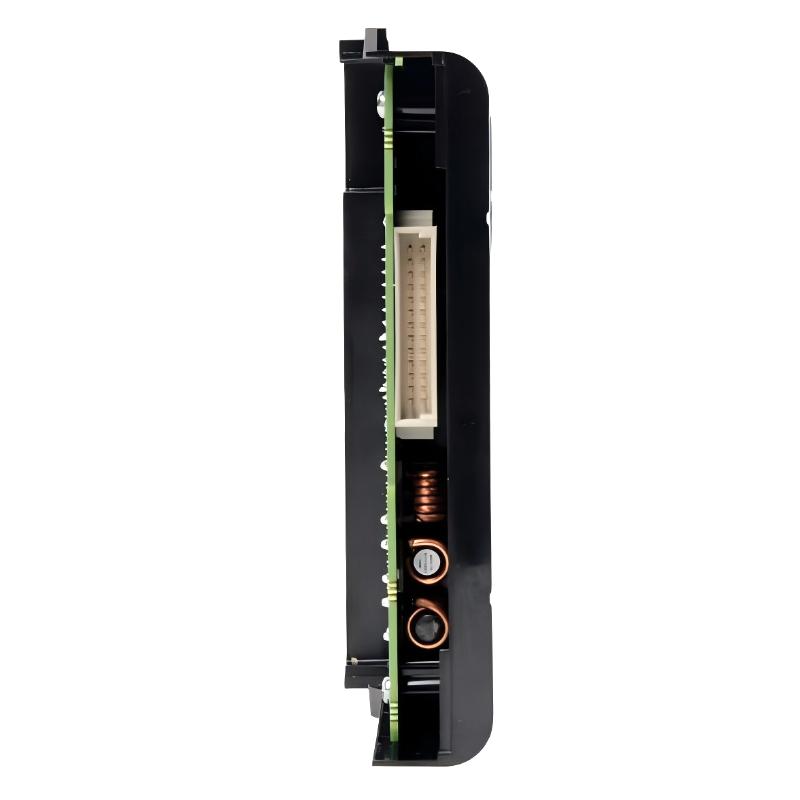

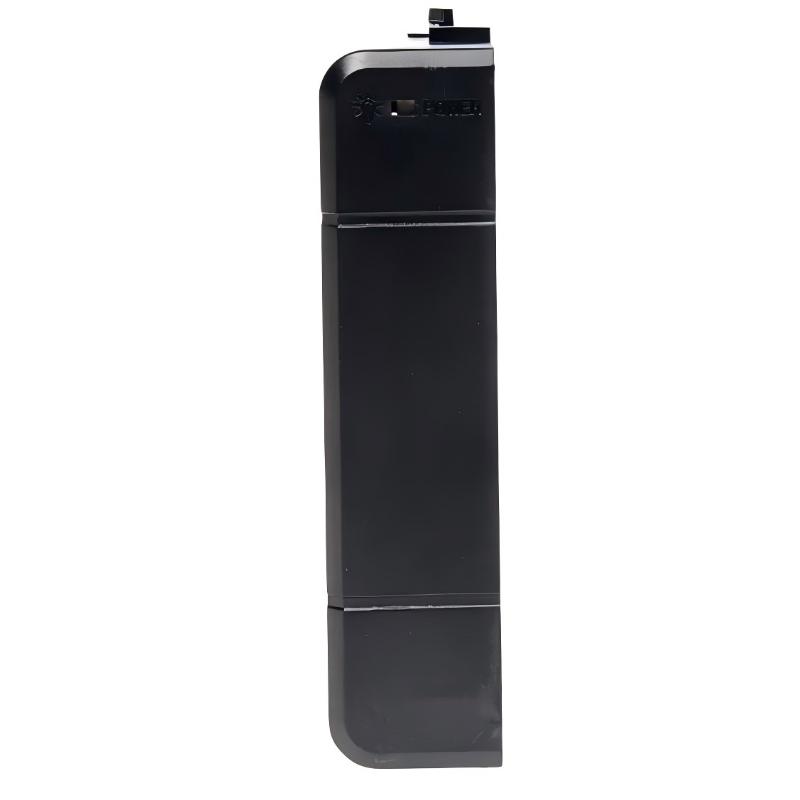

The Allen Bradley 1756-PSCA2/A ControlLogix Redundant Power Supply Chassis Adapter is designed to support high-availability industrial automation systems requiring uninterrupted operation. By enabling redundant power configurations within the ControlLogix platform, it enhances system reliability and minimizes downtime risks in critical production environments. Its compact and robust design allows efficient integration into modern control cabinets, making it a key component for fault-tolerant industrial architectures.

Technical Specifications

Specification	Details
Product Series	ControlLogix
Model Number	1756-PSCA2/A
Product Type	Redundant Power Supply Chassis Adapter
Function	Power Redundancy Enablement
Installation Type	Chassis Mount
System Compatibility	ControlLogix Redundant Systems
Industrial Application	High-Availability Automation
Construction	Industrial Grade
Dimensions	151 × 34 × 144 mm
Weight	0.45 kg

Recommended Related Models

Model Number	Product Name
1756-PA75	ControlLogix AC Power Supply
1756-PB75	ControlLogix DC Power Supply
1756-RM2	ControlLogix Redundancy Module
1756-A13	13-Slot ControlLogix Chassis

Popular Related Models

Model Number	Product Name
1756-PSCA2	ControlLogix Redundant Power Adapter
1756-PA72	ControlLogix AC Power Supply
1756-PB72	ControlLogix DC Power Supply
1756-L71	ControlLogix Logix5571 Processor

Core Applications

• Redundant power supply configurations in ControlLogix automation systems for critical uptime requirements.

• Industrial process control environments where uninterrupted power delivery is essential.

• High-availability manufacturing systems requiring fault-tolerant power architecture.

• Energy, utility, and infrastructure automation platforms demanding continuous system operation.

• Large-scale distributed control systems with enhanced reliability and redundancy design.

Key Advantages

• Enables redundant power architecture for improved system availability and reliability.

• Seamless integration with ControlLogix chassis and power supply modules.

• Enhances system resilience by supporting failover-ready power configurations.

• Compact design suitable for high-density industrial control cabinets.

• Improves operational continuity in mission-critical automation environments.

Technical FAQs

1. What is the main function of the 1756-PSCA2/A module?
It acts as a chassis adapter enabling redundant power supply configurations in ControlLogix systems.

2. Is the 1756-PSCA2/A required for all ControlLogix systems?
No, it is only required in systems designed with redundant power supply architecture.

3. Does this module directly supply power to the chassis?
No, it works in conjunction with compatible power supplies to enable redundancy.

4. Can it be installed in any ControlLogix chassis?
It must be installed in compatible ControlLogix chassis designed for redundancy support.

5. What type of systems typically use this adapter?
High-availability industrial automation systems requiring uninterrupted operation.

6. Does the module improve system reliability?
Yes, it enhances reliability by supporting redundant power configurations.

7. Is programming required for this module?
No programming is required as it functions as a hardware-level redundancy adapter.

8. Can it be hot-swapped during operation?
It depends on system configuration and installation conditions defined by Rockwell guidelines.

9. Does it work with both AC and DC power supplies?
Yes, it is compatible with supported ControlLogix power supply types used in redundancy setups.

10. What is the main benefit of using this adapter?
It ensures higher system uptime by enabling seamless power redundancy within ControlLogix architectures.
