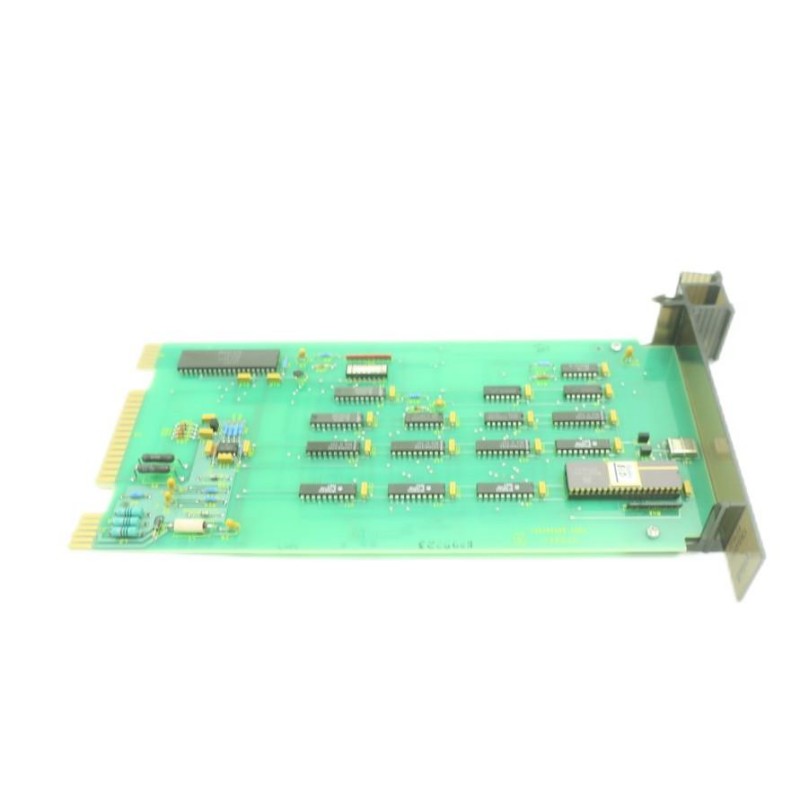

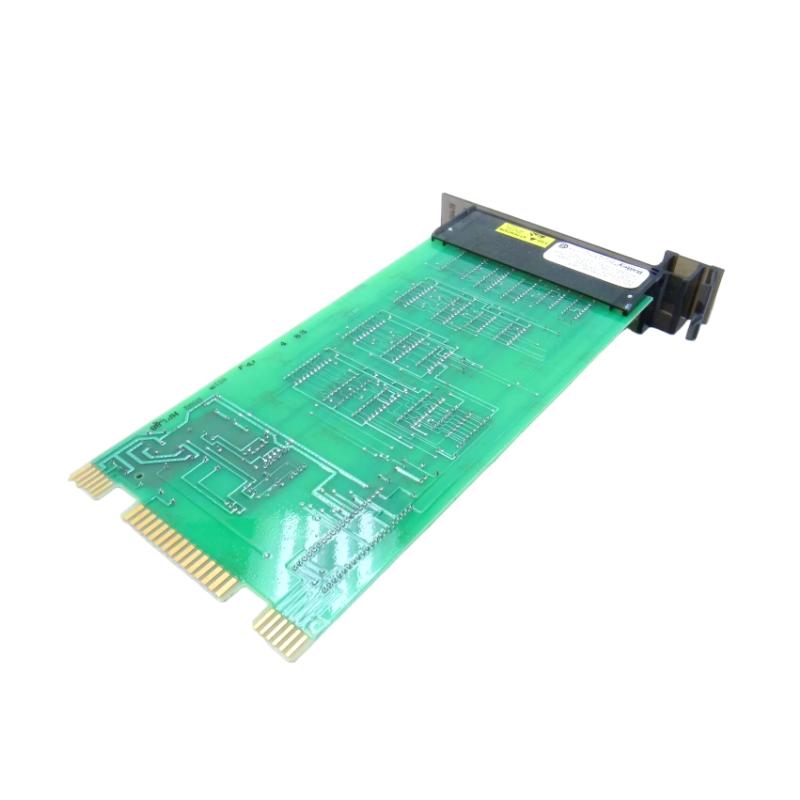

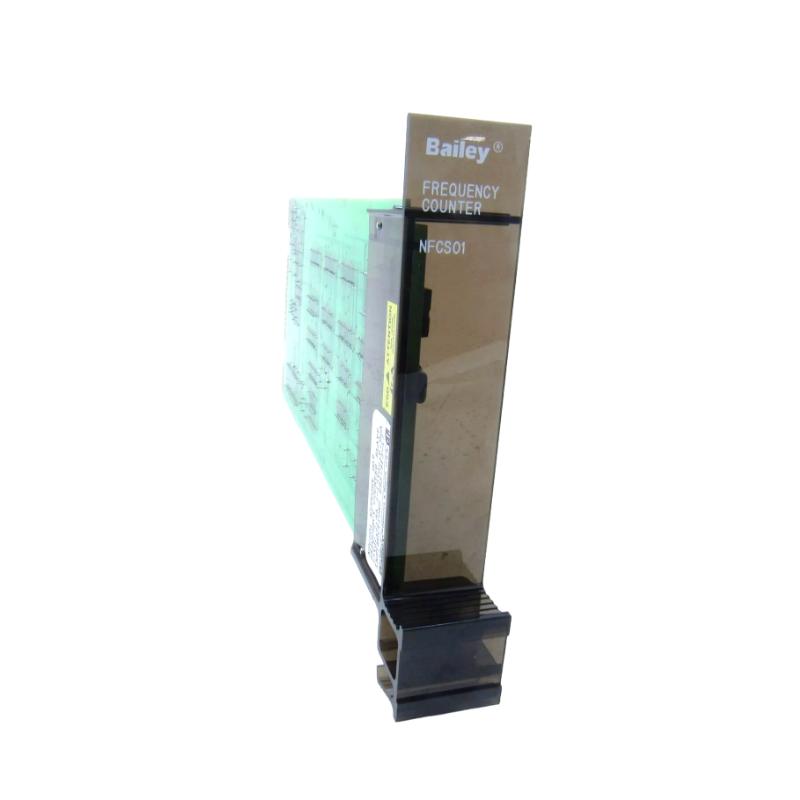

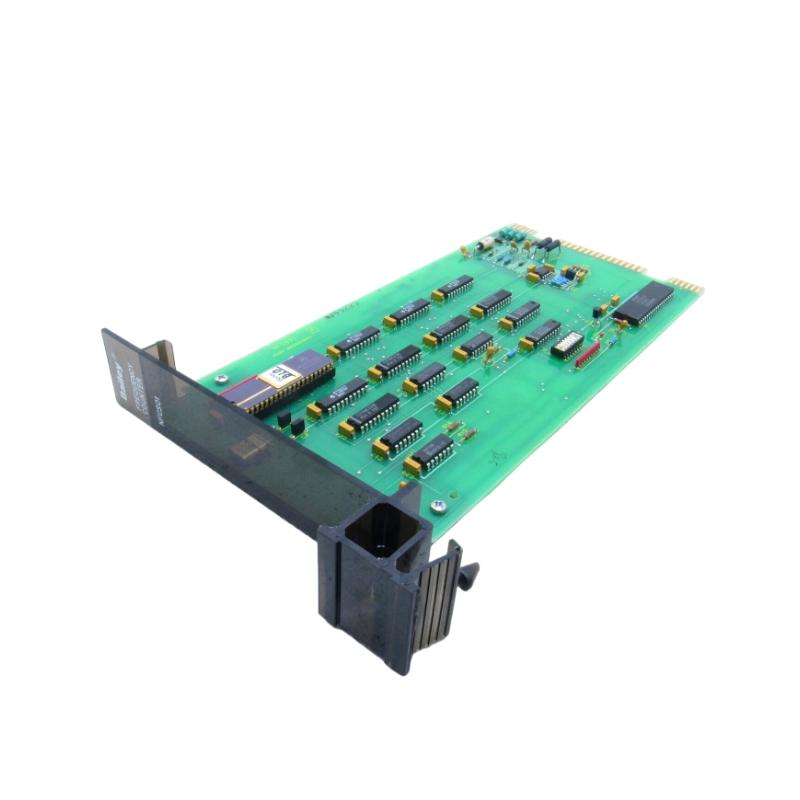

The ABB Bailey NFCS01 Frequency Counter Slave Module is a specialized measurement component designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System. It is engineered to capture, process, and transmit frequency-related signals from industrial equipment, enabling precise monitoring of rotating machinery, power systems, and process variables.
In legacy DCS environments, the NFCS01 plays a key role in system diagnostics and performance monitoring. It provides high-resolution frequency measurement capabilities, helping operators maintain stable process control and detect early signs of mechanical or electrical abnormalities.
This module is widely used in mission-critical industries where accurate signal interpretation directly impacts operational safety and efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Frequency Counter Slave Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Frequency measurement and signal processing |
| Input Signal Types | AC voltage, current, pulse signals |
| Measurement Range | 0.1 Hz to 10 MHz (signal dependent) |
| Accuracy | Up to ±0.01% |
| Response Time | As fast as 1 ms |
| Output Formats | Frequency, pulse width, period |
| Configuration | Bailey Net 90 configuration software |
| Mounting Type | Rack / chassis module |
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 51 mm × 25 mm × 178 mm |
| Weight | 0.2 kg |
The compact form factor allows easy integration into standard ABB Bailey I/O racks while maintaining high signal integrity in dense control systems.
Recommended Related Models
- ABB Bailey NTCS01 Control I/O Termination Unit
- ABB Bailey NICS01 I/O Termination Module
- ABB Bailey NTCL01 Communication Link Module
- ABB Bailey NDSI04 Digital Input Module
- ABB Bailey IMMFP11 Multi-Function Processor Module
These modules are commonly paired with NFCS01 in full-scale ABB Bailey control and monitoring architectures.
