Introduction

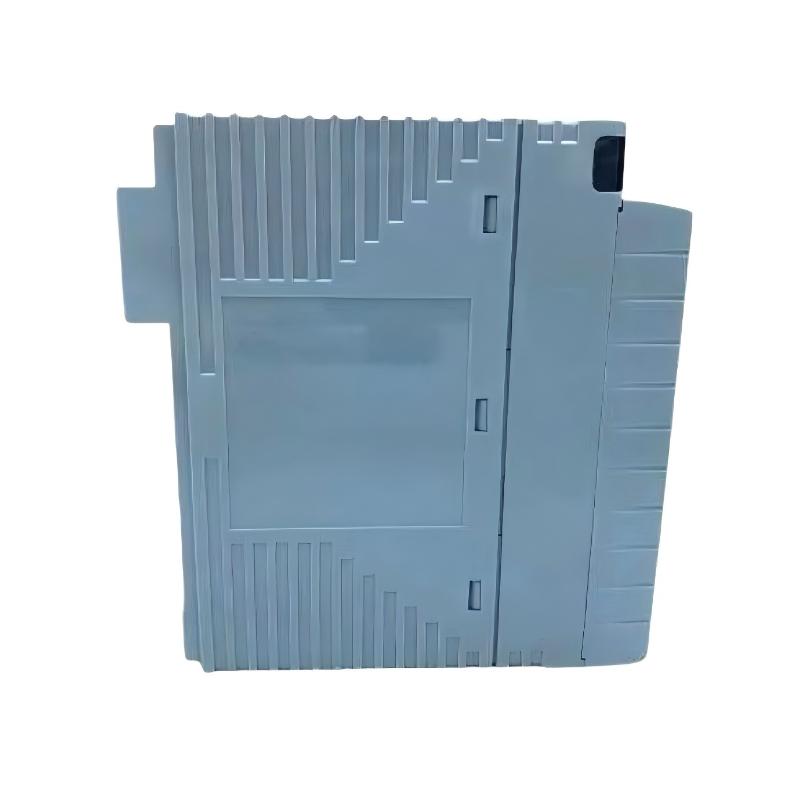

The Yokogawa AAI543-S50/A4S10 Analog Output Module is a high-performance component for precise analog control in industrial automation systems. Compact, robust, and reliable, it delivers accurate signals to control valves, actuators, and other field devices. Fully compatible with Yokogawa AAI-series DCS platforms, this module ensures reliable signal transmission, supports predictive maintenance, and enhances process stability and operational efficiency in critical industrial applications.

Technical Specifications

Specification	Details
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Module Type	Analog Output Module
Compatible System	Yokogawa AAI-series DCS
Output Type	Analog (4–20 mA or 0–10 V)
Mounting Type	DIN-rail or system rack
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Yokogawa AAI541-S00 Analog Input Module
Yokogawa AAI543-S03 Analog Output Module
Yokogawa DCS System Rack

Popular Related Models

Yokogawa AAI542-S00 Analog Input/Output Hybrid Module
Yokogawa AAI545-S00 High-Speed Analog Output Module
Yokogawa DCS Expansion Modules

Applications

The Yokogawa AAI543-S50/A4S10 Analog Output Module is designed for precision analog signal delivery in industrial automation systems. Key applications include:

Driving field devices such as actuators and valves in power, chemical, and petrochemical plants
Integration with Yokogawa DCS platforms for accurate real-time analog control
Industrial automation systems requiring reliable analog outputs for critical processes
Supporting predictive maintenance by providing stable and consistent signal transmission
Centralized process monitoring and control in industrial facilities

Advantages

High-Precision Output: Provides reliable and accurate analog signals for stable field device operation.
Compact and Lightweight: Slim 32.8 mm profile allows easy integration into Yokogawa system racks.
Industrial-Grade Reliability: Withstands vibration, temperature fluctuations, and electrical noise.
Seamless DCS Integration: Fully compatible with Yokogawa AAI-series controllers for smooth system operation.
Enhanced Process Performance: Reliable outputs improve process control and reduce downtime.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 107.5 × 32.8 × 130 mm; weight: 0.4 kg.
Q: What type of output signals does this module provide?
A: Analog outputs, typically 4–20 mA or 0–10 V depending on configuration.
Q: Is it compatible with Yokogawa AAI-series DCS systems?
A: Yes, designed for seamless integration with AAI-series controllers.
Q: Can it operate in harsh industrial environments?
A: Yes, it is built to tolerate vibration, temperature extremes, and electrical interference.
Q: How is installation performed?
A: DIN-rail or system rack installation allows fast and secure integration.
Q: Does it support redundant configurations?
A: Yes, suitable for use in redundant setups for critical processes.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it support multiple analog output channels?
A: Yes, supports multiple channels according to module specification.
Q: Are diagnostic features included?
A: Yes, onboard diagnostics allow monitoring of output status and module health.
Q: Which industries benefit most from this module?
A: Power generation, chemical, petrochemical, water treatment, and other industrial automation sectors.
