Brand:Allen Bradley PLC Item No.:Allen Bradley 1769-SM1 Product Origin:USA Product Dimensions:118 × 35 × 87 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

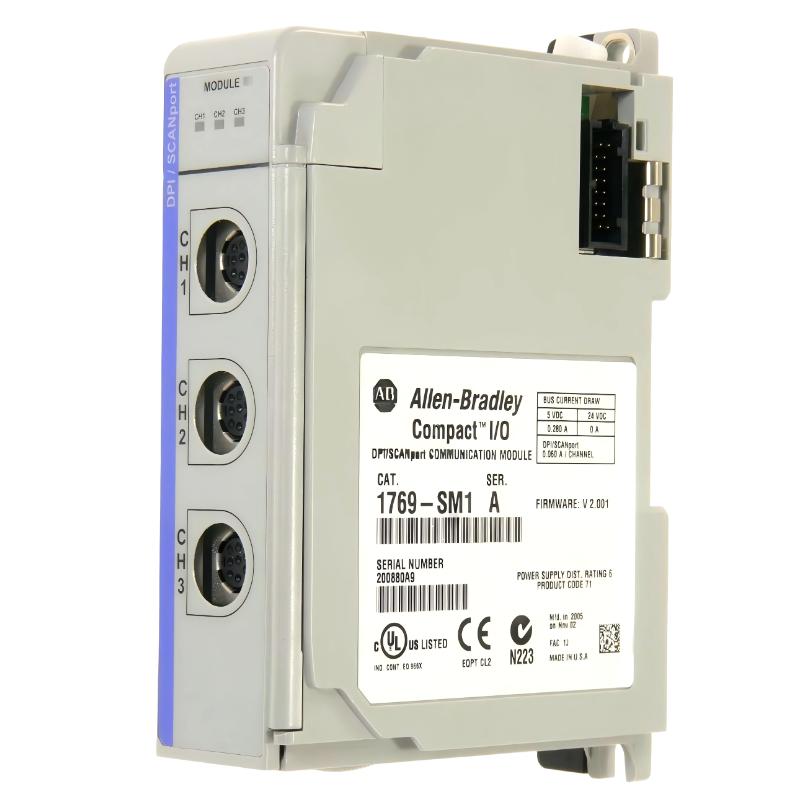

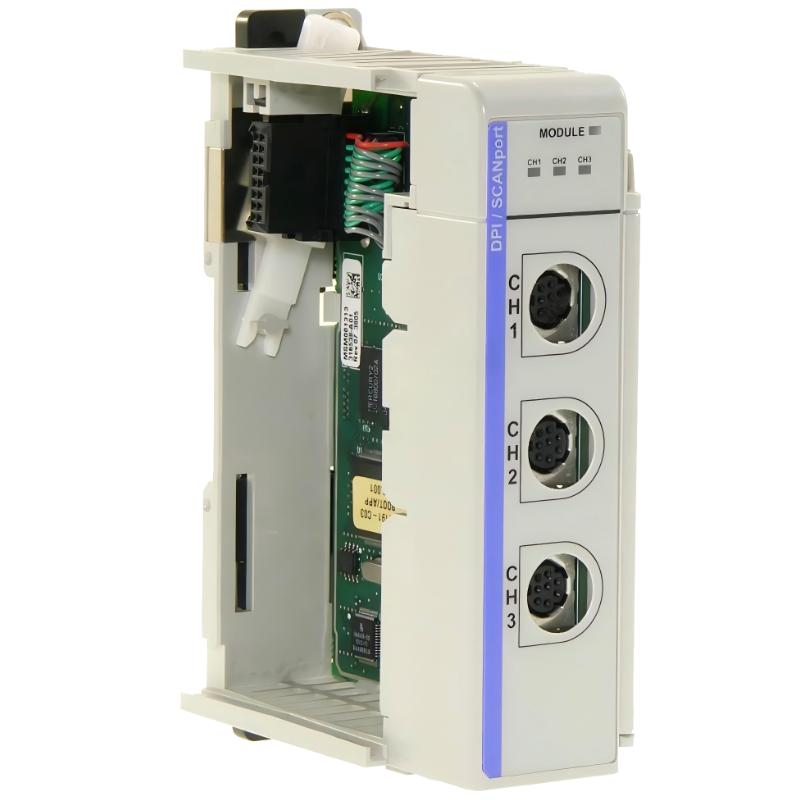

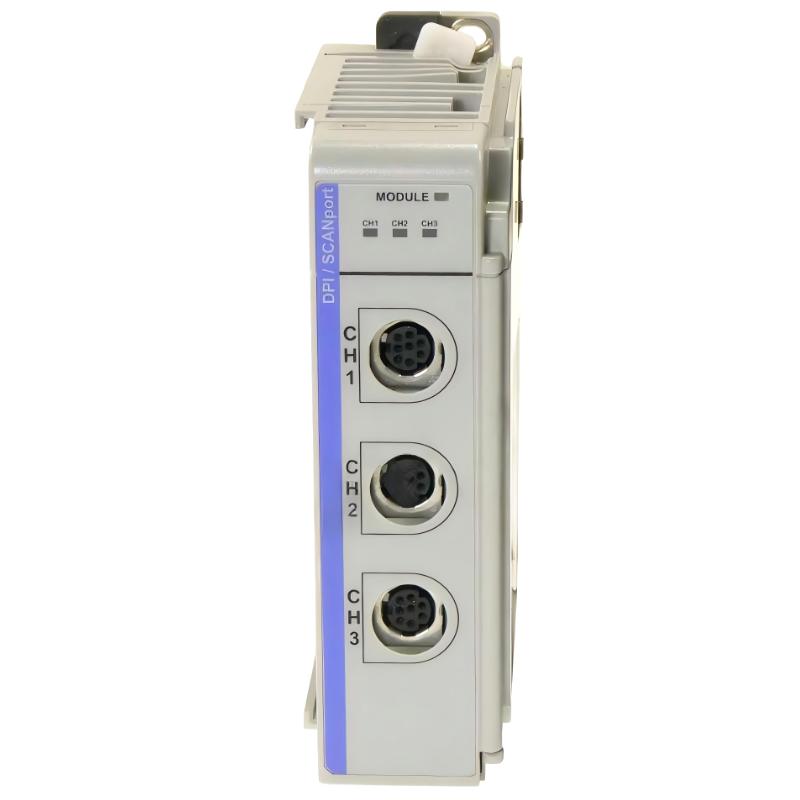

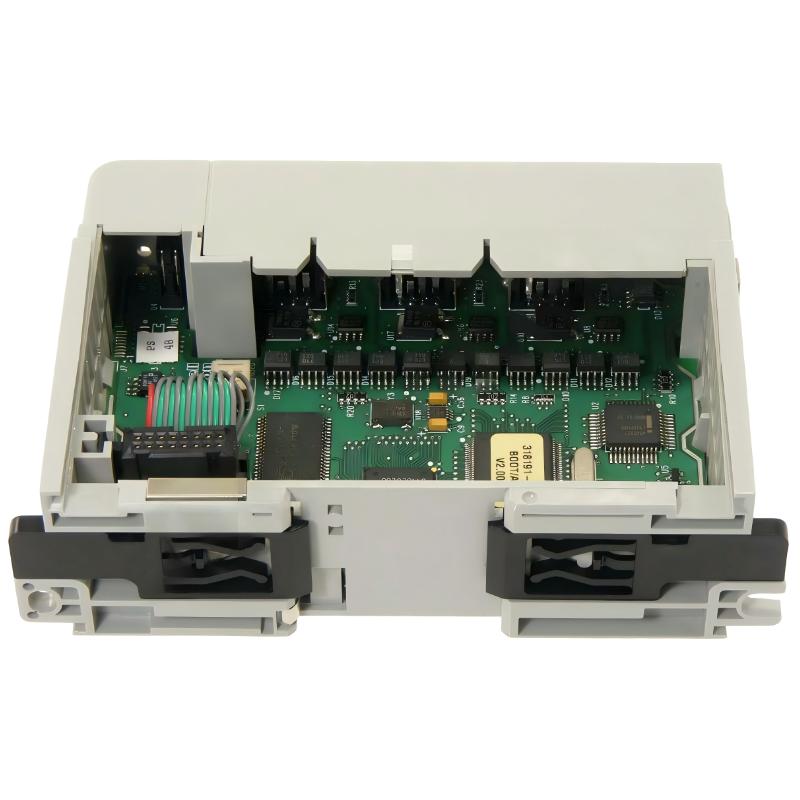

The Allen Bradley 1769-SM1 is a Compact I/O communication module designed to connect DPI or SCANport-based devices—such as PowerFlex drives—to CompactLogix or MicroLogix 1500 systems. It functions as a communication bridge, enabling legacy drive networks to integrate into modern Compact I/O architectures.
This module is commonly used in retrofit projects where existing SCANport or DPI devices must be retained while upgrading PLC control platforms.
Technical Specifications
Parameter
Specification
Manufacturer
Allen Bradley (Rockwell Automation)
Catalog Number
1769-SM1
Module Type
DPI / SCANport Communication Module
Communication Protocol
DPI, SCANport
Supported Devices
PowerFlex 7-Class Drives, 1305, 1336 PLUS II
Channel Count
3 communication channels
Backplane Current Draw
~280 mA at 5V DC
Mounting Type
DIN rail / panel mount
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Status Indicators
Multi-color diagnostic LEDs
Configuration
Auto-detection of connected DPI/SCANport devices
Dimensions
Approx. 118 × 35 × 87 mm
Weight
Approx. 0.5 kg
System Integration Role
The 1769-SM1 acts as a communication gateway module inside CompactLogix systems, allowing integration of drive-based networks into PLC control logic.
Typical system roles include:
Interface between CompactLogix and PowerFlex drives
Integration of legacy SCANport devices into modern PLC systems
Multi-device drive communication management
Migration support for older Allen Bradley drive architectures
Recommended Related Modules
Model
Function
1769-L33ER
CompactLogix Controller
1769-PA2
AC Power Supply Module
1769-PB4
DC High-Capacity Power Supply
1769-OB16
Digital Output Module
1769-IF8
Analog Input Module
1769-ECR
End Cap Module
Common Allen Bradley Communication & Control Modules
Model
Function
1756-EN2T
EtherNet/IP Communication Module
1756-L81E
ControlLogix Processor
1734-AENTR
POINT I/O Ethernet Adapter
5069-IB16
Compact 5000 Input Module
2711P-T10C4D8
PanelView HMI Terminal
2080-LC50-48QWB
Micro850 Controller
Industrial Applications
The 1769-SM1 is primarily used in drive communication and retrofit automation systems where SCANport or DPI devices are still in operation.
Typical applications include:
Variable frequency drive (VFD) control systems
Conveyor and material handling systems
Pump and fan control systems
OEM machine retrofit projects
Packaging machinery upgrades
Legacy PowerFlex drive integration
Industrial modernization projects
It is especially common in facilities upgrading PLCs while retaining existing drive infrastructure.
Functional Characteristics
The 1769-SM1 provides communication bridging capabilities between Compact I/O systems and legacy drive networks.
Key characteristics include:
Supports DPI and SCANport communication protocols
Three-channel communication architecture
Auto-detection of connected drive devices
Diagnostic LED indicators for troubleshooting
Non-volatile memory for configuration storage
Compact I/O backplane integration
Suitable for retrofit and hybrid automation systems
Its primary role is enabling interoperability between modern controllers and older drive systems.
Technical FAQs
1. What is the main function of the 1769-SM1?
It connects CompactLogix systems to DPI and SCANport-based devices such as PowerFlex drives.
2. Which devices are supported?
It supports PowerFlex 7-class drives, 1305 drives, and 1336 PLUS II drives.
3. How many communication channels does it have?
The module provides 3 communication channels.
4. Is this module still in production?
No. It is considered a legacy/discontinued product in many regions.
5. What systems is it compatible with?
It works with CompactLogix and MicroLogix 1500 systems using 1769 architecture.
6. What is DPI and SCANport used for?
They are legacy drive communication protocols used by older Allen Bradley VFDs.
7. Can it be used in new installations?
It is mainly used in retrofit or maintenance of existing systems.
8. What is the operating temperature range?
0°C to 60°C.
9. Does it support Ethernet communication?
No. It communicates via DPI and SCANport only.
10. Why is the 1769-SM1 still used today?
Because many industrial plants still operate legacy PowerFlex and SCANport-based drive systems that require ongoing support.
