Introduction

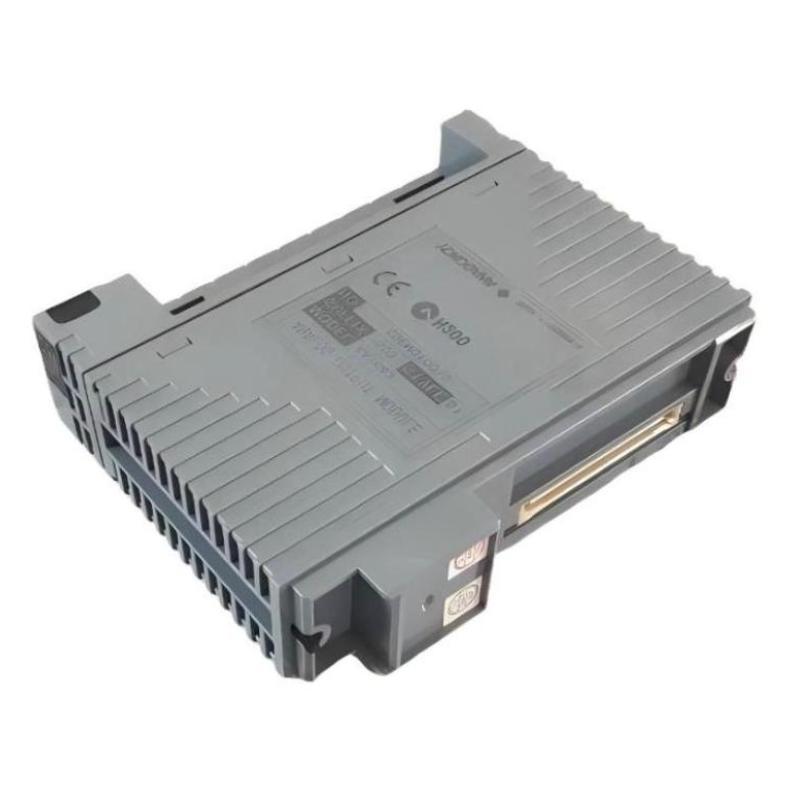

The Yokogawa AAI543-S53/K4A00 Analog Output Module is a high-performance, industrial-grade component for precise analog control in process automation systems. Compact, reliable, and robust, it provides accurate signals to control valves, actuators, and other field devices. Fully compatible with Yokogawa AAI-series DCS platforms, this module ensures dependable signal transmission, supports predictive maintenance, and enhances process efficiency in critical industrial applications.

Technical Specifications

Specification	Details
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Module Type	Analog Output Module
Compatible System	Yokogawa AAI-series DCS
Output Type	Analog (4–20 mA or 0–10 V)
Mounting Type	DIN-rail or system rack
Operating Temperature	-20°C to 60°C
Construction	Industrial-grade
Redundancy Support	Supports redundant configurations
Compliance	CE and industrial standards

Recommended Related Models

Yokogawa AAI541-S00 Analog Input Module
Yokogawa AAI543-S50/K4A00 Analog Output Module
Yokogawa DCS System Rack

Popular Related Models

Yokogawa AAI542-S00 Analog Input/Output Hybrid Module
Yokogawa AAI545-S00 High-Speed Analog Output Module
Yokogawa DCS Expansion Modules

Applications

The Yokogawa AAI543-S53/K4A00 Analog Output Module is designed for high-precision analog signal control in industrial automation systems. Key applications include:

Driving valves, actuators, and other field devices in power, chemical, and petrochemical plants
Integration with Yokogawa DCS platforms for real-time, accurate analog output
Industrial automation systems requiring stable and reliable analog control
Supporting predictive maintenance with consistent signal delivery
Centralized process monitoring and control in critical industrial facilities

Advantages

High-Accuracy Output: Delivers precise analog signals for stable control of field devices.
Compact and Lightweight: Slim 32.8 mm profile allows easy integration into Yokogawa system racks.
Industrial-Grade Reliability: Built to withstand vibration, temperature fluctuations, and electrical interference.
Seamless DCS Integration: Fully compatible with Yokogawa AAI-series controllers for smooth system operation.
Optimized Process Performance: Reliable outputs enhance process stability and reduce downtime.

Technical FAQs

Q: What are the module’s dimensions and weight?
A: 107.5 × 32.8 × 130 mm; weight: 0.4 kg.
Q: What type of outputs does this module provide?
A: Analog outputs, typically 4–20 mA or 0–10 V depending on system configuration.
Q: Is it compatible with Yokogawa AAI-series DCS systems?
A: Yes, designed for seamless integration with AAI-series controllers.
Q: Can it operate in harsh industrial environments?
A: Yes, it is built to tolerate vibration, temperature extremes, and electrical interference.
Q: How is installation performed?
A: DIN-rail or system rack installation allows fast and secure setup.
Q: Does it support redundant configurations?
A: Yes, suitable for use in redundant configurations for critical applications.
Q: What is the expected service life?
A: Typically exceeds 10 years with proper maintenance.
Q: Can it support multiple analog output channels?
A: Yes, supports multiple channels depending on module specification.
Q: Are diagnostic features included?
A: Yes, onboard diagnostics allow monitoring of output status and module health.
Q: Which industries benefit most from this module?
A: Power generation, chemical, petrochemical, water treatment, and other industrial automation sectors.
