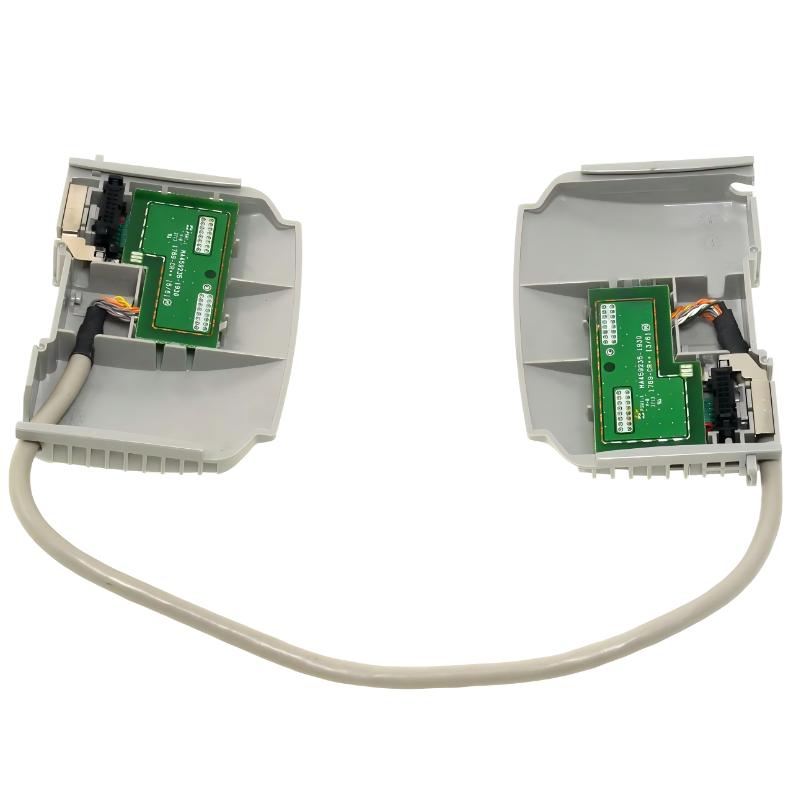

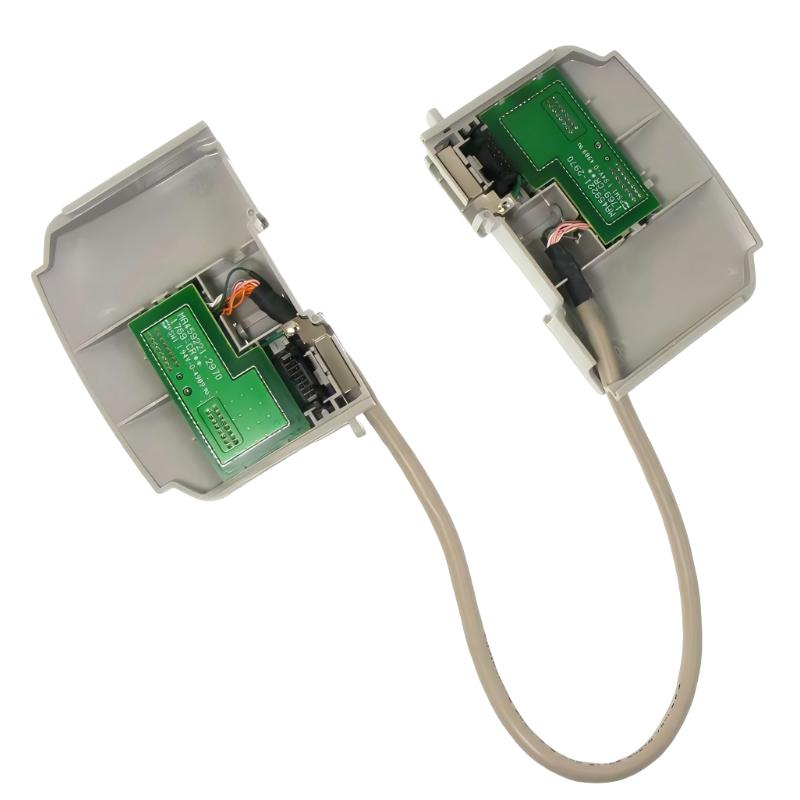

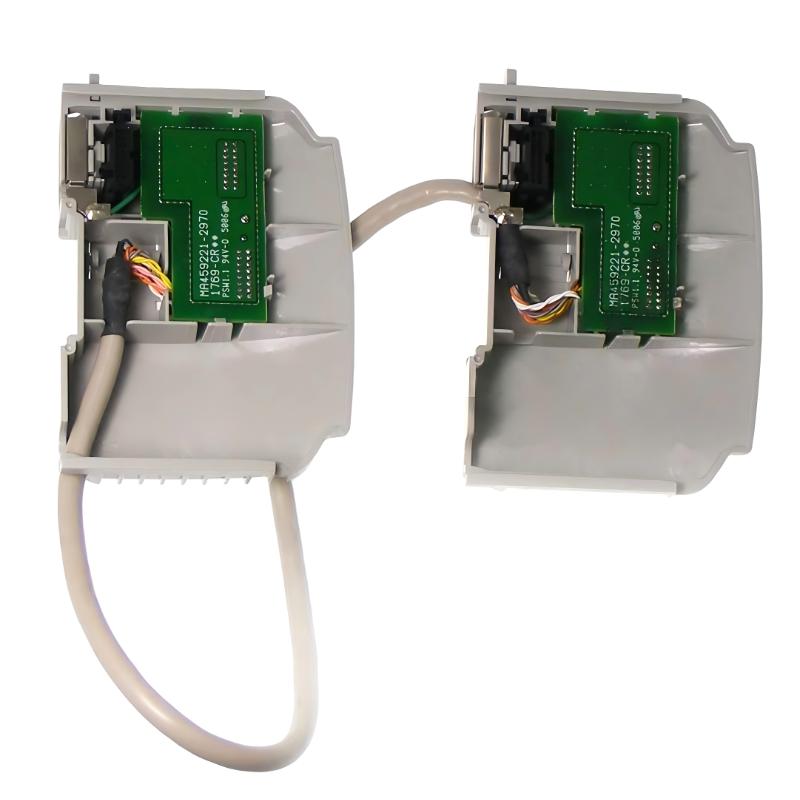

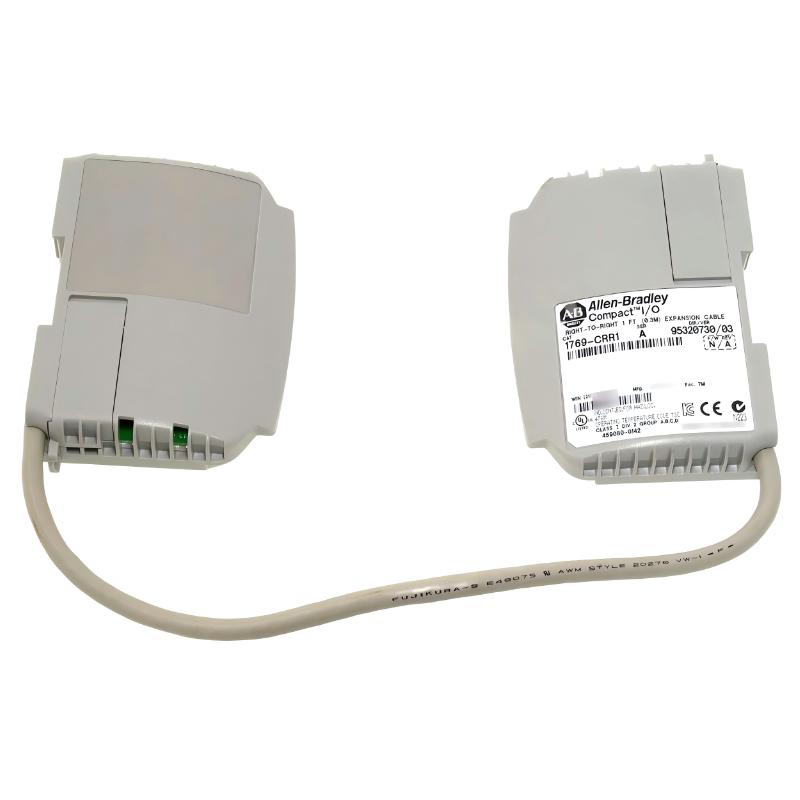

Allen Bradley 1769-CRR1 CompactLogix Compact I/O Right-To-Right Bus Extension Cable

Applications

The Allen Bradley 1769-CRR1 Bus Extension Cable is designed to facilitate reliable right-to-right connections between CompactLogix I/O modules. Typical applications include:

• Extending right-side connections in modular Compact I/O systems
• Factory automation, process control, and distributed I/O installations
• Industrial environments requiring robust and reliable communication between modules
• Seamless expansion of CompactLogix I/O systems without additional wiring complexity

This cable ensures high-speed, stable data transmission across connected modules.

Advantages

• Reliable Connectivity: Maintains consistent communication between right-side connected I/O modules
• Compact Form Factor: 1-foot cable length allows flexible installation in control panels
• Plug-and-Play Installation: Simplifies integration between right-side I/O modules
• Industrial-Grade Performance: Built to withstand 24/7 operation in demanding industrial conditions
• Efficient Modular Expansion: Supports growth of CompactLogix I/O systems while minimizing downtime

Technical FAQs

1. What is the primary function of this cable?
   It extends right-to-right connections between Compact I/O modules for stable communication.
2. Which modules is it compatible with?
   Allen Bradley CompactLogix I/O modules.
3. What is the cable length?
   1 foot (approximately 0.305 meters).
4. Is it shielded for noise reduction?
   Yes, it is shielded to minimize EMI and ensure reliable data transmission.
5. Can it operate in harsh industrial environments?
   Yes, designed for vibration, temperature fluctuations, and continuous operation.
6. Does it require tools for installation?
   No, it is a plug-and-play connection between modules.
7. Can it be used in retrofit systems?
   Yes, compatible with existing CompactLogix I/O installations.
8. Does it support high-speed data transfer?
   Yes, engineered for fast communication between connected modules.
9. Is maintenance required?
   Minimal; inspect periodically for wear or loose connections.
10. Is it suitable for continuous operation?
    Yes, designed for 24/7 industrial use.
