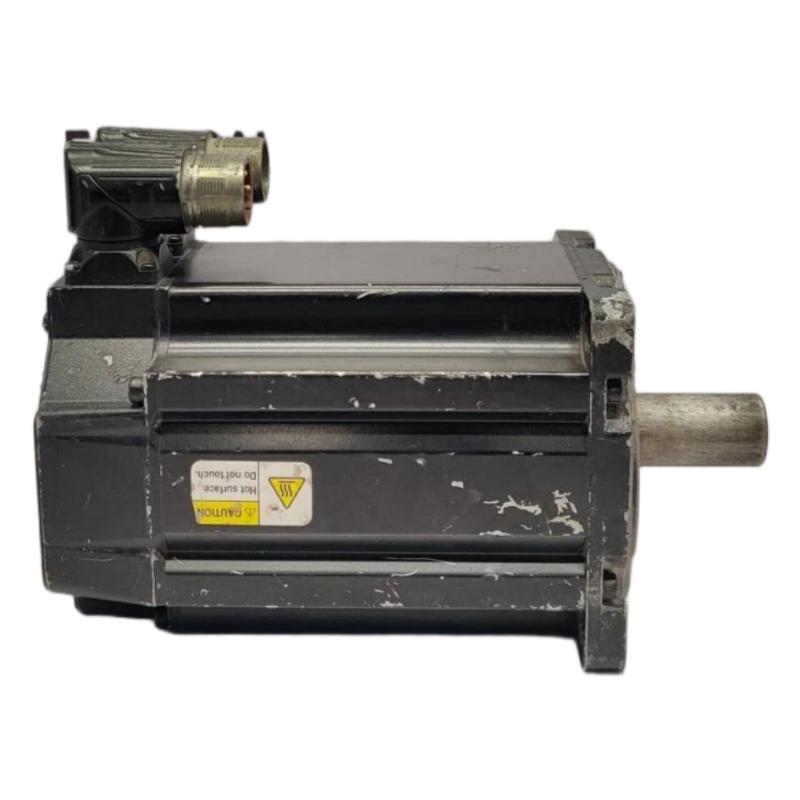

Allen Bradley MPL-B880D-MJ72AA Servo Motor

Applications

The Allen-Bradley MPL-B880D-MJ72AA Servo Motor is designed for industrial automation systems that require precise rotary motion, reliable speed regulation, and repeatable positioning. As part of the MP-Series MPL low-inertia servo motor family, it is intended for use with compatible servo drives in demanding machine-control environments.

With a 265 mm frame size and a 2000 RPM speed-class configuration, this motor is suitable for applications where responsive motion and coordinated machine operation are important.

• Automated Production Lines: Supports synchronized movement in machinery that requires repeatable positioning and controlled acceleration.

• Packaging Systems: Helps coordinate feeding, indexing, and positioning mechanisms in compatible automated equipment.

• Material Handling: Provides controlled rotary motion for transfer systems and machine mechanisms.

• Industrial Assembly: Supports precision movement in automated assembly equipment and production cells.

• Machine Tools: Can be integrated into compatible motion axes requiring closed-loop speed and position control.

• Converting Equipment: Suitable for selected winding, cutting, and processing applications when properly matched to the mechanical load.

Advantages

Responsive Motion Control

The MPL motor platform is designed for low-inertia operation, supporting dynamic acceleration and deceleration when the motor, drive, and mechanical load are correctly matched.

High-Resolution Position Feedback

The MJ72AA configuration uses multi-turn feedback, allowing position information to account for multiple shaft revolutions within the encoder's specified operating system. This is useful in applications requiring more than single-revolution position information.

Integrated Industrial Design

The motor is intended for industrial automation environments and can be incorporated into compatible Allen-Bradley motion-control systems, helping simplify equipment integration and maintenance planning.

Keyed Shaft for Mechanical Coupling

The keyed shaft arrangement supports secure mechanical coupling with compatible transmission components. Correct alignment and coupling selection are essential to reduce vibration and bearing stress.

Flexible Drive Integration

When paired with a compatible servo drive, the motor supports closed-loop motion control for applications requiring coordinated speed, torque, and position management.

Useful for Maintenance and Replacement

For facilities maintaining existing MP-Series equipment, the MPL-B880D-MJ72AA is a candidate for evaluation when replacing a motor with matching electrical, mechanical, and feedback requirements. Confirm the complete catalog number before ordering.

Technical FAQs

Q1: What type of servo system is suitable for this motor?

Use a compatible Allen-Bradley servo drive that supports the motor's electrical ratings, feedback interface, commutation requirements, and control functions. Verify compatibility using the complete motor catalog number.

Q2: What does multi-turn feedback mean?

Multi-turn feedback provides position information across multiple shaft revolutions, in addition to the angular position within a revolution. The exact behavior during power loss depends on the encoder design and its specified operating requirements.

Q3: Does the MJ72AA configuration include a holding brake?

The MJ72AA suffix identifies a configuration without the integrated holding brake associated with brake-equipped variants such as MJ74AA. If shaft holding is required, assess the machine's braking and safety requirements separately.

Q4: Can this motor be controlled by any 460 V servo drive?

No. Matching voltage alone does not guarantee compatibility. Feedback support, motor identification, current capacity, commutation, and drive configuration must also be verified.

Q5: How is the motor's direction of rotation controlled?

Direction is normally commanded by the compatible servo drive and motion controller. The final rotation direction depends on the configured motor phases, feedback polarity, and machine setup.

Q6: What is the purpose of servo tuning?

Servo tuning adjusts the control-loop response to the motor and mechanical load. Proper tuning helps balance positioning accuracy, response time, stability, and resistance to vibration.

Q7: What may cause excessive vibration during operation?

Potential causes include mechanical misalignment, coupling imbalance, loose mounting hardware, unsuitable control-loop tuning, bearing wear, or resonance in the machine structure.

Q8: How should a motor following error be diagnosed?

Review drive fault information, commanded versus actual position, load conditions, acceleration limits, feedback integrity, and mechanical movement. Correct the underlying issue before returning the system to production.

Q9: Can the motor be installed in a different machine without modification?

Not necessarily. Mechanical mounting, shaft geometry, load inertia, torque requirements, environmental conditions, and drive compatibility must all be checked before reuse.

Q10: What information is needed to select a replacement motor?

Confirm the full catalog number, voltage class, rated speed, feedback configuration, brake requirement, mounting arrangement, shaft dimensions, and compatibility with the existing drive and controller.
