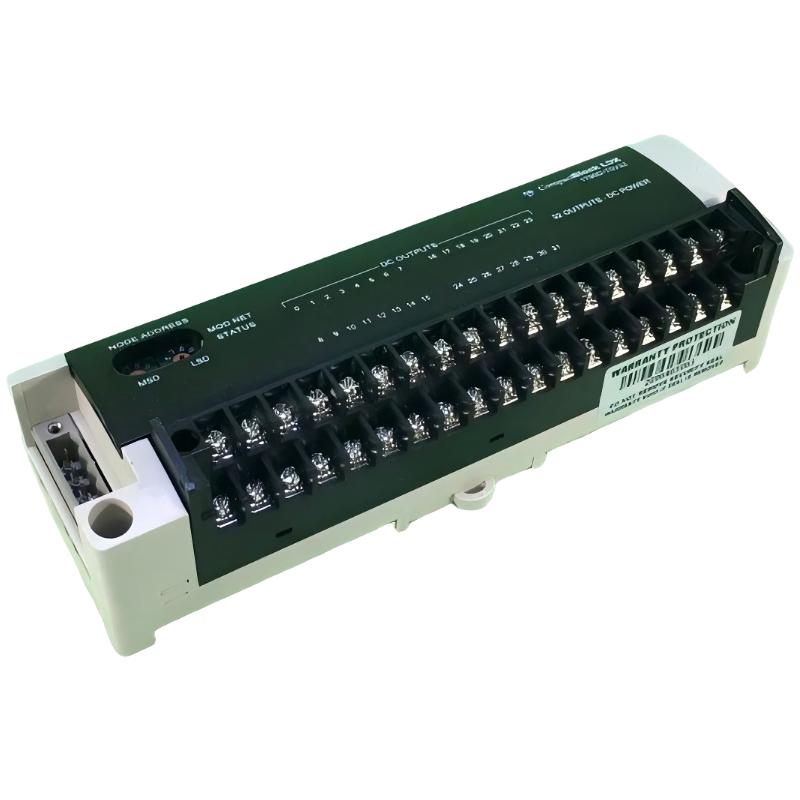

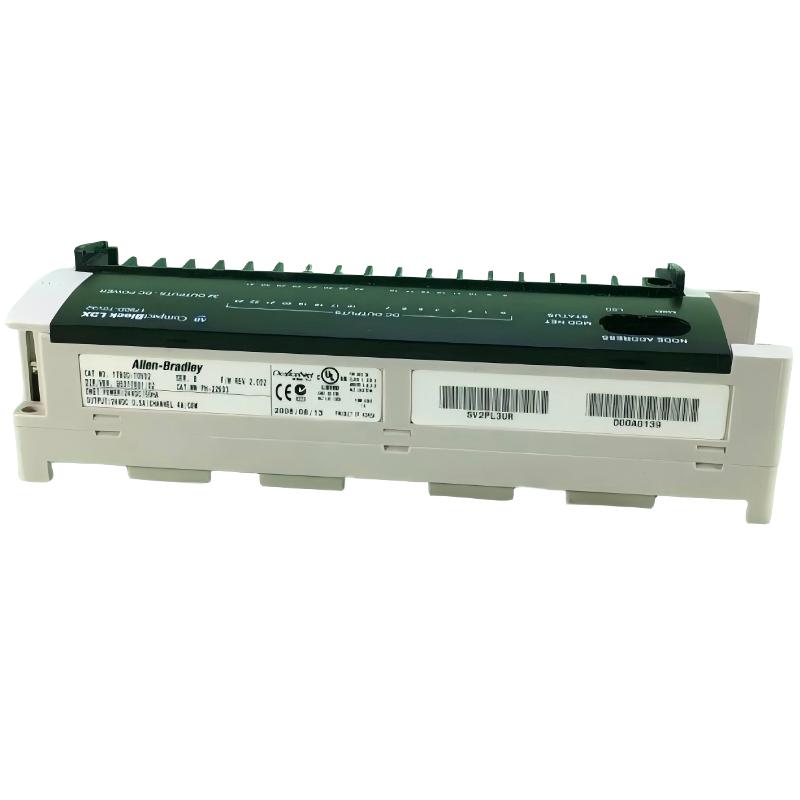

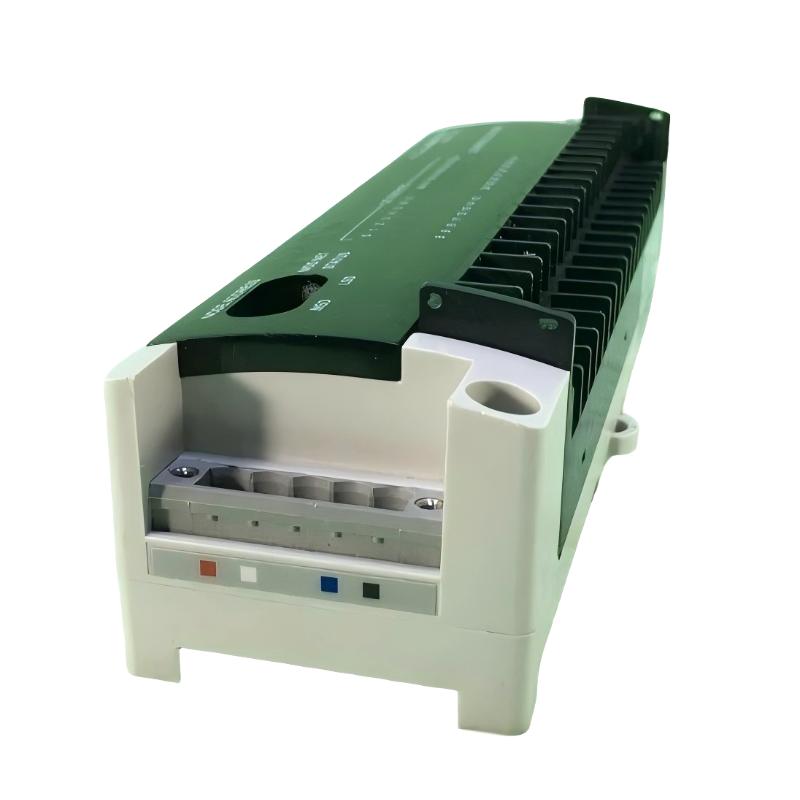

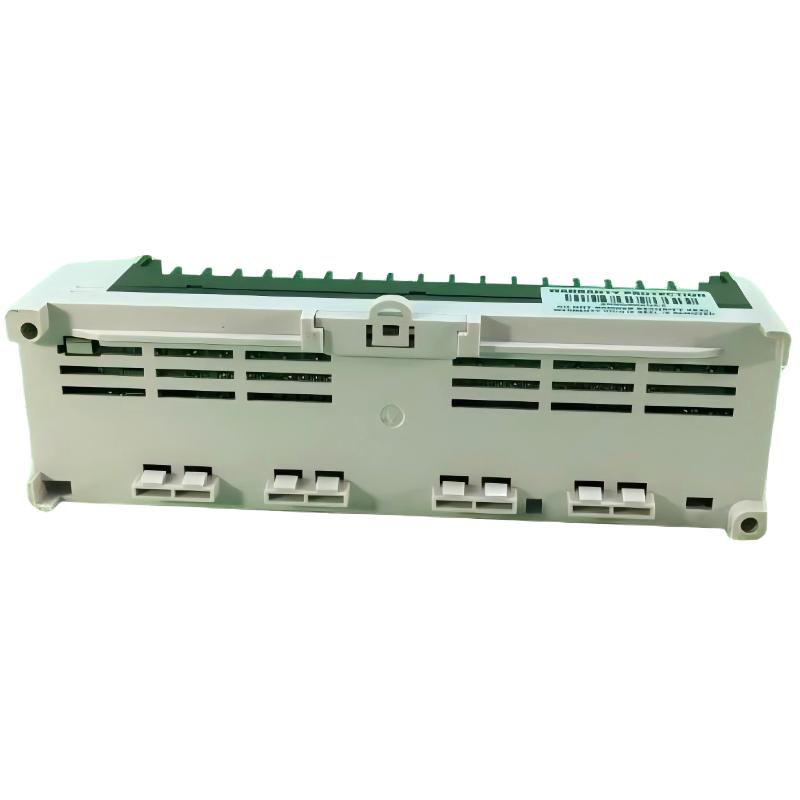

Allen Bradley 1790D-T0V32 CompactBlock LDX I/O Basic Module

Applications

The Allen-Bradley 1790D-T0V32 CompactBlock LDX I/O Basic Module is designed for industrial automation systems that require scalable and high-capacity distributed I/O solutions. Its typical applications include:

• Serving as the main I/O interface in CompactBlock LDX distributed systems
• Connecting multiple digital and analog field devices to PLCs
• Factory automation where increased I/O channel capacity is needed
• Control panels requiring robust, modular, and expandable I/O systems
• Industrial environments demanding high reliability under vibration, temperature fluctuations, and electrical interference

Its 176 × 42 × 52 mm form factor ensures expanded I/O capacity while remaining compact for panel installations.

Advantages

• High-Capacity I/O Expansion: Supports more channels than standard modules for larger systems.
• Reliable Performance: Industrial-grade design ensures consistent and accurate signal processing.
• Modular and Scalable: Works seamlessly with other CompactBlock LDX modules for system growth.
• Compact Design: Space-efficient layout allows installation in standard control panels.
• Plug-and-Play Integration: Easy setup reduces installation time and wiring errors.
• Maintenance-Friendly: Modular design allows quick replacement without system downtime.

Technical FAQs

1. Q: How many I/O channels does the 1790D-T0V32 support?
   A: This module provides 32 I/O points, allowing for expanded system control.
2. Q: Is it compatible with other CompactBlock LDX modules?
   A: Yes, fully compatible with extension blocks and CompactBlock LDX controllers.
3. Q: Can it operate in harsh industrial environments?
   A: Yes, designed to withstand vibration, temperature variations, and electrical noise.
4. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 60°C.
5. Q: How is the module mounted?
   A: Supports panel or DIN rail mounting for flexible installation.
6. Q: Does it require an external power supply?
   A: No, it draws power from the CompactBlock LDX backplane.
7. Q: Can multiple modules be daisy-chained?
   A: Yes, multiple modules can be connected to expand overall I/O capacity.
8. Q: Does it provide diagnostics?
   A: Yes, system diagnostics are supported via the CompactBlock LDX controller.
9. Q: How does it maintain signal integrity?
   A: Industrial-grade design ensures low-latency communication and high data accuracy.
10. Q: How easy is replacement or maintenance?
    A: Modular design allows quick replacement without affecting the rest of the system.
