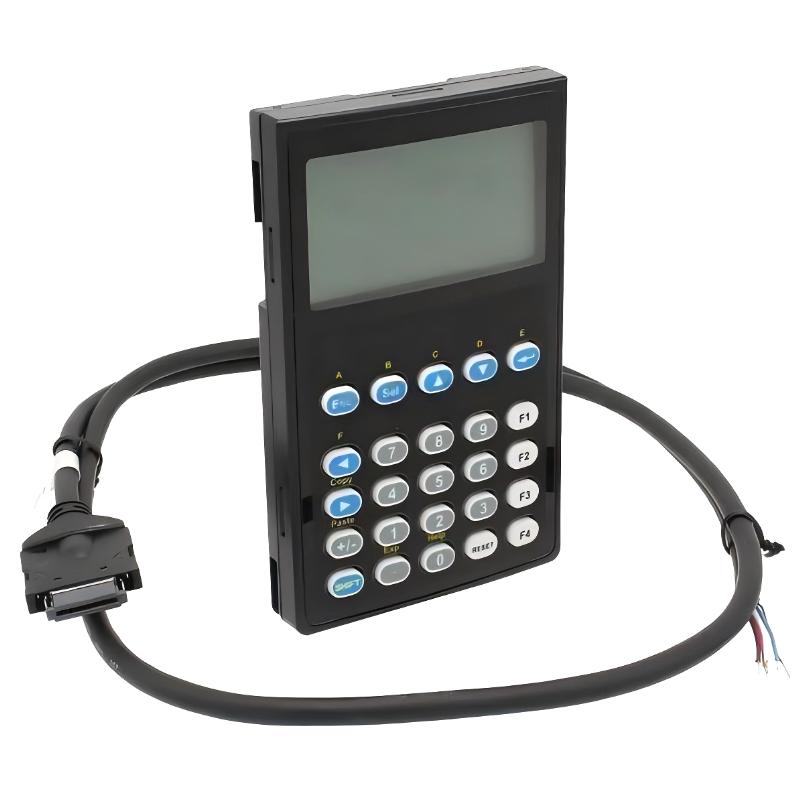

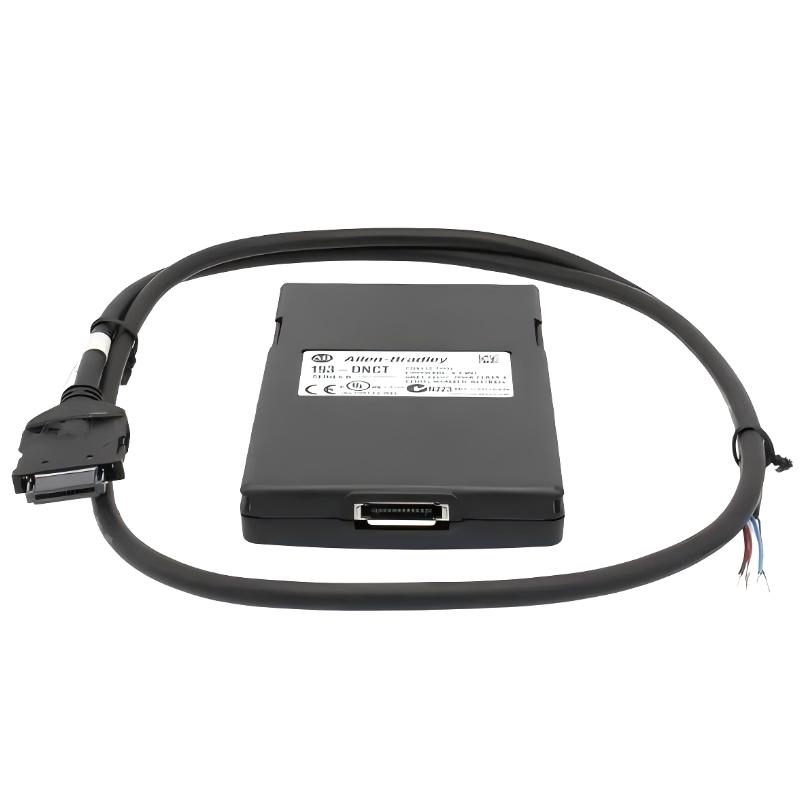

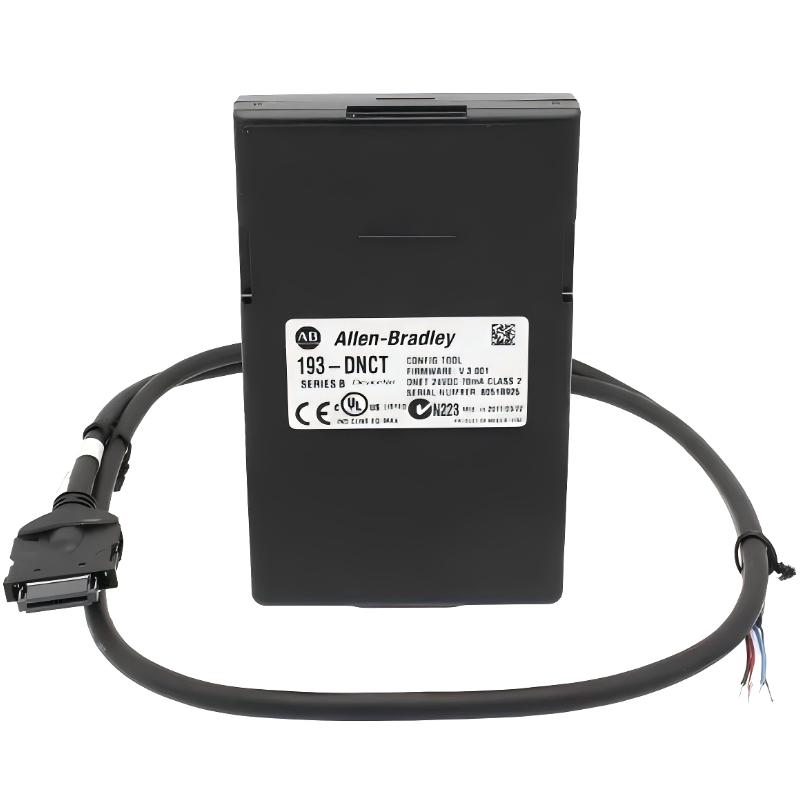

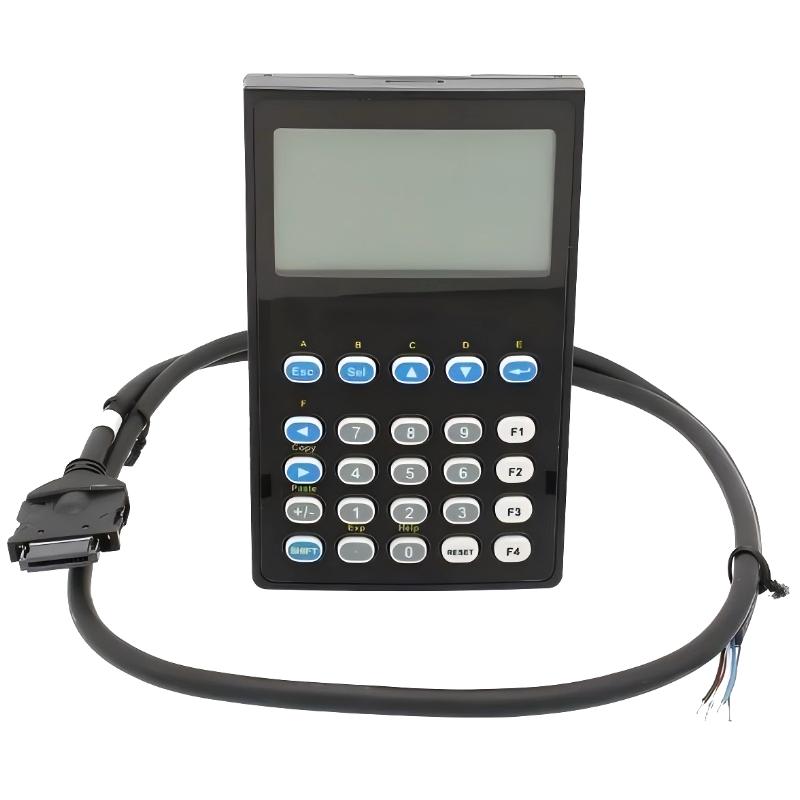

The Allen Bradley 193-DNCT is a handheld DeviceNet configuration terminal designed for commissioning, configuring, monitoring, and troubleshooting DeviceNet-enabled industrial automation devices. Built for use with Allen Bradley E1 Plus, E3, E3 Plus overload relays, ArmorStart distributed motor controllers, and related DeviceNet systems, this terminal provides fast access to network diagnostics and device parameter management directly in the field.
Its portable design and intuitive operation make the 193-DNCT a practical solution for maintenance engineers, automation technicians, and system integrators who require efficient DeviceNet network configuration and diagnostics without relying solely on PC-based software tools.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 193-DNCT |
| Product Family | Bulletin 193 |
| Module Type | DeviceNet Configuration Terminal |
| Primary Function | DeviceNet network commissioning and diagnostics |
| Communication Protocol | DeviceNet |
| Supported Devices | 193-EC, 592-EC, ArmorStart 280/281/283/284 series |
| Included Accessories | 1-meter 193-CB1 communication cable |
| Device Functions | Configuration, diagnostics, parameter editing, monitoring |
| Network Diagnostics | Bus statistics, node status, CAN error monitoring |
| DeviceLogix Support | Yes |
| Parameter Editing | Supported |
| Upload/Download Capability | Supported |
| Power Supply | Via DeviceNet connection |
| Operating Voltage | 11–25V DC |
| Power Consumption | Approx. 3–4 W |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Portable handheld device |
| Protection Rating | Industrial-use enclosure |
Technical information verified from Rockwell Automation and industrial automation references.
Physical Dimensions & Weight (L × W × H Combined)
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 150 × 100 × 50 mm |
| Weight | Approx. 0.5 kg |
Dimension and weight data sourced from industrial distributor specifications.
Recommended Related Models
The 193-DNCT is commonly used alongside Allen Bradley overload relays, DeviceNet communication accessories, and distributed motor control products.
| Related Model | Description |
|---|---|
| 193-EC2DD | E3 Plus overload relay |
| 193-DNENCAT | EtherNet/IP communication auxiliary |
| 592-EC series | Electronic overload relays |
| 280 ArmorStart | Distributed motor controller |
| 281 ArmorStart | Distributed motor controller |
| 283 ArmorStart | Distributed motor controller |
| 284 ArmorStart | Distributed motor controller |
| 193-CB1 | Communication cable |
| 825-P | Modular protection system |
| 193-EC5 | E3 Plus overload relay |
