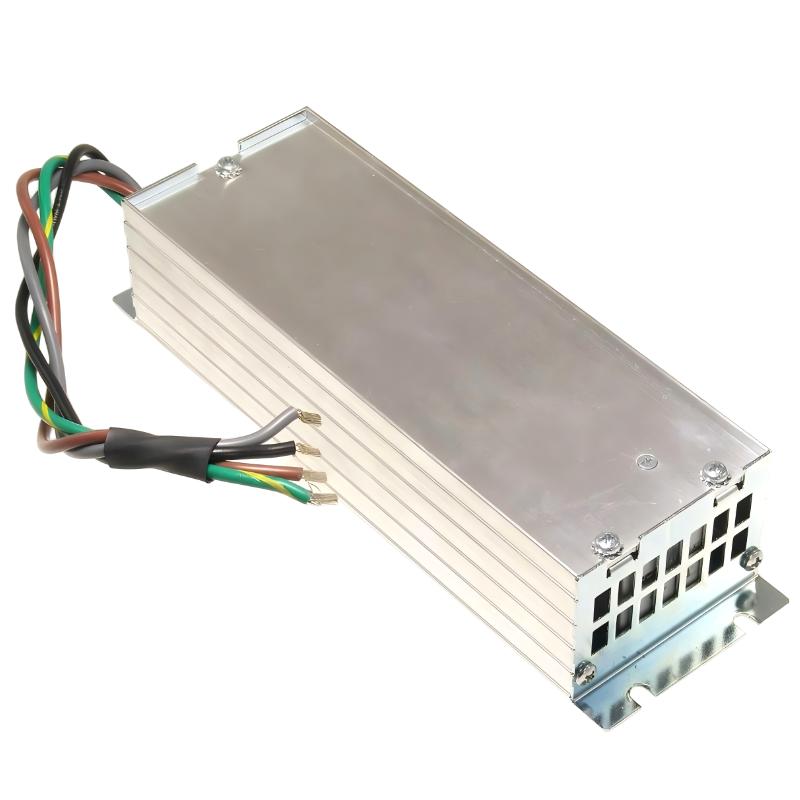

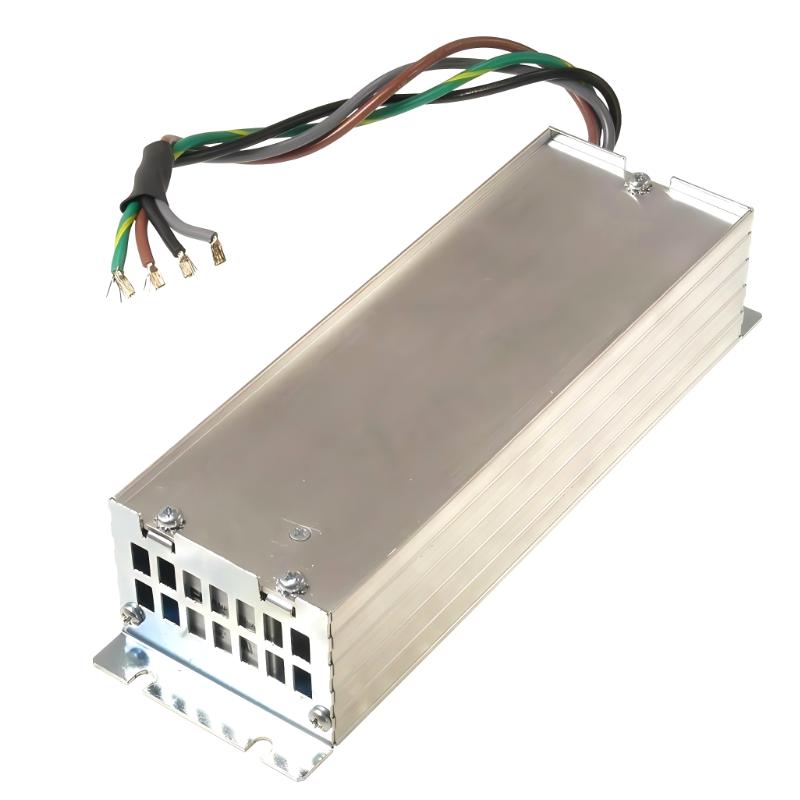

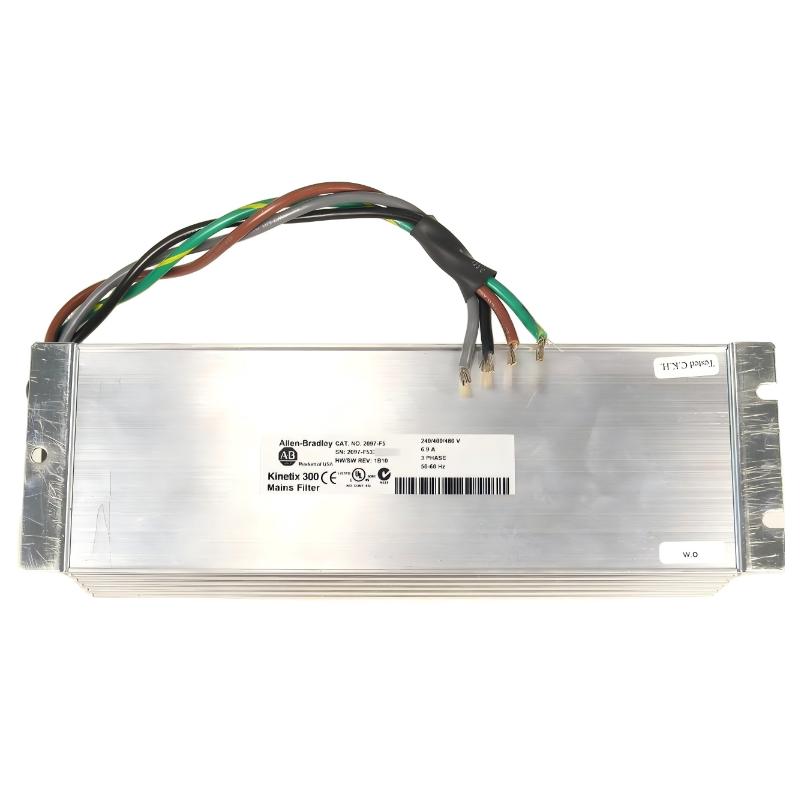

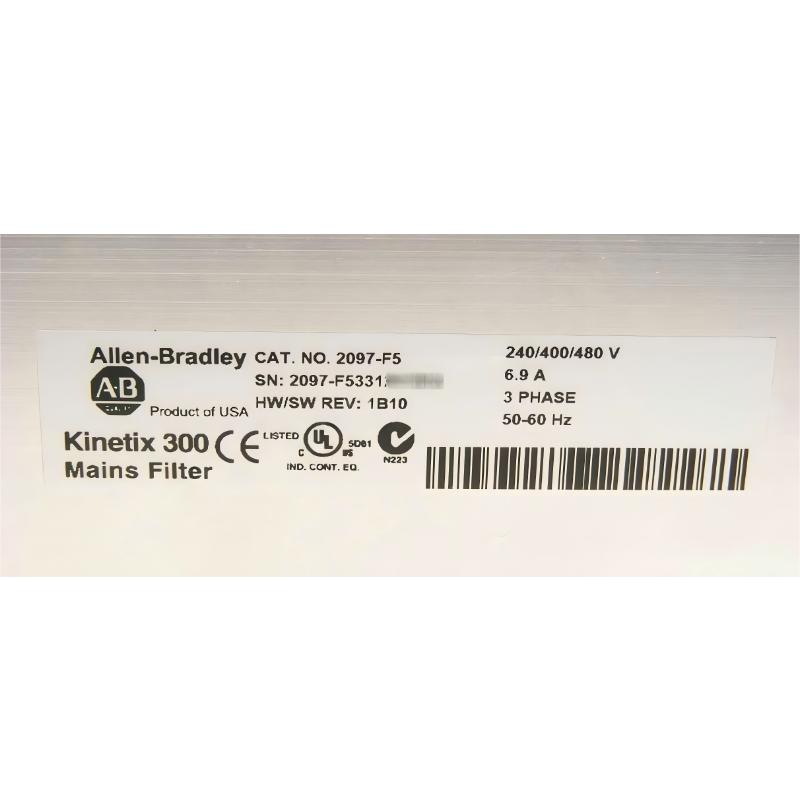

The Allen Bradley 2097-F5 is a Kinetix 300/350 AC Line EMI Filter designed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI) generated by servo drives in industrial automation systems.
It is installed between the incoming AC power source and the Kinetix servo drive to help improve EMC compliance, reduce conducted electrical noise, and enhance overall system reliability. The filter is optimized for use with Kinetix 300 and Kinetix 350 servo drives.
Rockwell Automation officially lists the 2097-F5 as discontinued, effective August 4, 2023.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 2097-F5 |
| Product Family | Kinetix 300 / 350 Accessories |
| Product Type | AC Line EMI Filter |
| Compatible Drives | Kinetix 300 and Kinetix 350 |
| Voltage Rating | 120/240/480V AC |
| Phase Support | Single-phase and 3-phase |
| Current Rating | 6.9 A |
| Mounting Style | Rear mount / footprint mount |
| Frequency Range | 47–66 Hz |
| Function | EMI/RFI suppression |
| Installation Location | AC input side of servo drive |
| Cooling Method | Passive |
| Protection Rating | IP20 |
| Certifications | UL, CE, CUL, KC |
Physical Dimensions & Weight (L × W × H)
| Parameter | Specification |
|---|---|
| Dimensions | Approx. 200 × 150 × 100 mm |
| Weight | Approx. 1.5 kg |
Main Functions
The 2097-F5 line filter provides:
- EMI suppression
- RFI reduction
- Improved electrical noise immunity
- Reduced conducted emissions
- Enhanced servo system stability
- Support for EMC compliance requirements
Typical installation:
AC Power → 2097-F5 EMI Filter → Kinetix Servo Drive → Servo Motor
Recommended Related Models
| Model | Description |
|---|---|
| 2097-V31PR0 | Kinetix 350 Servo Drive |
| 2097-V32PR2 | Kinetix 350 Servo Drive |
| 2097-V34PR5 | Kinetix 300 Servo Drive |
| 2097-F2 | Smaller line EMI filter |
| 2097-F6 | Higher-capacity line EMI filter |
| MPL / VPL Motors | Compatible servo motors |
| 2090 Series | Motor power and feedback cables |
| 5069-L320ER | CompactLogix controller |
| 1756-L8x | ControlLogix controller |
