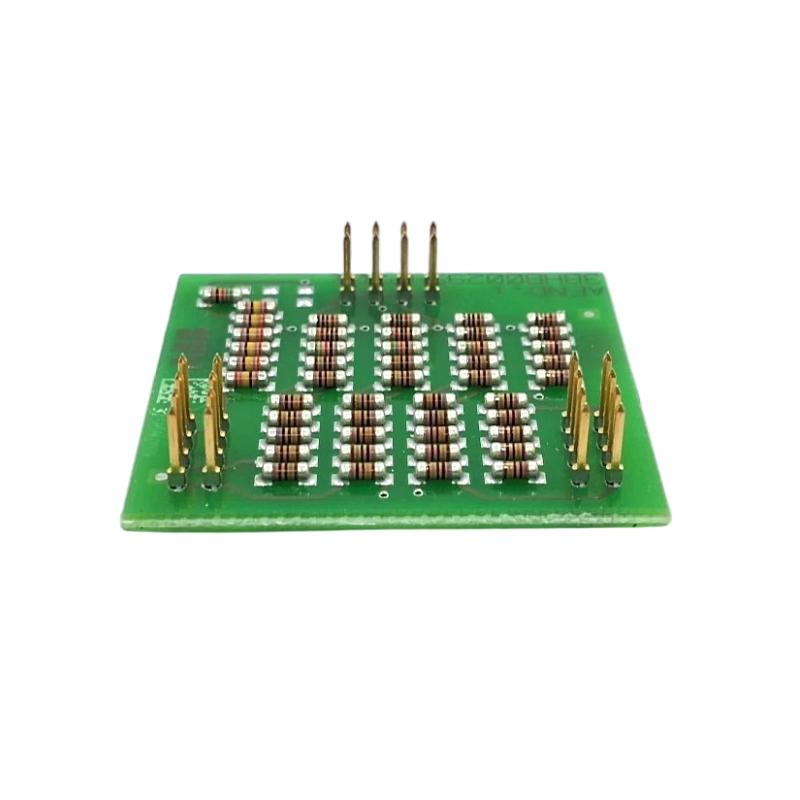

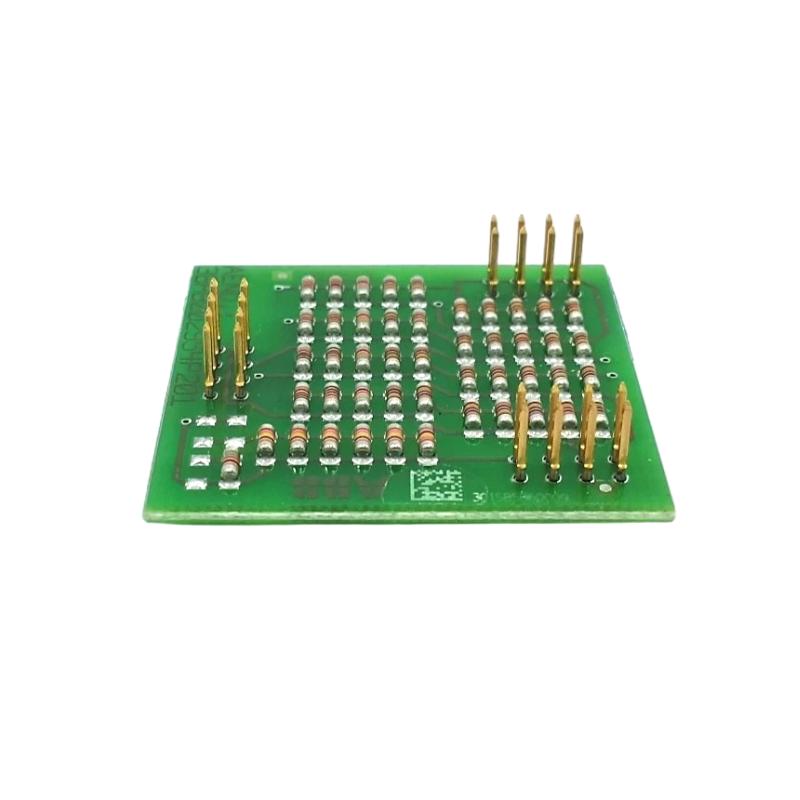

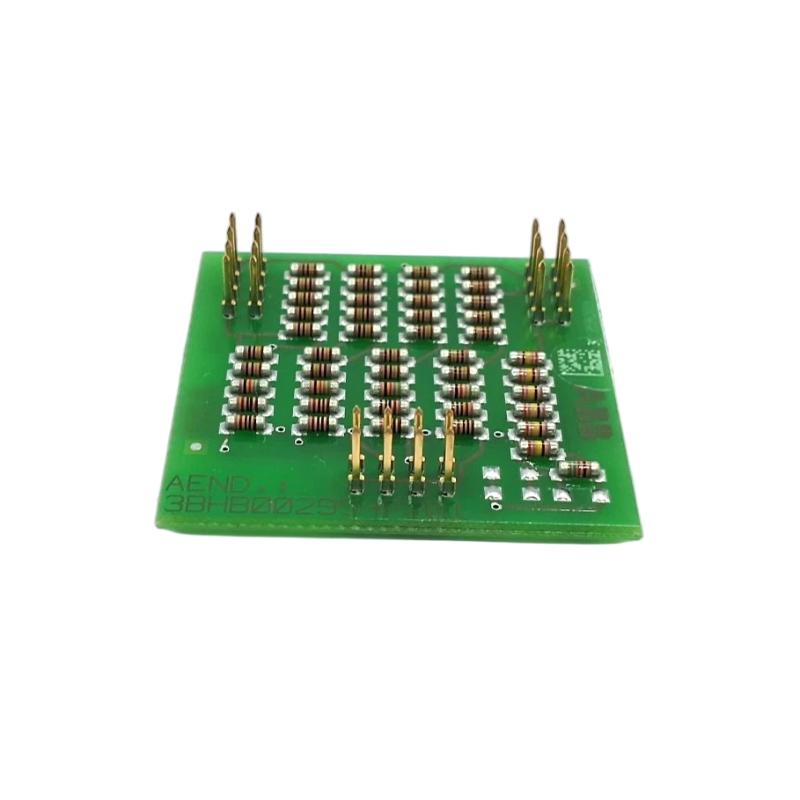

The ABB XV C723 AE05 (order code: 3BHB002953R0105) is a current measuring and scaling interface module used in ABB industrial drive and power conversion systems.
It is designed to perform precise current signal measurement, scaling, and conditioning, converting high-energy power circuit signals into low-level feedback signals suitable for control and monitoring systems. This ensures accurate real-time feedback for protection, regulation, and system stability in medium- and high-power ABB drive applications.
This module is commonly used in ABB ACS1000 and related medium-voltage drive platforms, where reliable current measurement is critical for safe and efficient motor control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | XV C723 AE05 |
| Order Code | 3BHB002953R0105 |
| Product Type | Current Measuring / Scaling Board |
| System Compatibility | ABB ACS1000 / MV drive systems |
| Function | Current measurement, scaling, signal conversion |
| Input Signal | High-voltage / high-current sensing circuit |
| Output Signal | Low-level analog feedback signal |
| Measurement Type | AC/DC current measurement |
| Accuracy | Industrial-grade high precision |
| Operating Temperature | -25°C to +70°C |
| Mounting Type | Plug-in PCB module (drive cabinet) |
The module is part of ABB’s “XV C723” current measurement family used in medium-voltage drive systems.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | Approx. 200 × 120 × 25 mm |
| Weight | Approx. 0.51 kg |
| Form Factor | Industrial PCB board |
| Installation | Drive cabinet rack / slot-mounted |
Recommended Related Models
- ABB XV C723 AE04 / AE06 / AE07 – adjacent current scaling variants
- ABB SCA 5133A series – current measurement scaling family
- ABB ACS1000 measurement boards – MV drive interface modules
- ABB IGCT converter control cards – power electronics systems
- ABB 3BHE / 3BHB control boards – drive system electronics
