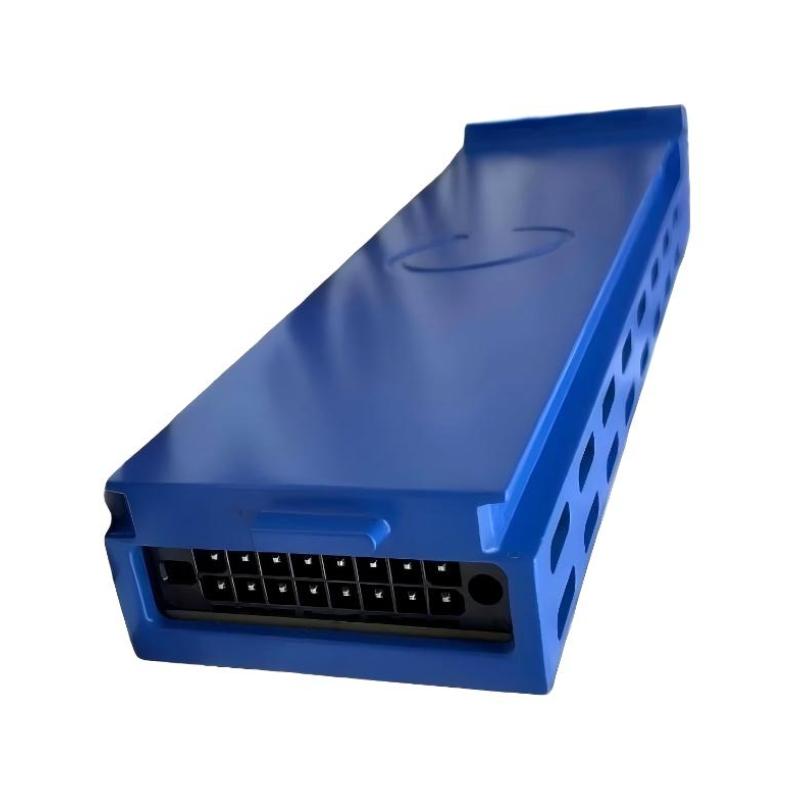

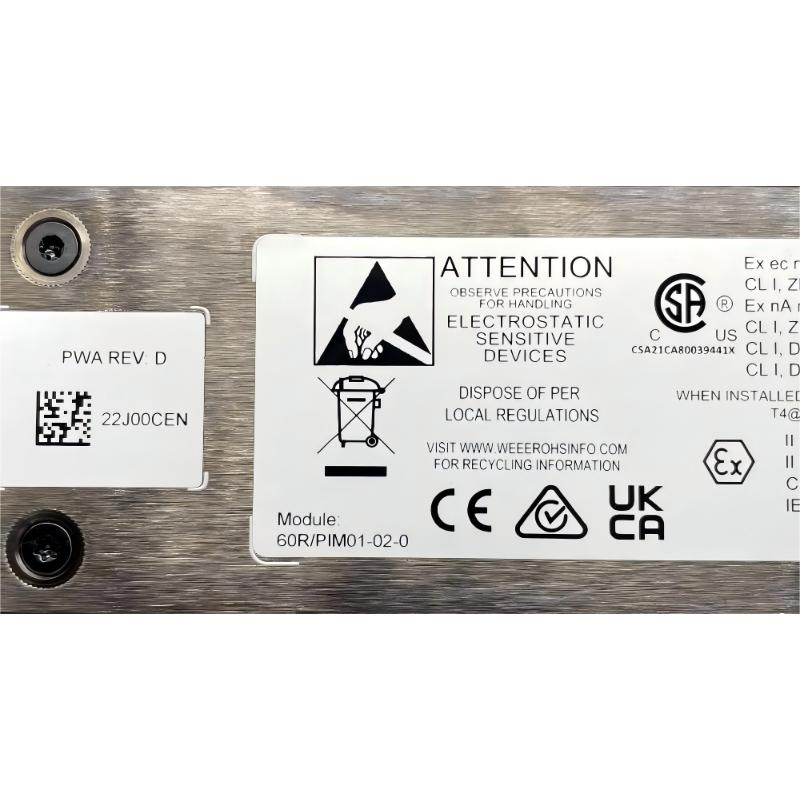

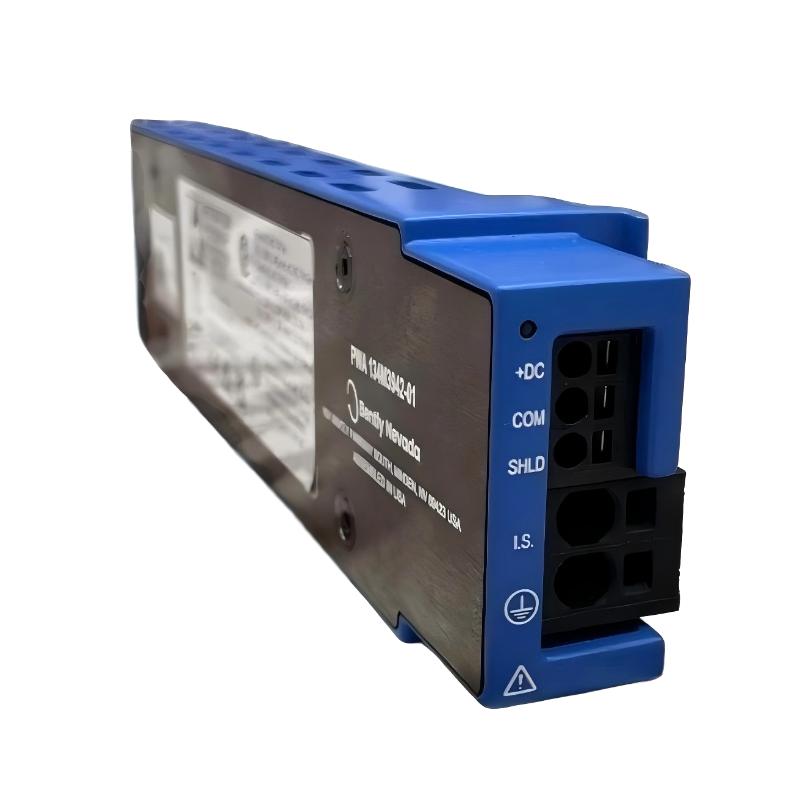

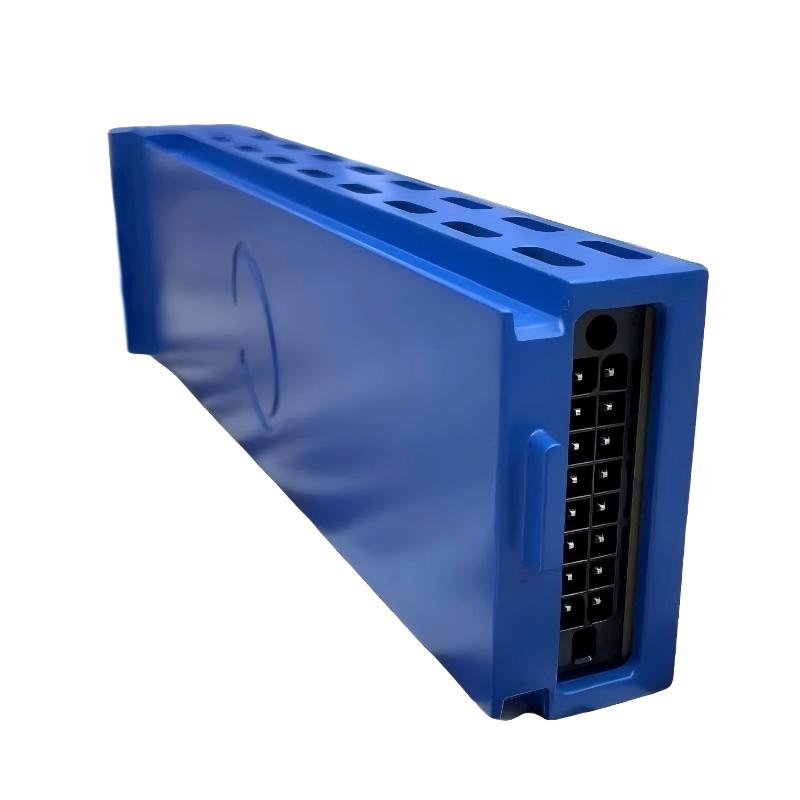

Bently Nevada 60R/PIM01 3U Power Input Module

Applications

• Orbit 60 machinery condition monitoring systems
Provides regulated and stable power input for Bently Nevada Orbit 60 rack-based monitoring platforms used in rotating machinery protection.

• Power generation monitoring systems
Supplies continuous and reliable power for turbine, generator, and auxiliary equipment condition monitoring applications.

• Oil and gas industrial automation systems
Ensures stable system operation in compressors, pumps, and critical process machinery environments.

• Petrochemical and refinery control systems
Supports uninterrupted monitoring performance in harsh and high-risk industrial operating conditions.

• Redundant power architecture systems
Enables dual-input configurations for high availability and fault-tolerant system design.

• Industrial predictive maintenance platforms
Maintains continuous operation of machinery health monitoring and diagnostic systems.

Advantages

• Stable regulated power delivery
Provides clean and consistent DC power to Orbit 60 monitoring modules.

• Redundant input support
Allows dual power sources to improve system availability and reduce downtime risk.

• Hot-swappable design capability
Enables safe module replacement without shutting down the full monitoring system.

• Integrated protection functions
Protects against overvoltage, overcurrent, and wiring faults in industrial environments.

• Compact 3U rack format
Designed for efficient installation in Orbit 60 chassis systems.

• High industrial reliability
Built for continuous operation in demanding industrial monitoring applications.

Technical FAQs

Q1: What is the main function of the 60R/PIM01 module?
It provides and regulates power input for the Orbit 60 condition monitoring system.

Q2: What system is it used with?
It is used exclusively with Bently Nevada Orbit 60 3U rack systems.

Q3: What is the typical input voltage range?
It supports industrial DC input, commonly around 21–32 VDC.

Q4: Does it support redundant power supply?
Yes, it supports dual power inputs for redundancy and high availability.

Q5: Can the module be replaced during operation?
Yes, it supports hot-swapping when redundancy is configured.

Q6: What protection features are included?
It includes protection against overvoltage, overcurrent, and wiring faults.

Q7: Is it suitable for harsh environments?
Yes, it is designed for industrial, oil & gas, and power generation environments.

Q8: Does it process monitoring signals?
No, it is strictly a power input module, not a signal processing unit.

Q9: How many PIM modules are used per chassis?
Typically one or two, depending on whether redundancy is required.

Q10: What type of mounting does it use?
It uses a 3U rack-mounted configuration within the Orbit 60 chassis.
