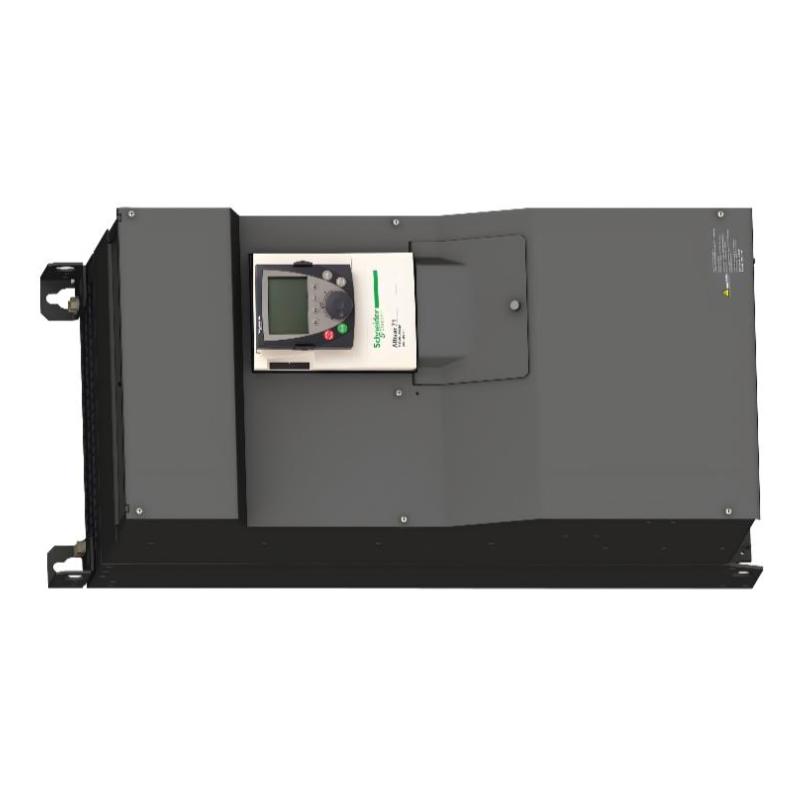

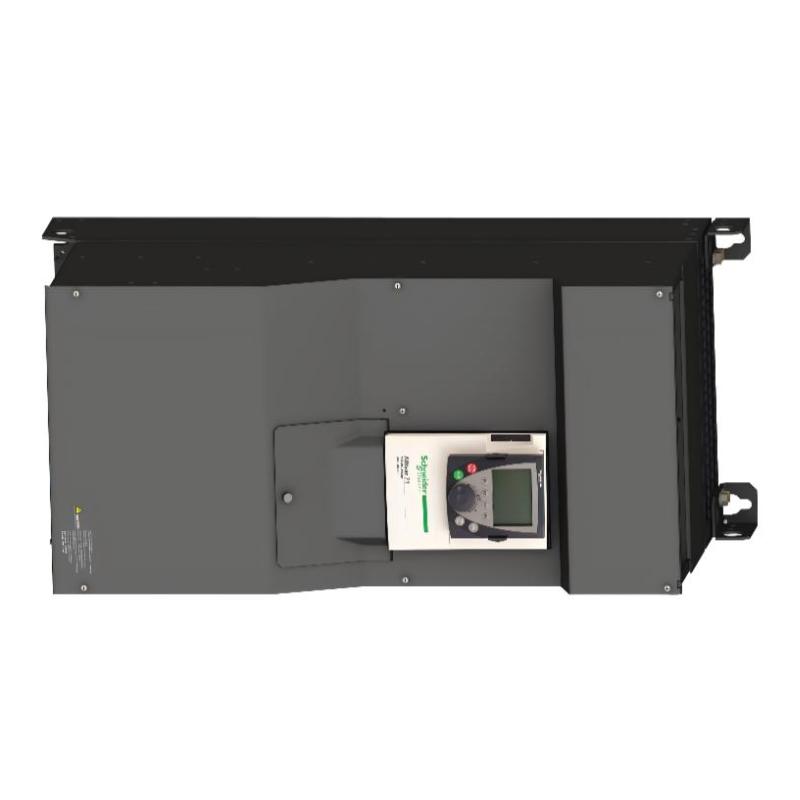

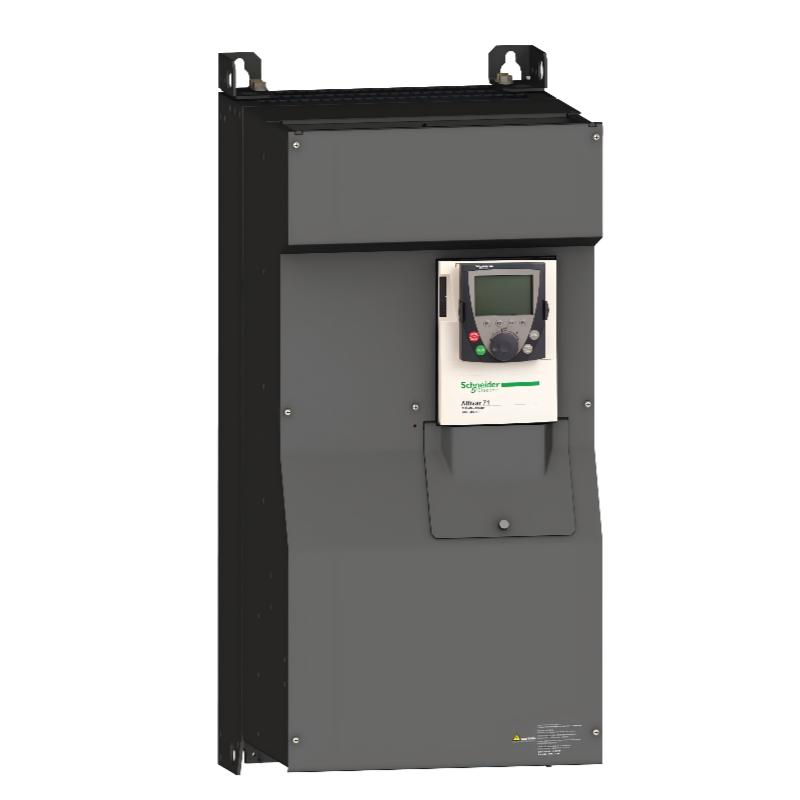

The Schneider Electric ATV71HC13N4 is a compact 9 kW variable frequency drive designed for precise motor control in demanding industrial applications. Combining energy efficiency, robust reliability, and advanced automation features, this drive ensures optimal performance even in space-constrained environments. Ideal for pumps, fans, conveyors, and light industrial machinery, the ATV71HC13N4 provides accurate speed and torque control while reducing energy consumption and operational costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | 13 A |
| Motor Power | 9 kW (12 hp) |
| Switching Frequency | 2 – 16 kHz |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus RTU, CANopen, Ethernet/IP |
| Protection Class | IP20 standard, IP54 optional |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | 240 × 150 × 140 mm |
| Weight | 5.2 kg |
