Product Overview

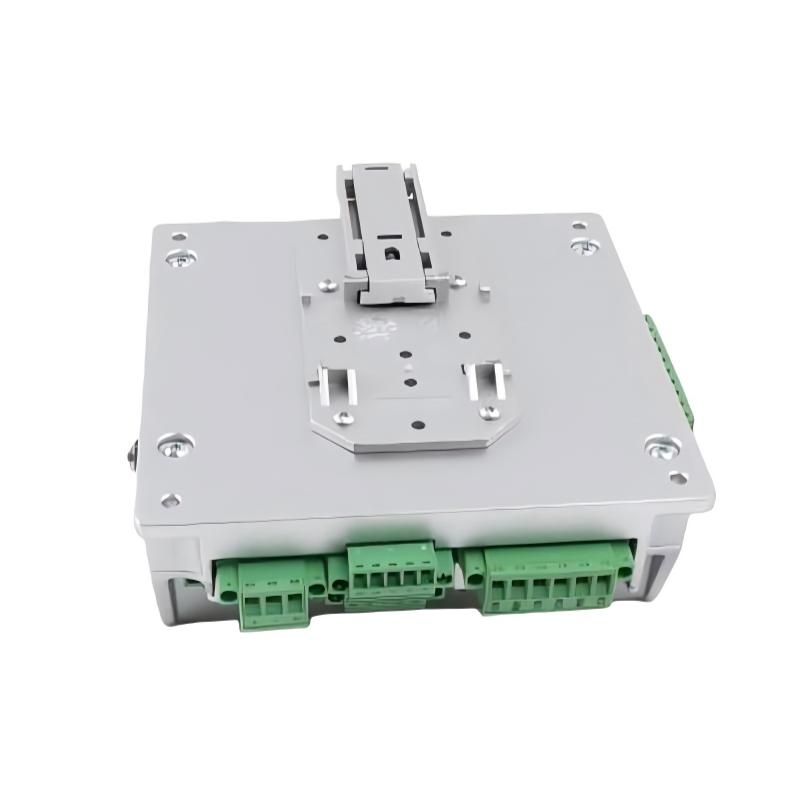

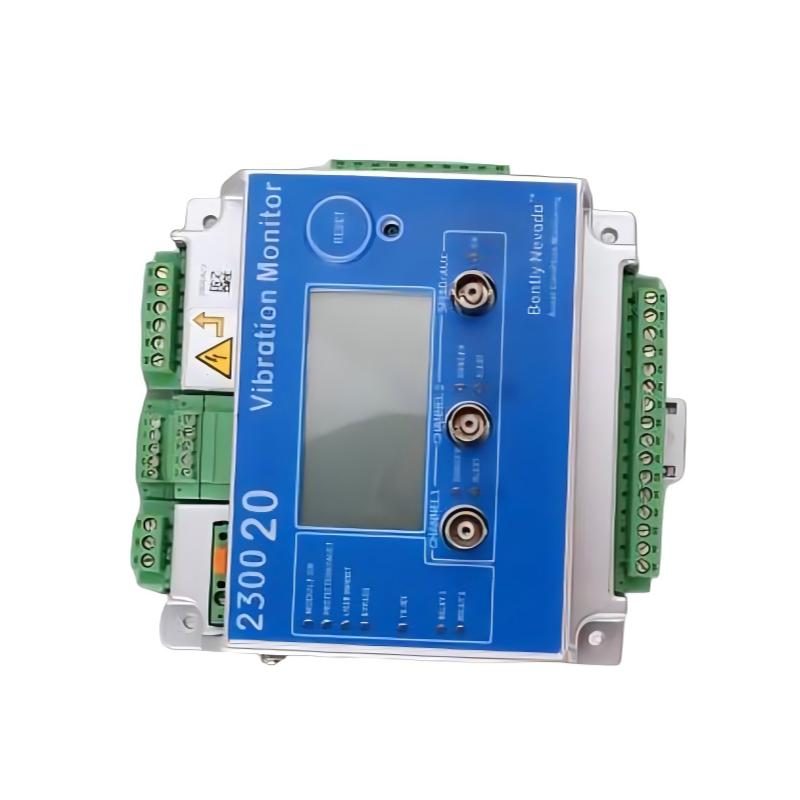

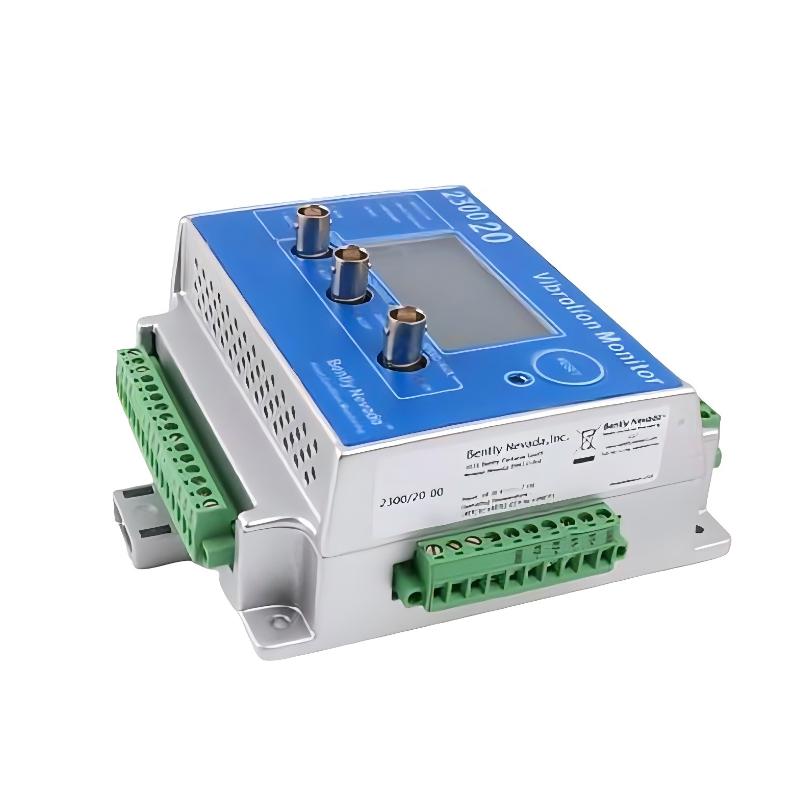

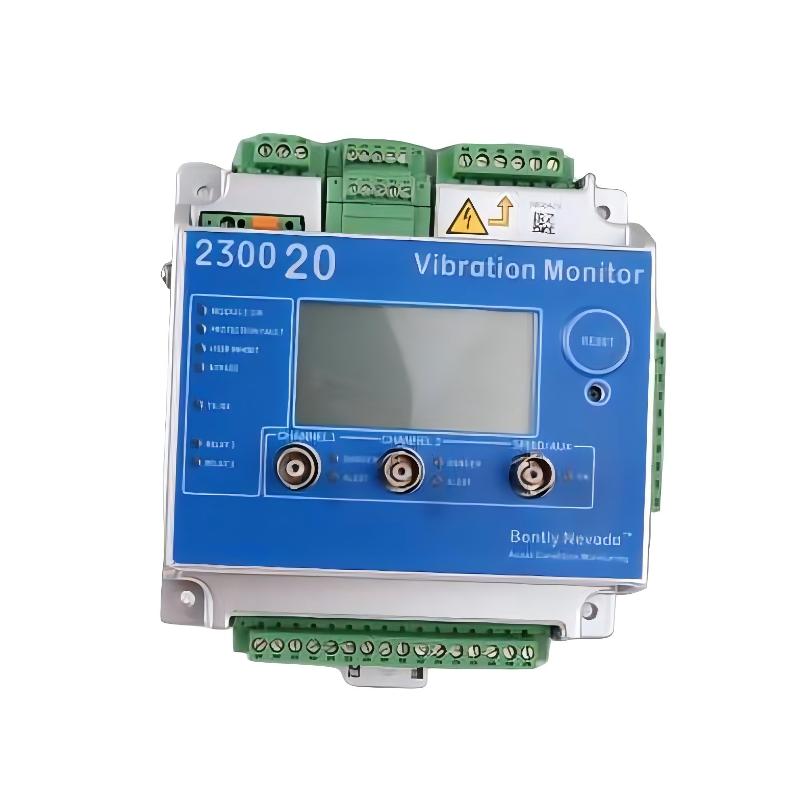

The Bently Nevada 2300/20-20 Vibration Monitor Module is a compact, reliable, and high-precision solution for monitoring critical rotating machinery. Measuring 127 x 127 x 76.2 mm and weighing 1.03 kg (2.27 lb), it delivers accurate vibration measurements for turbines, motors, compressors, and generators. Designed for industrial environments, it integrates seamlessly with Bently Nevada 3300 Series probes, enabling early fault detection and supporting predictive maintenance programs to reduce downtime and optimize operational reliability.

Technical Specifications

Feature	Specification
Dimensions	127 x 127 x 76.2 mm
Shipping Weight	1.03 kg (2.27 lb)
Compatibility	Bently Nevada 3300 Series Proximity Probes
Signal Type	Proximity probe signals
Operating Temperature	Standard industrial range
Mounting	Panel mount
EMI Resistance	Shielded for accurate measurement
Integration	Centralized monitoring systems
Durability	Industrial-grade robust construction
Applications	Rotating machinery, turbines, compressors, generators

Core Applications

The Bently Nevada 2300/20-20 Vibration Monitor Module is engineered to provide precise vibration monitoring for critical industrial machinery. Its compact yet powerful design makes it perfect for:

Continuous monitoring of turbines, motors, and generators
Condition analysis of pumps, compressors, and high-speed rotating equipment
Industrial plants implementing predictive maintenance programs
Early detection of mechanical faults such as imbalance, misalignment, or bearing wear
Integration with plant-wide control and monitoring systems for operational efficiency

Primary Advantages

Compact Design: With dimensions of 127 x 127 x 76.2 mm, it fits easily into existing panels or control systems.
Lightweight: Weighing only 1.03 kg (2.27 lb), installation and handling are simplified.
High-Resolution Vibration Detection: Ensures precise readings for critical rotating equipment.
Rugged Industrial Reliability: Built to withstand vibrations, temperature variations, and industrial environmental stresses.
Seamless Integration: Fully compatible with Bently Nevada 3300 Series probes and preamplifiers.
Predictive Maintenance Support: Provides actionable data to schedule maintenance proactively, reducing unplanned downtime.

Technical FAQs

Q: Which sensors are compatible with this monitor?
A: It supports standard Bently Nevada 3300 Series proximity probes.
Q: Can it monitor high-speed rotating machinery?
A: Yes, it maintains accuracy under high-speed and high-vibration conditions.
Q: Does it support real-time vibration monitoring?
A: Yes, continuous real-time data output allows early detection of anomalies.
Q: Can it be integrated with centralized monitoring systems?
A: Absolutely, it works seamlessly with plant-wide monitoring and control systems.
Q: How is the 2300/20-20 installed?
A: Panel-mounted using standard industrial mounting hardware.
Q: How resistant is it to electromagnetic interference (EMI)?
A: It is fully shielded to prevent EMI from affecting measurement accuracy.
Q: Can it withstand industrial temperature fluctuations?
A: Yes, it is designed for standard industrial temperature ranges.
Q: Does it require calibration?
A: Periodic calibration is recommended as part of a plant maintenance schedule; daily operation does not require adjustment.
Q: Can multiple modules be networked together?
A: Yes, it supports integration with multiple modules for comprehensive vibration monitoring.
Q: How does it contribute to predictive maintenance strategies?
A: By providing high-fidelity vibration data, it enables early fault detection and allows maintenance to be scheduled proactively.
