Product Overview

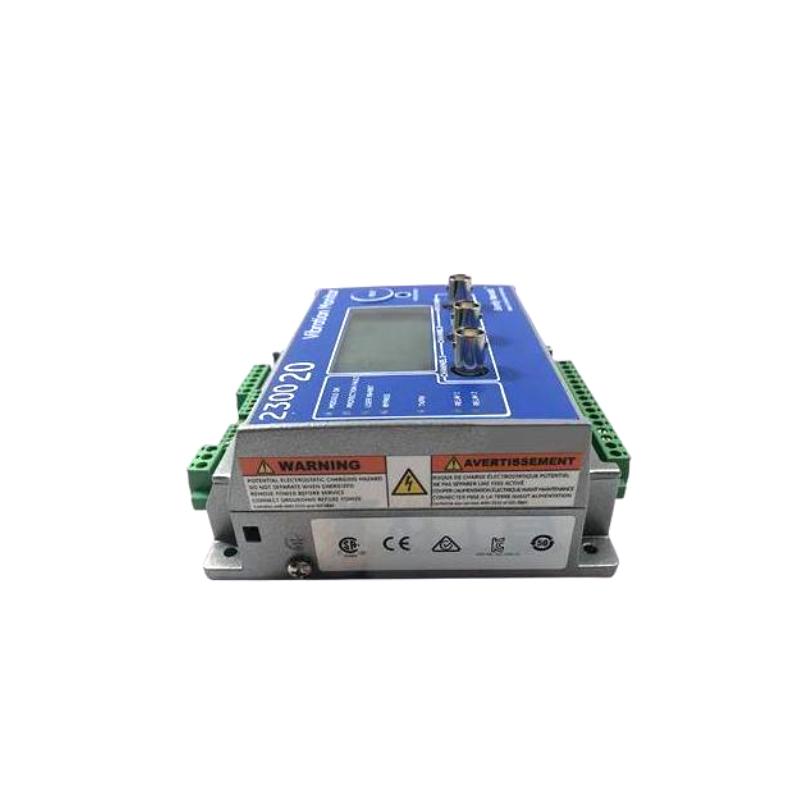

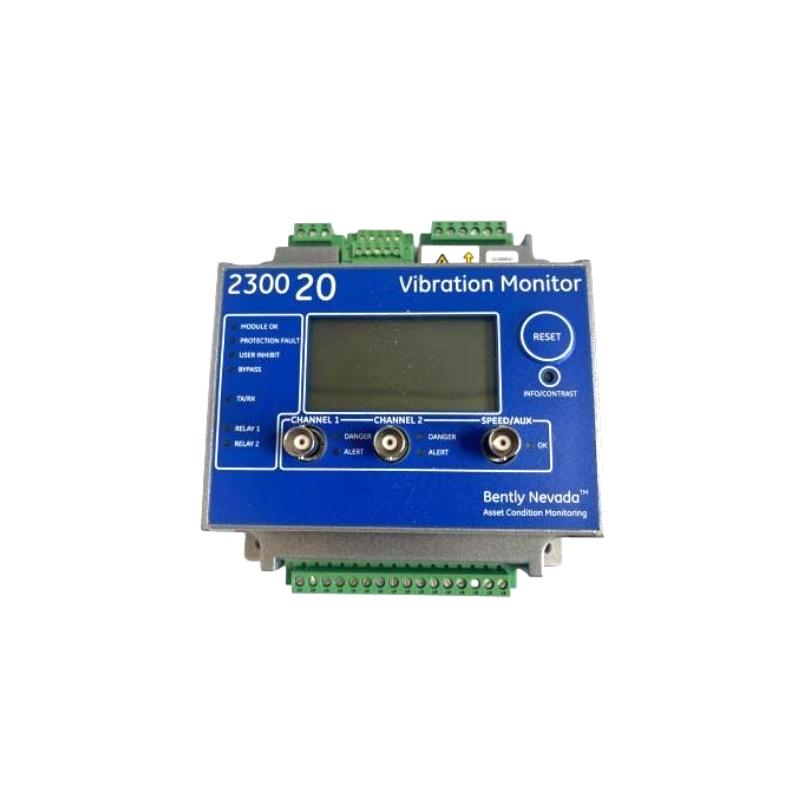

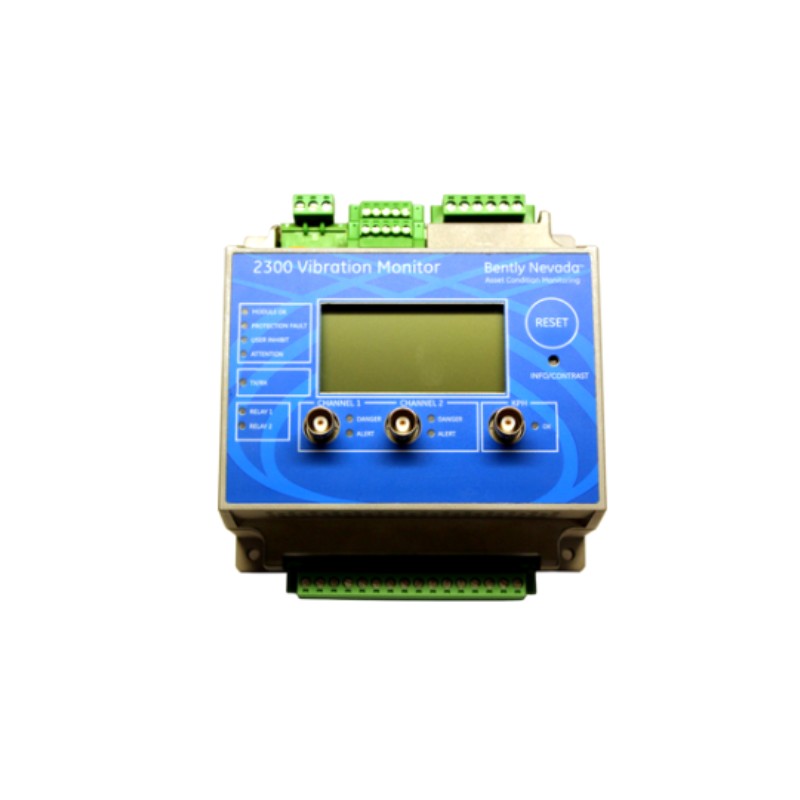

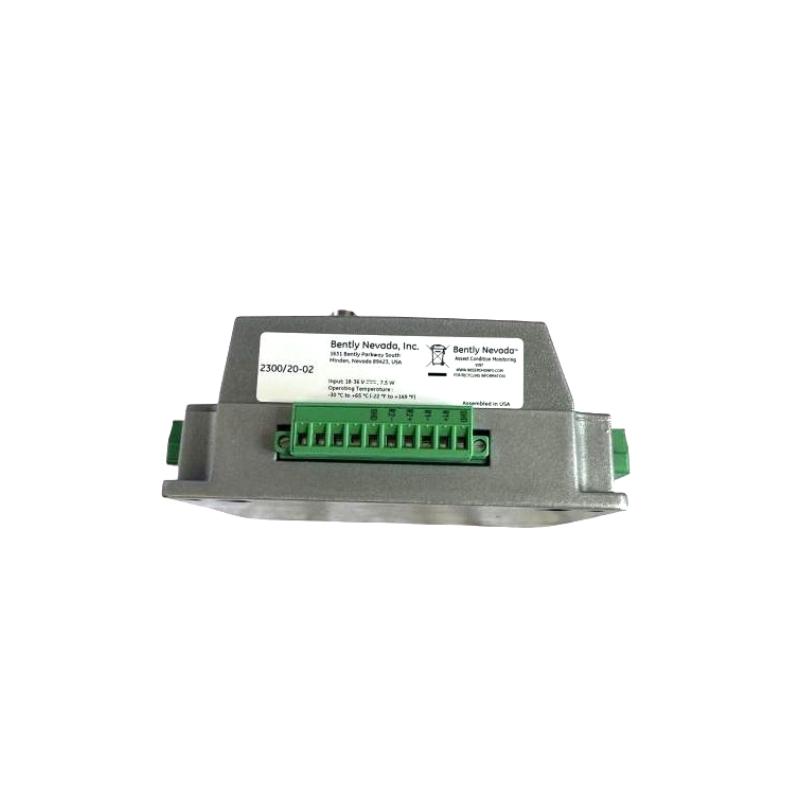

The Bently Nevada 2300/20-CN Vibration Monitor Module is a robust, compact, and precise solution for monitoring the health of critical rotating machinery. Measuring 127 x 127 x 76.2 mm and weighing 1.03 kg (2.27 lb), it delivers accurate vibration measurements for turbines, generators, motors, and compressors. Designed for industrial reliability, the module integrates with Bently Nevada 3300 Series probes, supporting real-time monitoring and predictive maintenance strategies to reduce downtime and enhance operational efficiency.

Technical Specifications

Feature	Specification
Dimensions	127 x 127 x 76.2 mm
Shipping Weight	1.03 kg (2.27 lb)
Compatibility	Bently Nevada 3300 Series Proximity Probes
Signal Type	Proximity probe signals
Operating Temperature	Standard industrial range
Mounting	Panel mount
EMI Resistance	Shielded for accurate measurement
Integration	Centralized monitoring systems
Durability	Industrial-grade robust construction
Applications	Rotating machinery, turbines, compressors, generators

Industrial Applications

The Bently Nevada 2300/20-CN Vibration Monitor Module is designed for reliable machinery condition monitoring in demanding industrial settings. Its compact design delivers high-performance vibration monitoring across a variety of applications:

Continuous monitoring of turbines, generators, and high-speed motors
Vibration diagnostics of pumps, compressors, and critical rotating equipment
Integration into predictive maintenance programs in power generation, petrochemical, and manufacturing facilities
Early detection of bearing faults, shaft misalignment, and rotor imbalance
Plant-wide monitoring for operational reliability and maintenance optimization

Advantages

Compact Form Factor: 127 x 127 x 76.2 mm housing allows flexible installation in control panels.
Lightweight: Weighing only 1.03 kg (2.27 lb), it is easy to install and transport.
Accurate Vibration Monitoring: High-resolution readings for precise detection of mechanical anomalies.
Rugged and Durable: Withstands industrial vibrations, temperature variations, and challenging environmental conditions.
Seamless Integration: Fully compatible with Bently Nevada 3300 Series probes and preamplifiers.
Supports Predictive Maintenance: Delivers actionable vibration data to prevent unexpected downtime.

Technical FAQs

Q: Which sensors are compatible with the 2300/20-CN?
A: Compatible with all Bently Nevada 3300 Series proximity probes.
Q: Can it monitor high-speed rotating equipment reliably?
A: Yes, it provides accurate readings even under extreme rotational speeds.
Q: Does the module provide real-time data output?
A: Yes, continuous monitoring allows immediate detection of vibration anomalies.
Q: Is it compatible with centralized monitoring systems?
A: Yes, it integrates seamlessly with plant-wide monitoring networks.
Q: How is it mounted?
A: Panel-mount installation using standard industrial mounting hardware.
Q: How resistant is it to electromagnetic interference (EMI)?
A: Fully shielded to ensure accurate vibration measurements in EMI-prone environments.
Q: Can it handle industrial temperature variations?
A: Yes, it operates reliably within standard industrial temperature ranges.
Q: Does it require frequent calibration?
A: Periodic calibration is recommended per plant maintenance schedule; daily operation does not require adjustment.
Q: Can it be networked with multiple vibration monitors?
A: Yes, it supports integration with multiple modules for comprehensive plant monitoring.
Q: How does it support predictive maintenance?
A: Provides high-fidelity vibration data that enables operators to schedule maintenance before failures occur.
