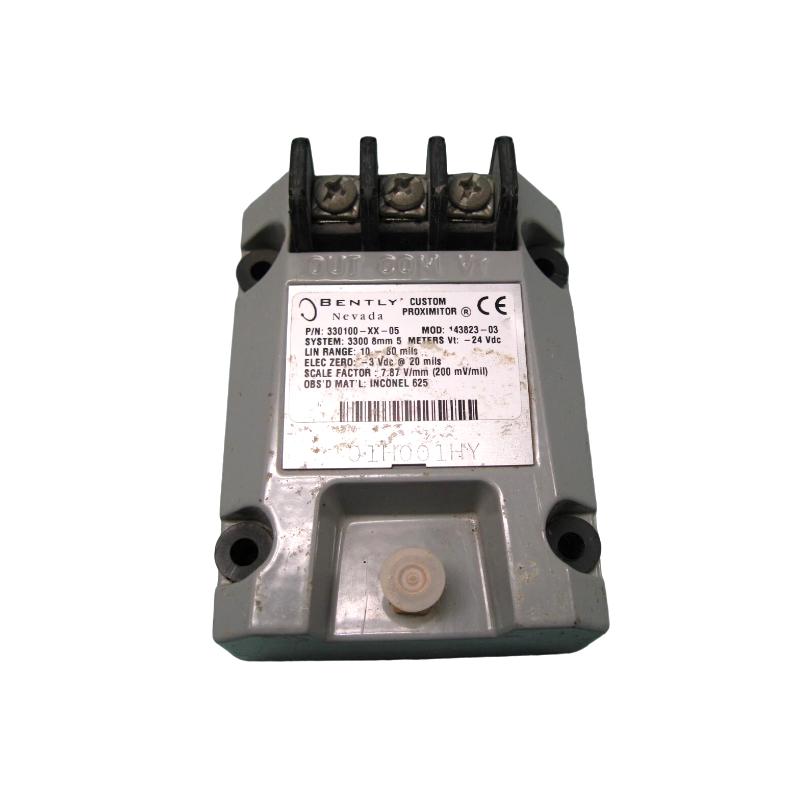

Bently Nevada 330100-XX-05 143823-03 3300 Preamplifier Sensor

Industrial Applications

The Bently Nevada 330100-XX-05 (Mod 143823-03) is part of the 3300 Proximitor / preamplifier sensor family, used in eddy current proximity measurement systems for rotating machinery condition monitoring. It is a key signal conditioning device that converts probe signals into a stable output for vibration, position, and speed monitoring.

Typical applications include:

• Steam and gas turbine vibration monitoring
• Compressor shaft displacement measurement
• Pump condition monitoring systems
• Generator and motor protection systems
• Oil & gas rotating equipment diagnostics
• Petrochemical plant machinery monitoring
• Industrial automation protection systems
• Keyphasor and speed reference systems

Product Advantages

• Part of the proven Bently Nevada 3300 series system
• Supports interchangeable probe/cable/sensor architecture
• High stability signal conditioning for vibration measurement
• Designed for harsh industrial environments
• Strong immunity to electrical noise and interference
• Suitable for continuous machinery protection systems
• Compatible with legacy 3300 probe systems
• Reliable long-term operation in critical assets

Technical FAQs

1. What is this device used for?

It is a proximitor/preamplifier sensor that processes signals from eddy current proximity probes.

2. What system does it belong to?

It belongs to the Bently Nevada 3300 vibration monitoring system.

3. What does “330100-XX-05” mean?

• 330100: Proximitor sensor family
• XX: configuration placeholder (system length variant)
• 05: agency approvals / compliance variant

4. What is the 9.0 meter reference?

It indicates the system length option (typically 9 m total cable/probe configuration).

5. What is the function in a monitoring chain?

It converts eddy current probe signals into a usable voltage output for monitoring systems.

6. Is it still widely used?

Yes, but mainly in legacy 3300 systems already installed in industrial plants.

7. What industries use it?

Power generation, oil & gas, petrochemical, and heavy manufacturing.

8. Is it interchangeable with newer systems?

Not directly; newer 3300 XL / 3500 systems require matched components.

9. Why is system matching important?

Probe, extension cable, and proximitor must be calibrated as a matched set for accuracy.

10. What is the importance of this module?

It is essential for accurate vibration and shaft position monitoring in rotating machinery.
